What Is a Pancake Cylinder?

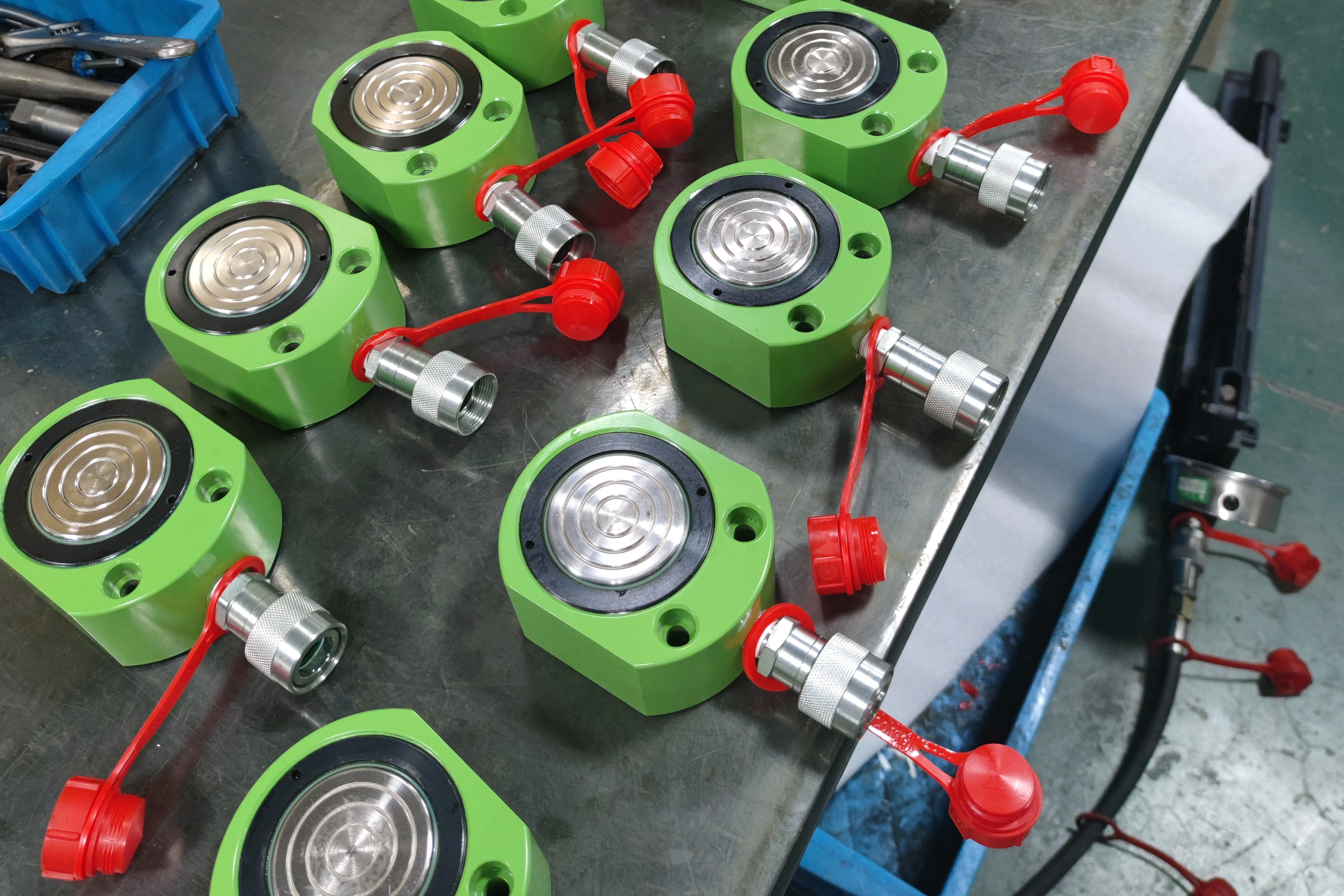

In industrial automation, confined machinery spaces, and compact assembly fixtures, achieving high linear force within an extremely restricted footprint is a major engineering challenge. Many technicians and equipment designers often wonder: what is a pancake cylinder? A pancake cylinder—frequently referred to as a short-stroke cylinder or compact cylinder—is a specialized hydraulic or pneumatic actuator engineered with an exceptionally flat, low-profile body designed to fit into spaces where standard actuators cannot possibly go.

Understanding how pancake cylinders operate and where they excel helps engineers design efficient, space-saving machinery without sacrificing clamping force or structural reliability.

How Pancake Cylinders Work

Despite their unusually flat physical appearance, pancake cylinders operate on the exact same core fluid power principles as traditional linear actuators.

Compact Design for Maximum Space Efficiency

The defining characteristic of a pancake cylinder is its remarkably short body length relative to its wide bore diameter. To achieve high output force in tight vertical spaces, manufacturers design the piston with a large surface area (bore) while drastically shortening the travel distance (stroke length). This geometry allows the cylinder to tuck neatly into narrow recesses, confined tool cavities, or low-clearance clamping stations.

Single-Acting and Double-Acting Variations

Depending on your application requirements, pancake cylinders are manufactured in both single-acting (spring-return) and double-acting configurations. Single-acting models use hydraulic pressure or compressed air to extend the piston, relying on an internal return spring to retract it. Double-acting compact units utilize fluid pressure for both extension and retraction, providing positive control in both directions within tight spatial constraints.

High Force from a Small Footprint

Because force is a product of fluid pressure multiplied by piston area, a pancake cylinder can generate immense pushing power despite its short height. By utilizing a large bore diameter combined with a high-pressure supply from a reliable hydraulic pump, these compact units deliver the heavy-duty force needed for demanding pressing and holding tasks in confined areas.

Common Applications and Industry Uses

Because of their unique low-profile geometry, pancake cylinders are indispensable across specialized manufacturing sectors.

Tight-Clearance Clamping and Fixturing

In automated machining centers and welding jigs, workpieces must be clamped securely while leaving maximum clearance for cutting tools or robotic arms. Pancake cylinders provide the necessary holding force right at the work surface without obstructing moving machine components.

Bearing Removal and Maintenance

In heavy equipment maintenance, technicians frequently use low-profile hydraulic pancake cylinders—often paired with a portable Electric Hydraulic Pump—to push or pull stubborn gears, bearings, and pins where standard-height cylinders are too tall to fit between structural frames.

Stamping and Pressing Stations

Specialized industrial presses that require massive tonnage over very short vertical travel distances rely on pancake actuators to deliver concentrated force at the exact point of contact.

Achieving Excellence with Professional Equipment

Success in fluid power applications relies on selecting robust tools and maintaining them with high-quality supplies engineered specifically for the demands of your work environment.

Engineering for Consistent Results

When operating high-pressure industrial systems, you need equipment designed for extreme durability and effortless serviceability. Robust housing designs, precision internal machining, and high-grade seals ensure reliable Performance under continuous heavy loads. SAIVS focuses on providing heavy-duty fluid power hardware that stands up to demanding industrial use, giving you dependable results every single time.

Expert Support for Your Tooling Needs

Selecting the ideal cylinder size, matching correct fluid viscosities, or evaluating low-profile system requirements requires a clear understanding of fluid dynamics. If you need assistance with equipment selection, custom engineering, or troubleshooting, consult with experts who understand industrial hydraulics. Professional guidance ensures that your hardware investments accurately protect your operational safety and efficiency.

Trusted Solutions for Industrial Excellence

For professionals demanding the best in fluid control and heavy machinery support, Saivs offers a comprehensive range of industrial equipment. Their commitment to engineering quality and reliability helps keep your operations running smoothly without unexpected interruptions. By choosing Saivs, you invest in durability, precision, and the long-term success of your industrial operations.
