STF14H 14 Ton 3.16 in Hydraulic Flange Spreader Set
-
Model:STF14H
Maximum Operating Pressure: 700bar/1000PSI
Maximum Spreading Force: 14 ton | 137.3 kN
Weight: 7.1 kg | 15.7 lbs
Maximum Spread (mm): 80 | 3.16 in
Tip Clearance (mm): 6
Power Source: Hydraulic
Oil Capacity (cm³): 78
Flange Spreader: FSH14
Manufacturer:SAIVS
Country of Origin:China
Minimum Order:1 Piece
Brand Name:Replacement Enerpac's STF14H
- STF14H 14 Ton 3.16 in Hydraulic Flange Spreader Set STF14HB 14 Ton Hydraulic Flange Spreader-Kit
Description
Model:STF14H
Product Line: Industrial Tools
Customizable with special requirement

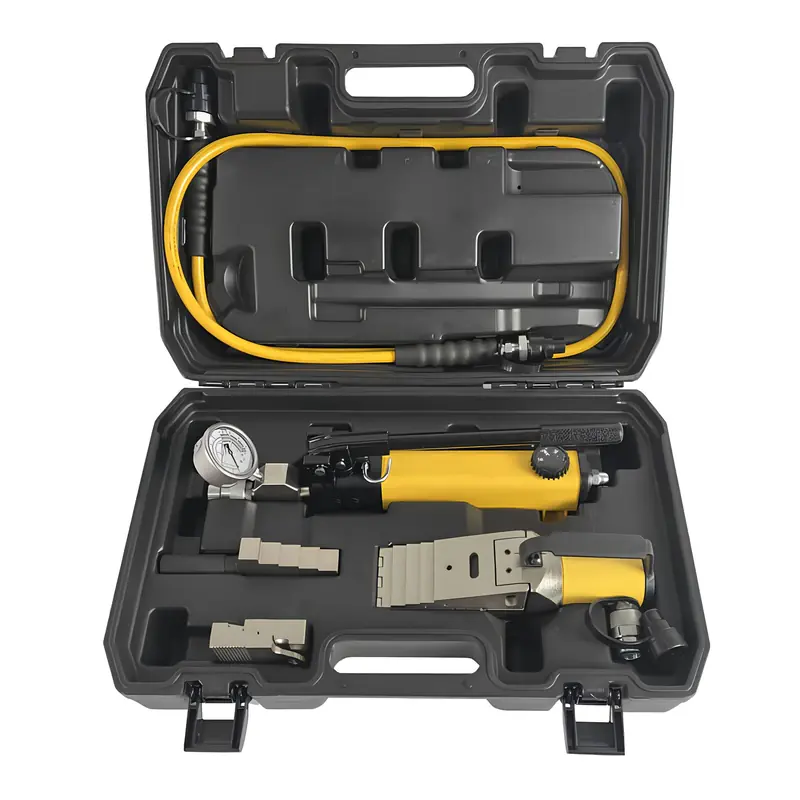

The Hydraulic Flange Spreader set includes a pump, tool, gauge, gauge adapter, couplers, and hose for your convenience. It is suitable for maintenance, overhaul, testing, and valve replacement applications.
Integrated Wedge Design:
Friction-free, smooth, and parallel wedge movement.
Eliminates flange damage and prevents spreading arm failure.
Unique Interlocking Wedge Design:
No first step bending.
Eliminates the risk of slipping out of the joint.
Minimal Access Requirement:
Requires only a 6mm gap.
Stepped Spreader Arm Design:
Each step can spread under full load.
Material:
Made of 42CrMnMo for durability and strength.

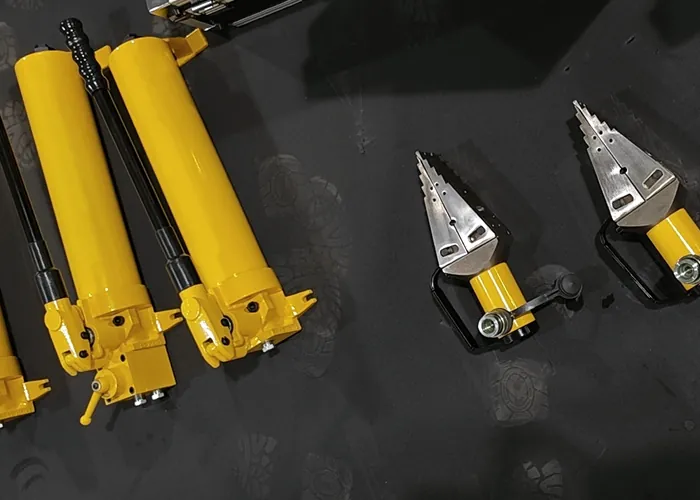

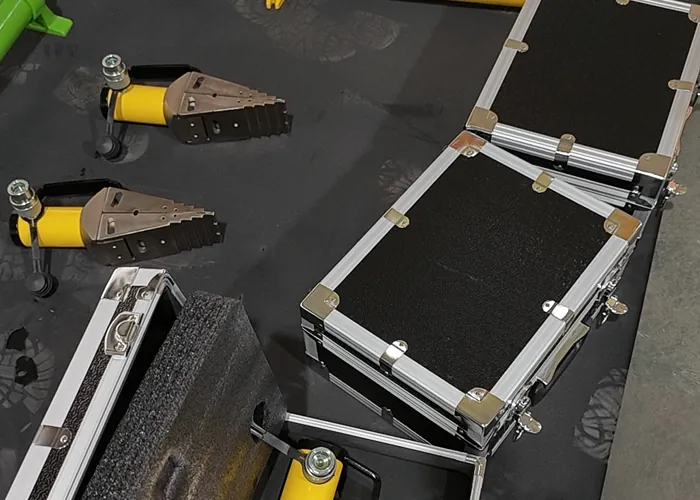

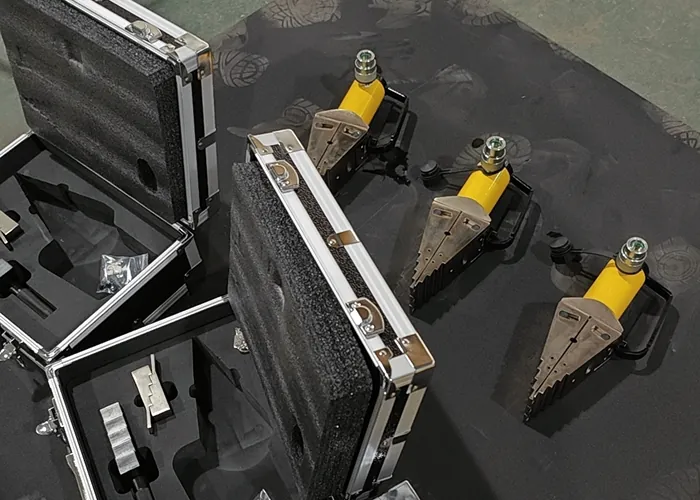

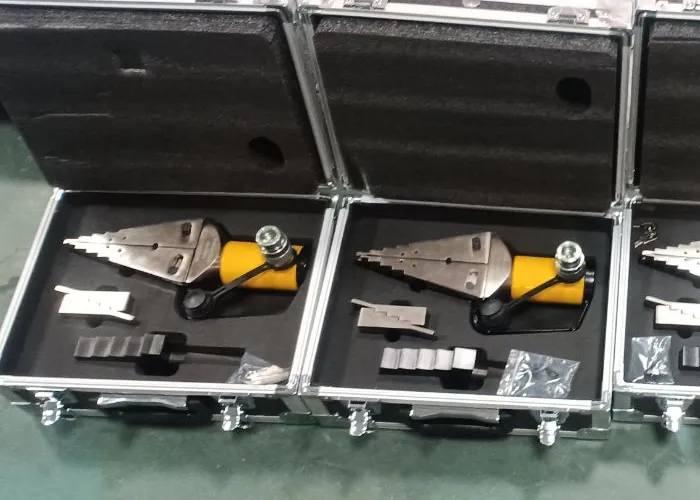

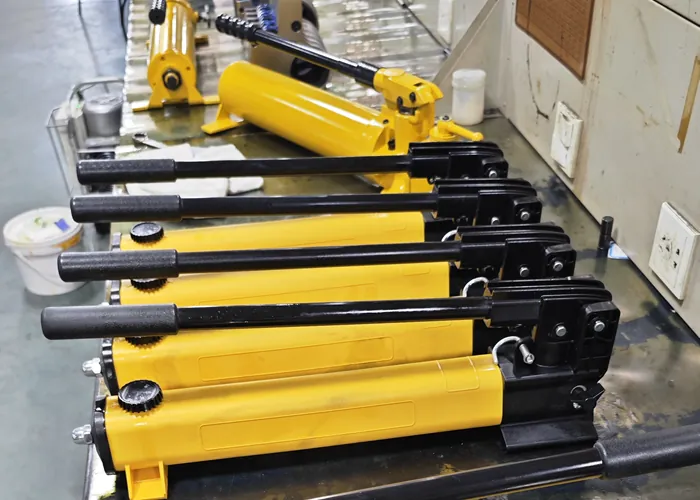

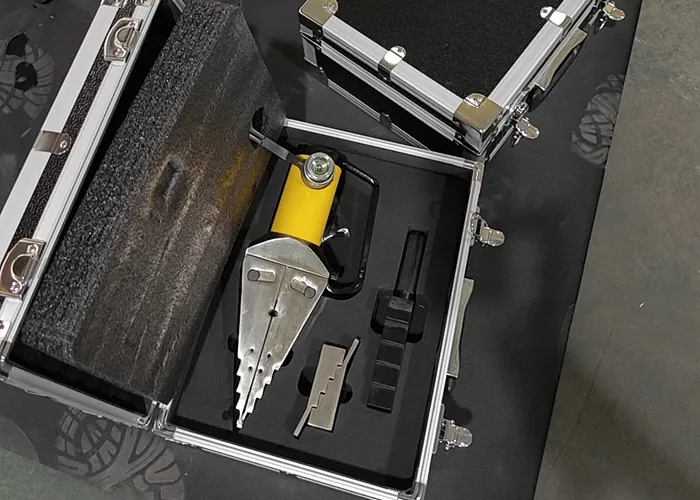

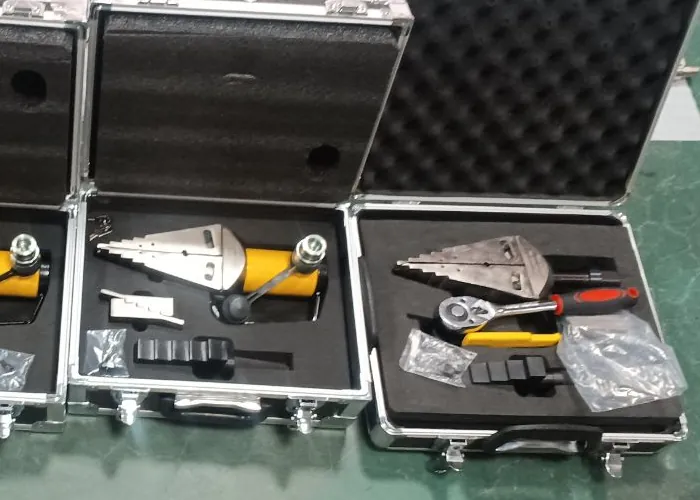

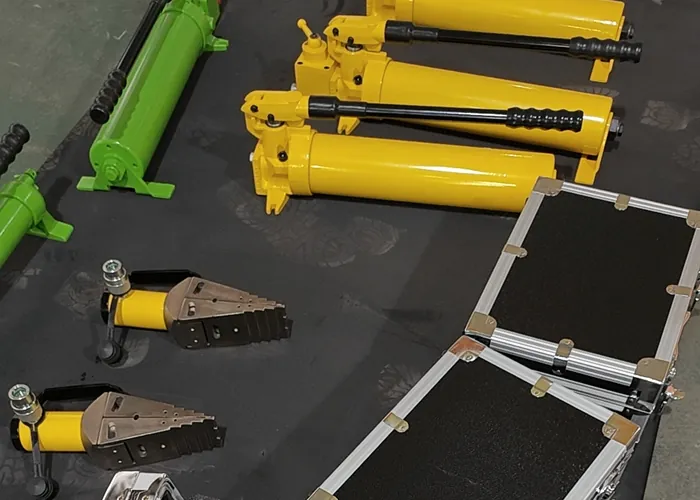

Image Gallery

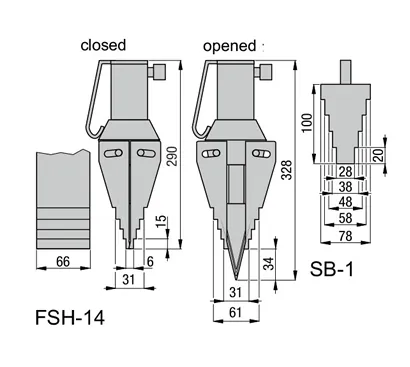

Dimensions
| Maximum Operating Pressure (bar) | 700 |
| Maximum Spreading Force (ton) | 14 |
| Maximum Spread (mm) | 80 |
| Tip Clearance (mm) | 6 |
| Power Source | Hydraulic |
| Oil Capacity (cm3) | 78 |
| Flange Spreader | FSH14 |
| Hand Pump | P392 |
| Pressure Gauge And Adapter | GP10S & GA3 |
| Hydraulic Hose | HC7206 |
| Weight (kg) | 7.1 |
Series Comparison
| Model Number | Max Spreading Force/Ton | Tip Clearance/mm | Max Spread/mm | Spreader Type | Oil Capacity/cm³ | Weight/Kg |
|---|---|---|---|---|---|---|
| FSH14 | 14 | 137.3 kN | 6 | 81 | Hydraulic | 78 | 7.1 | 15.7 lbs |
| FSM8 | 8 | 78.5 kN | 6 | 81 | Mechanical | * | 6.5 | 14.3 lbs |
