What Is a Telescopic Cylinder?

In heavy construction, material handling, and specialized mobile machinery, achieving a long stroke length within a compact retracted space is a major engineering challenge. Many engineers and technicians often wonder: what is a telescopic cylinder and how does it operate? Unlike standard single-stage actuators, a telescopic cylinder—often called a multi-stage cylinder—uses a nested series of expanding sleeves or stages to provide an exceptionally long reach while maintaining a short retracted profile.

Understanding how telescopic Hydraulic Systems function helps equipment designers select the right hardware for applications requiring massive lifting reach combined with tight space constraints.

How Telescopic Cylinders Work

A telescopic cylinder operates on the same core principles of fluid power as standard actuators, but with a unique multi-tiered mechanical design.

Nested Stages for Maximum Extension

The defining feature of a telescopic cylinder is its nested construction. It consists of a main outer barrel (the housing) and multiple inner sleeves—known as stages or plungers—that fit neatly inside one another like nesting tubes. When pressurized oil enters the cylinder, the largest stage extends first, followed sequentially by the smaller stages until the entire assembly reaches its full extension length. This clever nesting allows the unit to achieve a stroke length that can be several times longer than its retracted physical size.

Single-Acting vs. Double-Acting Telescopic Designs

Telescopic cylinders can be configured as either single-acting or double-acting. Single-acting telescopic units rely on hydraulic pressure to extend all stages, while gravity or an external load pushes the stages back down when pressure is released—making them the industry standard for dump trucks and tipping trailers. Double-acting telescopic cylinders use hydraulic fluid pressure for both extension and retraction across all stages, providing positive control in both directions for complex industrial machinery.

High Force at Initial Lift

During the initial extension phase, the largest diameter stage deploys, delivering maximum lifting force because of its greater surface area. As the subsequent, smaller stages extend, the available force decreases slightly. Understanding this force progression is vital when designing systems to lift heavy, stubborn loads right from the bottom of their stroke.

Common Applications and Industry Uses

Because of their unique geometry and high reach-to-length ratio, telescopic cylinders are indispensable in specific heavy industries.

Dump Trucks and Tipping Trailers

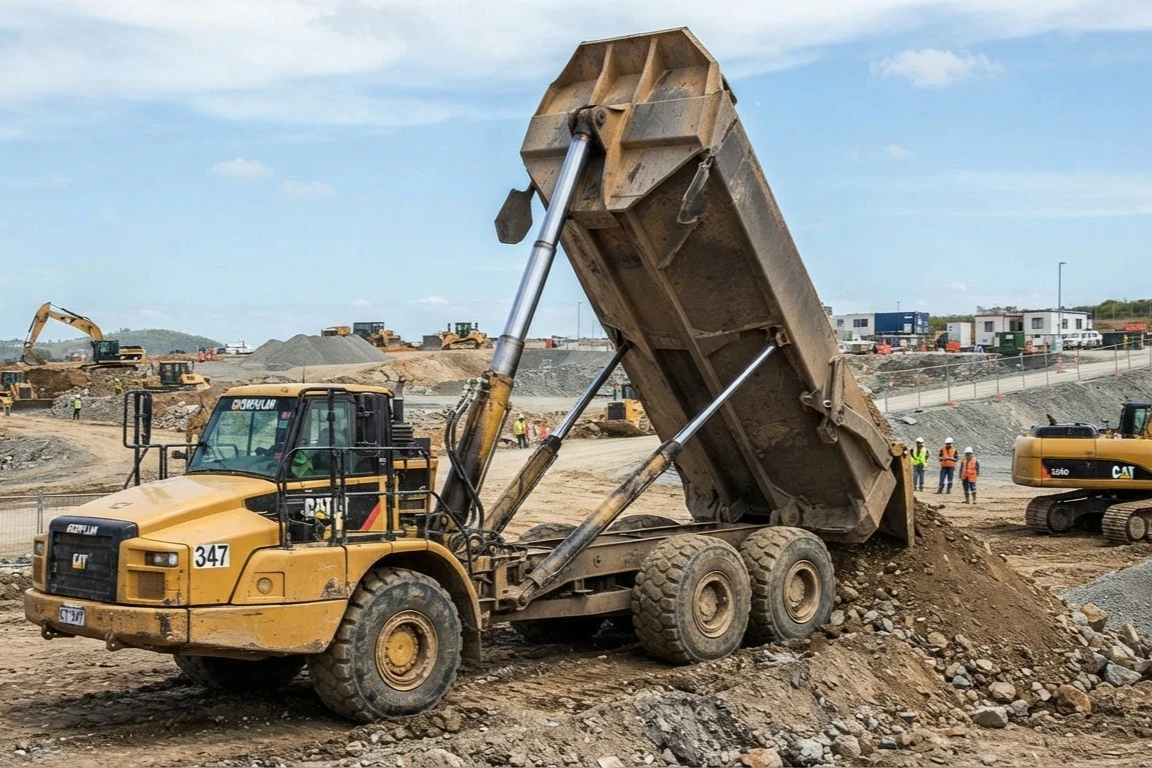

The most ubiquitous use of telescopic cylinders is in dump trucks, semi-trailers, and agricultural tipping beds. A multi-stage cylinder mounts vertically beneath the front of the bed, allowing it to tuck neatly out of the way during transport while possessing the immense vertical reach required to tip massive loads of gravel, asphalt, or grain high into the air.

Mobile Cranes and Aerial Lifts

In mobile material handling equipment and construction cranes, space is always at a premium. Telescopic cylinders provide the variable reach needed for boom extensions, outrigger stabilizers, and lifting arms, allowing equipment to fold down compactly for road travel and expand dramatically on the job site.

Industrial Presses and Lifts

Specialized industrial manufacturing equipment occasionally requires long vertical strokes inside low-ceiling workshops. Telescopic Hydraulic Cylinders provide the necessary vertical travel without requiring towering overhead clearances for the retracted actuator housing.
