10000PSI Hydraulic Power Pack
-
Electric Hydraulic Plunger Pump
Reservoir Capacity: 40 L
Flow At Rated Pressure: 1.5-2.2 L/min
Motor Size: 2.2-3 KW
Max.Operating Pressure: 700 bar / 10000psi
Weight: 56 KG
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
Applications:Systems matches large hydraulic cylinders and other
hydraulic tools of single and double action.
Sample:Contact us for free samples
Description
Two Speed operation reduces cycle time for higher productivity and efficiency.
Double overloading protection, built-in safety valve to prevent overloading, externally adjustable relief valve allows control of operating pressure.
Different control valves fit special working requirement.
Durable aluminum oil tank for excellent heat dissipation, rustproof, easy handling and also with a liquid leveling meter for rapid and convenient monitoring.
Equipped with manual switch to be more safe and reliable.
Light weight and portable design provides a high power-to-weight ratio.

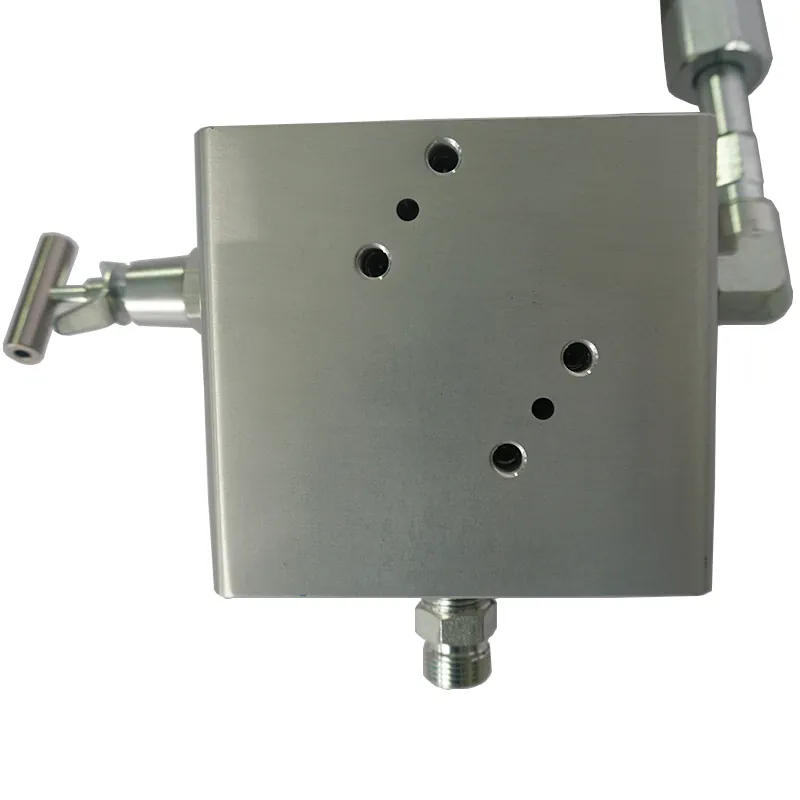

Valve Select:
HM43: 4/3 valve, for double acting cylinder
HM32: 3/2 vale, for single acting cylinder
HM33: 3/3 vale, for single acting cylinder
Applications: Suitable for nut splitters, flange spreaders, single and double acting small Hydraulic Cylinders and other hydraulic tools.
Electric Pump Systems matches large hydraulic cylinders and other hydraulic tools of single and double action.
Ordering Example:
Model: PE25 - T380/50 - 40VM43M - K
S220/50 = Single Phase, 220V: 50HZ
T380/60 = Three Phase, 380V: 60HZ
Dimensions
| Model Number | Oil Flow (L/min) | Pressure (bar) | Power | Usable Oil Capacity | Input Power* | Weight | Dimensions | ||
| High Pressure | Low Pressure | High Pressure | Low Pressure | (KW) | (L) | (kg) | LXWXH(mm) | ||
| PE15 | 1.5 | 8 | 700 | 70 | 2.2 | 40 | 200V-575V 3Ph 50HZ/60HZ | 65 | 605*525*790 |
| PE25 | 2.2 | 9.3 | 700 | 70 | 3 | 40 | 200V-575V 3Ph 50HZ/60HZ | 66 | 605*525*790 |
