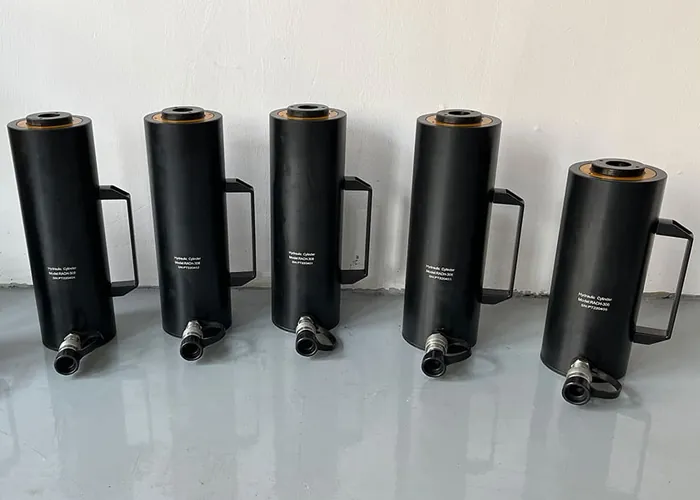

RACH Series Single-Acting,Aluminium Hollow Plunger Cylinders
-
Capacity:20/30/60/100/150 ton
Stroke:50/100/150/200/250 mm
Center Hole Diameter:27-79 mm
Maximum Operating Pressure:700 bar/10000 Psi/70 Mpa
Weight:5.2-77.2 kg/11.46-170.12 lbs
Model Number:RACH202-RACH15010
Oil Capacity:164-5646 cm³
Manufacturer:SAIVS
Country of Origin:China
Description
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
Hollow Plunger design allows for both pull and push forces: This means the cylinder can be used to extend (push) or retract (pull) a load because the plunger has a hollow center that allows rods or cables to pass through.
Composite bearings increase cylinder life and sideload resistance: The use of composite materials in the bearings makes them more durable and able to handle loads applied at an angle (side loads) without excessive wear.
Hard-Coat finish on all surfaces resists damage and extends cylinder life: A hard-coat finish on the cylinder surfaces makes them more resistant to scratches, corrosion, and other wear, leading to a longer lifespan.
Floating center tube increases seal and product life: A floating center tube allows for slight misalignment without damaging the seals, which reduces leakage and extends the overall life of the cylinder.
Handles standard on all models: All models come equipped with handles for easier positioning and control.
Steel base plate and saddle for protection against load-induced damage: The base plate and saddle are made of steel for added strength and protection against damage caused by the forces exerted on the cylinder.
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity: The stop ring prevents the plunger from extending beyond its intended limit, protecting the cylinder from damage even at its maximum operating force.
High Strength return spring for rapid cylinder retraction: A strong return spring ensures the plunger retracts quickly after the force is released.

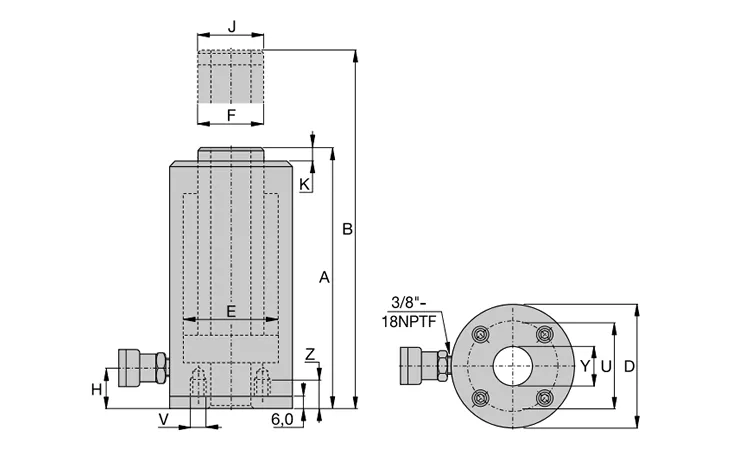

Dimensions
| Steel Base Plate Mounting Holes | |||
| Cylinder Model/Capacity ton | Bolt Circle U (mm) | Thread V (mm) | Thread Depth Z (mm) |
| RACH-20 | 80 | M6 | 12 |
| RACH-30 | 110 | M6 | 12 |
| RACH-60 | 160 | M6 | 12 |
| RACH-100 | 220 | M10 | 12 |
| RACH-150 | 245 | M10 | 12 |
*Including Base Plate Height of 6 mm
*All RACH-cylinders are equipped with bolt-on hollow removable saddles of hardened steel.
| Model Number | Capacity/Ton | Stroke/mm | Cylinder Effective Area/cm2 | Oil Capacity/cm3 | Collapsed Height/mm(A) | Extended Height/mm(B) | Outside Dia/mm(D) | Cylinder Bore Dia/mm(E) | Plunger Dia/mm(F) | Base To Advance Port/mm(H) | Saddle Dia/mm(J) | Saddle Protri. From Plgr./mm(K) | Center Hole Dia/mm(Y) | Base Mounting Holes Bolt Circle/mm(U) | Base Mounting Holes Thread(V) | Base Mounting Holes Thread Depth/mm(Z) | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RACH-202 | 20 | 50 | 32.7 | 164 | 188 | 238 | 100 | 75 | 55 | 29 | 55 | 10 | 27 | 70 | M6 | 12 | 5.2 |
| RACH-204 | 20 | 100 | 32,7 | 327 | 251 | 351 | 100 | 75 | 55 | 29 | 55 | 10 | 27 | 70 | M6 | 12 | 6.1 |
| RACH-206 | 20 | 150 | 32.7 | 491 | 315 | 465 | 100 | 75 | 55 | 29 | 55 | 10 | 27 | 70 | M6 | 12 | 7.1 |
| RACH-208 | 20 | 200 | 32.7 | 654 | 378 | 578 | 100 | 75 | 55 | 29 | 55 | 10 | 27 | 70 | M6 | 12 | 8 |
| RACH-2010 | 20 | 250 | 32.7 | 818 | 442 | 692 | 100 | 75 | 55 | 29 | 55 | 10 | 27 | 70 | M6 | 12 | 9 |
| RACH-302 | 30 | 50 | 51.1 | 256 | 208 | 258 | 130 | 95 | 70 | 29 | 70 | 10 | 34 | 110 | M6 | 12 | 8 |
| RACH-304 | 30 | 100 | 51.1 | 511 | 267 | 367 | 130 | 95 | 70 | 29 | 70 | 10 | 34 | 110 | M6 | 12 | 9.5 |
| RACH-306 | 30 | 150 | 51.1 | 766 | 333 | 483 | 130 | 95 | 70 | 29 | 70 | 10 | 34 | 110 | M6 | 12 | 11.2 |
| RACH-308 | 30 | 200 | 51.1 | 1022 | 395 | 595 | 130 | 95 | 70 | 29 | 70 | 10 | 34 | 110 | M6 | 12 | 12.9 |
| RACH-3010 | 30 | 250 | 51.1 | 1277 | 458 | 708 | 130 | 95 | 70 | 29 | 70 | 10 | 34 | 110 | M6 | 12 | 14.5 |
| RACH-602 | 60 | 50 | 84.7 | 423 | 251 | 301 | 180 | 130 | 100 | 61 | 100 | 12 | 54 | 160 | M6 | 12 | 16.2 |
| RACH-604 | 60 | 100 | 84.7 | 847 | 315 | 415 | 180 | 130 | 100 | 61 | 100 | 12 | 54 | 160 | M6 | 12 | 19.5 |
| RACH-606 | 60 | 150 | 84.7 | 1270 | 380 | 530 | 180 | 130 | 100 | 61 | 100 | 12 | 54 | 160 | M6 | 12 | 25.6 |
| RACH-608 | 60 | 200 | 84.7 | 1694 | 445 | 645 | 180 | 130 | 100 | 61 | 100 | 12 | 54 | 160 | M6 | 12 | 26 |
| RACH-6010 | 60 | 250 | 84.7 | 2117 | 510 | 760 | 180 | 130 | 100 | 61 | 100 | 12 | 54 | 160 | M6 | 12 | 29.6 |
| RACH-1002 | 100 | 50 | 164.6 | 823 | 258 | 308 | 250 | 185 | 145 | 61 | 145 | 14 | 79 | 220 | M10 | 12 | 33.8 |
| RACH-1004 | 100 | 100 | 164.6 | 1646 | 325 | 425 | 250 | 185 | 145 | 61 | 145 | 14 | 79 | 220 | M10 | 12 | 39.8 |
| RACH-1006 | 100 | 150 | 164.6 | 2487 | 391 | 541 | 250 | 185 | 145 | 61 | 145 | 14 | 79 | 220 | M10 | 12 | 46.2 |
| RACH-1008 | 100 | 200 | 164.6 | 3291 | 459 | 659 | 250 | 185 | 145 | 61 | 145 | 14 | 79 | 220 | M10 | 12 | 52.2 |
| RACH-10010 | 100 | 250 | 164.6 | 4114 | 527 | 777 | 250 | 185 | 145 | 61 | 145 | 14 | 79 | 220 | M10 | 12 | 58.8 |
| RACH-1502 | 150 | 50 | 225.8 | 1129 | 280 | 330 | 275 | 205 | 150 | 61 | 145 | 14 | 79 | 245 | M10 | 12 | 48.9 |
| RACH-1504 | 150 | 100 | 225.8 | 2258 | 360 | 460 | 275 | 205 | 150 | 61 | 145 | 14 | 79 | 245 | M10 | 12 | 55.7 |
| RACH-1506 | 150 | 150 | 225.8 | 3387 | 430 | 580 | 275 | 205 | 150 | 61 | 145 | 14 | 79 | 245 | M10 | 12 | 63 |
| RACH-1508 | 150 | 200 | 225.8 | 4517 | 500 | 700 | 275 | 205 | 150 | 61 | 145 | 14 | 79 | 245 | M10 | 12 | 70.1 |
| RACH-15010 | 150 | 250 | 225.8 | 5646 | 570 | 820 | 275 | 205 | 150 | 61 | 145 | 14 | 79 | 245 | M10 | 12 | 77.2 |
FAQs
What is the main feature of the RACH Series Single-Acting, Aluminium Hollow Plunger Cylinders?
The main feature of the RACH Series is its hollow plunger design, which allows for single-acting operation. This design enables the cylinder to exert force in one direction, typically for pushing applications.
How does the hollow plunger design benefit users?
The hollow plunger design offers several benefits:
Enables both pushing and pulling forces, providing versatility in applications.
Reduces overall weight, making the cylinders easier to handle and transport.
Allows for longer strokes compared to solid plunger designs, accommodating a wider range of tasks.
What are the advantages of using aluminium construction in these cylinders?
Aluminium construction offers several advantages:
Lightweight design facilitates easy handling and portability.
Corrosion resistance ensures durability in various operating environments.
Good thermal conductivity helps dissipate heat during operation, prolonging cylinder life.
Application

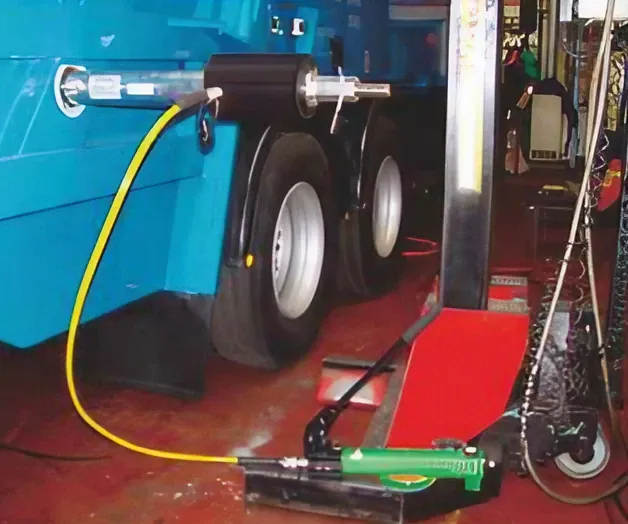

Automotive mechanics use hydraulic cylinder jacks to raise cars and trucks for various repair and maintenance tasks.
Wind turbines require periodic maintenance, and hydraulic cylinder jacksenable technicians to reach and service these towering structures.
Shipping yards use hydraulic cylinder jacksto load and unload heavy shipping containers from trucks and ships.
Hydraulic cylinder jacksare used to support and level drilling rigs during setup and maintenance in the oil and gas industry.
Overhead cranes require precise positioning during installation, which hydraulic cylinder jacksfacilitate.
Hydraulic cylinder jacks are essential in maintaining the balance of heavy machinery, ensuring stable and efficient operations.
When installing large industrial equipment, hydraulic cylinder jacksare used to safely and precisely position components for assembly.
