  • CLP5002, 520 ton 5114 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic Cylinders-1-SAIVS
CLP5002, 520 ton 5114 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic Cylinders-1-SAIVS

Description

- Model:CLP5002

- Product Line: Industrial Tools

- Type: Hydraulic Cylinder Ram, Hydraulic Jacks

- Single-Acting, load return.

- Low profile design, fit in the narrow application area.

- Special painted surface to increase corrosion resistance.

- Lock nut ensures the safety of long-time load holding.

- All models include quick couplings (NPT3/8"-18) and dust-proof caps.

- Overflow port function could limit the stroke.

- Removable hardened grooved saddles.

- ALL CLP-Series cylinders include integral tilt saddles with maximum tilt angles up to 4°.

- Select SAIVS high-quality high-pressure hoses

- For longer stroke applications CLL-Series Lock-Nut Cylinders are the perfect choice.

- Fuel Capacity: Ensure the Hydraulic Cylinder's fuel capacity meets your requirements. Calculate fuel capacity using the formula: Fuel capacity (cm³) = Active area of the cylinder (cm²) × Stroke of the cylinder (cm).

- Jacking Points: Ensure the number of jacking points matches the lifting requirements.

- Height and Stroke: Determine the height and stroke of the cylinder based on the working situation. Choose the correct height and stroke accordingly.

- Cylinder Force: Calculate the required cylinder force using the formula: Cylinder force (kg) = Active area of the cylinder (cm²) × hydraulic pump pressure (bar).

- Material:CR40

- Manufacturer:SAIVS

- Country of Origin:China

- Minimum Order:1 Piece

- Customizable with special requirement

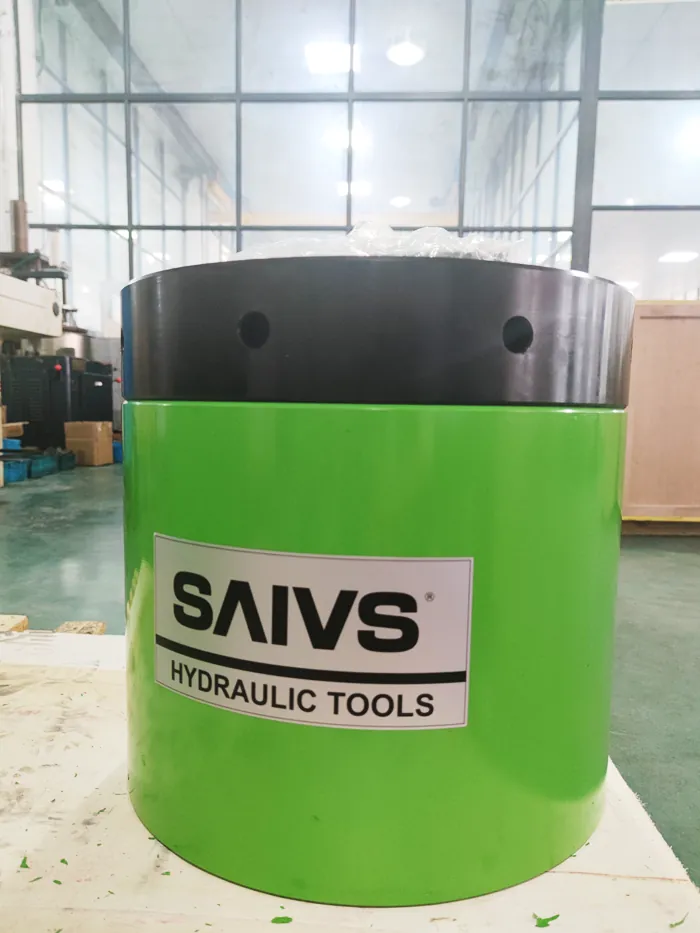

Image Gallery

Dimensions

Collapsed HeightA(mm)192
Extended HeightB(mm)237
Outside Dia.C(mm)400
Cylinder Bore DiaD(mm)305
Plunger Dia.E(mm)Tr304x6
Base to Advance PortF(mm)48
Saddle Dia.H(mm)289
 Saddle Protr. from Plgr.R
Lock-nut HeightS(mm)62

Series Comparison


Cylinder CapacityStrokeModel NumberCylinder Effective AreaOil CapacityCollapsed HeightExtended HeightOutside Dia.Cylinder Bore DiaPlunger Dia.Base to Advance PortSaddle Dia. Saddle Protr. from Plgr.Lock-nut HeightWeight




ABCDEFHRS
ton(KN)(mm)(cm2)(cm3)(mm)(mm)(mm)(mm)(mm)(mm)(mm)
(mm)(kg)
60(606)50CLP-60288.2432125175140106Tr104x419962815
100(1027)50CLP-1002147.3734140187180137Tr136x6211263127
160(1619)45CLP-1602232.21040148193224172Tr171x6271604045.5
200(1999)45CLP-2002285.61285155200245190.7Tr190x6301804357
260(2567)45CLP-2502366.21650159204275216Tr215x6322004474
400(3916)45CLP-4002572.32517178223350270Tr266x64125155134
520(5114)45CLP-5002730.23287192237400305Tr304x64828962188
