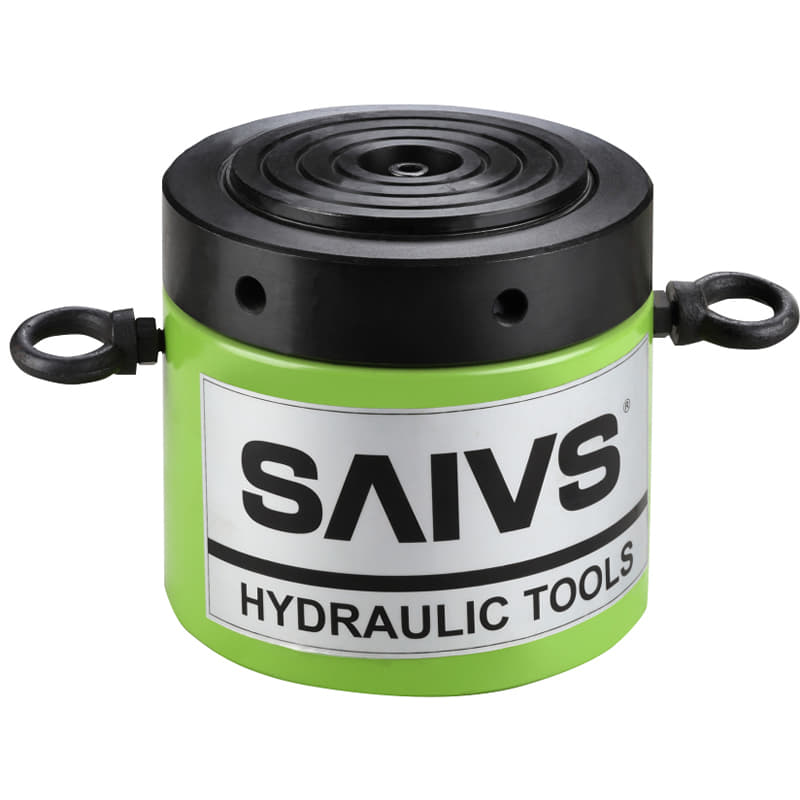

CLP Series Single-Acting Low Profile Lock-Nut Hydraulic Cylinder

5out of5 based on18 reviews | Write a review
  • Capacity: 60-520ton

    Stroke: 45-50mm

    Max.pressure: 700bar/10000psi

    Collapsed Height: 125-192 mm

    Extended Height: 175-237

    mmOutside Dia.: 140-400 mm

    Lock-nut Height: 28-62 mm

    Weight:15-188 kg

    Oil Capacity: 432-3287

    Minimum Order:1Piece

    Sample:Contact us for free samples

  • CONTACT NOW
  • PDF VIEW CATALOGUE

Description

Single-acting,load return.

Low profile design,fit in narrow application area.

Special painted surface to increase corrosion resistance.

Lock nut ensure the safety of long time load holding.

All model include quick couplings (NPT3/8"-18) and dust-proof cap.

Overflow port function could limit the stroke.

Removable hardened grooved saddles.

Customizable with special requirement.

ALL CLP-Series cylinders include integral tilt saddles with maximum tilt angles up to 4°.

Select SAIVS high quality high pressure hoses

For longer stroke applications CLL-Series Lock-Nut Cylinders are the perfect choice.



How to choice the Hydraulic Cylinder and attachment?

Step 1: Choice the hydraulic syliner suitable for the working situation;

Step 2: Choice the hydraulic pump suitable for the cylinder and the working situation;

Step 3: Choice the hydraulic attachment;




How to choice the hydraulic cylinder's condition ?

Double-acting series cylinders with hydraulic check valve.

Whether need working at narrow space,

Make sure the fuel capacity of hydraulic cylinder,

Whether need several cylinders are used together,

Whether need hydraulic cylinder with partial load work,

Whether need several hydraulic cylinders are working together,

Whether need keep the loading with long time,

Fuel capacity (cm)=The active area of cylinder X the stroke of cylinder (cm).

Whether need the steel stick or cable through off the hydraulic cylinder,

Choice the Hollow hydraulic cylinder ( RCH, RRH seris ).

The stress of cylinder(the rated pressure of cylinder is 20% more than actual loading capacity.

Whether need control with jack up and pull back,

Choice Tiltable saddle.

Choice the low flat hydraulic cylinder ( RCS, RSM, CLP series ).

Choice lock-nut hydraulic cylinder (CLP, CLL series)

Choice Synchronous Lifting System ( SPHF, SPHP series ).

Make sure the point quantity of jack up.

Height and stroke of cylinder requirement,

Which way of the cylinder use for,

Choice the correct height and stroke of cylinder according to the working situation.

Single-action only use for jack up, double-action can use for jack up and pull back.

Cylinder force ( kg )=Active area of cylinder ( cm ) X Hydraulic pump Pressure ( bat )

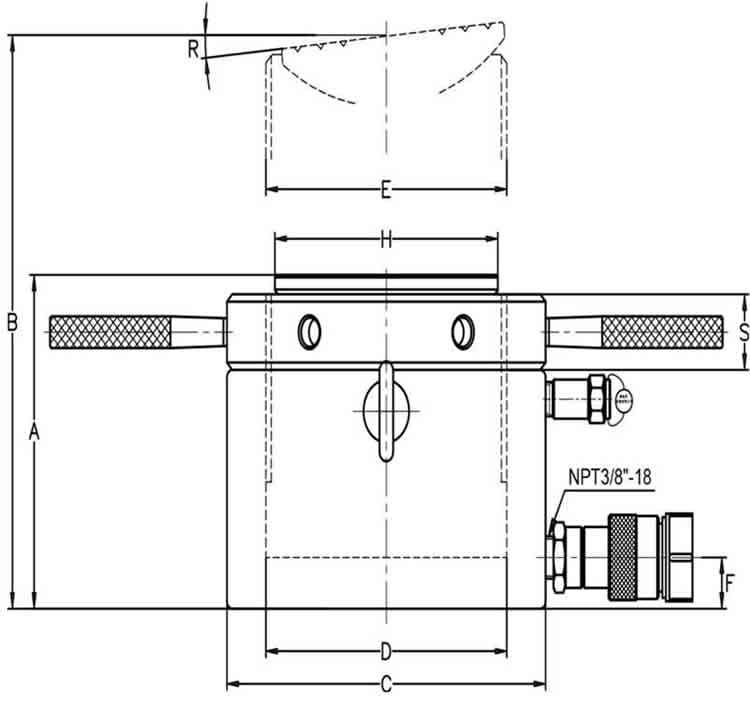

Dimensions






Cylinder CapacityStrokeModel NumberCylinder Effective AreaOil CapacityCollapsed HeightExtended HeightOutside Dia.Cylinder Bore DiaPlunger Dia.Base to Advance PortSaddle Dia. Saddle Protr. from Plgr.Lock-nut HeightWeight




ABCDEFHRS
ton(KN)(mm)(cm2)(cm3)(mm)(mm)(mm)(mm)(mm)(mm)(mm)
(mm)(kg)
60(606)50CLP-60288.2432125175140106Tr104x419962815
100(1027)50CLP-1002147.3734140187180137Tr136x6211263127
160(1619)45CLP-1602232.21040148193224172Tr171x6271604045.5
200(1999)45CLP-2002285.61285155200245190.7Tr190x6301804357
260(2567)45CLP-2502366.21650159204275216Tr215x6322004474
400(3916)45CLP-4002572.32517178223350270Tr266x64125155134
520(5114)45CLP-5002730.23287192237400305Tr304x64828962188
