FS56, 5 Ton Hydraulic Flange Spreader
-
Capacity:5 ton
Maximum Operating Pressure:700 bar/10000 Psi/70 Mpa
Spread:70 mm
Oil Capacity:24.6 cm3
Model Number:FS-56
Stud Size:19-28 mm
Weight:11.5 kg
Manufacturer:SAIVS
Country of Origin:China
- FS109, 10 Ton Hydraulic Flange Spreader
Description
Product Line: Industrial Tools
Customizable with special requirement

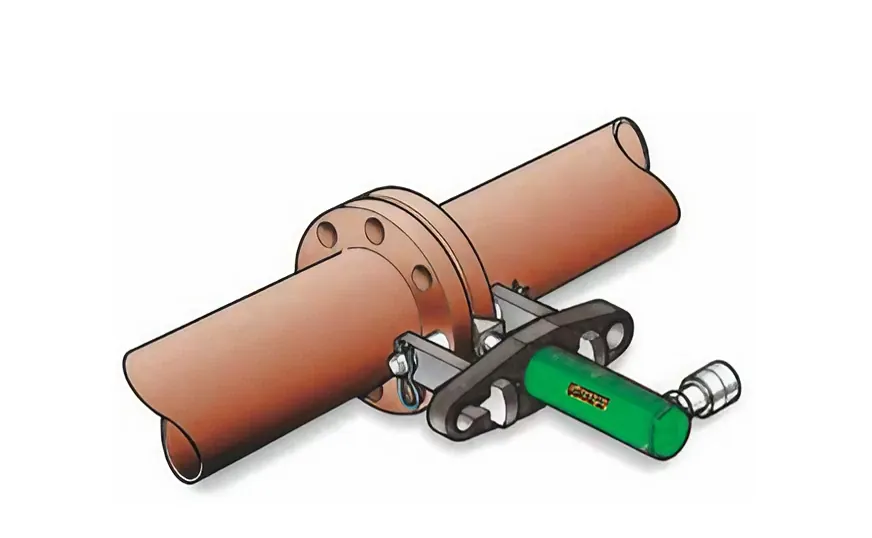

This is a lightweight, ergonomic manually operated Hydraulic Flange Spreader. It is easy to use with adjustable jaw widths from 70mm to 216mm for a wide range of applications. It features Single-Acting, spring return RC-Series cylinders for fast, trouble-free operation. The flange spreaders are available in sets (pump, tool, gauge, gauge adapter, couplers, and hose) for your ordering convenience.
Key Features:
Lightweight and ergonomic design for ease of use
Adjustable jaw widths from 70mm to 216mm for a wide range of applications
Single-acting, spring return RC-Series cylinders for fast, trouble-free operation
Available in sets (pump, tool, gauge, gauge adapter, couplers, and hose) for your ordering convenience
Benefits:
Easy to use and maneuver
Can be used on a variety of flange sizes
Durable and reliable
Convenient to purchase and use
Dimensions
| Model | FS56 |
|---|---|
| Capacity/Ton | 5 |
| Max Flange Thickness/mm | 2X57 |
| Standard Wedge/mm | 2-28 |
| Stud Size/mm | 19-28 |
| Stroke/mm | 38 |
| Oil Capacity/cm³ | 24.6 |
| Weight/Kg | 11.5 |
| Dimension A/mm | 76 |
| Dimension B/mm | 209 |
| Dimension C/mm | 70 |
| Dimension D/mm | 32 |
| Dimension E/mm | 196 |
| Dimension F/mm | 88 |
| Dimension H/mm | 25 |
| Dimension I/mm | 206 |
| Dimension J/mm | 19 |
Video
FAQs
What are hydraulic flange spreaders used for?
Hydraulic flange spreaders are used to separate or lift heavy equipment, typically in industrial settings. They work to create a safe and efficient way to handle large machines, pipelines, or tanks that would otherwise be difficult to move.
Where can I find reliable manufacturers and suppliers of hydraulic flange spreaders?
There are many reputable manufacturers and suppliers of hydraulic flange spreaders available online or in specialized industry catalogs. It is important to research and compare reviews and pricing from multiple sources to find the best fit for your needs.
