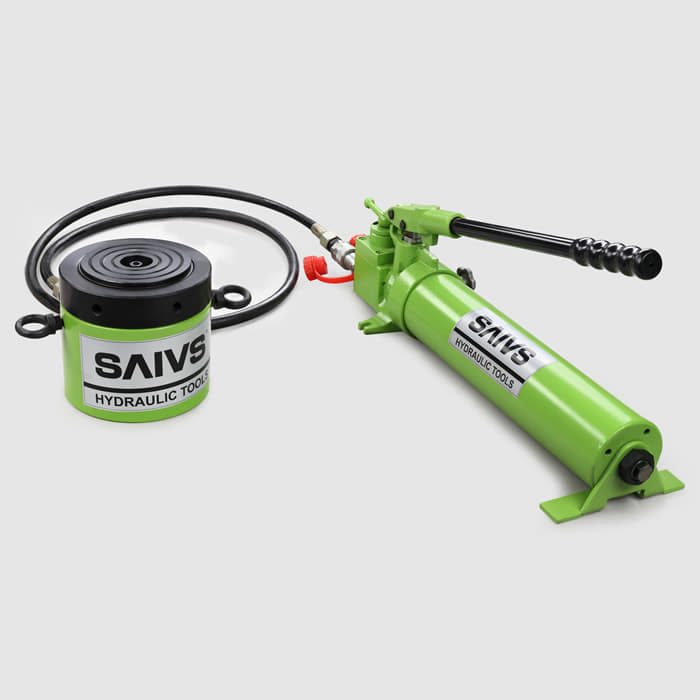

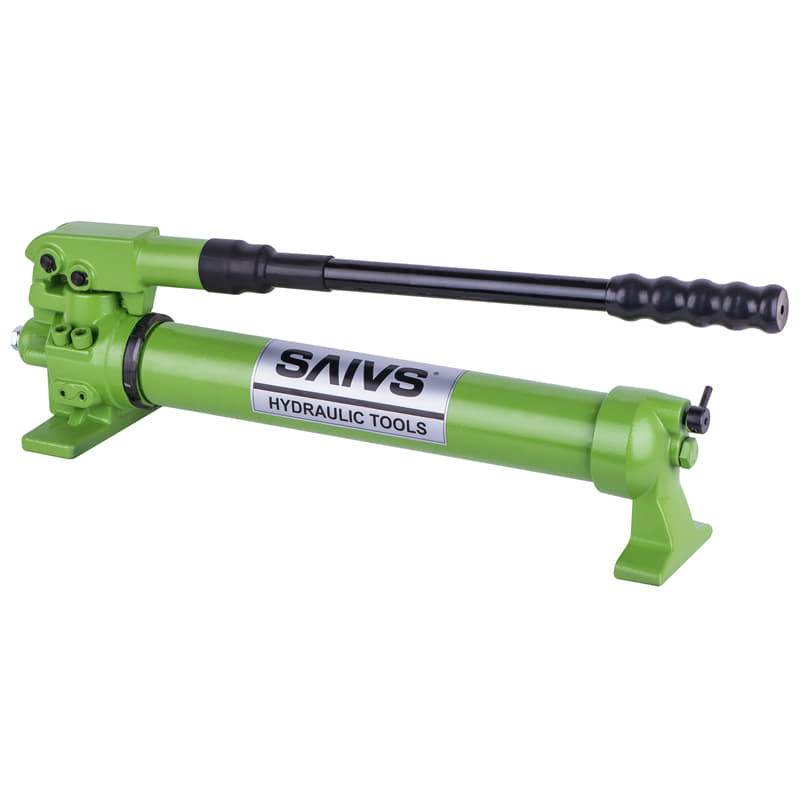

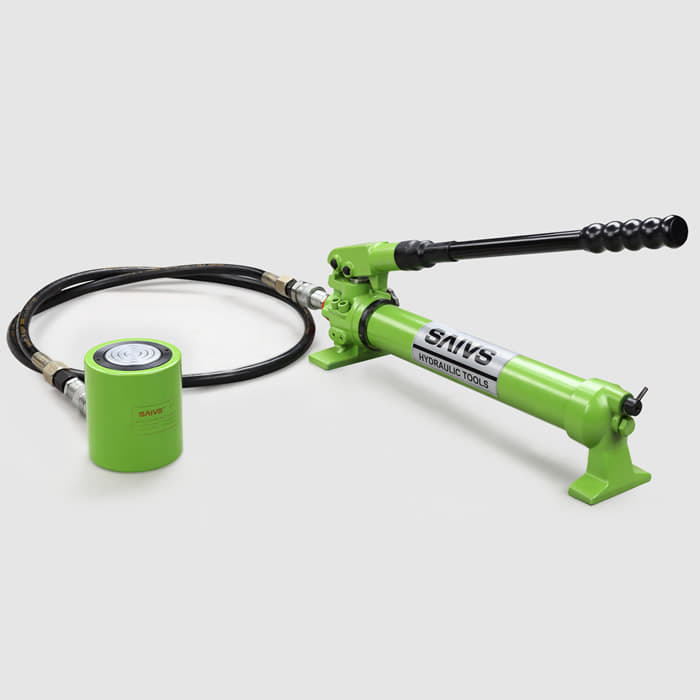

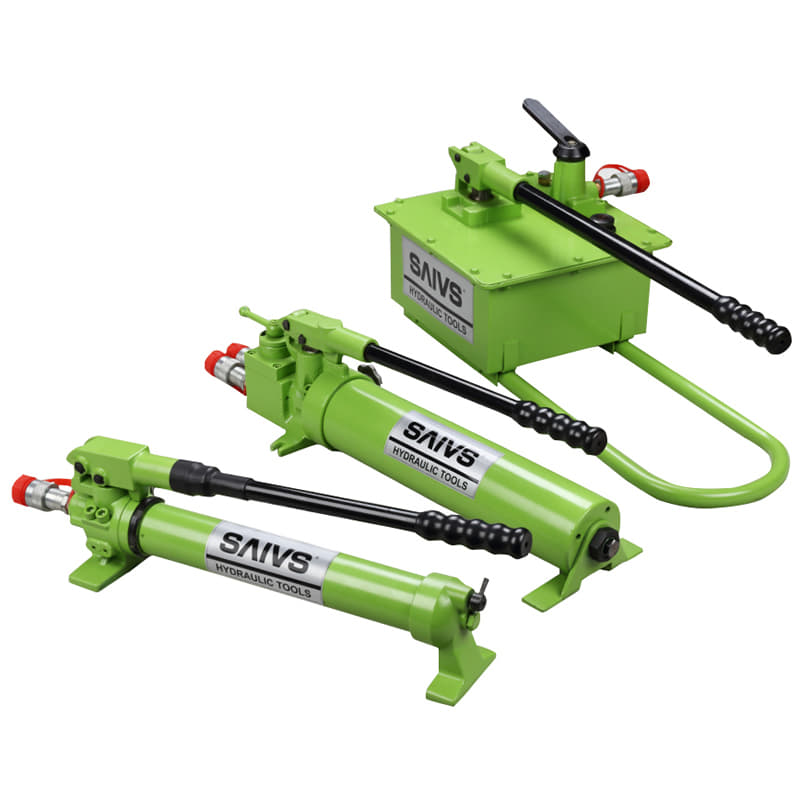

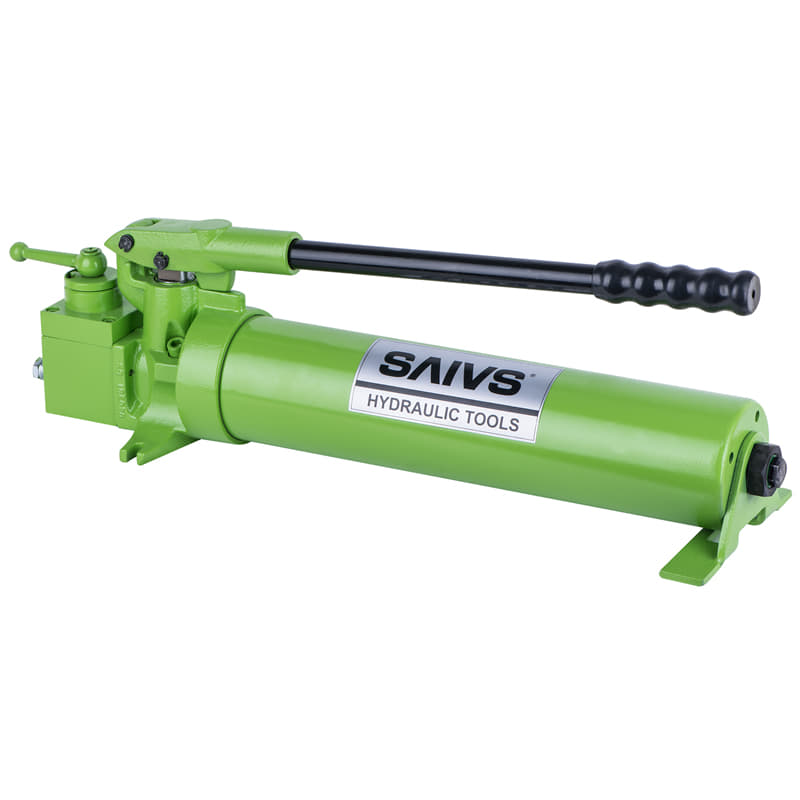

SPS series hydraulic steel hand pumps
-
Portable machinery hydraulic steel hand pumps for hydraulic cylinder
Usable Oil Capacity: 655 - 7500 CM3
Flow at Rated Pressure: 2.5 - 4.8 CM3
Weight: 5.3-27 KG
Max.Operating Pressure: 700 bar/10000PSI
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
- SPS7-0.7 Two Speed,Single-acting Hydraulic Steel Hand Pump P84 Two Speed, Hydraulic Steel Hand Pump,Double-Acting Cylinders P80 Two Speed,Single-acting Hydraulic Steel Hand Pump P464 Two Speed,Steel Hydraulic Hand Pump, Double-Acting Cylinders P462 Two Speed, Steel Hydraulic Hand Pump Single Speed,10000 PSI,Steel Hydraulic Hand Pump Two Speed,10000 PSI,Steel Hydraulic Hand Pump
Description
Product Line: Industrial Tools
Customizable with special requirement
Durable Stainless Steel structure.
Two-speed operation, build-in automatic pressure valve to provide greater flow at low pressure, saving operation time and increasing the work efficiency.
Build-in safety valve provides dual-protection of safety.
Pressure regulating valve can readjust working pressure.
The unique press rod mechanism for easy operating.
Integral three-position four-way valve on SPS7-2D for double-acting Hydraulic Cylinders
SAIVS's hydraulic hand pump is designed for portability, durability and easy-of-use. A large selection of hydraulic hand pumps makes it easy to find the most effective compact high pressure pump. The manual hand is also equipped with numerous safety features to provide dependable performance, while maintaining worker safety.
Our products have been widely used in petrochemical, cement, shipbuilding, steel plant, and heavy constructions areas etc.
Our main product category includes:
Hydraulic cylinders and jacks
Hydraulic bolting tools such as Hydraulic Torque Wrench.
Hydraulic bolt tensioners,nut splitters.
SAIVS hydraulic manufactures a wide range of featuring manual, electric and Pneumatic pumps with a variety of reservoirs and valves configuration, providing the optimum cylinders and tools performance for almost any industrial application.
We are a manufacturer in Hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger,
Hydraulic/ electric/ Pneumatic Torque Wrench (100-38463Nm), Hydraulic bolt tensioner ,Hydraulic pullers, hydraulic pumps, manual and electric type (max up to 1600 bar), Integrated hydraulic lifting system solutions (4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting), Hydraulic nut and couplings.
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
SAIVS is a professional hydraulic tools manufacturer, we have 15 years experience in the design , production, sale and service of hydraulic wrench, hydraulic nut, hydraulic jack, hydraulic puller, hydraulic pump and other hydraulic products.
Dimensions
| Model Number | Pump Type | Used with Cylinder | Usable Oil Capacity | Pressure Rating (bar) | Output Oil Volume Each Stroke (cm3) | Handle Force | Output Adapter | Weight | ||
| (cm3) | 1st Stage | 2st Stage | 1st Stage | 2st Stage | (N) | Kg | ||||
| SPS7-0.7 | Double Speed | Single-Acting | 655 | 25 | 700 | 15 | 2.6 | 300 | NPT3/8" | 5.3 |
| SPS7-2D | Double-Acting | 2200 | 25 | 700 | 16 | 2.5 | 8 | |||
| SPS7-8 | Single-Acting | 7500 | 24 | 700 | 126 | 4.8 | 27 | |||

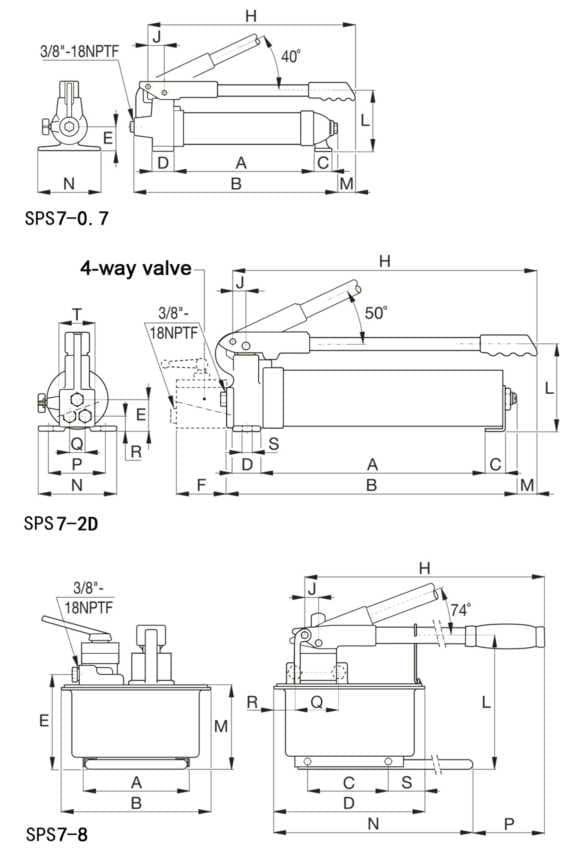

| Over Dimension（mm) | Model Number | |||||||||||||||
| A | B | C | D | E | F | H | J | L | M | N | P | Q | R | S | T | |
| 393 | 520 | 33 | 38 | 32 | / | 464 | 30 | 119 | 65 | 133 | / | / | / | / | / | SPS7-0.7 |
| 425 | 539 | 25 | 44 | / | 64 | 527 | 29 | 174 | 19 | 146 | 121 | 38 | 43 | 8 | 67 | SPS7-2D |
| 210 | 308 | 163 | 320 | 195 | / | 671 | 25 | 270 | 175 | 650 | 92 | / | / | 80 | / | SPS7-8 |
