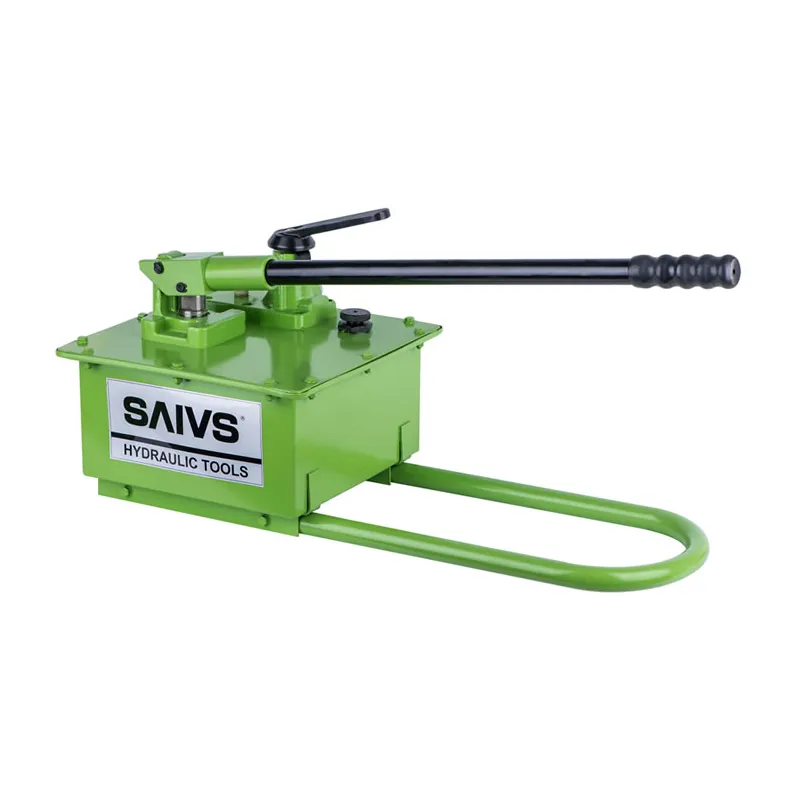

Single Speed,10000 PSI,Steel Hydraulic Hand Pump
-
Model:SPS7-8
Pump Type:Double Speed
Used with Cylinder:Single-Acting
Usable Oil Capacity: 7500cm³
Max.Operating Pressure: 700
Pressure Rating 1st Stage: 24bar/348.1 psi
Pressure Rating 2nd Stage:700bar/10000 psi
Oil Displacement Per Stroke 1st Stage (cm³)126
Oil Displacement Per Stroke 2nd Stage (cm³)4.8
Weight:27(kg)
- SPS7-0.7 Two Speed,Single-acting Hydraulic Steel Hand Pump P84 Two Speed, Hydraulic Steel Hand Pump,Double-Acting Cylinders P80 Two Speed,Single-acting Hydraulic Steel Hand Pump P464 Two Speed,Steel Hydraulic Hand Pump, Double-Acting Cylinders P462 Two Speed, Steel Hydraulic Hand Pump Two Speed,10000 PSI,Steel Hydraulic Hand Pump SPS series hydraulic steel hand pumps
Description
Product Line: Industrial Tools
Customizable with special requirement
Model:SPS7-8
Pump Type:Double Speed
Used with Cylinder:Single-Acting
Usable Oil Capacity: 7500cm³
Max.Operating Pressure: 700
Pressure Rating 1st Stage: 24bar/348.1 psi
Pressure Rating 2nd Stage:700bar/10000 psi
Oil Displacement Per Stroke 1st Stage (cm³)126
Oil Displacement Per Stroke 2nd Stage (cm³)4.8
Weight:27(kg)
1. Durable Stainless Steel structure..
2. Two-speed operation, build-in automatic pressure valve to provide greater flow at low pressure,
saving operation time and increasing the work efficiency.
3. Build-in safety valve provides dual-protection of safety.
4. Pressure regulating valve can readjust working pressure.
5. The unique press rod mechanism for easy operating.
Dimensions
| Model Number | Pump Type | Used with Cylinder | Usable Oil Capacity | Pressure Rating (bar) | Output Oil Volume Each Stroke (cm3) | Handle Force | Output Adapter | Weight | ||
| (cm3) | 1st Stage | 2st Stage | 1st Stage | 2st Stage | (N) | Kg | ||||
| SPS7-8 | Double Speed | Single-Acting | 7500 | 24 | 700 | 126 | 4.8 | 300 | NPT3/8" | 27 |
| Over Dimension（mm) | Model Number | |||||||||||||||
| A | B | C | D | E | F | H | J | L | M | N | P | Q | R | S | T | |
| 210 | 308 | 163 | 320 | 195 | / | 671 | 25 | 270 | 175 | 650 | 92 | / | / | 80 | / | SPS7-8 |
Video
FAQs
1. What is hydraulic hand pump used for?
A hydraulic hand pump is used to manually generate hydraulic pressure in a hydraulic system.
2. How does a 2 speed hydraulic hand pump work?
A two-speed hydraulic hand pump incorporates a dual-stage pumping mechanism,
allowing the user to switch between high-pressure and low-pressure modes.
3. What is the maximum pressure of hydraulic hand pump?
The maximum pressure of a hydraulic hand pump varies depending on the specific model and design.
4. What is the capacity of a hydraulic hand pump?
The capacity of a hydraulic hand pump refers to the amount of fluid it can displace
per stroke or revolution, and is usually expressed in terms of volume per unit of time.
