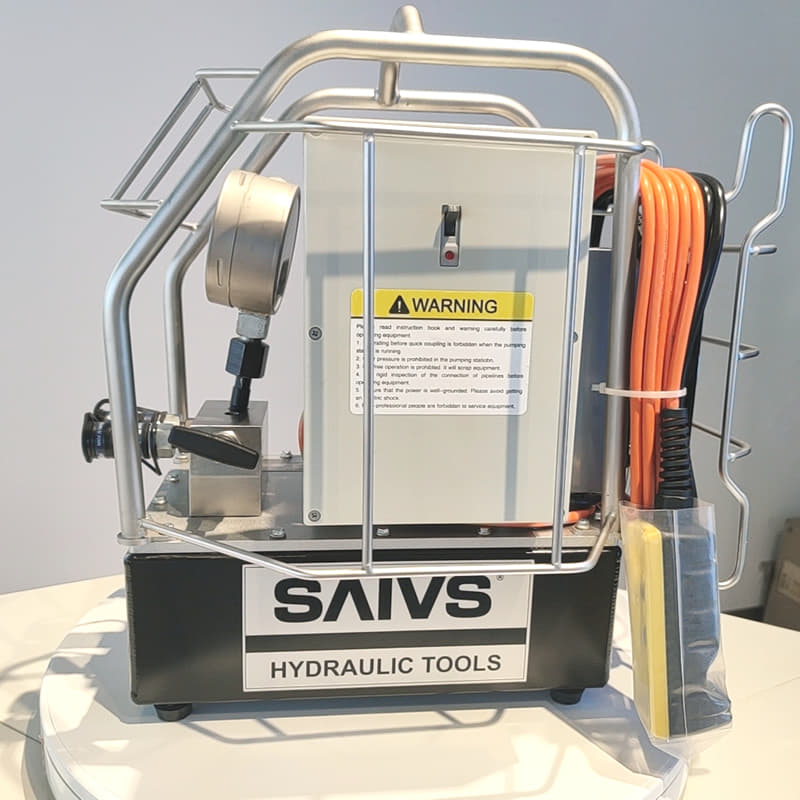

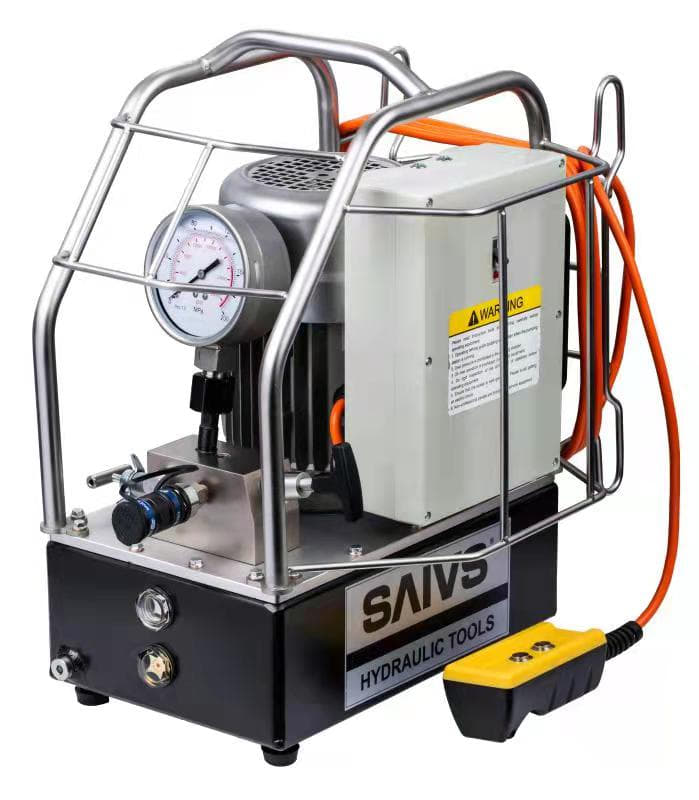

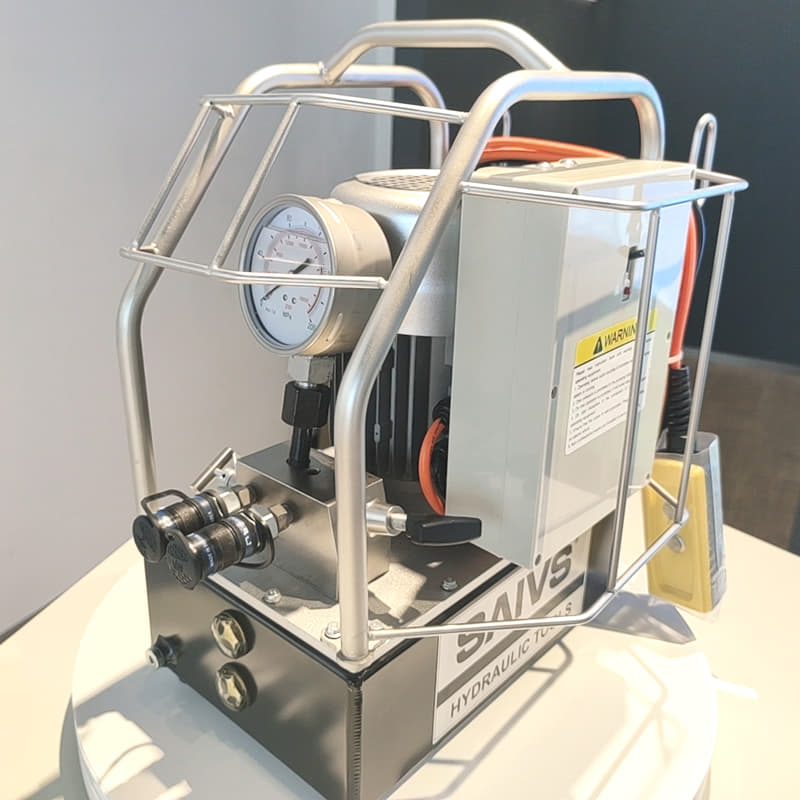

Ultra High Pressure Electric Pumps - PTE Series

5out of5 based on12 reviews | Write a review
  • Reservoir Capacity: 5 L

    Flow at Rated Pressure: 0.35 - 0.37 L/ min

    Motor Size: 1.1KW

    Max. Operating Pressure: 1500bar / 21756.05 psi

    Weight: 28 KG

    Manufacturer:SAIVS

    Country of Origin:China

    Minimum Order:1Piece

  • CONTACT NOW

Description

PTE series higher pressure electric pump is direct drive pump, with lowest cost and smoothly of pressure and flow, compare with the normal booster pump.

pumps' structure is radial piston pump type, with more higner working pressure and compact structure.

Pump with combined seal structure,it can keep the leackage rate get down.

The pump head with radial loading type, can insure the bearing breakdown when it is operating with higher pressure.

Also keep the smooth of operating of pump head better and keep noise of pump is more lower and pressure of pump is smoothly.

Higher pressure piston sets with indirect type oil input,the high pressure piston sets begin to work when the low piston sets working. it should be reduce the impact and prolong the working life of electronic motor.

Pump with flood valve and unloading valve,also the pressure should be set up by yourself.

Applications:This electric pump works for hydraulic tools of ultra-high pressure over 700bar, such as TG, TS and TW series of bolting tensioners.

These products operate at ultra-high pressure, use only the specified fitting and hoses designed for these pressure.







A higher pressure electric pump is an electrically powered pump designed to generate high-pressure output for various applications.

These pumps can deliver pressures ranging from several hundred to several thousand PSI (pounds per square inch) and are capable of handling liquids of varying viscosities.

They are typically used in applications where high pressure is required, such as in Hydraulic Systems, industrial cleaning equipment, and testing equipment.

Higher pressure electric pumps operate by drawing in fluid from a reservoir and using an electric motor to pressurize and force the fluid through one or more valves

delivering a high-pressure flow of liquid to the application. They can be designed to operate at different speeds and volumes, depending on the specific requirements of the application.

One advantage of higher pressure electric pumps is that they offer greater flexibility and control over the pressure output compared to other types of pumps.

They can also be designed to operate quietly, efficiently, and with minimal maintenance. Because of these benefits, they are widely used in a range of industries,

including manufacturing, automotive, aerospace, and oil and gas exploration.


Dimensions

Usable Oil CapacityInput PowerWeight without oil Dimensions
LKgL x W x H(mm)
51ph 110V-240V
       50HZ
28490*310*500
51ph 100-130V
       60HZ
28490*310*500

Video

FQAs

what is the pressure rating of ultra high pressure electric pumps?

answer: the pressure rating of ultra high pressure electric pumps can vary depending on the model and manufacturer, but they typically have a pressure rating anywhere from 10,000 psi to 40,000 psi.


how do i choose the right motor size for my ultra high pressure electric pump?

answer: the right motor size for your ultra high pressure electric pump will depend on several factors such as the pump's flow rate, pressure rating, and the type of fluid being pumped. it's important to consult the manufacturer or an expert in the field to determine the appropriate motor size for your specific needs.


can ultra high pressure electric pumps be used to pump different types of fluids?

answer: yes, ultra high pressure electric pumps can be used to pump a variety of fluids including water, oil, hydraulic fluid, and more. however, it's important to make sure that the materials used in the construction of the pump are compatible with the fluid being pumped.


what kind of maintenance is required for ultra high pressure electric pumps?

answer: regular maintenance is crucial for ultra high pressure electric pumps to ensure their optimal performance and longevity. maintenance tasks may include cleaning, lubricating moving parts, replacing worn components, and checking for leaks or other issues.


are ultra high pressure electric pumps safe to use?

answer: ultra high pressure electric pumps can pose a potential safety risk if not used properly. it's important to follow all instructions provided by the manufacturer and to wear proper personal protective equipment when using the pump to prevent injury or damage to property.
