BW,Backup Wrench,Backup Wrenches Type
-

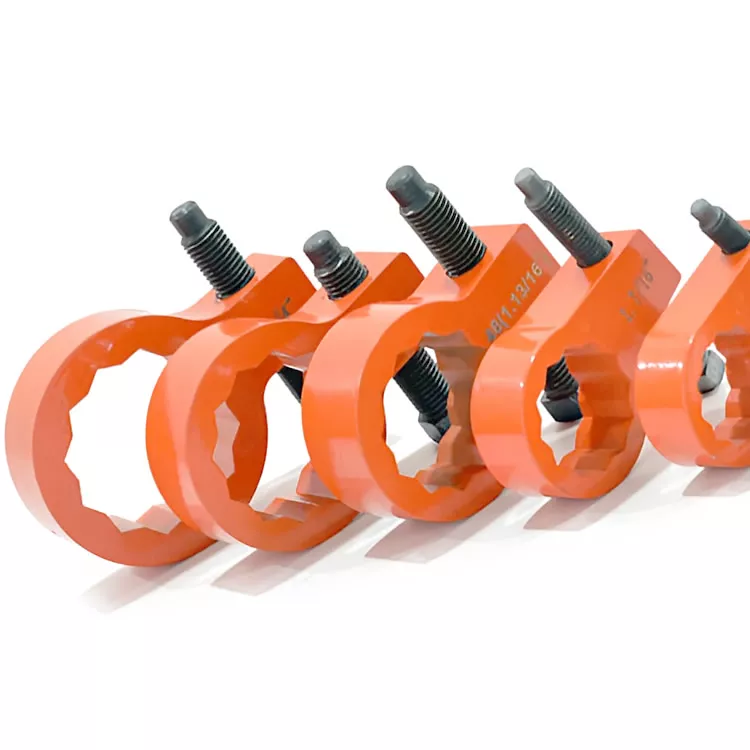

Introducing the BW-Series Magnetic Backup Wrench,
a simple and effective solution to prevent nut rotation.
With its slim profile and mechanical operation,
it eliminates the need for hydraulics, improving safety and reducing the risk of injuries.
The BW wrench is lightweight, hands-free, and easy to carry,
making it convenient for various applications.
Available in a wide range of sizes, it enhances workplace safety and productivity.
Choose the BW-Series Magnetic Backup Wrench for reliable nut rotation prevention and increased efficiency.
Application:Oil and gas industryConstruction and structural assemblyFurniture manufacturing and assembly
Sample:Contact us for free samples
Description
The SAIVS hands-free magnetic Backup Wrench is the easiest and most efficient solution for preventing nut rotation. This wrench is designed with simplicity and user-friendliness in mind, allowing it to be easily operated by a single person.
The open-ended backup wrench from SAIVS is particularly advantageous in tight clearance conditions where the complete installation with an Allen wrench is not possible.
The SAIVS backup wrench tool features a safety splint lock mechanism, ensuring secure attachment and eliminating the risk of detachment. It also incorporates the patented embedded magnet technology found in the standard hands-free magnetic backup wrench.

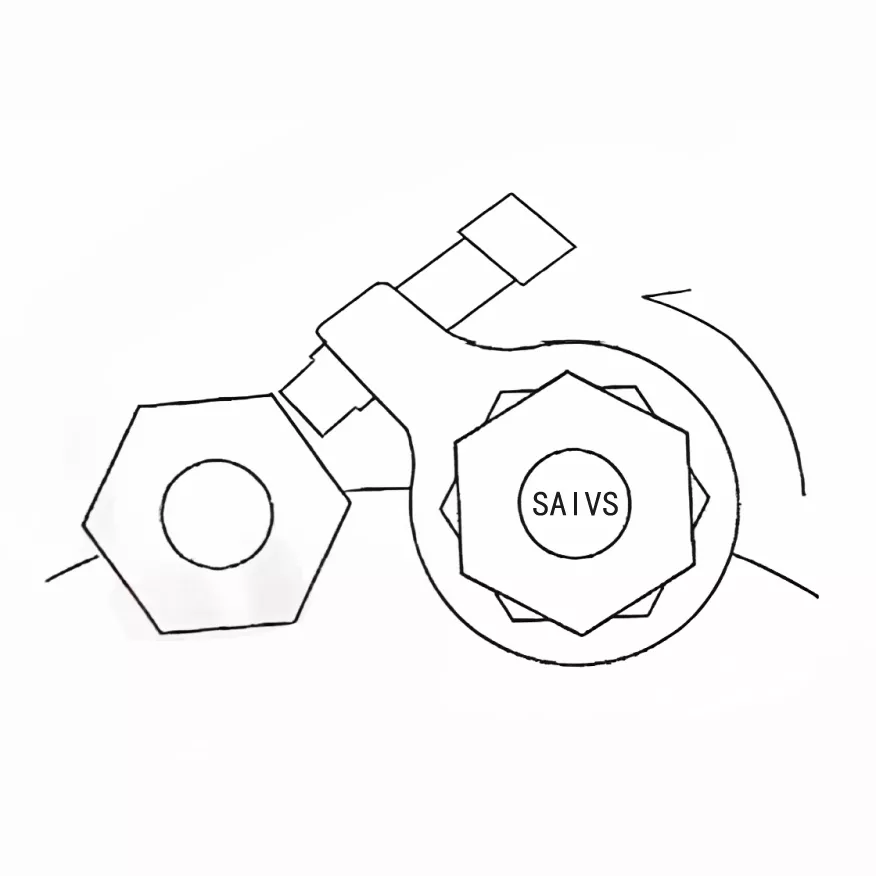

When tightening or loosening nuts, the low profile design of the SAIVS backup wrench effectively prevents rotation on the opposing side of the stud.
SAIVS offers a comprehensive range of backup wrenches, available in standard sizes ranging from 1-1/4″ to 6-1/8″ and metric sizes from M30 to M145. Additionally, SAIVS provides a full suite of Customized services tailored to meet individual requirements.
Equipped with a 1-1/4″ to 2-9/16″ protective sleeve and a custom foam insert, the SAIVS magnetic backup wrench streamlines bolt connections, saving valuable time.
The SAIVS magnetic backup wrench operates solely through mechanical and hands-free operation, eliminating the need for a Hydraulic System. This ensures the safety of the user and eliminates injuries caused by manual force. Furthermore, it eliminates sparks that are typically generated by striking or hitting a wrench, resulting in reduced operating time and enhanced productivity.
Most importantly, the SAIVS hands-free magnetic backup wrench surpasses traditional backup wrenches in terms of safety, portability, and weight. It comes equipped with a strap and tether to prevent accidental drops, making it the ideal choice for various applications. SAIVS takes pride in being a leading manufacturer and supplier of high-quality backup wrenches.
Dimensions
Model | Across Flat(mm) | Across Flat(in) | Load limits (ft.ibs) | Load limits (Nm) |
BW104 | 30 | 1-1/4" | 2400 | 3254 |
BW107 | 36 | 1-7/16" | 2500 | 3390 |
BW110 | 41 | 1-5/8" | 3500 | 4745 |
BW113 | 46 | 1-13/16" | 3500 | 4745 |
BW200 | 50 | 2" | 4100 | 559 |
BW203 | 55 | 2-3/16" | 4200 | 5694 |
BW204 | 57 | 2-1/4" | 4300 | 5830 |
BW206 | 60 | 2-3/8" | 4300 | 5830 |
BW209 | 65 | 2-9/16" | 4550 | 6169 |
BW212 | 70 | 2-3/4" | 5600 | 7592 |
BW218 | 75 | 2-15/16" | 6300 | 8542 |
BW302 | 80 | 3-1/8" | 7000 | 9491 |
BW308 | 85 | 3-1/2" | 7200 | 9762 |
BW311 | 90 | 3-11/16" | 7300 | 9897 |
BW314 | 95 | 3-7/8" | 9000 | 12202 |
BW400 | 100 | 4" | 24000 | 32539 |
BW402 | 105 | 4-1/8" | 24000 | 32539 |
BW404 | 110 | 4-1/4" | 24000 | 32539 |
BW408 | 115 | 4-1/2" | 25000 | 33895 |
BW410 | 120 | 4-5/8" | 27000 | 36607 |
BW500 | 130 | 5" | 27000 | 36607 |
BW506 | 135 | 5-3/8" | 27000 | 36607 |
BW512 | 145 | 5-3/4" | 28000 | 37962 |
