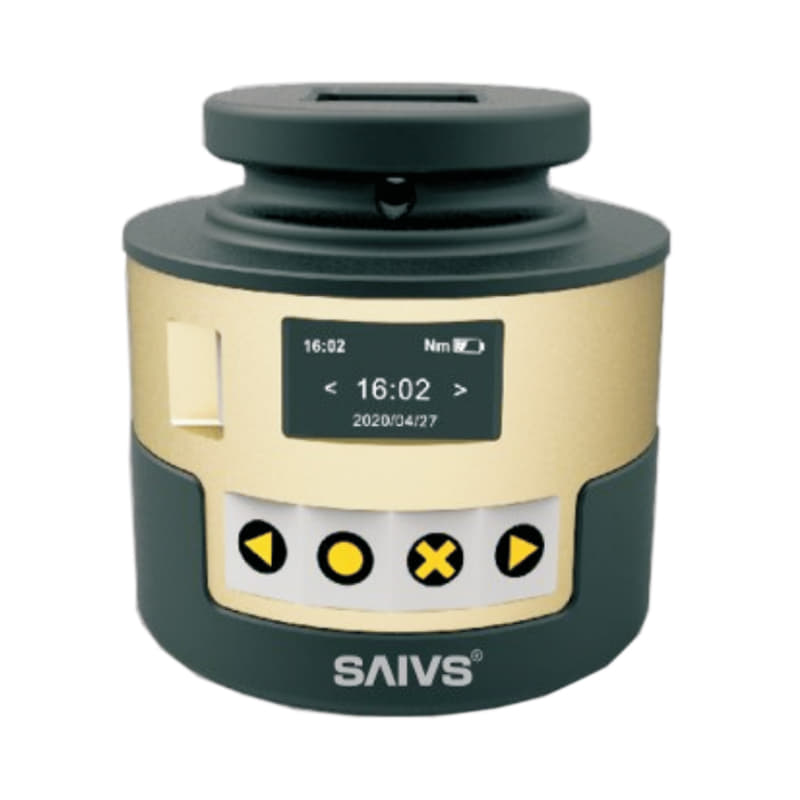

Torque Socket for Wrench SE Series
-
SE series torque sensor sleeve uses patented technology to combine torque sensor and standard sleeve,
in a bolt tightening process can directly measure the torque value in real time,
with Industry's professional Bluetooth APP software and Windows platform torque statistics software,
suitable for online torque verification and measurement, accuracy ± 2%.
Smart torque metering sleeves can be used in terminal software for Bluetooth low-power consumption.
Application:Cosmetics and daily products productionFood manufacturing and processingPower engineering, technology, and services
Sample:Contact us for free samples
Description
Torque tool independence and in-line measurement for station can be realized.
No need to change the working conditions, more accurate, can be used as a normal sleeve.
The LCD screen displays the torque status.
Built-in rechargeable lithium battery.
Verifiable detection torque improves assembly quality.
Feedback tuning setting function.
Support real-time recording of torque curves.
Support display real-time time, Chinese and English switching.
Special sleeves such as hexagonal twelve corners can be Customized.
Multi-mode adjustment to adapt to different requirements.
Not suitable for torque measurement of impact wrenches.
Torque transducer measurement accuracy of ±2%.
Wireless transmission function.
Support for Android (Bluetooth only), Windows platform.
Record 100,000 sets of data and download it to the computer.
Support USB to log management.
Note: Larger or smaller torque can be customized, and hexagonal, Inner hexagonal, star types of sleeves can be customized
Dimensions
| Model | Socket Diagonal(mm) | Bolt Diameter(mm) | Socket Square | Socket Weight(KG) | Torque Range (Nm) | size L1(mm) | Size D1(mm) | |
| SE-0133 | 33 | M22 | 0.75” | 1.4 | 200 | 2000 | 85 | 75 |
| SE-0236 | 36 | M24 | 1” | 1.4 | 200 | 2000 | 85 | 75 |
| SE-0241 | 41 | M27 | 1” | 1.4 | 200 | 2000 | 85 | 75 |
| SE-0246 | 46 | M30 | 1” | 1.4 | 250 | 2500 | 85 | 75 |
| SE-0250 | 50 | M33 | 1” | 2 | 400 | 4000 | 88 | 89 |
| SE-0255 | 55 | M36 | 1” | 2 | 400 | 4000 | 88 | 89 |
| SE-0360 | 60 | M39 | 1.5” | 2 | 500 | 5000 | 88 | 89 |
| SE-0365 | 65 | M42 | 1.5” | 6.5 | 800 | 8000 | 136 | 118 |
| SE-0370 | 70 | M45 | 1.5” | 6.5 | 1100 | 11000 | 136 | 118 |
| SE-0380 | 80 | M45 | 1.5” | 6.5 | 1100 | 11000 | 136 | 118 |
| SE-0390 | 90 | M56 | 1.5” | 7.5 | 1600 | 16000 | 142 | 123 |
| SE-03100 | 100 | M60 | 1.5” | 7.5 | 1600 | 16000 | 142 | 123 |
| SE-0490 | 90 | M56 | 2” | 7.5 | 1600 | 16000 | 142 | 123 |
| SE-04100 | 100 | M60 | 2” | 7.5 | 1600 | 16000 | 142 | 123 |
