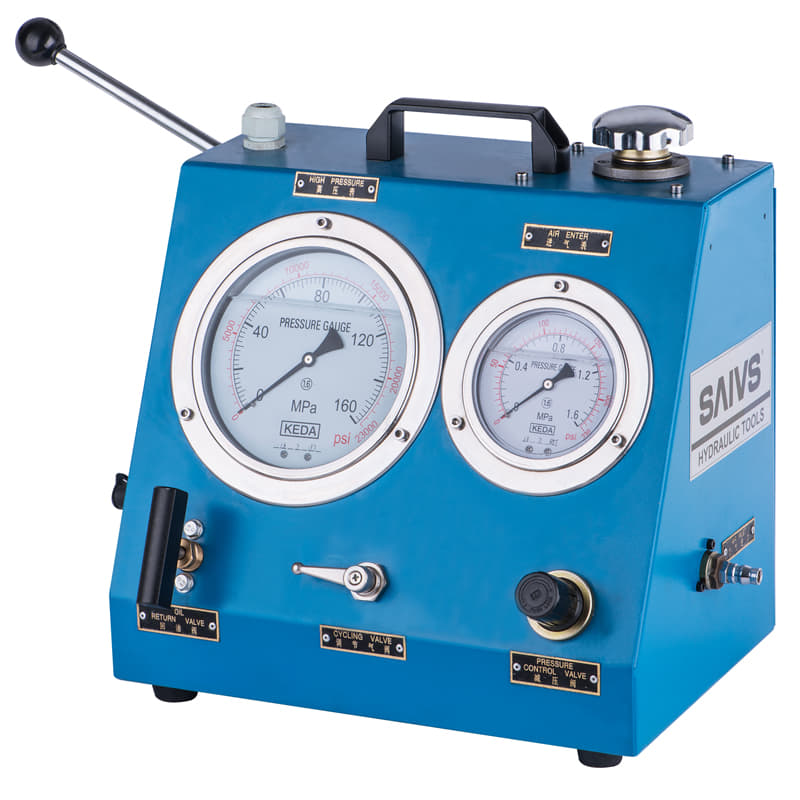

Air Driven Hydraulic Torque Wrench Pumps - SPA Series

5out of5 based on20 reviews | Write a review

Reservoir Capacity: 5 L
Flow at Rated Pressure: 0.85 L / min
Motor Power: 3 KW
Max. Operating Pressure: 700 bar / 10000PS
Input Air pressure range 4-8 bar.
Weight: 16-24 KG
Manufacturer:SAIVS
Country of Origin:China
Minimum Order:1Piece

Sample:Contact us for free samples
CONTACT NOW

PDF DOWNLOAD

Description

Three speed operation reduces cycle time for higher productivity and efficiency.

Default options with the manifold for simultaneous operation of 2 torque wrenches.

Super power-to-weight ratio, 22kg, great ease in carrying.

Output pressure range within 40-700 bar.

Excellent Built-in cooling system increase the reliability of the longtime running of the pump in harsh industrial environment.

Durable aluminum oil tank for excellent heat dissipation, rustproof, easy handling.

No electric control system for explosion-proof.

Air Driven Hydraulic Torque Wrench pumps are devices designed specifically to provide hydraulic power, usually to supply the required oil pressure to hydraulic torque wrenches.

The pump works by using an air-driven piston pump or gear pump to convert air energy into fluid energy, which generates high-pressure oil output, providing the required torque force.

These pumps usually have aluminum or steel bodies that are impact-resistant and corrosion-resistant.

They also come with multiple control valves to adjust flow and oil pressure as needed. Because they work based on aerodynamics,

they are ideal for use in air environments such as mines, underground, aviation, automobiles, and other fields.

Due to their efficiency and high precision, air-driven hydraulic torque wrench pumps are widely used in many industrial sectors,

such as aircraft maintenance, shipbuilding, underground mining, petroleum, steel, machine tool manufacturing, etc.

They can improve work efficiency while increasing reliability and safety.

Dimensions

Model Number	Oil Flow	Pressure Rating	Usable Oil Capacity	Input Adapter	Output Adapter	Weight	Dimensions
Model Number	bar	L/min	L	inch	inch	Kg	（L x W x H）mm
SPAT-150	1500	0.3	3.5	1/2BSP	G1/4	16	340×320×380
SPAT-200	2250	0.35	6	1/2BSP	G1/4	24	380×360×380
SPAT-280	2800	0.3	6	1/2BSP	G1/4	24	380×360×380

FQAs

How do I select the right air driven hydraulic torque wrench pump for my application?

The selection of an air driven hydraulic torque wrench pump depends on several factors, including the required maximum pressure and flow rate, the type of hydraulic torque wrench being used, and the size of the hydraulic system. It's important to consult the manufacturer's specifications or seek the advice of a professional engineer to determine the appropriate pump for your specific application.

How much air pressure is required to operate an air driven hydraulic torque wrench pump?

The air pressure required to operate an air driven hydraulic torque wrench pump varies depending on the specific model and manufacturer. It's important to follow the manufacturer's instructions and guidelines for proper operation and maintenance to ensure optimal performance.

Can I use an air driven hydraulic torque wrench pump with other hydraulic tools besides torque wrenches?

Yes, some air driven hydraulic torque wrench pumps can be used with other hydraulic tools, such as hydraulic cylinders or jacks. However, it's important to consult the manufacturer's specifications and guidelines to ensure that the tool is compatible and that the pump is capable of providing the required pressure and flow rate.

What kind of maintenance is required for air driven hydraulic torque wrench pumps?

Regular maintenance is important for ensuring optimal performance and longevity of your hydraulic torque wrench pump. This typically includes cleaning the tool after use, inspecting for damage or wear, and performing regular calibration and accuracy checks. It's important to follow the manufacturer's recommended maintenance procedures and schedules to avoid equipment failure or inaccurate torque readings.

Can I use an air driven hydraulic torque wrench pump in wet or humid environments?

Some air driven hydraulic torque wrench pumps are designed for use in wet or humid environments, while others may not be suitable. It's important to consult the manufacturer's specifications and guidelines to ensure that the tool is appropriate for your specific environment and usage requirements. Additionally, proper protective measures may need to be taken to prevent water or moisture from entering the pump or hydraulic system.
