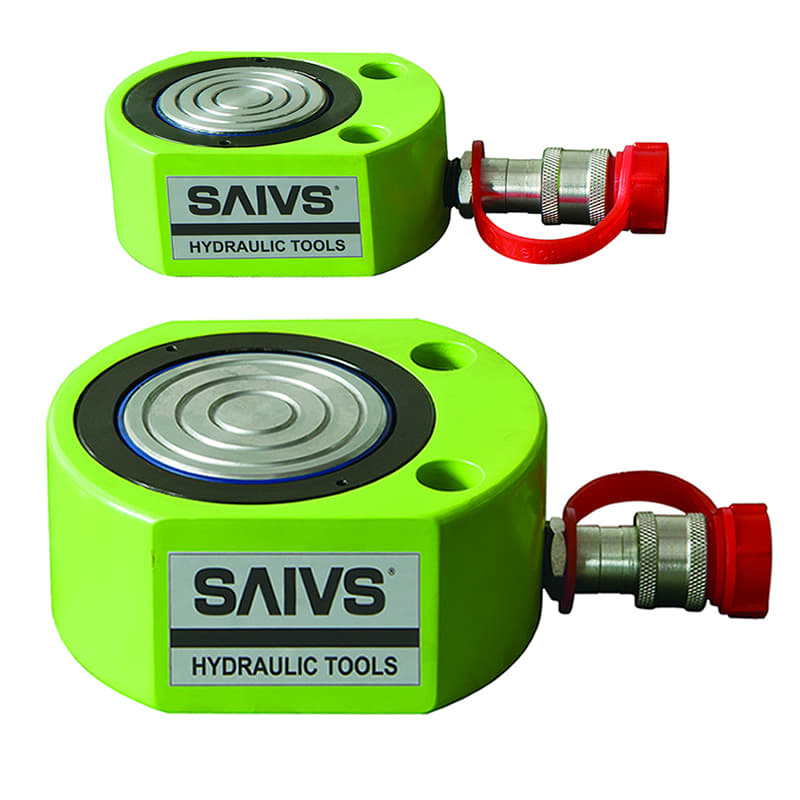

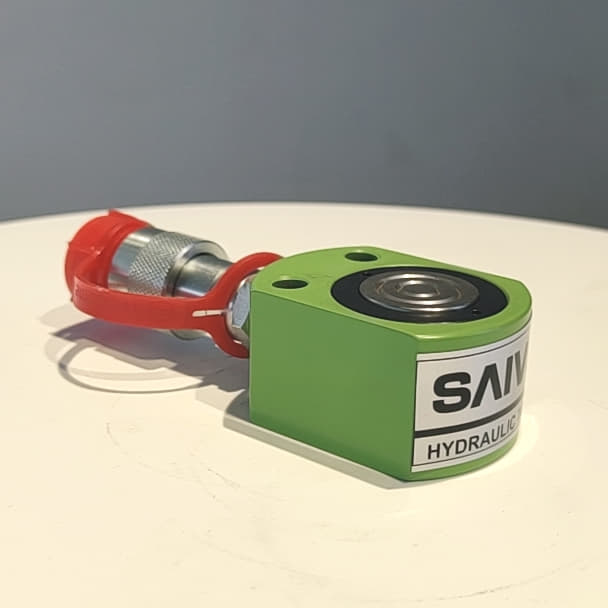

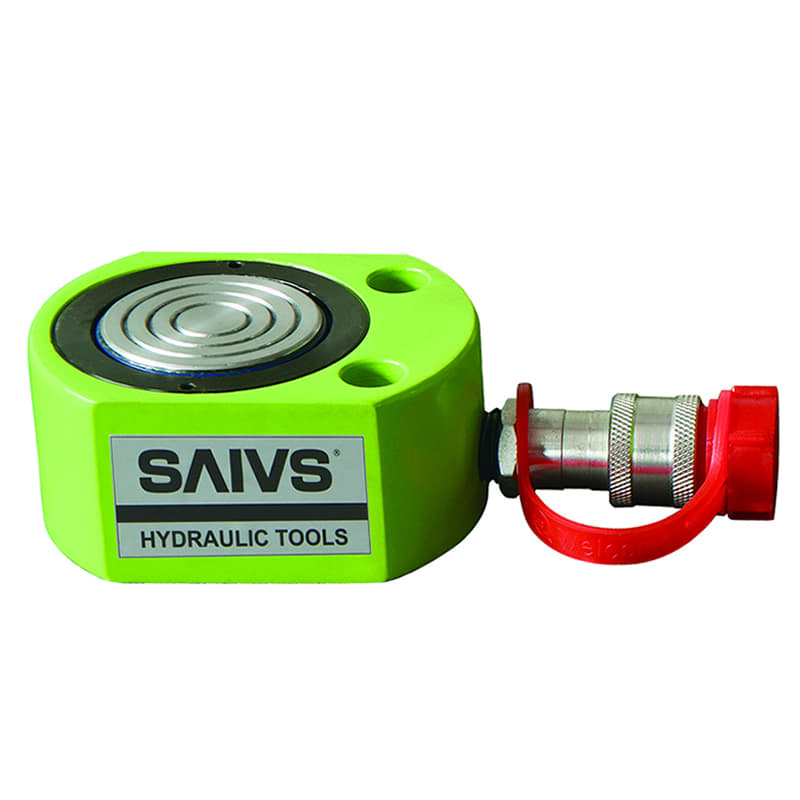

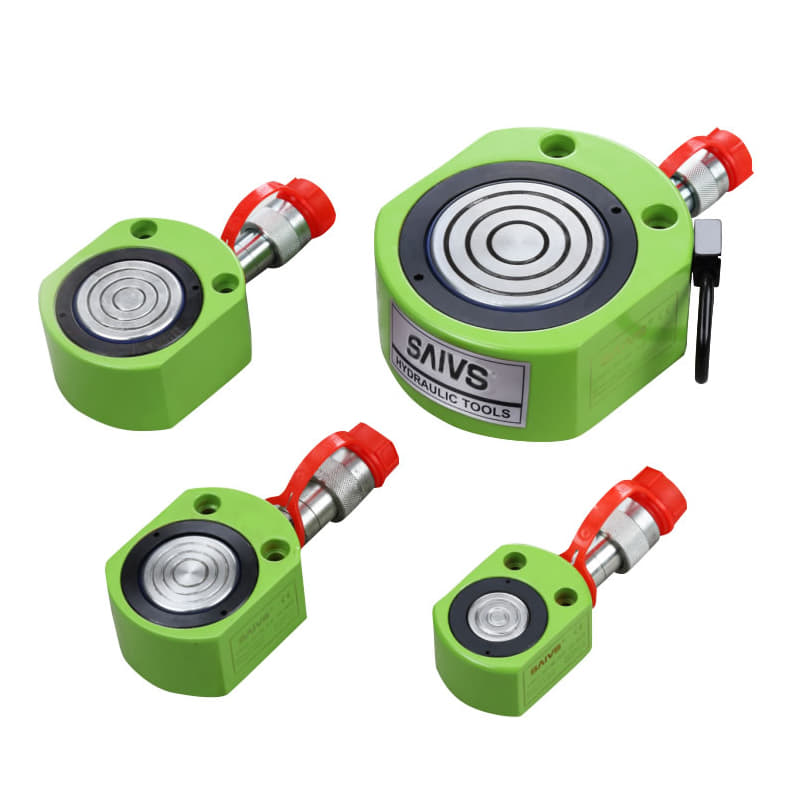

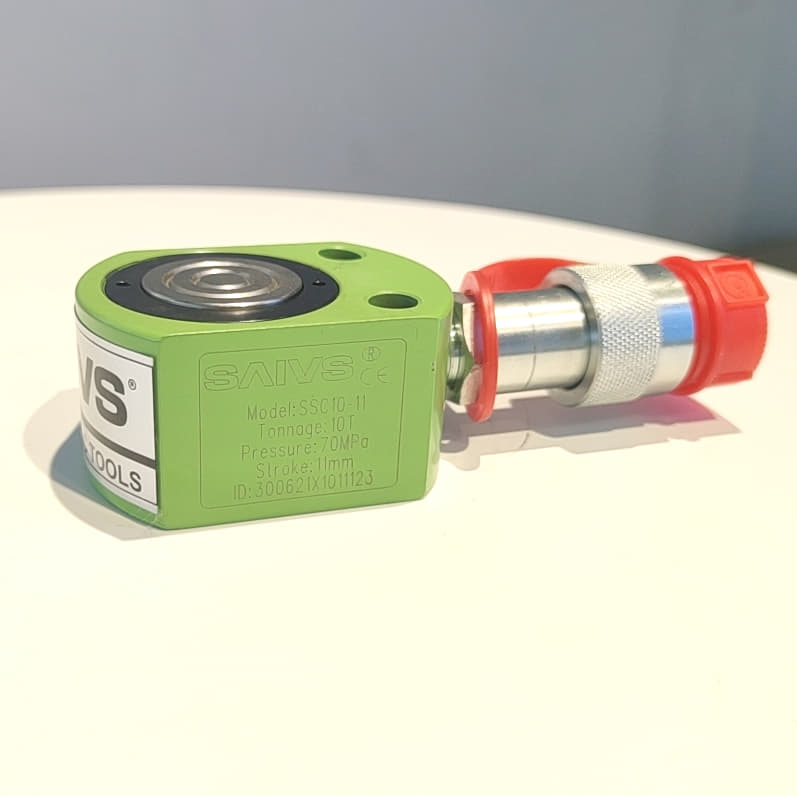

RSM Series Single-Acting Low Flat Hydraulic Ram
-
Light Height Ultra-Thin Single Acting Hydraulic Cylinder Low Flat Hydraulic Ram
Capacity: 10-150ton
Stroke: 11-16mm
Max.pressure: 700bar/10000psi
Weight:1.4-28.7KG
Oil capacity:18 - 371(cm3)
Manufacturer:SAIVS
Country of Origin:China
Customizable with special requirement
Sample:Contact us for free samples
Description
Single-acting, spring return.
Flat design used in confined spaces.
No saddle required with grooved plunger end.
Two plunger threads on grooved plunder end for particular needs.
Special painted surface to increase corrosion resistance.
Easy carrying with handles on some models (Capacity over 75tons).
All models include quick coupling and dust cap.
Customizable with special requirement.
High pressure electric Hydraulic Cylinder is powered by high pressure electric oil pump, the function for oil pressure rebound, overflow, it is designed a safe protect pressurizer, it can protect emergent over pressure, especial construction can protect jack. Hydraulic cylinder can bear partial loading is 5% of rated pressure.
High pressure alloy cylinder is very durable, especially in the larger project, it is easily to be operated and control. It can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment.
It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of working.

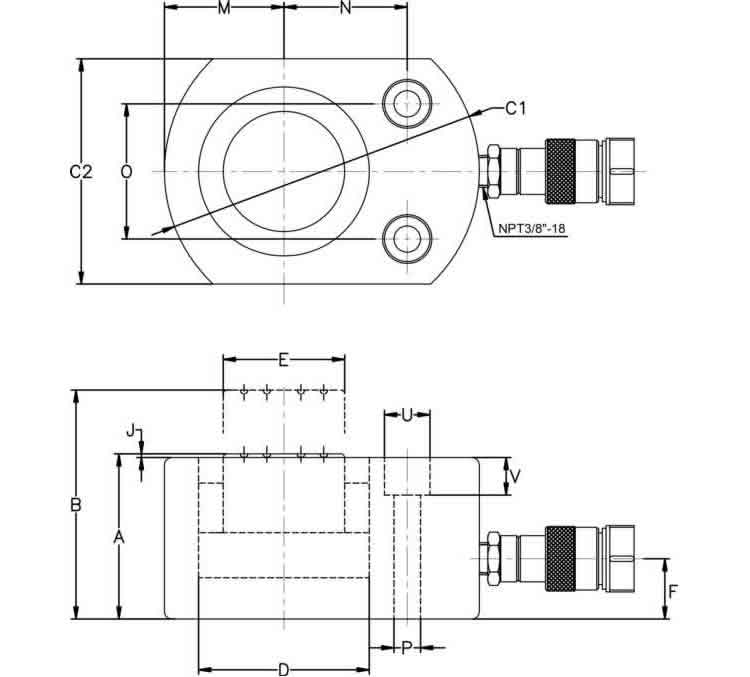

Dimensions
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia. | Plunger Dia. | Base to Advance Port | Saddle Protrusion from Plgr. | Plunger to Base | Plunger to Mounting Hole | Weight | Mounting Hole Dimensions | |||||
| Model Number | Bolt Circle | Hole Dia. | Counter Bore Dia. | Counter Bore Depth | ||||||||||||||||
| A | B | C1XC2 | D | E | F | J | M | N | O | P | U | V | ||||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | (mm) | (mm) | |||
| 10(101) | 11 | SRSM-100 | 15.9 | 18 | 44 | 55 | 83X60 | 45 | 35 | 23 | 1 | 31.5 | 34 | 1.4 | SRSM-100 | 36.6 | 7.1 | 10.7 | 7.9 | |
| 20(201) | 12 | SRSM-200 | 31.1 | 37 | 52 | 64 | 102X80 | 63 | 50 | 23 | 1 | 41 | 39 | 2.2 | SRSM-200 | 49.3 | 10 | 15.1 | 9.9 | |
| 30(295) | 13 | SRSM-300 | 45.3 | 59 | 58 | 71 | 117X97 | 76 | 60 | 23 | 1 | 48.5 | 47 | 4.2 | SRSM-300 | 52.3 | 10 | 15.9 | 11.2 | |
| 50(549) | 16 | SRSM-500 | 78.5 | 125 | 67 | 83 | 150X125 | 100 | 80 | 23 | 1 | 63 | 60 | 7.4 | SRSM-500 | 66.5 | 11 | 19 | 12.7 | |
| 75(718) | 16 | SRSM-750 | 116.8 | 187 | 79 | 96 | 177X152 | 122 | 100 | 21 | 1 | 76.5 | 73 | 12.7 | SRSM-750 | 76.2 | 13.5 | 20.6 | 14.2 | |
| 100(887) | 16 | SRSM-1000 | 153.9 | 246 | 87 | 103 | 203X179 | 140 | 112 | 23 | 1 | 89.5 | 84 | 15.5 | SRSM-1000 | 76.2 | 13.5 | 20.6 | 14.2 | |
| 150(1386) | 16 | SRSM-1500 | 232.2 | 371 | 98 | 114 | 236X212 | 170 | 145 | 25 | 2 | 106 | 92 | 28.7 | SRSM-1500 | 117.3 | 13.5 | 20.6 | 14.2 | |
Video
Application
Hydraulic cylinder jacks assist in the installation and maintenance of pipelines by providing the necessary lifting force for components.
Hydraulic cylinder jacks provide the lifting power needed to assemble large structures such as steel frameworks and industrial buildings.
Shipping yards use hydraulic cylinder jacksto load and unload heavy shipping containers from trucks and ships.
Agricultural equipment can be adjusted to the correct height for various farming tasks using hydraulic cylinder jacks.
Overhead cranes require precise positioning during installation, which hydraulic cylinder jacksfacilitate.
Hydraulic cylinder jacks are employed to lift and level portable structures like cabins and modular buildings.
Elevator systems require periodic maintenance, and hydraulic cylinder jacks are employed to lift and secure elevator cars for inspection and service.
