Stainless Steel Pipe Fittings

Technics: Casting

Connection: Welding

Head Code: round

Fittings material: Stainless Steel SUS201, SUS304, SUS316

Connection type: Male and Female

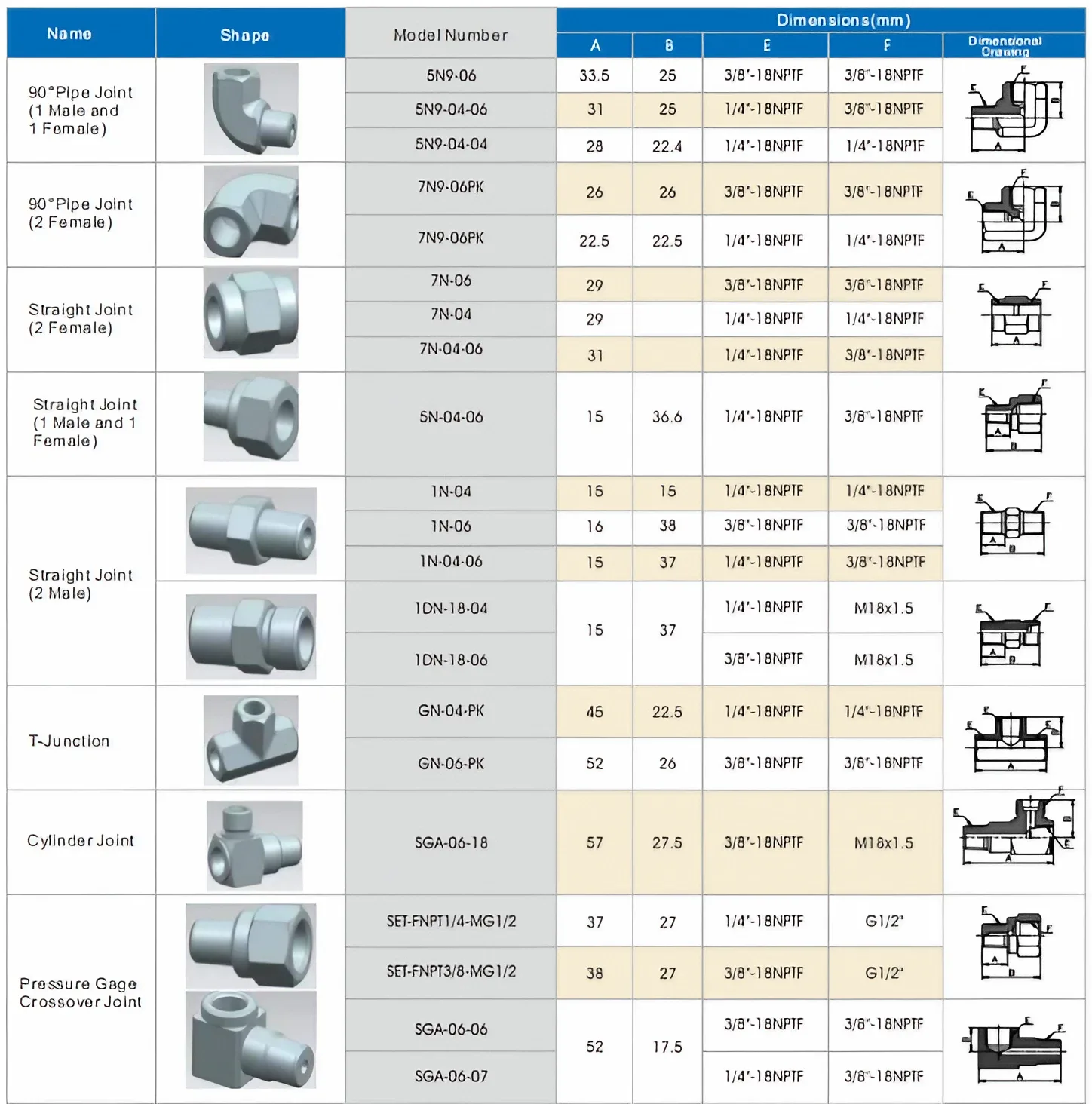

Shape: 90 degree pipe joint, straight joint, T-junction, Cylinder joint, Pressure gage crossover joint,SQH.

Thread: NPTF

Medium: water, oil and gas

Standard: variety of dimensional drawings, according to Customized.

We have hundreds of machines, like full automatic CNC machine, forging machine, drilling machine, bending machine, etc.

We can design and produce all kinds of hydraulic fittings according to your requirements. We set first class service as our philosophy, we will offer you with our best service.

Cautions:

Do not loosen or tighten fittings when system is pressurized.

Make sure that the tubing rests firmly on the shoulder of the port.

Always leave enough straight length of the tubing for the fittings.

Always use an insert for extremely soft plastic tubing.

Material of the metal tubing should be softer than that of the fitting. For example, stainless steel tubing should not be used with brass fittings. When tubing and fittings are made of the same material, the tubing must be fully annealed.

The allowable working pressure of the tube fitting is rated to the maximum working pressure of the corresponding tubing.

Keep the tubing end and surface clean and smooth.

Always use proper thread sealants on tapered pipe threads. Make sure that its working temperature does not exceed that of the sealants.

When assemble the tube fitting, hold the body with a wrench and turn the nut instead of holding the nut.

When install a valve with tube fitting end, hold the valve body with a wrench and turn the nut.

When assemble the fitting to a valve with thread, hold the valve body with a wrench and turn the body of the fitting.
