M16-M30,Electric Torque Shear Wrench
-
Model Number：ZJW-22J,ZJW-24J,ZJW-30J
Rated Voltage:220V 50Hz
Max power consumption: 1300w
Max torque: 1200N.m
Main body weight: 5, 5.5, 7.5KG
Ro speed(min-1): 16, 14, 5rpm
Aaptable bolt dia: M16, M20, M22, M24，M30 / 5/8", 3/4", 7/8", 1"
High power, higher work efficiently.
Applicable bolt strength is higher
Each wrench provide 2 sockets, one of them will be set on the wrench.
Description
Product Line: Industrial Tools
Customizable with special requirement
Model Number：ZJW-22J,ZJW-24J,ZJW-30J
Rated Voltage:220V 50Hz
Max power consumption: 1300w
Max torque: 1200N.m
Main body weight: 5, 5.5, 7.5KG
Ro speed(min-1): 16, 14, 5rpm
Aaptable bolt dia: M16, M20, M22, M24，M30 / 5/8", 3/4", 7/8", 1"
High power, higher work efficiently.
Applicable bolt strength is higher
Each wrench provide 2 sockets, one of them will be set on the wrench.

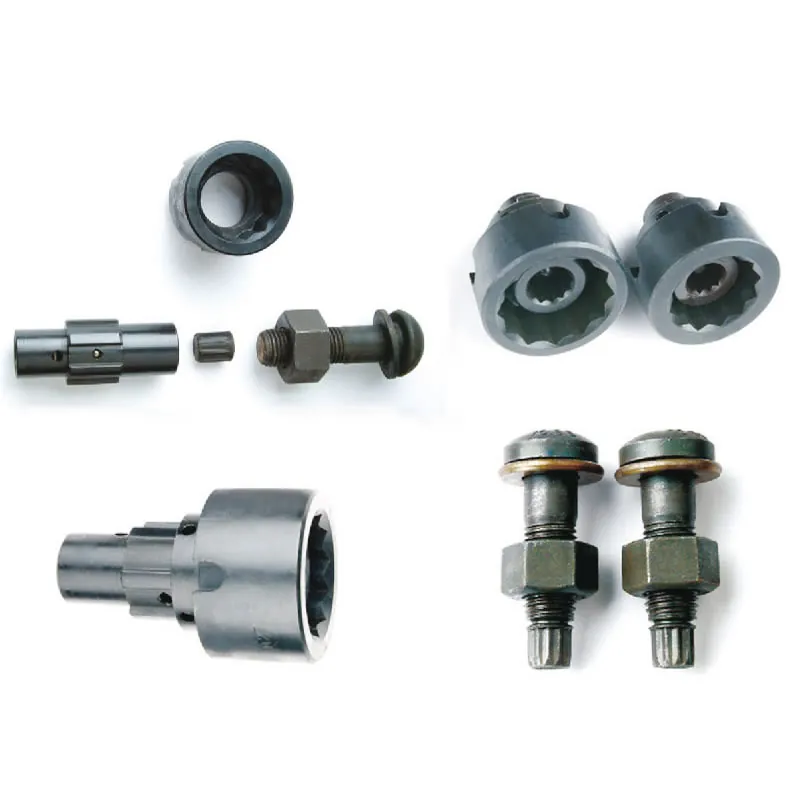

The torsion-shear electric wrench is an essential tool for tightening torsion-shear bolts.
When the wrench reaches a certain torque, the plum blossom head of the bolt can be cut
from the V-shaped notch of the bolt to complete the Bolt Tightening operation.
It is widely used in construction operations of steel structure bridges,
factories, power generation equipment and other facilities.

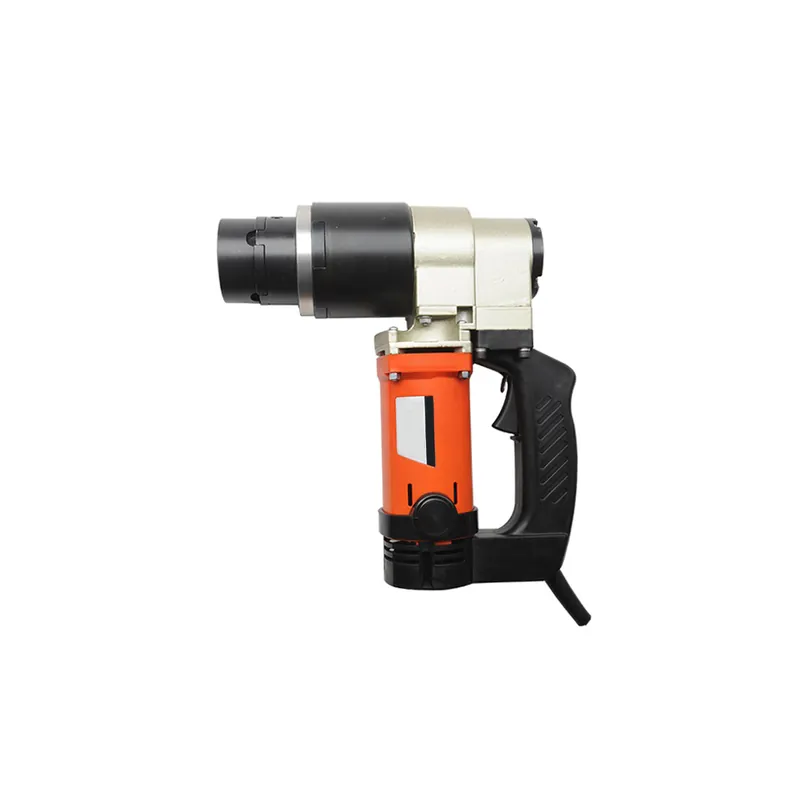

ZJW-22J Electric Torque shear wrench

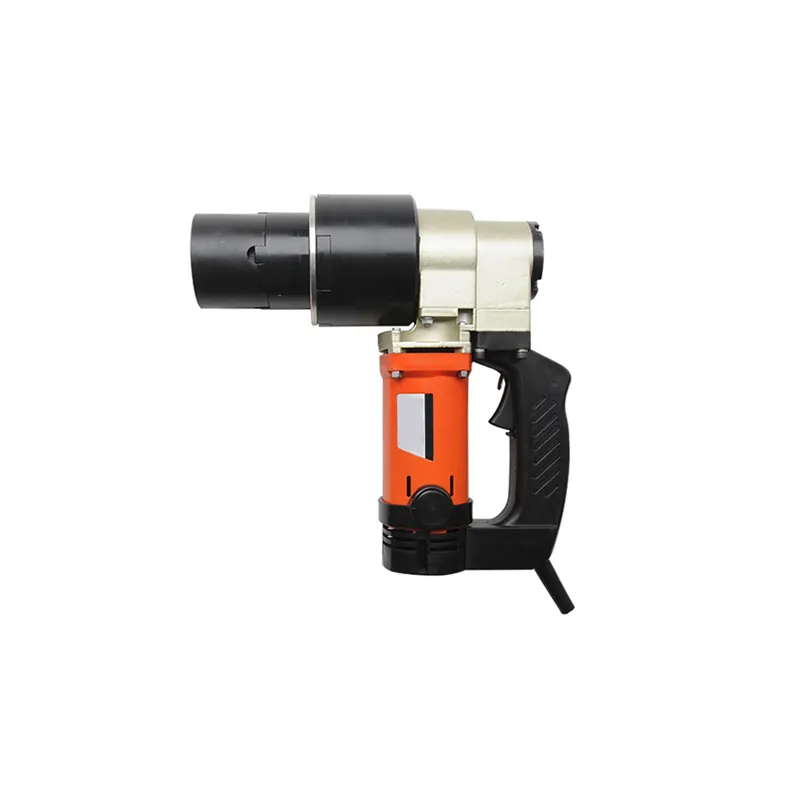

ZJW-24J Electric Torque Shear Wrench
ZJW-30J Electric Torque Shear Wrench

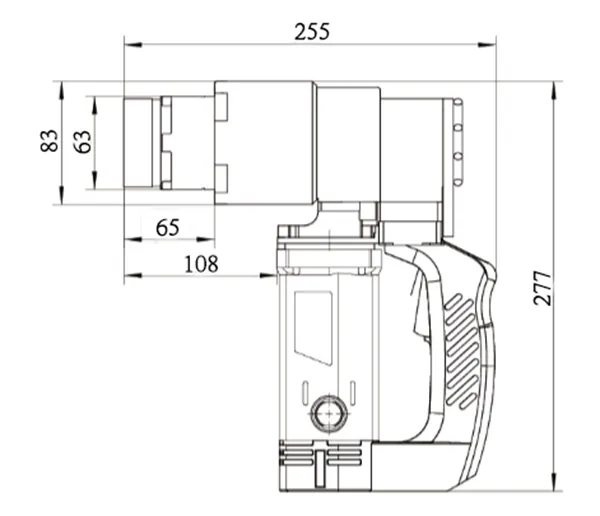

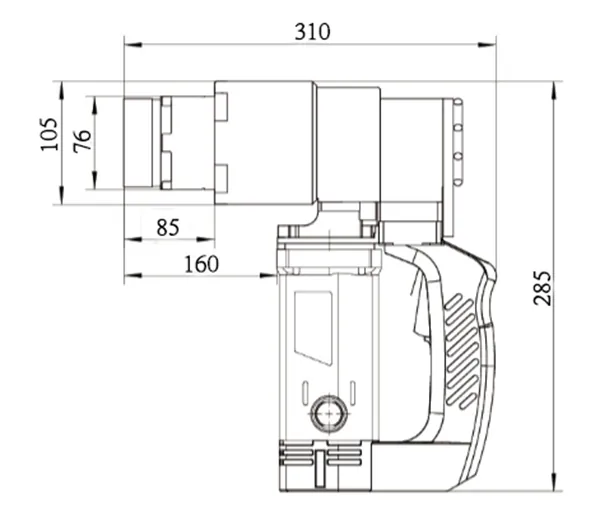

Dimensions
| Electric Torque Shear Wrench | ||||||
| Model Number | Rated Voltage | Max. Current | Max. Power | Ro Speed | Weight | Bolt Type |
| A | W | r/min | Kg | |||
| ZJW-22J | 220V 50Hz | 4 | 1200 | 16 | 5 | M16-M22 |
| ZJW-24J | 220V 50Hz | 5 | 1300 | 14 | 5.5 | M16-M24 |
| ZJW-30J | 220V 50Hz | 6 | 1300 | 5 | 7.5 | M24-M30 |
FAQs
1. How does an electric torque wrench work?
An electric torque wrench works by using an electric motor to convert
electrical energy into mechanical energy to generate torque.
2. What is a shear wrench used for?
A shear wrench is primarily used for the tightening of high-strength bolts,
particularly in the connections of bridges and building structures.
It operates by using shear force to cut off the tail of the bolt,
ensuring the bolt is tightened at the appropriate torque.
3. What is the most accurate type of torque wrench?
Electronic torque wrenches are considered the most accurate type of torque wrench.
4. What are the three basic types of torque wrenches?
The three basic types of torque wrenches are: click type torque wrenches,
beam type torque wrenches, and electronic torque wrenches.
