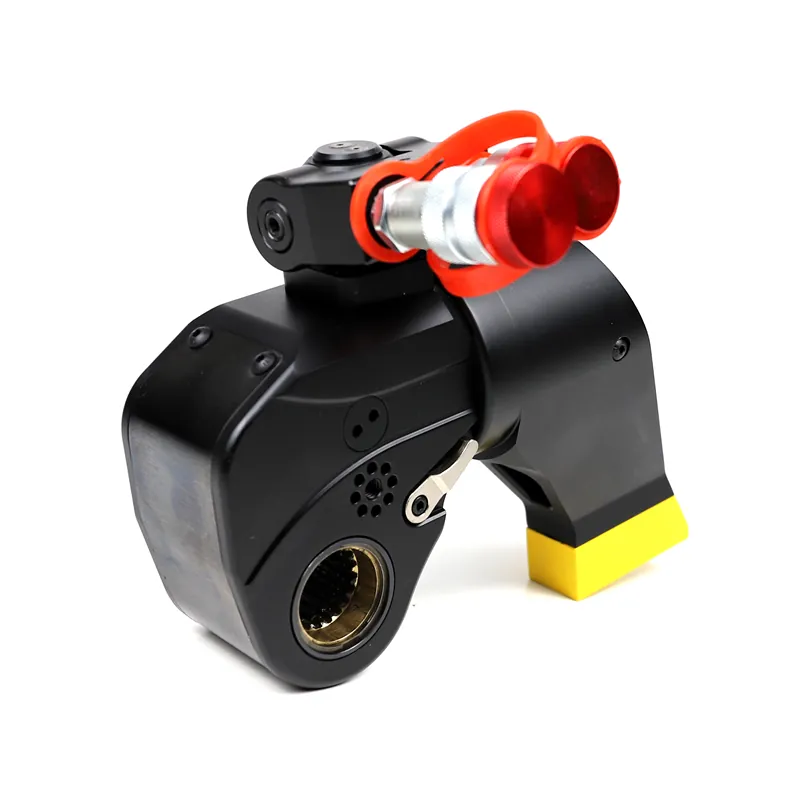

Black,SBT Series Square Drive Hydraulic Torque Wrench-1-SAIVS

Black,SBT Series Square Drive Hydraulic Torque Wrench-2-SAIVS

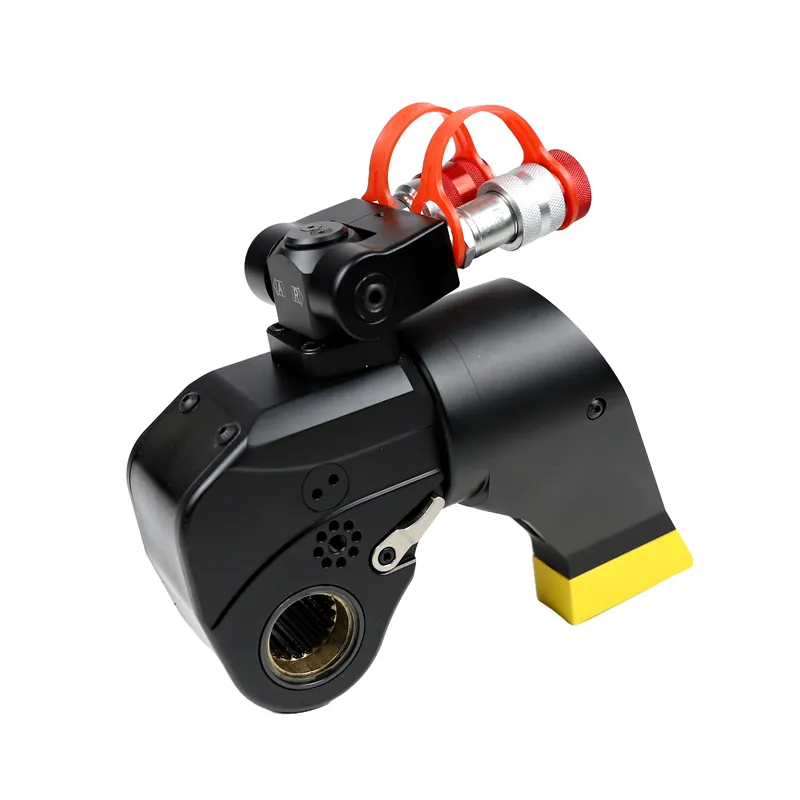

Black,SBT Series Square Drive Hydraulic Torque Wrench-3-SAIVS

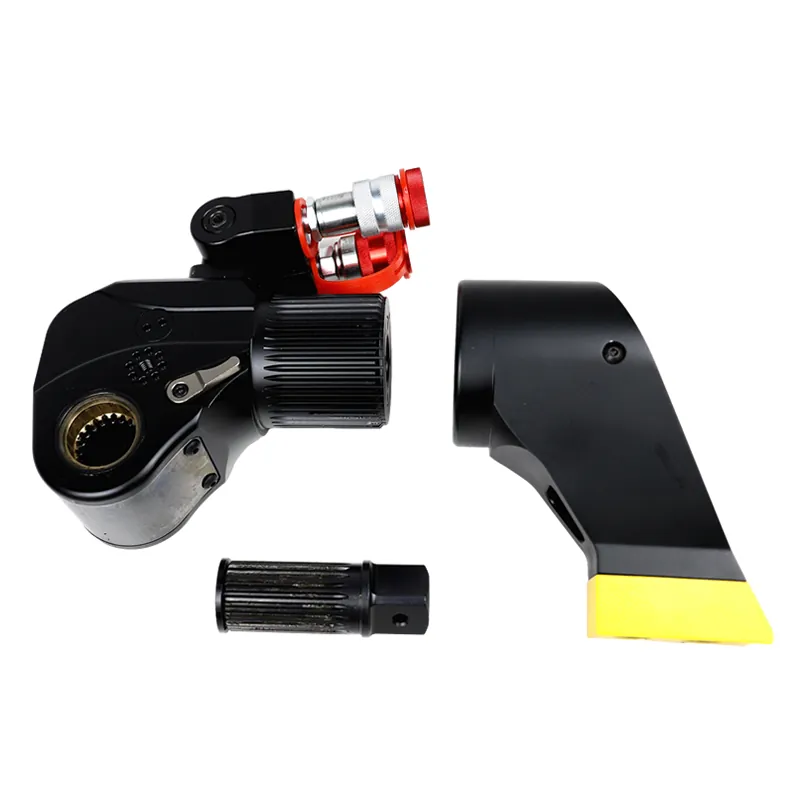

Black,SBT Series Square Drive Hydraulic Torque Wrench-4-SAIVS

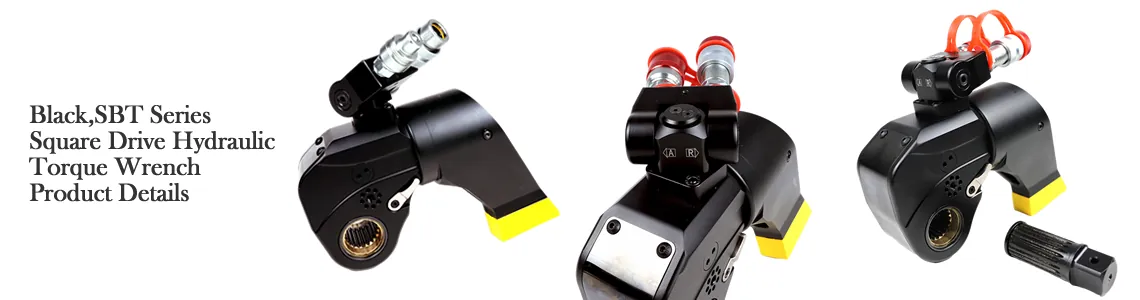

Black,SBT Series Square Drive Hydraulic Torque Wrench

5out of5 based on20 reviews | Write a review

70MPa maximum working pressure, easy to cope with tough challenges.
Excellent accuracy of ±3% ensures precise operation.
10 models cover a 112N.m to 72000N.m torque range, the most comprehensive in the market.
360°x180° free swivel joint, no space limitation, flexible operation.
Square drive adapts to high-strength sockets, applicable to a wide range of bolt types.

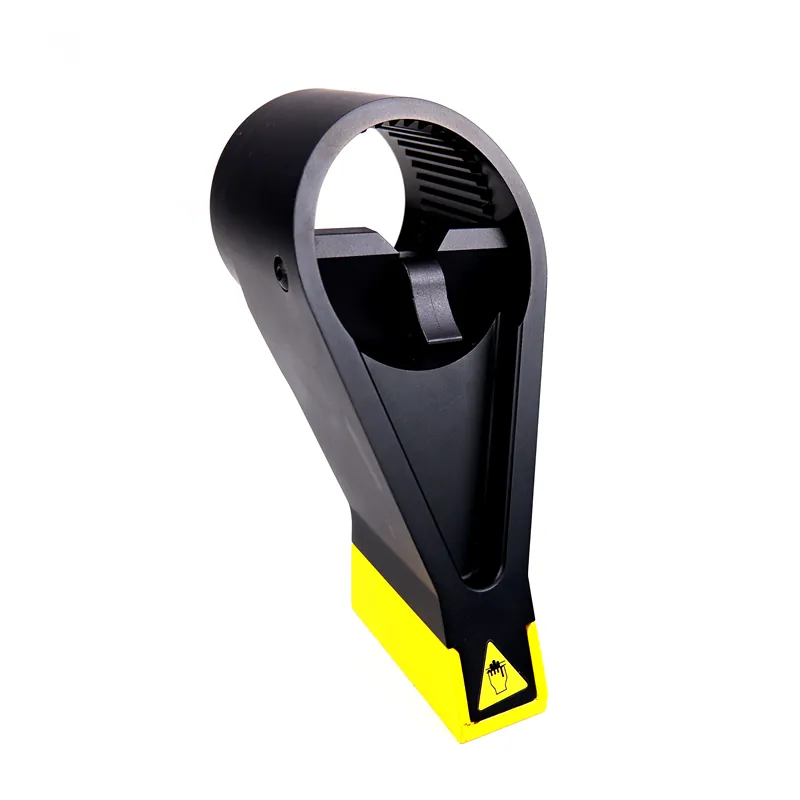

360°adjustable reaction arm, suitable for any support point.
Advanced aluminum titanium alloy material, compact design, high strength, and lightweight.
A new locking connector ensures a smooth flow of oil.

Application:Furniture manufacturing and assemblyConstruction and structural assemblyOil and gas industry

Sample:Contact us for free samples
CONTACT NOW
VIEW CATALOGUE

Description

SAIVS's SBT series Square Drive Hydraulic Torque Wrench are almost the same as Enerpac’s DSX &RSL series,

HYTORC’s MXT & EDGE S series, TORCUP’s TU series and SU series, HI FORCE’s TWS-N series, and other wrenches in terms of function, quality, and applicable working conditions.

SAIVS offers a one-year warranty, better prices, and Customized services for special conditions.

Welcome to Get Latest Price now

Dimensions

SBT Series Square Drive Hydraulic Torque Wrench internal structure

Model	SBT-07		SBT-1	SBT-3	SBT-5	SBT-8	SBT-10	SBT-15	SBT-20	SBT-25	SBT-35	SBT-50
Torque（N.m ）	112-1120		183-1837	451-4512	752-7528	1078-10780	1551-15516	2063-20627	2666-26664	3472-34725	4866-48666	7200-72000
Bolt size （M ）		14-30	16-36	22-48	27-56	30-64	36-72	39-80	42-90	48-100	64-120	72-125
Weight （Kg）	1.8		2	4	7	9.1	13.1	21	25	31	45	87
L1		110.8	133.5	169	202.5	216	237.5	285	299.5	313	361.5	400
L2	139.3		185.5	242	271	309	340.5	395	466.5	461	496.5	516
H1	42		50	68	80	90	100	110	120	137	153	160
H2	65.8		72	95	123	134	142	178	183	200	216	223
H3		76.2	95.5	127	149	167	182	200	220	247	282	291
H4	108.1		131	176.5	199	216.5	231.5	250	269.5	296.5	331.5	341
R1		20.5	26	34	39	47	51	55	59	66	77	81
R2	68.3		99	134	137	171	174	222	250.5	250.5	271	259
Square drive	3/4"		3/4"	1"	1-1/2"	1-1/2"	1-1/2"	2-1/2"	2-1/2"	2-1/2"	2-1/2"	2-1/2"

Impact Socket Specification

3/4" Suqare Drive (SBT-07,SBT-1)							1" Suqare Drive (SBT-3)
Socket Model	Bolt Type	Hexagon(AF)	L1	L2	D1	D2	Socket Model	Bolt Type	Hexagon(AF)	L1	L2	D1	D2
Socket Model	Bolt Type	mm	mm				Socket Model	Bolt Type	mm	mm
SD01001	M16	24	54	32	40	40	SD02001	M20	30	59	32	54	54
SD01002	M18	27	54	32	42	42	SD02002	M22	34	59	32	58	58
SD01003	M20	30	54	33	46	44	SD02003	M24	36	62	32	59	59
SD01004	M22	34	54	32	48	44	SD02004	M27	41	65	38	67	54
SD01005	M24	36	57	32	53	44	SD02005	M30	46	65	38	74	54
SD01006	M27	41	58	33	60	44	SD02006	M33	50	70	43	79	60
SD01007	M30	46	63	38	66	44	SD02007	M36	55	80	52	84	60
SD01008	M33	50	65	40	71	44	SD02008	M39	60	85	57	89	60
SD01009	M36	55	70	45	77	54	SD02009	M42	65	85	58	98	70
							SD02010	M45	70	90	62	104	70
							SD02011	M48	75	95	65	108	70

11/2" Suqare Drive (SBT-5, SBT-8, SBT-10)							21/2"Suqare Drive (SBT-15, SBT-20, SBT-25,SBT-35,SBT-50)
Socket Model	Bolt Type	Hexagon(AF)	L1	L2	D1	D2	Socket Model	Bolt Type	Hexagon(AF)	L1	L2	D1	D2
Socket Model	Bolt Type	mm	mm				Socket Model	Bolt Type	mm	mm
SD03002	M27	41	85	44	74	74	SD04003	M42	65	100	52	119	119
SD03003	M30	46	85	44	74	74	SD04004	M45	70	120	67	128	128
SD03004	M33	50	90	45	79	79	SD04005	M48	75	120	67	128	128
SD03005	M36	55	90	45	84	84	SD04006	M52	80	130	71	128	128
SD03006	M39	60	100	45	94	94	SD04007	M56	85	130	71	129	129
SD03007	M42	65	100	45	98	80	SD04008	M60	90	140	73	139	139
SD03008	M45	70	105	50	104	80	SD04009	M64	95	140	73	139	139
SD03009	M48	75	110	50	118	85	SD04010	M68	100	140	81	148	130
SD03010	M52	80	115	55	118	90	SD04011	M72	105	150	89	149	130
SD03011	M56	85	125	60	128	90	SD04012	M76	110	150	90	158	130
SD03012	M60	90	125	60	139	90	SD04013	M80	115	150	98	168	130
SD03013	M64	95	130	65	139	90	SD04014	M85	120	150	98	178	130
SD03014	M68	100	135	70	144	90	SD04015	M90	130	170	98	188	130
SD03015	M72	105	135	70	149	90	SD04016	M95	135	170	114	198	130
SD03016	M76	110	135	70	158	90	SD04017	M100	145	170	122	210	152
SD03017	M80	115	135	70	159	90	SD04018	M105	150	190	140	216	152
SD03018	M85	120	135	70	168	95	SD04019	M110	155	190	140	229	152
SD03019	M90	130	155	93	189	95	SD04020	M115	165	190	140	241	152
