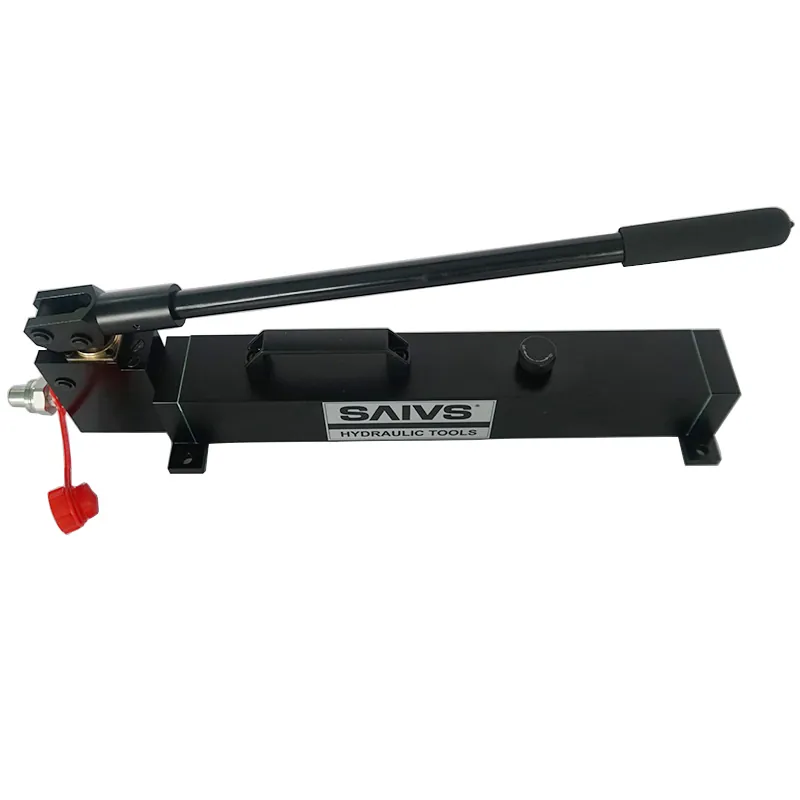

Single,Two Speed,10000 PSI,Lightweight Hydraulic Hand Pump
-
Model Number:SPS7-1|SPS7-3|SPS7-4
Pump Type:Double Speed
Used with Cylinder:Single-Acting
Usable Oil Capacity(cm³):1440/3240/5860
Max.Operating Pressure: 700
Pressure Rating 1st Stage: 25bar/362.6 psi
Pressure Rating 2st Stage:700bar/10000 psi
Output Oil Volume Each Stroke 1st Stage (cm³)32
Output Oil Volume Each Stroke 2st Stage (cm³)2.5
Weight:6.3/10/14.5(kg)
Sample:Contact us for free samples
Description
Model Number:SPS7-1|SPS7-3|SPS7-4
Pump Type:Double Speed
Used with Cylinder:Single-Acting
Usable Oil Capacity(cm³):1440/3240/5860
Max.Operating Pressure: 700
Pressure Rating 1st Stage: 25bar/362.6 psi
Pressure Rating 2st Stage:700bar/10000 psi
Output Oil Volume Each Stroke 1st Stage (cm³)32
Output Oil Volume Each Stroke 2st Stage (cm³)2.5
Weight:6.3/10/14.5(kg)
1:Made of aluminum titanium alloy,light weight, High Strength,corrosion
and impact resistance to various harsh environments.
2:Two Speed operation,build-in high and low pressure automatic switch valve.
Providing greater flow at low pressure to save operation time and increase the work efficiency.
3: Build-in safety valve inside to provides safe dual-protection.
4: Pressure regulating valve can readjust working pressure.
5:The unique press rod mechanism is more easy to operate.
6:Better protability with the handle.
Applications

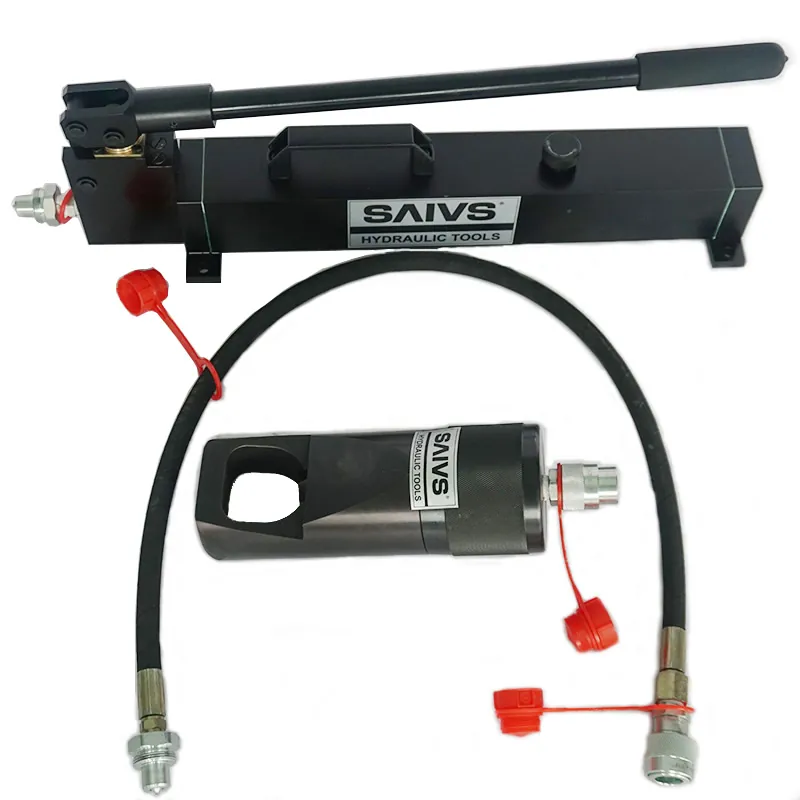

Suitable for nut splitters, flange spreaders, single acting Hydraulic Cylinders and other hydraulic tools.

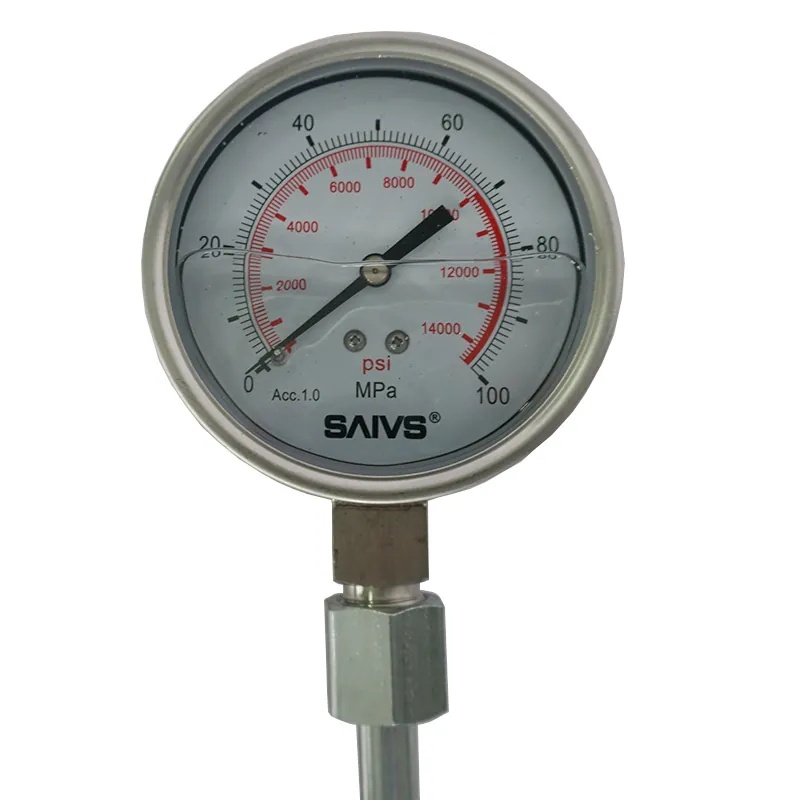

Pressure Display Unit (Optional)
Prevent overloading, pressure gauge adaptor + pressure gauge to achieve pressure display or one pump two top function.
For more information on pressure gauges adaptor and pressure gauges, see the section "Hydraulic Components".

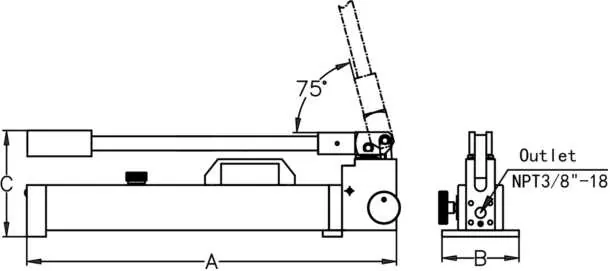

Dimensions
| Model Number | Pump Type | Used with Cylinder | Usable Oil Capacity | Pressure Rating (bar) | Output Oil Volume Each Stroke (cm3) | Handle Force | Over Dimension (mm) | Output Adapter | Weight | ||||
| A | B | C | |||||||||||
| (cm3) | 1st Stage | 2st Stage | 1st Stage | 2st Stage | (N) | Kg | |||||||
| SPS7-1 | Double Speed | Single-Acting | 1440 | 25 | 700 | 32 | 2.5 | 300 | 577 | 120 | 170 | NPT3/8" | 6.3 |
| SPS7-3 | 3240 | 582 | 200 | 170 | 10 | ||||||||
| SPS7-4 | 5860 | 667 | 250 | 172 | 14.5 | ||||||||
Video
FQAs
1. How do you size a hydraulic pump?
To size a hydraulic pump, you need to consider the required flow rate (in gallons per minute or liters per minute)
and system pressure (in psi or bar). Determine the total flow rate and pressure requirements
of the hydraulic system and choose a pump that can deliver those values.
2. What happens if your hydraulic pump is too big?
If the hydraulic pump is too big for the system, it can lead to excessive flow rates and pressures.
This may cause system components to fail, leaks to occur, or even damage the pump itself.
Oversizing the pump can result in inefficiency, increased energy consumption, and unnecessary costs.
