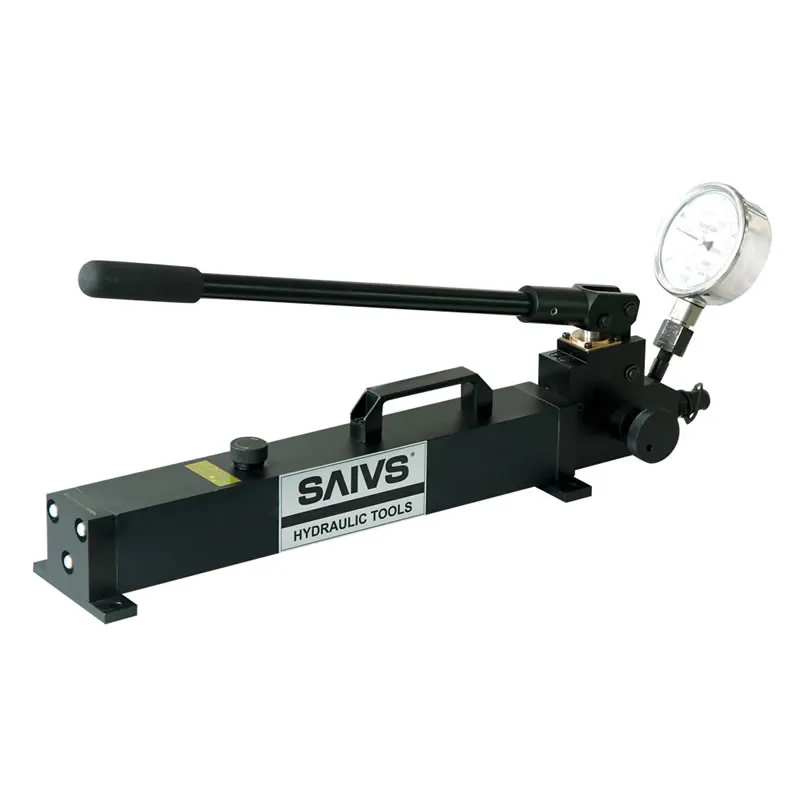

Single,Two Speed,23206 PSI,Lightweight Hydraulic Hand Pump
-
Model Number:SPS16-1|SPS16-3
Pump Type:Double Speed
Used with Cylinder:Single-Acting
Usable Oil Capacity(cm³):1440/3240
Max.Operating Pressure: 1600
Pressure Rating 1st Stage: 15bar/217.5 psi
Pressure Rating 2st Stage:1600bar/23206 psi
Output Oil Volume Each Stroke 1st Stage (cm³)32
Output Oil Volume Each Stroke 2st Stage (cm³)2.5
Weight:6.3/10(kg)
- P392, Two Speed, Lightweight Hydraulic Hand Pump P142, Two Speed, Lightweight Hydraulic Hand Pump P391, Single Speed, Lightweight Hydraulic Hand Pump P141, Single Speed, Lightweight Hydraulic Hand Pump Single,Two Speed,10000 PSI,Lightweight Hydraulic Hand Pump SPS Series Hydraulic Lightweight Hand Pumps
Description
Product Line: Industrial Tools
Customizable with special requirement
Model Number:SPS16-1|SPS16-3
Pump Type:Double Speed
Used with Cylinder:Single-Acting
Usable Oil Capacity(cm³):1440/3240
Max.Operating Pressure: 1600
Pressure Rating 1st Stage: 15bar/217.5 psi
Pressure Rating 2st Stage:1600bar/23206 psi
Output Oil Volume Each Stroke 1st Stage (cm³)32
Output Oil Volume Each Stroke 2st Stage (cm³)2.5
Weight:6.3/10(kg)

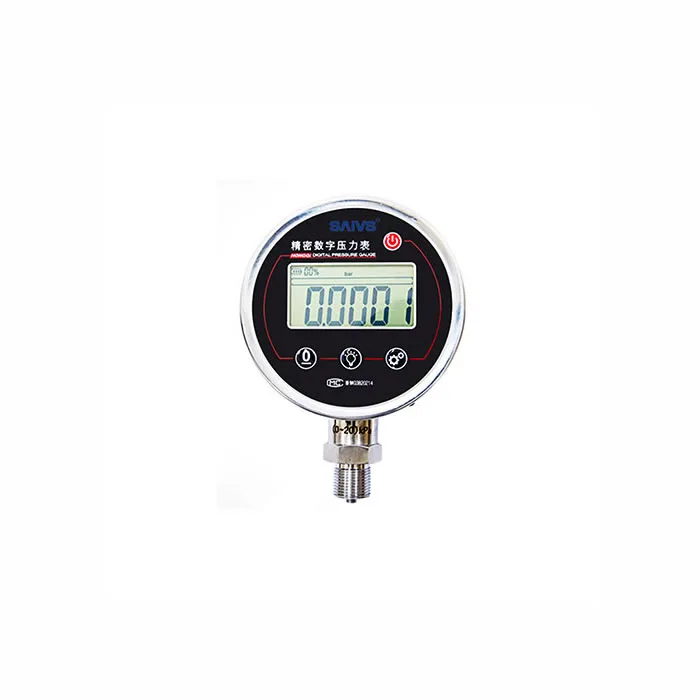

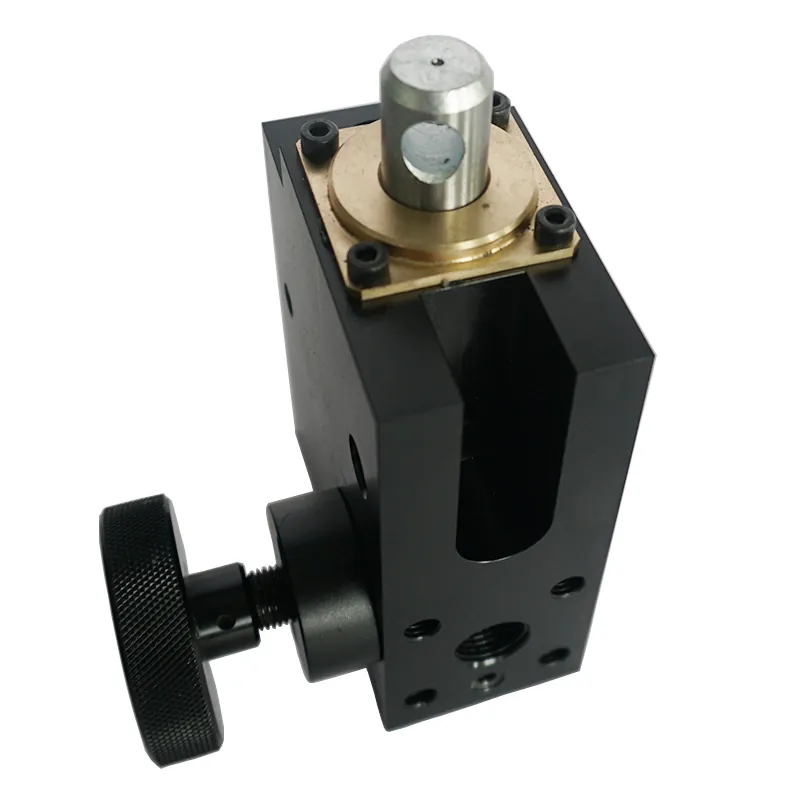

Pressure Display Unit (Optional)
Prevent overloading, pressure gauge adaptor + pressure gauge to achieve pressure display or one pump two top function.
For more information on pressure gauges adaptor and pressure gauges, see the section "Hydraulic Components".
Applications

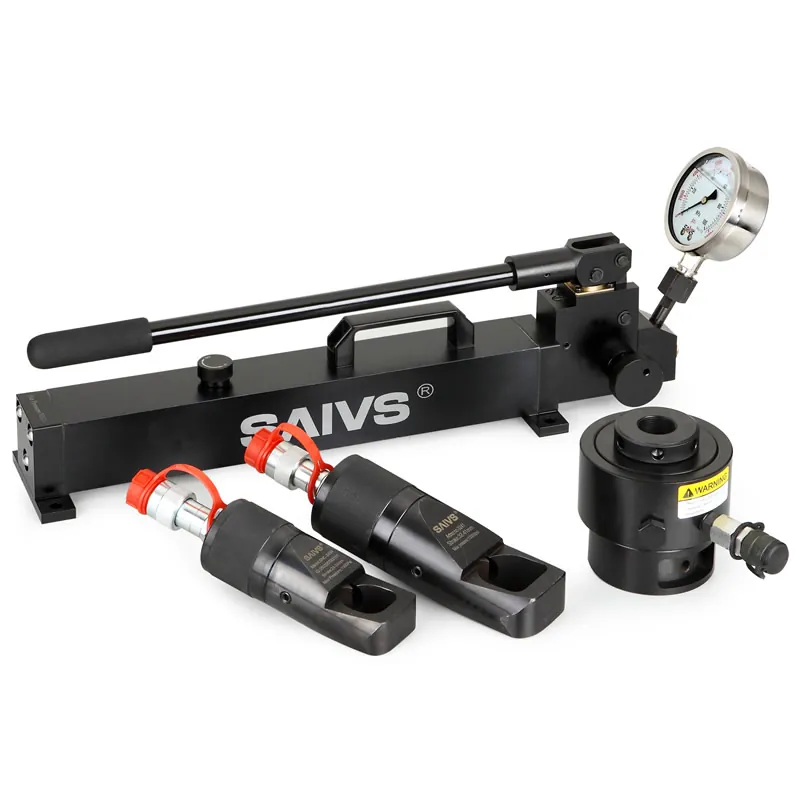

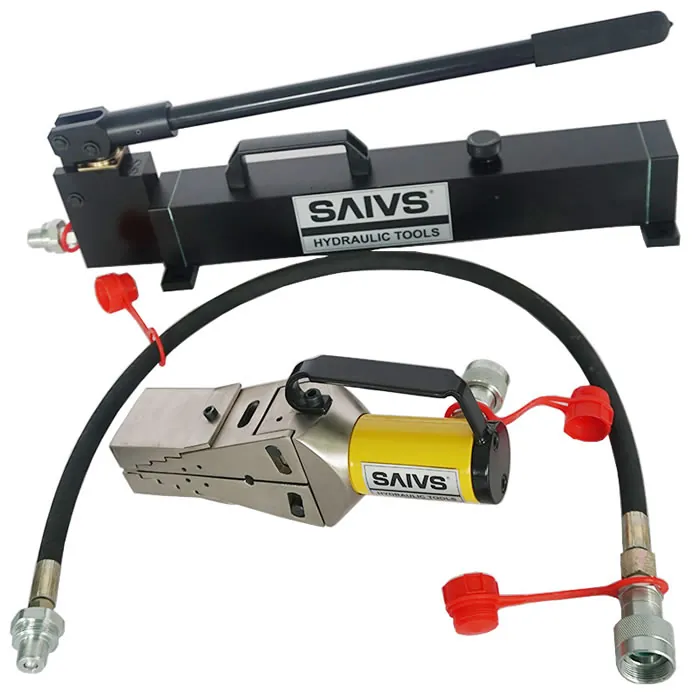

Suitable for nut splitters, flange spreaders, single acting Hydraulic Cylinders and other hydraulic tools.

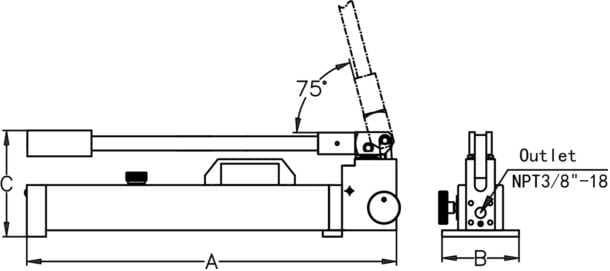

Dimensions
| Model Number | Pump Type | Used with Cylinder | Usable Oil Capacity | Pressure Rating (bar) | Output Oil Volume Each Stroke (cm3) | Handle Force | Over Dimension (mm) | Output Adapter | Weight | ||||
| A | B | C | |||||||||||
| (cm3) | 1st Stage | 2st Stage | 1st Stage | 2st Stage | (N) | Kg | |||||||
| SPS16-1 | Double Speed | Single-Acting | 1440 | 15 | 1600 | 32 | 2.5 | 375 | 577 | 120 | 170 | G1/4" | 6.3 |
| SPS16-3 | 3240 | 582 | 200 | 170 | 10 | ||||||||
Video
FAQs
1. What happens if your hydraulic pump is too big?
If the hydraulic pump is too big for the system, it can lead to excessive flow rates and pressures.
This may cause system components to fail, leaks to occur, or even damage the pump itself.
Oversizing the pump can result in inefficiency, increased energy consumption, and unnecessary costs.
2. How do you determine what size pump you need?
To determine the size of pump you need, calculate the total flow rate required by adding up
the flows of all the hydraulic components in the system. Consider the maximum pressure needed as well.
Based on these values, select a pump with a flow rate and pressure rating that meets or slightly exceeds the requirements.
3. How do I choose a hydraulic pump?
When choosing a hydraulic pump, consider factors such as desired flow rate, pressure requirements,
physical space restrictions, compatibility with the hydraulic fluid, and system efficiency.
