3500 Nm,M36,Digital Display Fixed Torque Electric Wrench
-
Current: 6.5A
Weight: 13kg
Max. Power: 1500W
Max. Torque:3500Nm
Bolt Type: M36
Ro Speed(r/min):3
Rated Voltage:220V 50Hz
Place of Origin:Ningbo,ZheJiang
Customized support:OEM,ODM
Other characteristics: pistol, digital, for heavy-duty applications
- 10000 Nm,M60,Digital Display Fixed Torque Electric Wrench 5000 Nm,M45,Digital Display Fixed Torque Electric Wrench 2500 Nm,M30-M33,Electric Torque Multiplier 2000 Nm,M27-M30,Pistol Digital Electric Torque Wrench 1500 Nm,M24-M27,Digital Fixed Torque Electric Wrench 1000 Nm,M20-M24,Digital Fixed Torque Electric Wrench 600 Nm,M16-M22,Digital Display Fixed Torque Electric Wrench
Description
Product Line: Industrial Tools
Customizable with special requirement
Current: 6.5A
Weight: 13kg
Max. power: 1500W
Max. Torque:3500Nm
Bolt Type: M36
Ro Speed(r/min):3
Rated Voltage:220V 50Hz
Place of Origin:Ningbo,ZheJiang
Customized support:OEM,ODM
Other characteristics: pistol, digital, for heavy-duty applications
1. Ultra compact socket with an integrated reaction arm.
2. Shortest profile and compact socket make accessible to bolts at any narrow space.
3. Perfect solution for your work at narrow space .
4. Easily set your target torque with dial on the controller.
5. Available with both directions -- forward and reverse.
6. Easy switch directions Appling reaction arm to closest object, Tighten up to target torque.
7. Versatile Performance of our electric Torque Wrench for bridge construction, steel fabrication and any kind of heavy industry.
Fixed torque electric wrench, also known as torque wrench, is an electric wrench.
Its main feature is that the torque can be set and the torque can be adjusted.
It is mainly used in the steel structure installation industry and specializes
in the installation of high-strength bolts in steel structures.
High-strength bolts are used to connect steel structure joints,
usually in the form of bolt groups.
Electric Torque Wrench suitable for industrial and plant applications,
including wind power, shipbuilding, and pipe flange connecting.

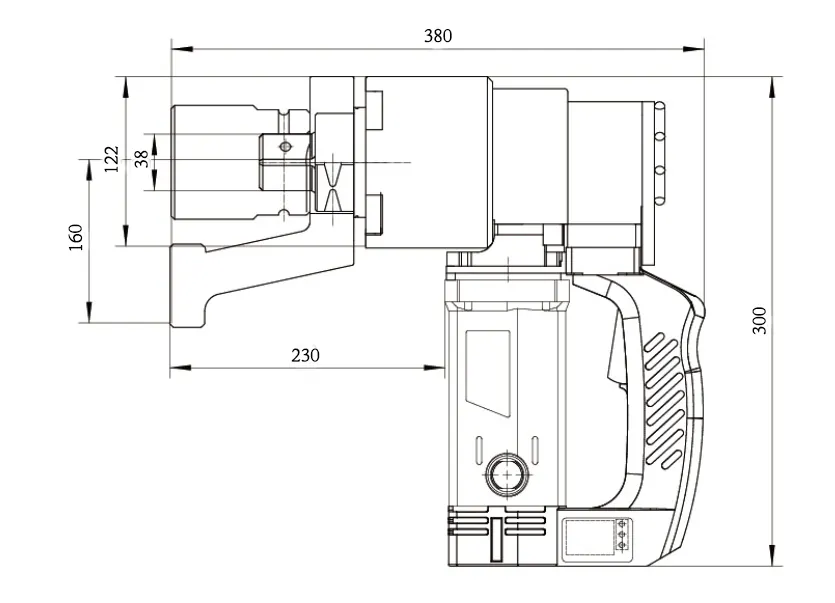

Dimensions
| Digital Display Fixed Torque Electric Wrench | |||||||
| Model Number | Rated Voltage | Max. Torque | Max. Current | Max. Power | Ro Speed | Weight | Bolt Type |
| Nm | A | W | r/min | kg | |||
| ZSW-3500 | 220V 50Hz | 3500 | 6.5 | 1500 | 3 | 13 | M36 |
| Digital Display Fixed Torque Electric Wrench | |||||||
| Model Number | Rated Voltage | Max. Torque | Max. Current | Max. Power | Ro Speed | Weight | Bolt Type |
| Nm | A | W | r/min | kg | |||
| ZSW-600 | 220V 50Hz | 600 | 4 | 1200 | 16 | 6 | M16-M22 |
| ZSW-1000 | 220V 50Hz | 1000 | 4.5 | 1200 | 14 | 6 | M20-M24 |
| ZSW-1500 | 220V 50Hz | 1500 | 5.5 | 1300 | 10 | 7 | M24-M27 |
| ZSW-1500DJ | 220V 50Hz | 1500 | 5.5 | 1300 | 10 | 7 | M24-M27 |
| ZSW-2000 | 220V 50Hz | 2000 | 6.5 | 1300 | 7 | 10 | M27-M30 |
| ZSW-2000DJ | 220V 50Hz | 2000 | 6 | 1300 | 7 | 7.5 | M27-M30 |
| ZSW-2500 | 220V 50Hz | 2500 | 6.5 | 1500 | 5 | 10 | M30-M33 |
| ZSW-3500 | 220V 50Hz | 3500 | 6.5 | 1500 | 3 | 13 | M36 |
| ZSW-5000 | 220V 50Hz | 5000 | 7.5 | 1600 | 1 | 16 | M45 |
| ZSW-10000 | 220V 50Hz | 10000 | 7.5 | 1700 | 0.5 | 19 | M60 |
Video
FAQs
1. What is the most accurate type of torque wrench?
Electronic torque wrenches are considered the most accurate type of torque wrench.
2. How does an electric torque wrench work?
An electric torque wrench works by using an electric motor to convert
electrical energy into mechanical energy to generate torque.
3. How accurate are electric torque wrenches?
The accuracy of electric torque wrenches can vary by brand and model,
but they typically have an accuracy of ±5% in clockwise direction.
4. What is the difference between a digital and traditional torque wrench?
The main difference is how torque is measured and displayed.
Traditional torque wrenches use mechanical means, like a dial or click mechanism.
Digital torque wrenches use electronic sensors and display the torque value on a digital screen.
