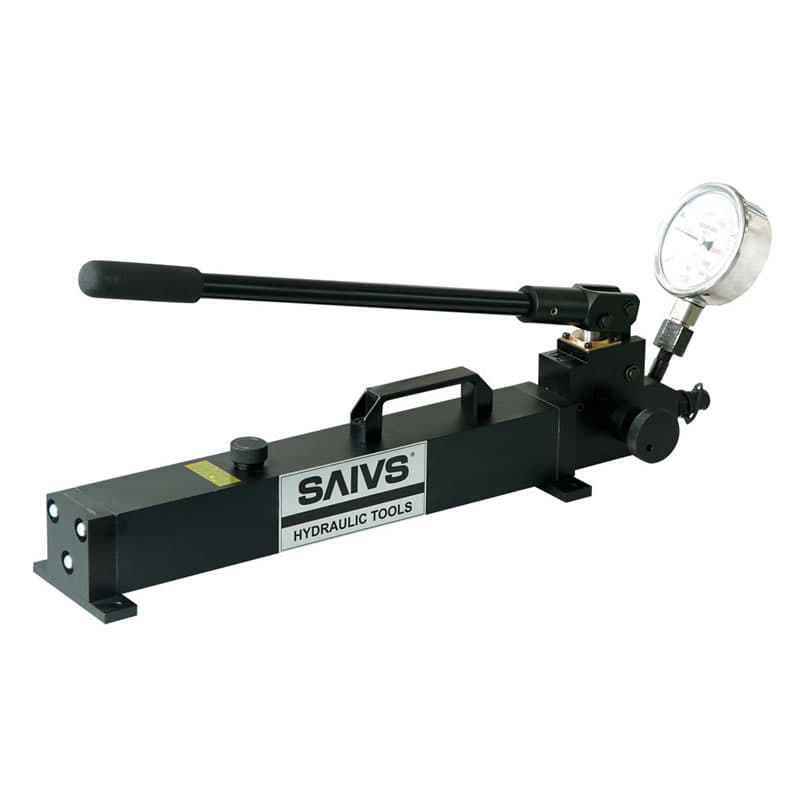

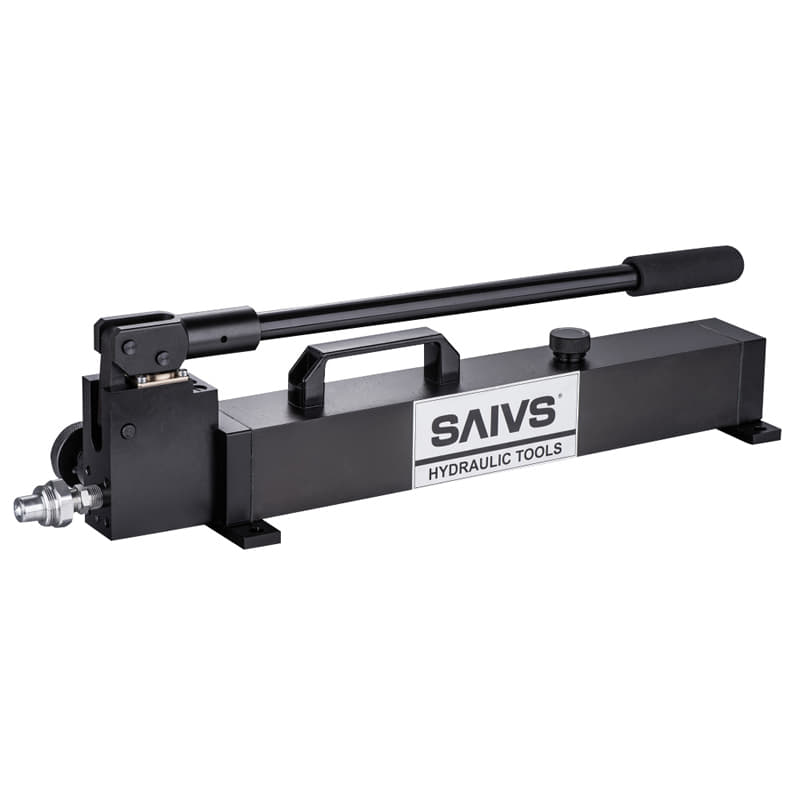

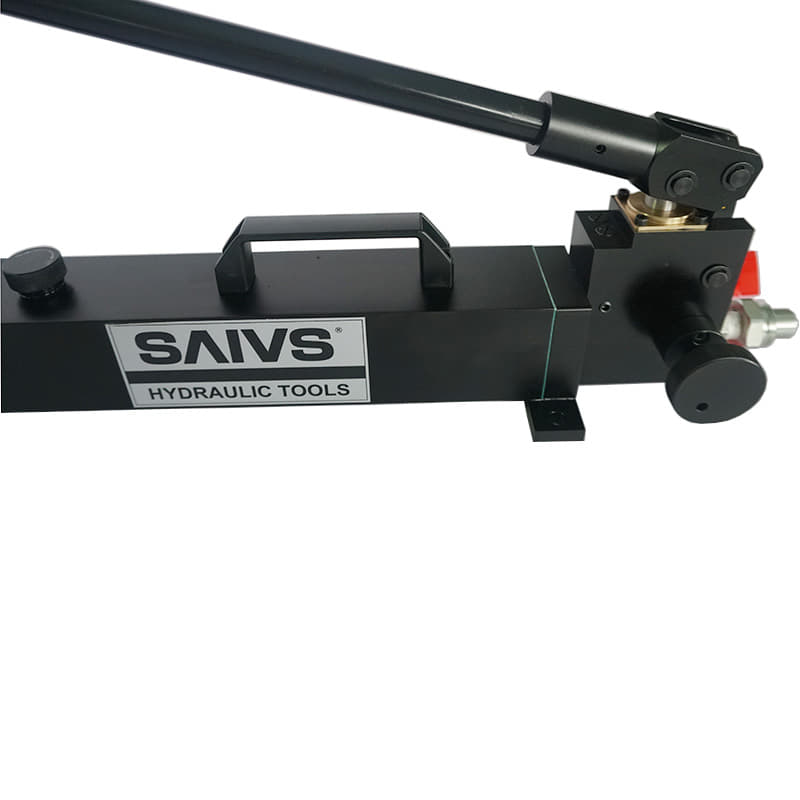

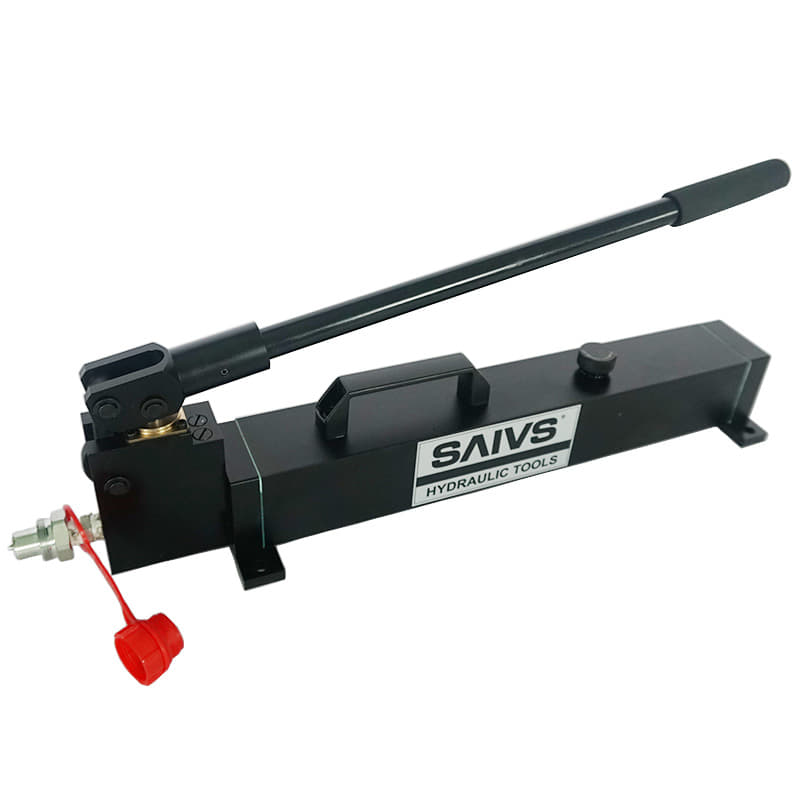

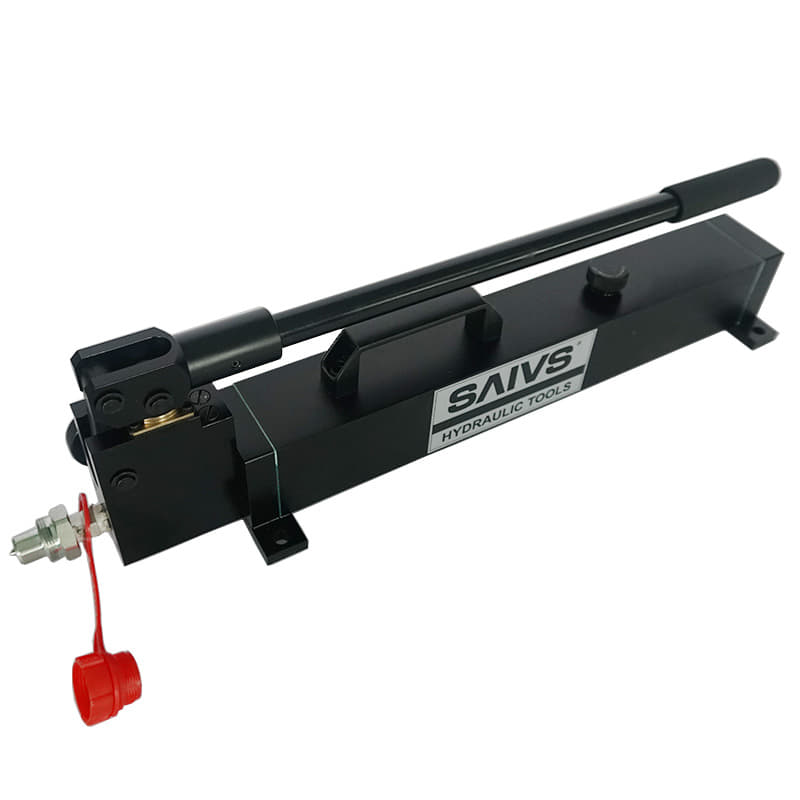

SPS Series Hydraulic Lightweight Hand Pumps
-
Usable Oil Capacity: 1440 - 5860 （CM3）
Flow at Rated Pressure: 2.5 （CM3）/ Stroke
Max.Operating Pressure: 700 bar - 1600 bar /10,152.5 psi - 23,205.8 psi
Weight：6.3-10kg
Pump Type:Double Speed / Single-Acting
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
- P392, Two Speed, Lightweight Hydraulic Hand Pump P142, Two Speed, Lightweight Hydraulic Hand Pump P391, Single Speed, Lightweight Hydraulic Hand Pump P141, Single Speed, Lightweight Hydraulic Hand Pump Single,Two Speed,23206 PSI,Lightweight Hydraulic Hand Pump Single,Two Speed,10000 PSI,Lightweight Hydraulic Hand Pump
Description
Product Line: Industrial Tools
Customizable with special requirement
Made of aluminum titanium alloy,light weight, High Strength,corrosion and impact resistance to various
harsh environments.
Two Speed operation, build-in high and low pressure automatic switch valve. Providing greater flow at low
pressure to save operation time and increase the work efficiency.
Build-in safety valve inside to provides safe dualprotection.
Pressure regulating valve can readjust working pressure.

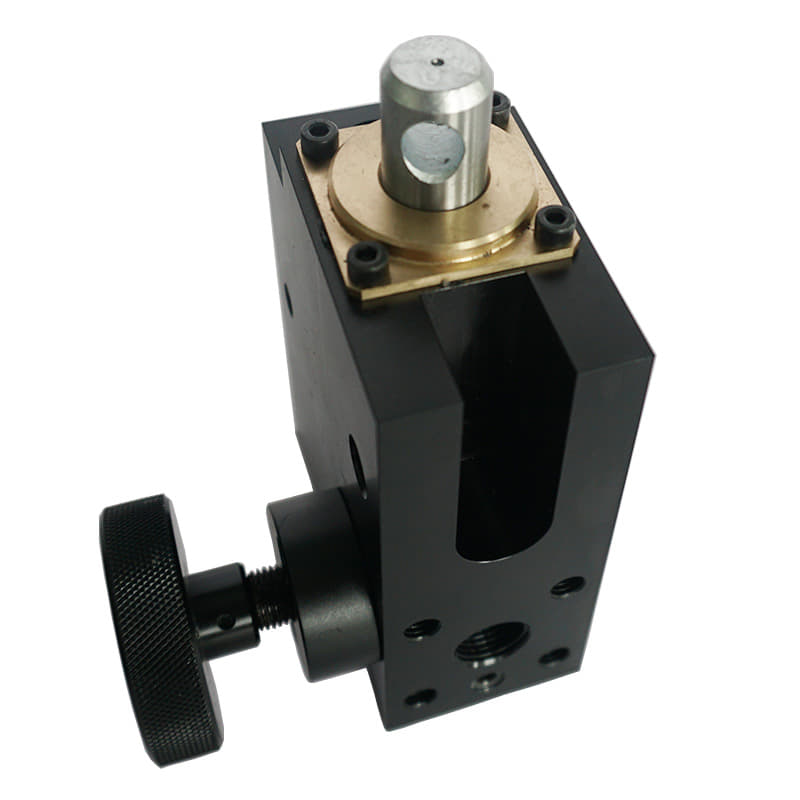

The unique press rod mechanism is more easy to operate.
Better protability with the handle.

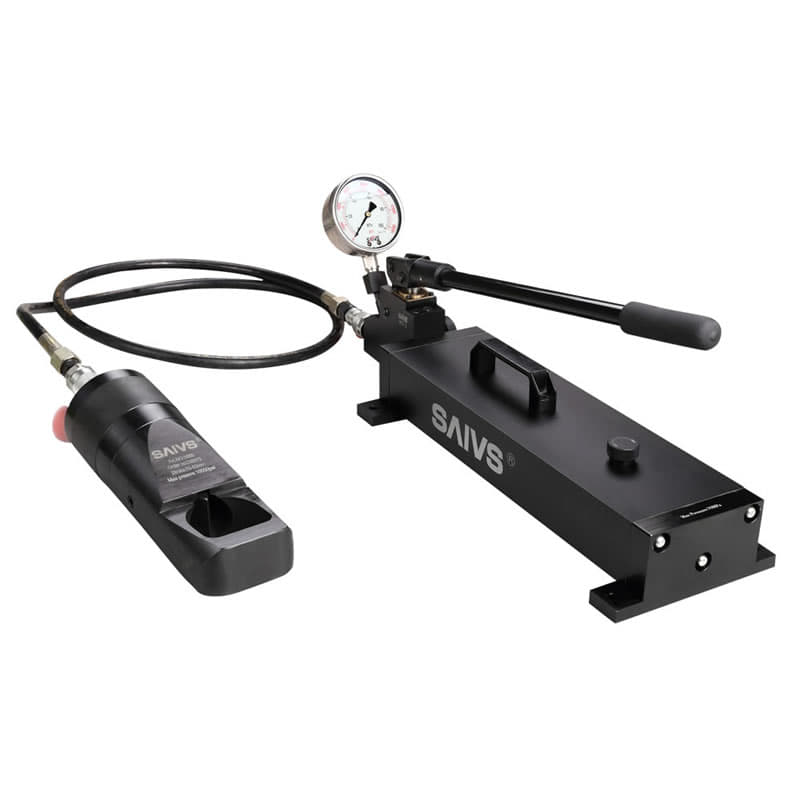

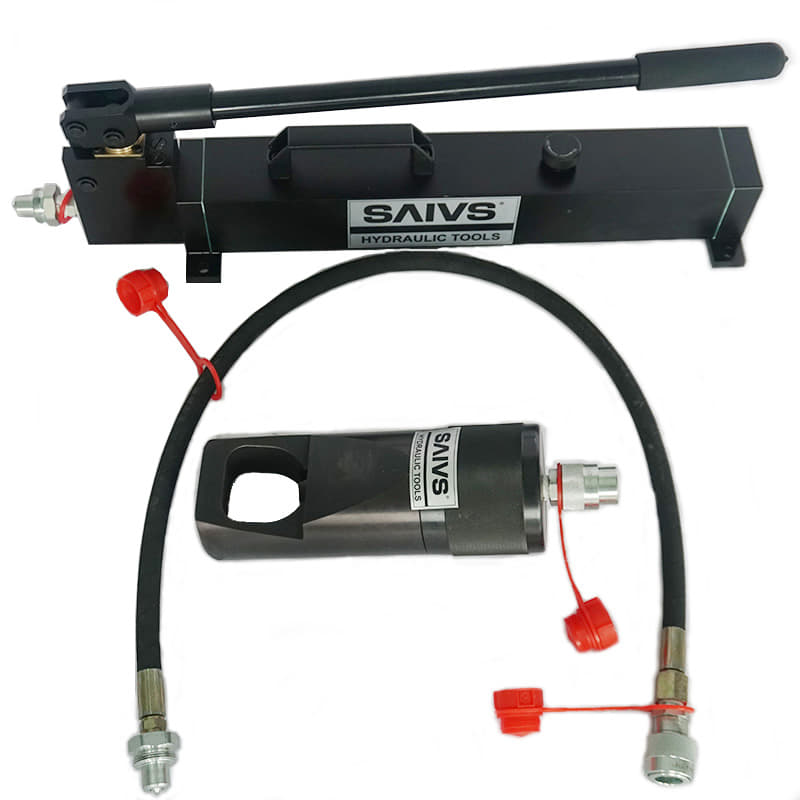

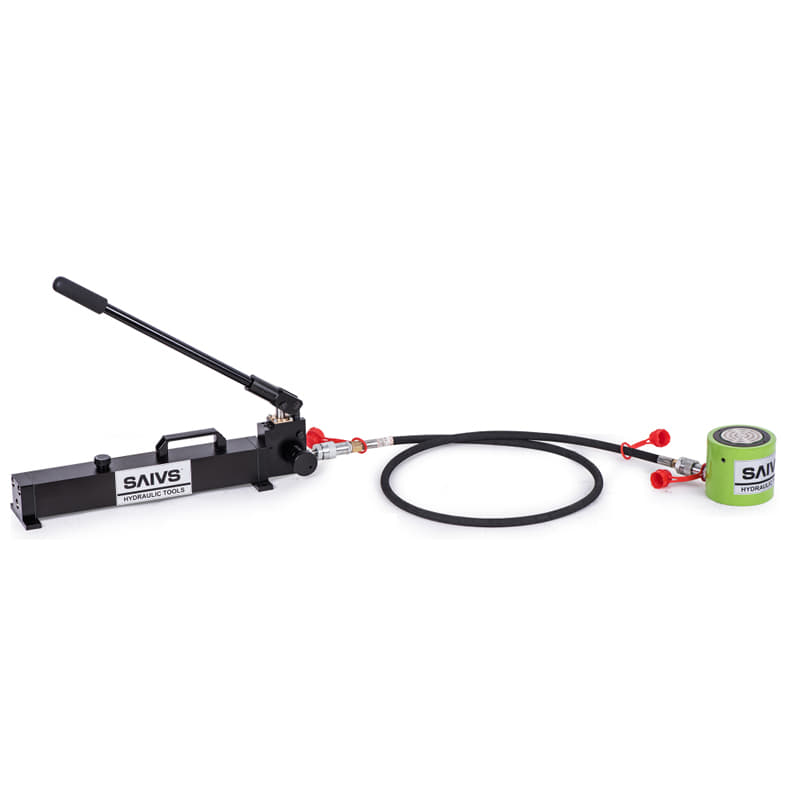

Applications: Suitable for nut splitters, flange spreaders, Single Acting Hydraulic Cylinders and other hydraulic tools.
Dimensions
| Model Number | Pump Type | Used with Cylinder | Usable Oil Capacity | Pressure Rating (bar) | Output Oil Volume Each Stroke (cm3) | Handle Force | Over Dimension (mm) | Output Adapter | Weight | ||||
| A | B | C | |||||||||||
| (cm3) | 1st Stage | 2st Stage | 1st Stage | 2st Stage | (N) | Kg | |||||||
| SPS7-1 | Double Speed | Single-Acting | 1440 | 25 | 700 | 32 | 2.5 | 300 | 577 | 120 | 170 | NPT3/8" | 6.3 |
| SPS7-3 | 3240 | 582 | 200 | 170 | 10 | ||||||||
| SPS7-4 | 5860 | 667 | 250 | 172 | 14.5 | ||||||||
| SPS16-1 | 1440 | 15 | 1600 | 32 | 2.5 | 375 | 577 | 120 | 170 | G1/4" | 6.3 | ||
| SPS16-3 | 3240 | 582 | 200 | 170 | 10 | ||||||||
