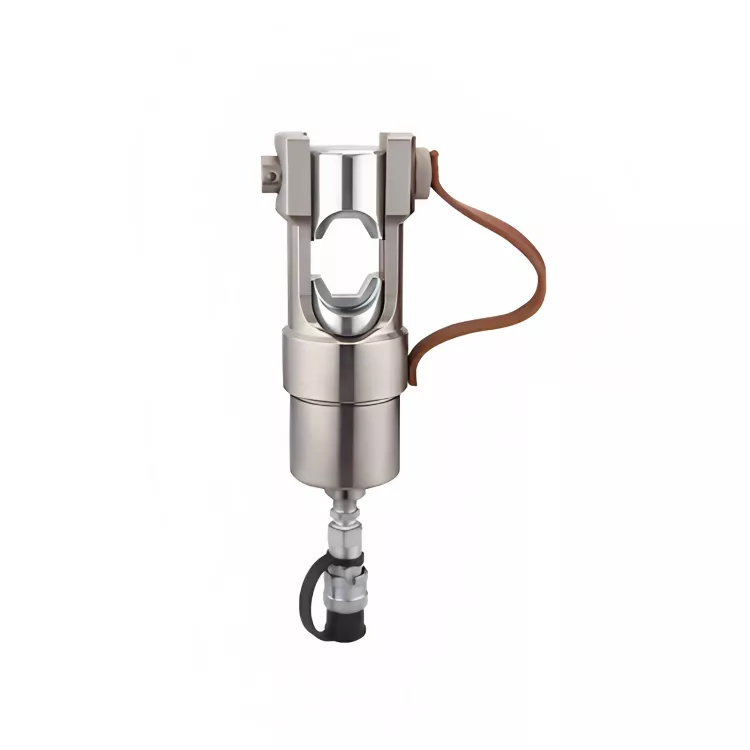

Hydraulic Crimp Tools - CO-25/CO-45
-
Model:CO-25 / CO-45
Output:230kN/450KN
Crimping range:16~1000mm²
Rated pressure:70Mpa(700bar/10000psi)
Dimension:320×88×120mm
Weight:5.3kg-11kg
Packing:Steel case
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
Description
Product Line: Industrial Tools
Customizable with special requirement
Hydraulic Crimp Tools CO-25
Model:CO-25
Output:230kN
Crimping range:16~630mm²
Rated pressure:70Mpa(700bar)
Dimension:320×88×120mm
Weight:5.3kg(without die set)
Packing:Steel case
Accessories:
Crimping dies:150.185.240.300.400.500.630mm²
Sealing O-ring:1 set
Note:It can matched use with Hand Pump CP-700
Model:CO-45
Output:450kN
Crimping range:120~1000mm²
Rated pressure:70Mpa(700bar)
Dimension:265×178×115mm
Weight:11kg(without die set)
Packing:Steel case
Accessories:
Crimping dies:400.500.630.800.1000mm²
Sealing O-ring:1 set
Note:It can matched use with hand pump CP-700
Dimensions
| Technical Specification | CO-25 | CO-45 |
|---|---|---|
| Model | CO-25 | CO-45 |
| Output | 230kN | 450kN |
| Crimping range | 16~630mm² | 120~1000mm² |
| Rated pressure | 70Mpa(700bar) | 70Mpa(700bar) |
| Dimension | 320×88×120mm | 265×178×115mm |
| Weight | 5.3kg(without die set) | 11kg(without die set) |
| Packing | Steel case | Steel case |
| Accessories | Crimping dies:150.185.240.300.400.500.630mm² Sealing O-ring:1 set Note:It can matched use with hand pump CP-700 | Crimping dies:400.500.630.800.1000mm² Sealing O-ring:1 set Note:It can matched use with hand pump CP-700 |
FAQs
What is a hydraulic crimp tool, and what is it used for?
A hydraulic crimp tool is a device used in electrical work to crimp (join or terminate) wires securely. The tool works by compressing two materials together using hydraulic pressure, creating a strong, reliable connection.
How do I choose the right hydraulic crimp tool for my needs?
When selecting hydraulic crimp tools for your specific requirements, consider factors such as the range of wire sizes the tool can handle, its crimping force, the quality and material of the crimp dies, and any additional features that may be beneficial for your particular application.
What are the benefits of purchasing from a hydraulic crimp tool manufacturer or factory directly?
Buying from manufacturers or factories directly usually guarantees better pricing as there are no middlemen involved. Additionally, you'll have access to bespoke solutions tailored to your exact requirements, customer service provided by technicians who understand the products thoroughly, lower minimum order quantities, and faster delivery times.
What makes a good hydraulic crimp tool supplier, and how do I find one?
A good hydraulic crimp tool supplier should offer high-quality products, competitive pricing, excellent customer service, and a good reputation in the industry. You can find reputable suppliers by looking at online reviews, asking for recommendations from trusted sources or industry peers, and attending trade shows and exhibitions where multiple suppliers will be showcasing their products.
What is the typical lead time for receiving customized hydraulic crimp tools from a manufacturer?
The lead time for customized hydraulic crimp tools varies depending on the complexity of the design and manufacturing processes required. However, most manufacturers provide an estimated lead time when placing an order, typically ranging from 4-8 weeks. It's always recommended to confirm the lead time directly with the manufacturer before placing an order.
