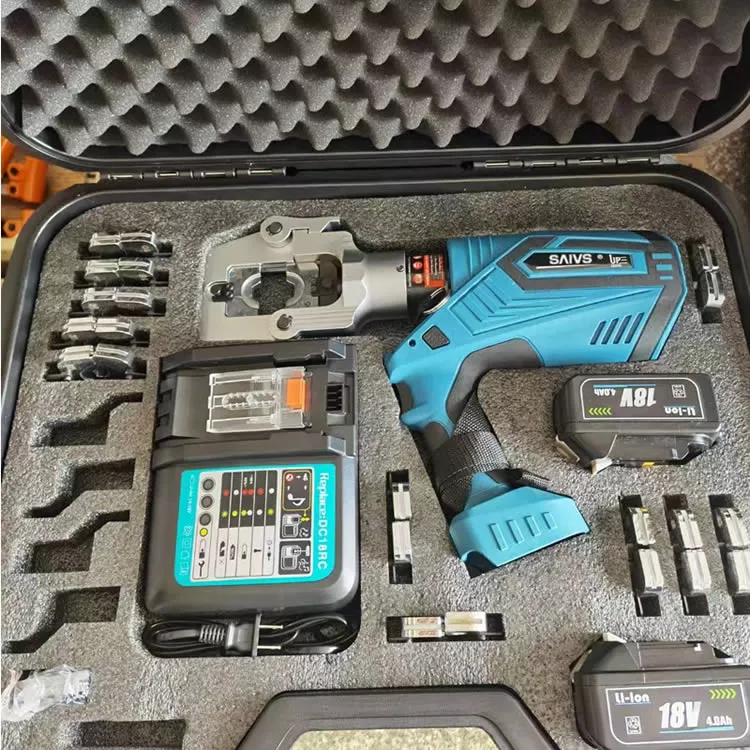

Multifunctional Battery Powered Crimping Tool

5out of5 based on8 reviews | Write a review
  • Model:SED-60UNV

    Crimping force:60kN

    Stroke:42 mm

    Crimp/charge:160times(Cu150mm²)

    Crimping cycle:3s-15s(depend on the size of cable)

    Voltage/Capacity:18v/4.0Ah

    Weight(with battery):5.25kg

    Charging time:2 hour

    Minimum Order: 1 Pieces

    Warranty:1 Year

    Origin: Ningbo,China

    Application:Electronics manufacturing and repairOil and gas industryPower engineering, technology, and services

    Sample:Contact us for free samples

  • CONTACT NOW
  • VIEW CATALOGUE

Description


Looking for a versatile and portable crimping tool that can handle all of your wire crimping needs?

Our multifunctional battery powered crimping tool is the perfect solution.

Made in China by experienced manufacturers, our factory uses the latest technology to produce high-quality electric and battery operated crimp tools.

With competitive prices and excellent sales and customer service, we strive to provide the best possible experience for our clients.

Whether you need a tool for commercial or personal use, our multifunctional battery powered crimping tool is the perfect choice for you. Contact us today to learn more and place your order!


Feature:

1.The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.

2.A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston& die when the trigger is released

3.The unit is equipped with a double piston pump which is characterised by a rapid approach of the dies forwards the connector and a slow crimping motion.

4.The crimping head can be smoothly turned by 180°around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.

5.Li-ion batteries do neither have a memory effect nor self discharge Even after long periods of non operation the tool is always ready to operate. In addition we see a lower power weight ratio with50% more capacity and shorter charging cycles compare to NiMH batteries.

6.A Temperature sensor makes the tool stop working automatically when the temperature over 60’ C under long time working. The fault signal sounds, it means the tool can't continue work until the temperature reduced to the normal.


Dimensions

Crimping force

60kN

Stroke

42mm

Crimping range

10-300mm²

Crimping/Charge

160 times(Cu150mm²)

Cutting range

≤Φ40mm Al/Cu cable

Cutting/Charge

70 times

Punching range

22.5-61.5

Punching/Charge

100times

Crimping cycle

3s-15s(depend on the working type)

Voltage

18V

Battery Capacity

4.0Ah

Charging time

2 hours

Weight

Approx NW5.25kg G.W21.2kg

Package

Plastic box

Accessories

Dies:10,16.25,35,50,70,95,120,150,185,240,300mm²

Punch dies:22.5  28.3  34.6  43.2  49.6  61.5mm

Battery:2pcs   Charger:1pcs   Blade:1set

FQAs

1. What are the benefits of using a multifunctional battery powered crimping tool?

Answer: A multifunctional battery powered crimping tool allows for efficient and easy crimping of wires without the need for manual labor or an electrical outlet. It can also be used for a variety of crimping tasks, making it a versatile tool for professionals and DIY enthusiasts alike.


2. How can I find reliable manufacturers of multifunctional battery powered crimping tools in China?

Answer: One effective way to find reliable manufacturers of multifunctional battery powered crimping tools in China is to search for reviews and ratings online from past customers. Additionally, attending trade shows and exhibitions can provide opportunities to meet with manufacturers in person and learn more about their products.


3. What factors should I consider when comparing prices of battery operated crimp tools?

Answer: When comparing prices of battery operated crimp tools, it is important to consider factors such as the tool's battery life, warranty, crimping capabilities, and overall durability. It may be worthwhile to pay a higher price for a tool that will last longer and require less maintenance.


4. What are some common applications for portable crimping tools?

Answer: Portable crimping tools are commonly used for a range of applications such as automotive repair, electrical wiring, and construction. They can be used to crimp wires, cables, and connectors, and are highly versatile tools that are useful in many different industries.
