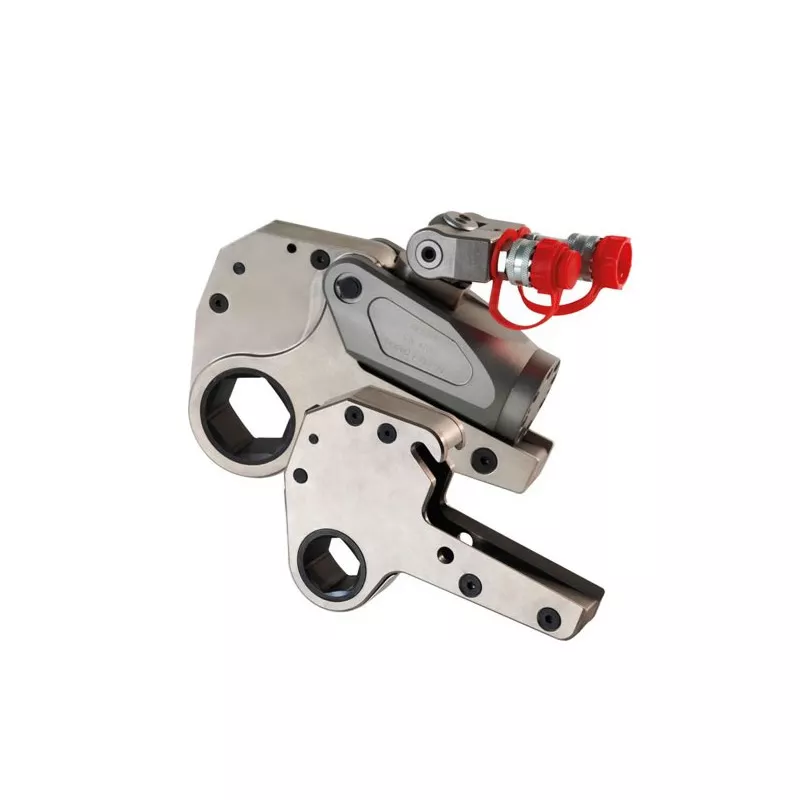

SOW Series,230-44500 Nm,Hydraulic Torque Wrench-1-SAIVS

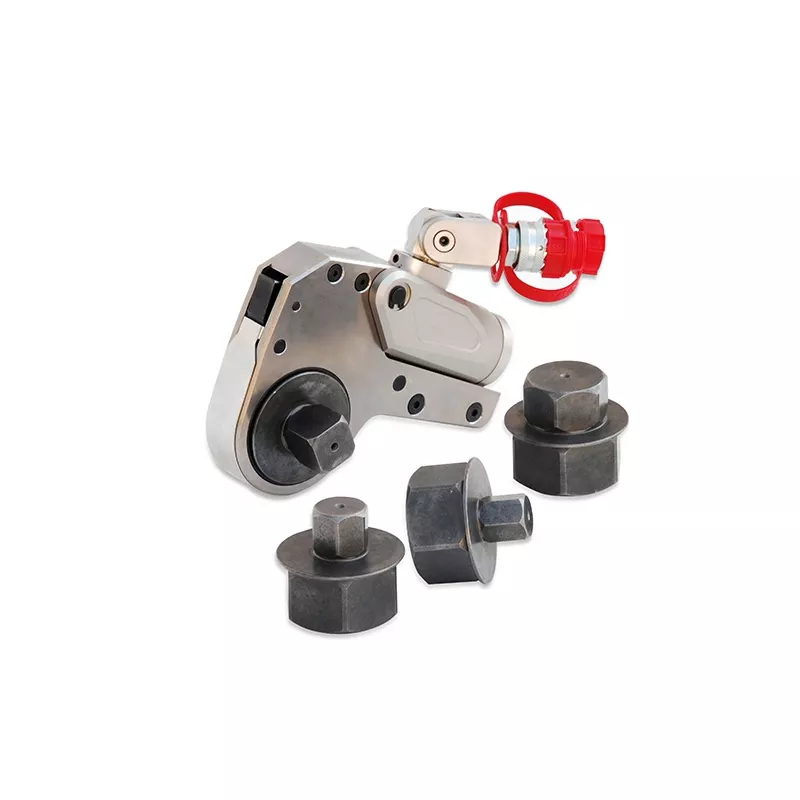

SOW Series,230-44500 Nm,Hydraulic Torque Wrench-2-SAIVS

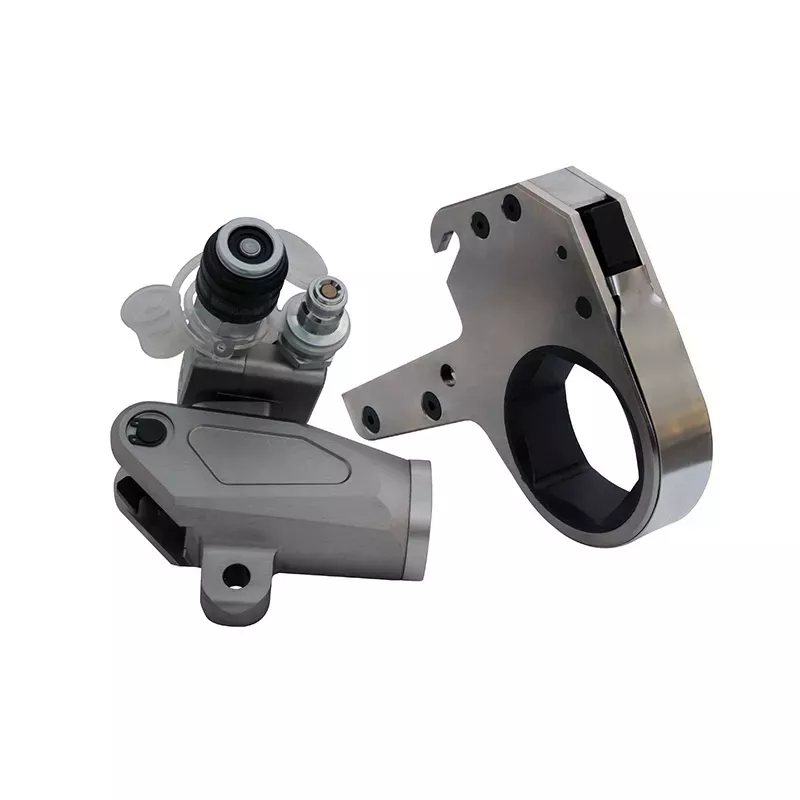

SOW Series,230-44500 Nm,Hydraulic Torque Wrench-3-SAIVS

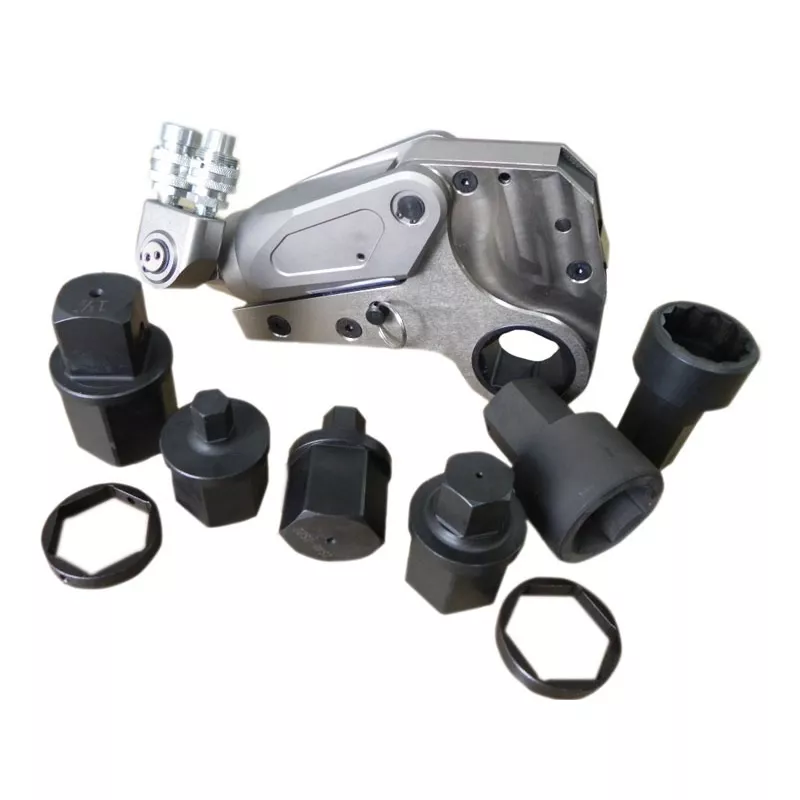

SOW Series,230-44500 Nm,Hydraulic Torque Wrench-4-SAIVS

SOW Series,230-44500 Nm,Hydraulic Torque Wrench

5out of5 based on9 reviews | Write a review

Repeatability +/- 3%
700 bar/10000psi maximum operation pressure
5 different models from 230 Nm to 45,000 Nm
Designed for tighten and loosen high torque applications
360° x 180° uni swivel quick release couplings
Maximum torque power with minimum wall thickness
Various cassettes, adaptors and reducers are available
Durable structure, aluminium-titanium alloy and light body
Suitable for continuous operations at maximum pressure
Pressure relief valve prevents over pressure

Application:Petrochemical and chemical industryOil and gas industryPublic utilities and government agencies

Sample:Contact us for free samples
CONTACT NOW
VIEW CATALOGUE

Description

SAIVS's SOW series Low Profile Hydraulic Torque Wrench are almost the same as Enerpac’s W series,HYTORC’s XLCT series, TORCUP’s TX series, HI FORCE’s TWH-N series,SPX's TWSL SERIESand other wrenches in terms of function, quality, and applicable working conditions.

At the same time, SAIVS provides a one-year warranty, more favorable prices, and Customized services for special working conditions.

Welcome to Get Latest Price now

TYPE	Torque	Nut Sizes	power Head Weight	Cassette Weight	Sizes
2 SOW	232 ~ 2328 241 ~ 2414	19 ~ 55 60	1 1	1.6 1.7	195.4 195.4	186 186	125.9 128.5	102.3 105	32 32	51 51
4 SOW	585 ~ 2510 585 ~ 5021 585 ~ 5858 647 ~ 6474	34 ~ 36 41 46 ~ 65 70 ~ 80	2 2	4.4 4.6	261.6 261.6	245 245	177 187	135.7 145.7	42 42	66 66
8 SOW	1094 ~ 10941 1177 ~ 11774	41 ~ 95 100 ~ 105	3.3 3.3	8 8.4	304 304	300 300	207 216	169 178	53 53	83 83
14 SOW	1852 ~ 18521	50 ~ 117	5.5	11.6	361	361	239	204	64	99
30 SOW	4188 ~ 41882 4459 ~ 44593	110 ~ 155 160 ~ 175	11.4 11.4	29 30	441 441	430 430	303 315	272 285	85 85	131 131

TYPE

Torque

Nut Sizes

power Head Weight

Cassette Weight

Sizes

N.m

2 SOW

232 ~ 2328

241 ~ 2414

19 ~ 55

1.6

1.7

195.4

186

125.9

128.5

102.3

105

4 SOW

585 ~ 2510

585 ~ 5021

585 ~ 5858

647 ~ 6474

34 ~ 36

46 ~ 65

70 ~ 80

4.4

4.6

261.6

245

177

187

135.7

145.7

8 SOW

1094 ~ 10941

1177 ~ 11774

41 ~ 95

100 ~ 105

3.3

8.4

304

300

207

216

169

178

14 SOW

1852 ~ 18521

50 ~ 117

5.5

11.6

361

239

204

30 SOW

4188 ~ 41882

4459 ~ 44593

110 ~ 155

160 ~ 175

11.4

441

430

303

315

272

285

131

Dimensions

2SOW				4SOW				8SOW				14SOW				30SOW
Type	R	A	MaxTorque	Type	R	A	MaxTorque	Type	R	A	MaxTorque	Type	R	A	MaxTorque	Type	R	A	MaxTorque
2SOW-19	27	16	2328	4SOW-34	36	16	2510	8SOW-41	46	22	10941	14SOW-50	60	31	18521	30SOW-85	78	28	41882
2SOW-22	27	14	2328	4SOW-36	36	15	2510	8SOW-46	46	19	10941	14SOW-55	60	28	18521	30SOW-90	78	27	41882
2SOW-27	27	11	2328	4SOW-41	39	15	5021	8SOW-50	46	17	10941	14SOW-60	60	25	18521	30SOW-95	83	28	41882
2SOW-30	29	12	2328	4SOW-46	42	15	5858	8SOW-55	50	18	10941	14SOW-65	60	22	18521	30SOW-100	83	25	41882
2SOW-32	29	11	2328	4SOW-50	44	15	5858	8SOW-60	52	17	10941	14SOW-70	60	19	18521	30SOW-105	89	28	41882
2SOW-34	31	11	2328	4SOW-55	46	14	5858	8SOW-65	55	17	10941	14SOW-75	63	19	18521	30SOW-110	89	25	41882
2SOW-36	31	10	2328	4SOW-60	50	15	5858	8SOW-70	58	17	10941	14SOW-80	66	19	18521	30SOW-115	95	28	41882
2SOW-41	34	10	2328	4SOW-65	53	15	5858	8SOW-75	60	17	10941	14SOW-85	69	19	18521	30SOW-117	95	27	41882
2SOW-46	37	10	2328	4SOW-70	56	15	6474	8SOW-80	63	16	10941	14SOW-90	72	20	18521	30SOW-120	95	25	41882
2SOW-50	40	11	2328	4SOW-75	59	15	6474	8SOW-85	66	16	10941	14SOW-95	74	19	18521	30SOW-125	101	29	41882
2SOW-55	43	11	2328	4SOW-80	61	15	6474	8SOW-90	69	17	10941	14SOW-100	77	19	18521	30SOW-130	101	26	41882
2SOW-60	46	11	2414					8SOW-95	71	16	10941	14SOW-105	80	19	18521	30SOW-135	104	26	41882
								8SOW-100	75	17	11774	14SOW-110	83	19	18521	30SOW-140	110	29	41882
								8SOW-105	78	17	11774	14SOW-115	87	20	18521	30SOW-145	110	26	41882
												14SOW-117	87	19	18521	30SOW-150	116	29	41882
																30SOW-155	116	26	41882
																30SOW-160	128	36	44593
																30SOW-165	128	33	44593
																30SOW-170	128	30	44593
																30SOW-175	128	27	44593

Impact Socket Specification

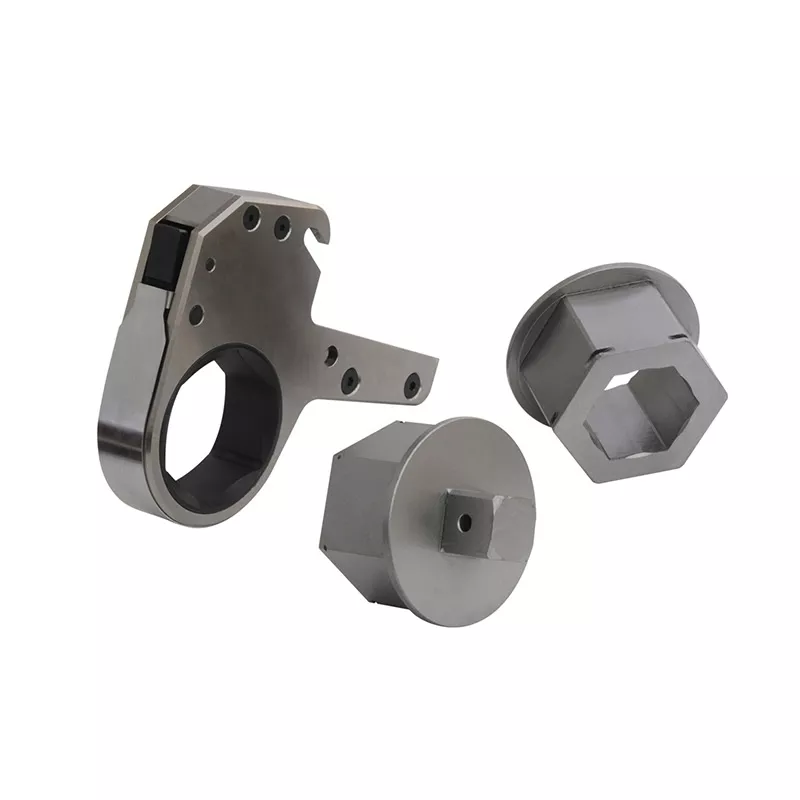

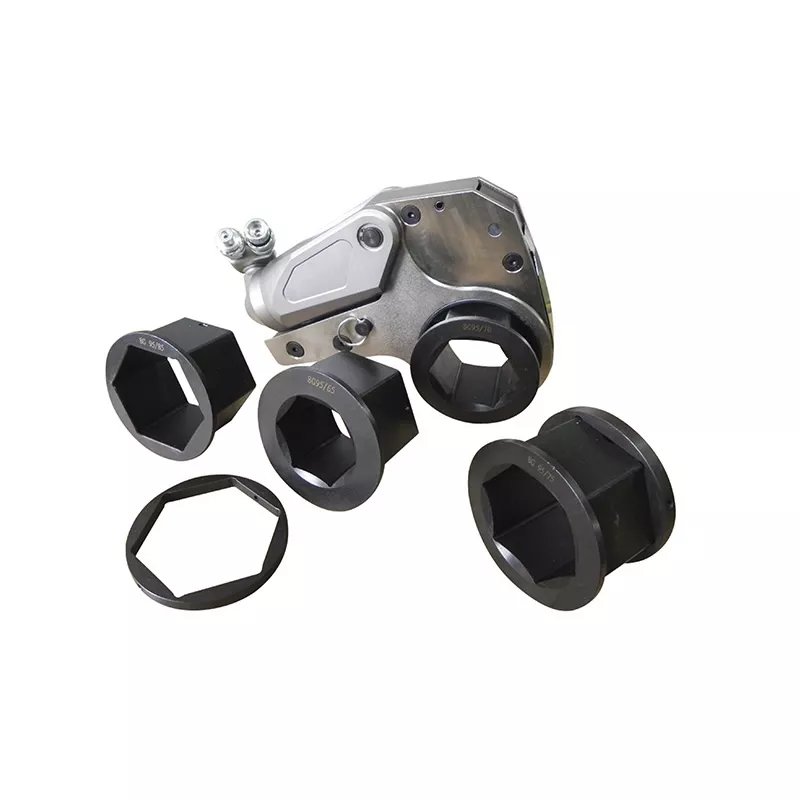

Standard reducer inserts selection chart
Wrench Model	Cassette	Nut Size	Reducer Insert						Locking
Wrench Model	Cassette	(S)	Type	A/B(mm)	Type	A/B(mm)	Type	A/B(mm)	ring
2SOW	2SOW-50	50	2G5041	50/41	2G5036	50/36	2G5032	50/32	H-50
	2SOW-46	46	2G4636	46/36	2G4632	46/32	2G4630	46/30	H-46
	2SOW-41	41	2G4132	41/32	2G4130	41/30	2G4127	41/27	H-41
	2SOW-36	36	2G3630	36/30	2G3627	36/27			H-36
	2SOW-32	32	2G3227	32/27					H-32
	2SOW-30	30
	2SOW-27	27
4SOW	4SOW-65	65	4G6555	65/55	4G6550	65/50	4G6546	65/46	H-56
	4SOW-60	60	4G6050	60/50	4G6046	60/46	4G6041	60/41	H-60
	4SOW-55	55	4G5546	55/46	4G5541	55/41	4G5536	55/36	H-55
	4SOW-50	50	4G5041	50/41	4G5036	50/36	4G5032	50/32	H-50
	4SOW-46	46	4G4636	46/36	4G4632	46/32	4G4630	46/30	H-46
	4SOW-41	41	4G4132	41/32	4G4130	41/30	4G4127	41/27	H-41
	4SOW-36	36	4G3630	36/30	4G3627	36/27			H-36
	4SOW-32	32	4G3227	32/27					H-32
	4SOW-30	30
	4SOW-27	27
8SOW	8SOW-90	90	8G9080	90/80	8G9075	90/75	8G9070	90/70	H-90
	8SOW-85	85	8G8575	85/75	8G8570	85/70	8G8565	85/65	H-85
	8SOW-80	80	8G8070	80/70	8G8065	80/65	8G8060	80/60	H-80
	8SOW-75	75	8G7565	75/65	8G7560	75/60	8G7555	75/55	H-75
	8SOW-70	70	8G7060	70/60	8G7055	70/55	8G7050	70/50	H-70
	8SOW-65	65	8G6555	65/55	8G6550	65/50	8G6545	65/45	H-65
	8SOW-60	60	8G6050	60/50	8G6046	60/46			H-60
	8SOW-55	55	8G5546	55/46	8G5541	55/41			H-55
	8SOW-50	50
14SOW	14SOW-115	115	14G115105	115/105	14G115100	115/100	14G11595	115/95	H-115
	14SOW-110	110	14G110100	110/100	14G11095	110/95	14G11090	110/90	H-110
	14SOW-105	105	14G10595	105/95	14G10590	105/90	14G10585	105/85	H-105
	14SOW-100	100	14G10090	100/90	14G10085	100/85	14G10080	100/80	H-100
	14SOW-95	95	14G9585	95/85	14G9580	95/80	14G9575	95/75	H-95
	14SOW-90	90	14G9080	90/80	14G9075	90/75	14G9070	90/70	H-90
	14SOW-85	85	14G8575	85/75	14G8570	85/70	14G8565	85/65	H-85
	14SOW-80	80	14G8070	80/70	14G8065	80/65			H-80
	14SOW-75	75	14G7565	75/65					H-75
	14SOW-70	70
	14SOW-65	65
30SOW	30SOW-155	155	30G155145	155/145	30G155130	155/130	30G155120	155/120	H-155
	30SOW-145	145	30G145130	145/130	30G145120	145/120	30G145115	145/115	H-145
	30SOW-130	130	30G130120	130/120	30G130115	130/115	30G130110	130/110	H-130
	30SOW-120	120	30G120110	120/110	30G120105	120/105	30G120100	120/100	H-120
	30SOW-115	115	30G115105	115/105	30G115100	115/100	30G115595	115/95	H-115
	30SOW-110	110	30G110100	110/100	30G11095	110/95	30G11090	110/90	H-110
	30SOW-105	105	30G10595	105/95	30G10590	105/90	30G10080	100/80	H-100
	30SOW-100	100	30G10090	100/90	30G10085	100/85	30G10080	100/80	H-100
	30SOW-95	95	30G9585	95/85	30G9580	95/80			H-95
	30SOW-90	90	30G9080	90/80					H-90
	30SOW-85	85
	30SOW-80	80
