SCM Series Hydraulic Pusher
-
Stainless steel double acting hydraulic pusher cylinder
Capacity: 16-30 tons
Pushing Stroke: 600mm
Maximun Operating Pressure: 504-624 bar / 8000-9000psi
Pushing Capacity in Ideal Condition:
SCM16-600: 158 ton SCM30-600: 400 ton
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
Description
Product Line: Industrial Tools
Customizable with special requirement

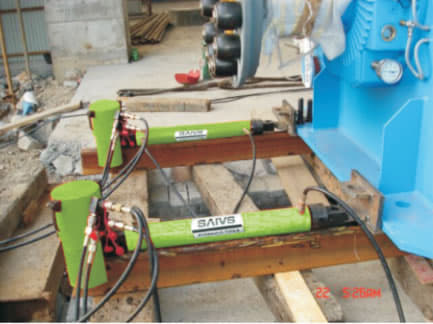

1. It includes two parts: clamping pliers and pushing cylinder

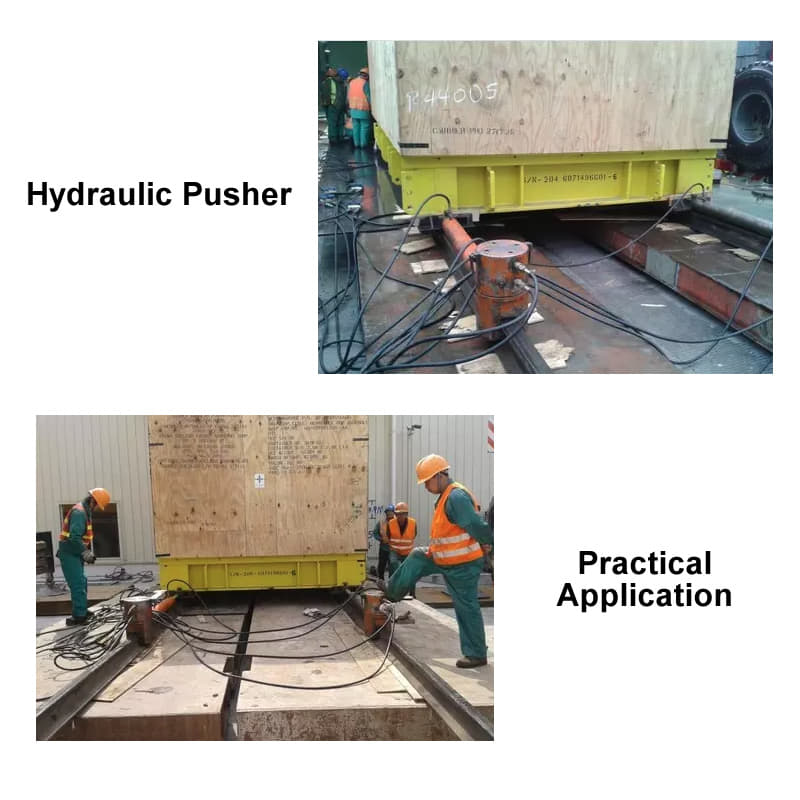

2. It is widely used in various large parts transportation industries.
3. Users shall prepare heavy rail (38kg/m, 43kg/m, 50kg/m) and main and passive slipper by themselves.

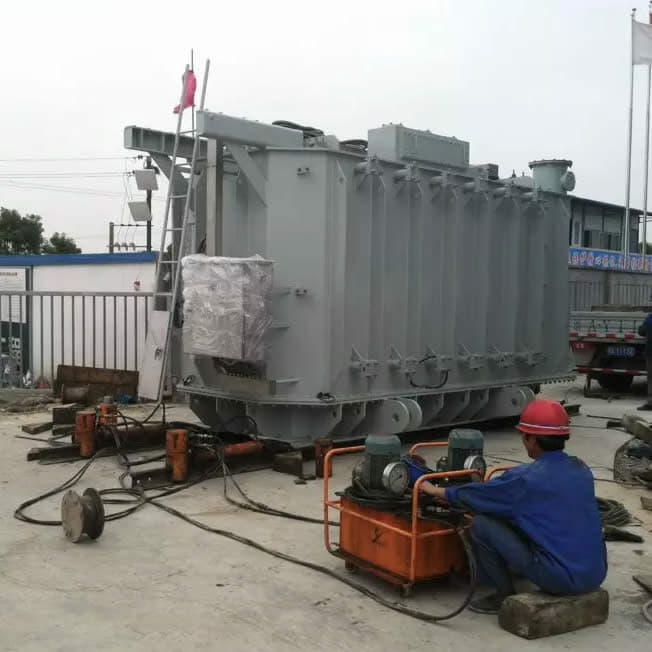

4. In order to make the moving weight run smoothly, two sets of machine must be used simultaneously.
5. Apply lubricating grease to the contact surface of the slipper and rail to reduce the friction system.
Several role. However, avoid the grease on the contact surface of the clamp iron and heavy rail to prevent friction.
The friction coefficient decreases and the clamping force is weakened
Ordering methord:
Model: SCM16-600 16 Ton hydraulic pusher
Clamping plier: SCM16-600-1, 2pcs
Pusher: SCM16-600-2, 2pcs
Electric hydraulic pump: PE10,2pcs
High pressure hoses: SZAX-3 - M22X1.5, 4pcs , SZAX-6 - NPT3/8, 4pcs
Active and passive boots: User backup

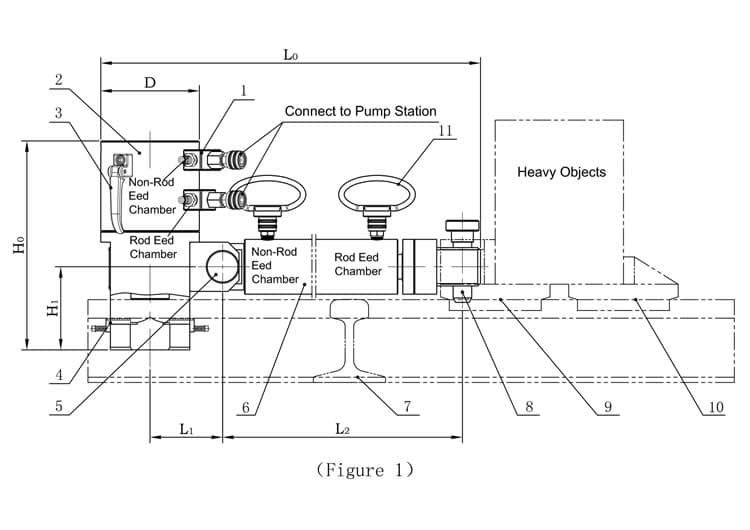

Dimensions
| Model Number | Clamping Plier | Pusher | Dimensions | |||||||||||||||
| Working pressure | Rated clamping force | Clamping Travel | Reservoir Oil capacity | Usable oil volume | weight | Working pressure | Rated pushing force | Pushing stroke | Reservoir Oil capacity | Usable oil volume | weight | L0 | L1 | L2 | H0 | H1 | D | |
| bar | KN | mm | L | L | Kg | bar | KN | mm | L | L | Kg | (mm) | ||||||
| SCM16-600 | 504 | 775 | 35 | 0.27 | 0.54 | 67 | 504 | 157 | 600 | 0.92 | 1.87 | 50 | 1143 | 132.5 | 887 | 382 | 152 | 180 |
| SCM30-600 | 624 | 1960 | 35 | 0.52 | 1.1 | 137 | 585 | 294 | 600 | 1.34 | 3.02 | 69 | 1193 | 157.5 | 905 | 417 | 152 | 250 |
FAQs
How can I find hydraulic pusher manufacturers in China?
You can search online using keywords such as "hydraulic pusher manufacturers in China" or "China hydraulic pusher suppliers." You may also want to check out trade shows or business directories for hydraulic equipment manufacturers in China.
What is the best way to choose a hydraulic pusher supplier in China?
When choosing a hydraulic pusher supplier in China, it is important to consider factors such as product quality, price, customer service, delivery time, and after-sales support. You may want to read reviews from other customers or ask for recommendations from industry experts.
How do hydraulic pushers compare to other types of lifting equipment?
Hydraulic pushers offer several advantages over other types of lifting equipment, such as ease of use, high lifting capacities, precise control, and low maintenance requirements. However, they may not be suitable for every application and may require specialized knowledge and training to operate safely.
