Hydraulic torque wrenches in Pipeline Construction

Pipeline construction demands precision, repeatability, and reliability at every bolted joint.

Failures in flange connections or fittings can cause leaks, downtime, environmental damage, and costly repairs.

Hydraulic Torque Wrenches are purpose-built tools that deliver the controlled, high torque required to secure pipeline bolts to specification.

SAIVS supplies a full range of hydraulic torque wrenches and accessories designed specifically for the harsh conditions and tight tolerances of pipeline projects.

Why Hydraulic Torque Wrenches Are Essential

Consistent torque is a primary factor in achieving leak-free, long-lasting pipeline joints.

Hydraulic torque wrenches apply torque with low variability, which reduces the risk of under- or over-tightening.

This consistency protects gasket seating, prevents uneven flange stress, and improves overall system safety and longevity.

Compared with manual methods or impact tools, hydraulic systems provide controlled, measurable, and repeatable results that are ideal for oil, gas, and petrochemical pipelines.

Critical Advantages for Pipeline Projects

High torque output enables crews to tighten large-diameter bolts quickly and accurately even under high preload requirements.

Precision control lowers the chance of bolt yield or thread damage that can compromise a joint.

Low profile and square drive designs provide versatility across cramped flanges and open access areas.

Durable construction and sealed hydraulics ensure reliable operation in outdoor and corrosive environments.

Types of Hydraulic Torque Wrenches Used in Pipelines

Square Drive Hydraulic Torque Wrenches

Square drive wrenches use standard interchangeable sockets to fit a broad range of bolt sizes and head types.

They are the go-to option when access around a flange is relatively open and speed of socket changeover matters.

These units are highly versatile for maintenance crews who must service multiple flange sizes on a single site.

Low Profile (Cassette) Hydraulic Torque Wrenches

Low profile or cassette wrenches are engineered for extremely confined spaces where standard drives cannot fit.

Their slim profile allows them to engage nut and bolt assemblies on close-clearance flanges common in pipeline manifolds and tight plant piping.

Despite their compact form, modern low profile wrenches still deliver the high torque and precision required for critical seals.

How Hydraulic Torque Wrenches Work — A Technical Overview

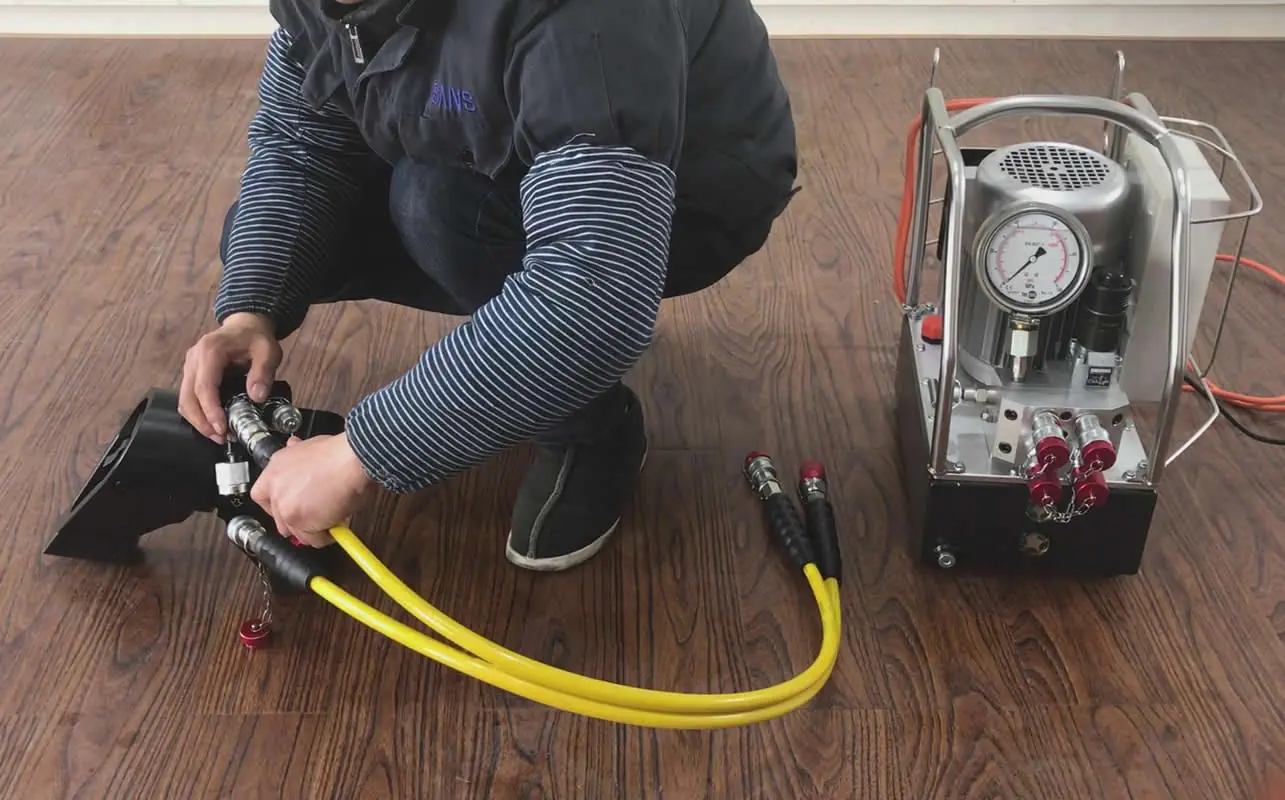

The wrench is connected to a hydraulic pump through high-pressure hoses that deliver pressurized fluid.

The pump can be electric, petrol-driven, or pneumatic depending on site power availability and safety zones.

Pressurized fluid enters a Hydraulic Cylinder inside the wrench, driving a piston assembly that converts linear force into rotary torque.

A geared or reaction-drive mechanism translates the piston strokes into incremental rotation of the drive unit around the nut.

Many models include a mechanical or hydraulic stop that prevents further rotation once the set torque is achieved, reducing risk of over-tightening.

Modern systems may integrate digital displays or inline torque transducers to record and verify each bolting operation for quality control and traceability.

Selecting the Right Hydraulic Torque Wrench for Pipeline Construction

Define Your Torque Requirements

Begin by specifying the maximum torque required for the largest bolts on your project.

Select a wrench whose rated torque range comfortably covers the upper and lower ends of your needs.

Choose Between Square Drive and Low Profile

Opt for square drive designs where socket flexibility and speed are priorities.

Choose low profile cassettes when flange spacing or adjacent pipeline components restrict access.

Pick a Suitable Pump and Hose Configuration

Electric pumps suit base stations with available power and quieter operation, while pneumatic pumps may be preferred in hazardous-area sites.

Hose length and layout should be planned to avoid trip hazards and minimize pressure drop to the wrench.

Durability, Certification, and Calibration

Select tools built from corrosion-resistant materials and with sealed components for outdoor use.

Ensure wrenches and pumps are supplied with calibration certificates and can be recalibrated on-site or via accredited labs.

Traceable calibration records support quality audits and help meet client specifications and regulatory requirements.

Best Practices for Safe and Accurate Bolting

Training and Competency

Operators should receive formal training on the exact wrench models they will use, including pump setup, safety, and emergency procedures.

Competency checks and written procedures reduce human error during high-stakes tightening sequences.

Setup and Reaction Force Management

Always fit a proper reaction arm or backup wrench to absorb reaction forces and protect operators.

Verify wrench alignment on the nut before pressurizing the system to avoid side loading and socket slippage.

Gradual, Controlled Tightening

For large bolts and critical flanges, perform staged tightening cycles according to engineered sequences to distribute stress evenly.

Document intermediate torque stages and final values to maintain traceability and to troubleshoot issues later.

Maintenance and Calibration

Inspect hoses, couplers, and seals before each shift and replace damaged parts immediately.

Schedule regular calibration to maintain torque accuracy and keep calibration certificates on file for client audits.

Why Choose SAIVS for Pipeline Bolting Solutions

SAIVS offers a curated product line of square drive and low profile hydraulic torque wrenches designed for pipeline construction environments.

We provide pumps, hoses, accessories, and calibration services that help teams meet specification and regulatory requirements.

Our technical team can recommend wrench/pump pairings, staged tightening procedures, and site-specific safety measures.

When procurement teams choose SAIVS, they gain access to quality tools, certifiable accuracy, and after-sales support that reduces downtime and improves project outcomes.

Practical Steps to Buy and Deploy

Contact SAIVS with bolt size lists, flange drawings, and the maximum torque values required for each joint.

We will recommend the optimal wrench types, pump options, and an accessory kit tailored to the project.

Request calibration certificates and a site-specific bolting procedure to standardize work across crews.

Closing Summary

Hydraulic torque wrenches are indispensable for pipeline construction where precision and repeatability are non-negotiable.

Choosing the correct wrench type, ensuring proper training, and maintaining calibration are key to reliable pipeline bolting.

SAIVS supplies industrial-grade hydraulic torque wrenches and support services designed to keep pipeline projects safe, compliant, and on schedule.

For technical consultation or a tailored quotation, contact our sales engineers and provide your bolting specifications today.
