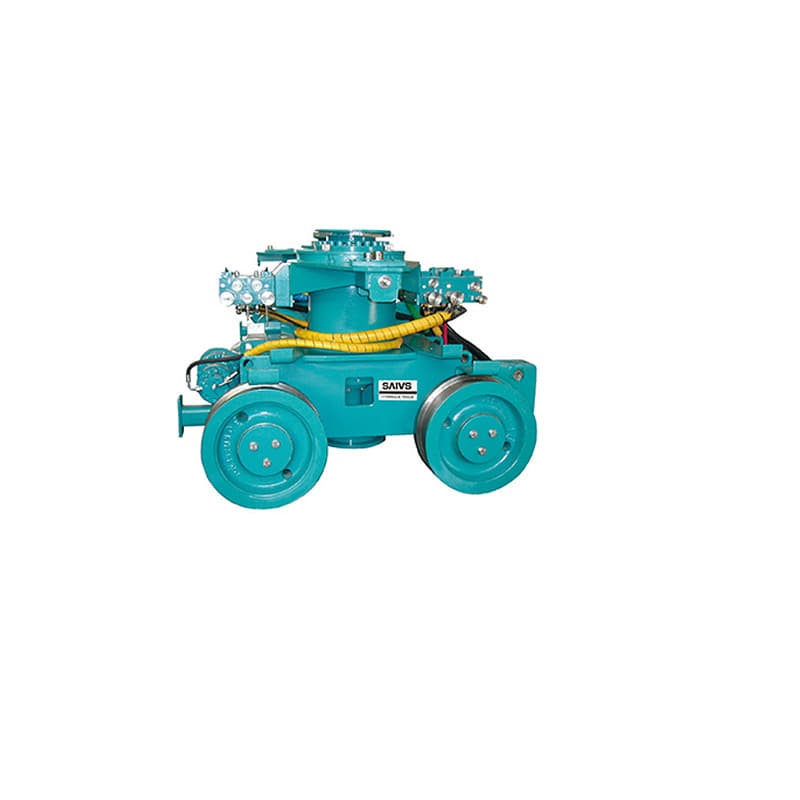

SVS Series Ship Transportation Trolley

5out of5 based on5 reviews | Write a review
  • Capacity: 80-300 ton

    Lifting Height: 1000 mm

    Max. Operating Pressure: 200-300 bar /2,900-4,350 psi

    Running wheel diameter (mm): 750

    Speed of movementwith full loading: 5-10 m/min

    Speed of movement with empty loading: 10-20m/min

    Input voltage: 220-576V 3Ph

  • CONTACT NOW

Description

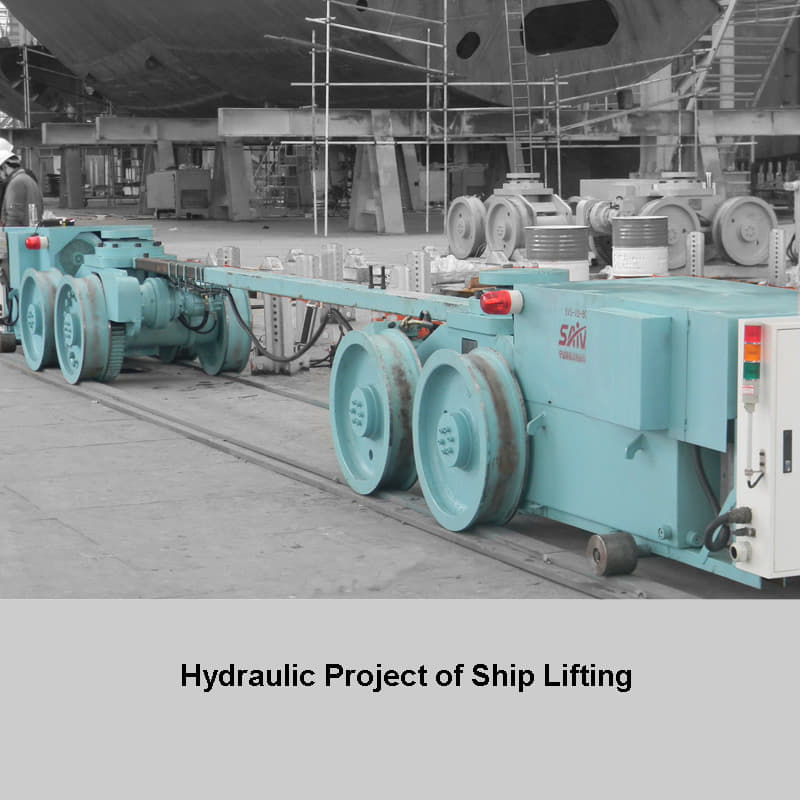

Hydraulic Transportation Car for Ship Lifting System

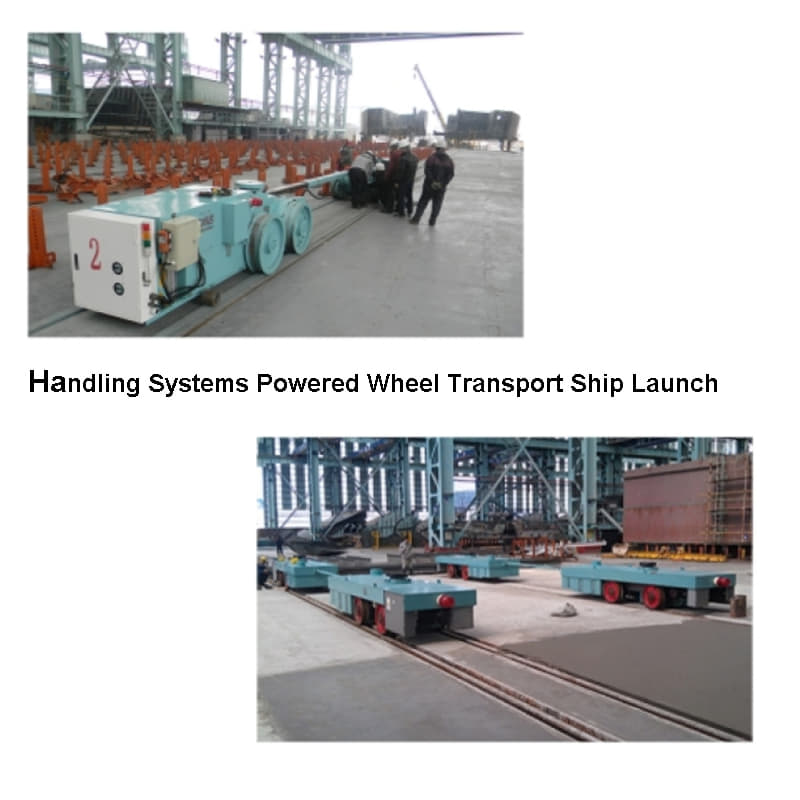

Handling Systems powered Wheel Transport Ship Launch

Walking conditions: OrbitalDesign for "ship building in sections" which equipments need to be transported on long distance.

High precision equipment to adjust the ship in three dimensionals.

Single equipment capacity of 80t, 150, 300t.

Can be designed according to customers requirements. (degree of automation, degree of precision, load weight and moving speed).

Ship Transportation Trolley2.jpg

Ship Transportation Trolley3.jpg

Ship Transportation Trolley.jpg

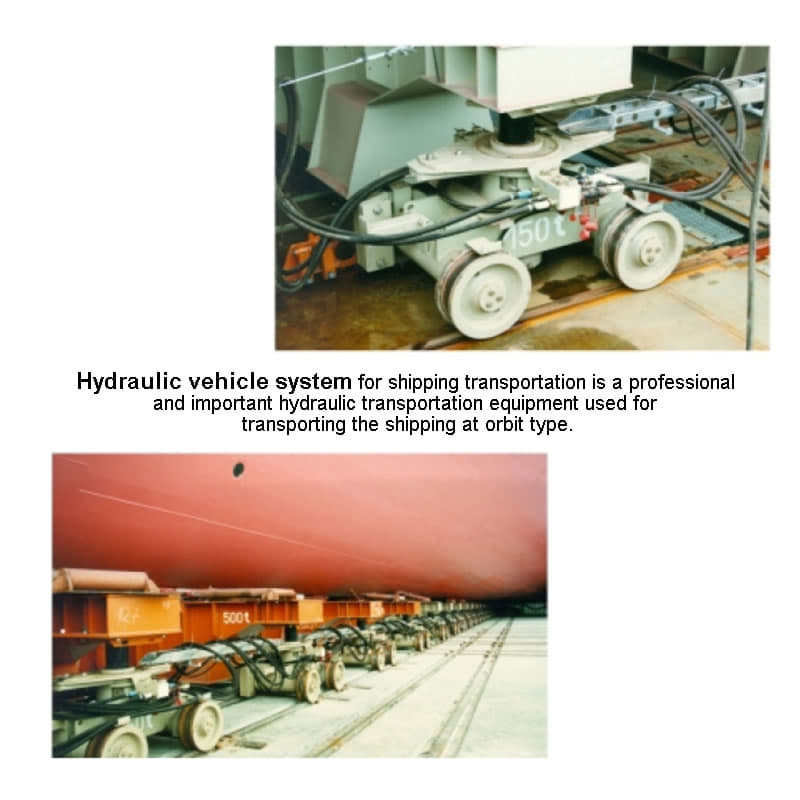

Hydraulic vehicle system for shipping transportation is a professional and important hydraulic transportation equipment used for transporting the shipping at orbit type. With the transportation functions of synchronous lifting, self-drive advancing and synchronous movement controlled by PLC system equipped on ship hull, it can solve the problems of low automatic degree, labor-intensive requirement and operational complexity for the traditional shipbuilding industry.



Dimensions

Model NumberCapacityPressureLifting HeightOrbital width Running wheel diameter Speed of movement with full loading Speed of movement with empty loading Input voltage Walking conditions
(ton)(bar)(mm)(mm)(mm)m/minm/min
SVS-XD-80T80200-300100010007505-1010-20220-576V 3PhOrbital
SVS-XD-150T150200-300100010007505-1010-20220-576V 3PhOrbital

FQAs

What is a hydraulic vehicle system for shipping transportation?

A hydraulic vehicle system for shipping transportation is a type of technology that uses hydraulic power to move and control vehicles used in the shipping industry. It utilizes hydraulic fluid under high pressure to create mechanical force, which is then used to power various vehicle components such as steering, brakes, and transmissions.


How to choose a reliable hydraulic vehicle system factory or manufacturer?

To choose a reliable hydraulic vehicle system factory or manufacturer, you should consider factors such as their reputation in the market, quality certification, experience in producing hydraulic systems for shipping transportation, and customer reviews. You can also check if they provide good after-sales services and offer customized solutions to meet your specific needs.


What factors affect the price of a hydraulic vehicle system for shipping transportation?

The price of a hydraulic vehicle system for shipping transportation can be affected by several factors such as the design complexity, materials used, customization level, production volume, and market demand. Generally, systems made from high-quality materials and with advanced technologies tend to have a higher cost. Customized systems or systems produced in smaller volumes may also increase the overall cost. Hence, it is always recommended to consult with different suppliers and compare their prices before making a final decision.
