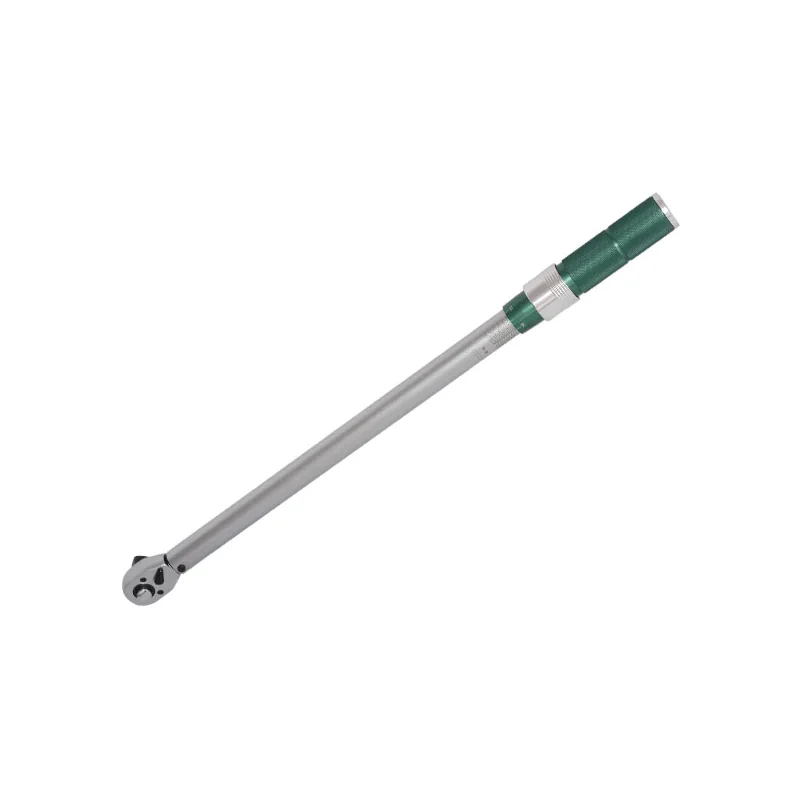

1/2,3/4 Inch Preset Torque Wrench,DA Series
-
Brand：SAIVS
Accuracy：±4%
Model Number：DA
Torque range(Nm)：1-500Nm
Driver(inch)：3/8，1/2，3/4 ,1/4
L/W/H(mm)：230-665/28-45/28-42
Weight(kg)：0.38-2.01
Place of Origin: China
Customized: OEM,ODM
Minimum Order: 1Piece
Sample:Contact us for free samples
Description

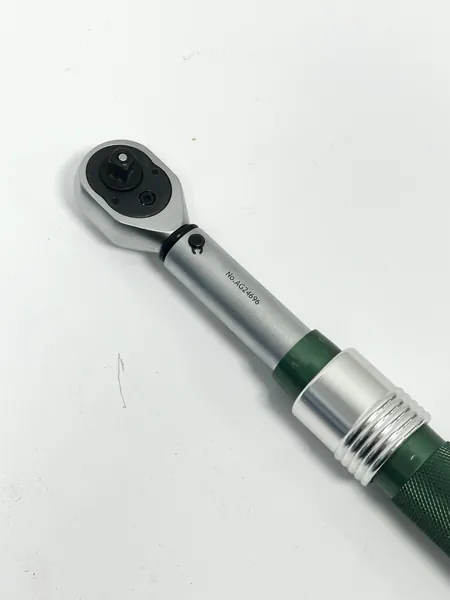

The torsion wrench body is made of metal structure,
sturdy and durable, with a long service life.
Accuracy: Torque error value ± 4%.
The ratchet head material is made of chrome vanadium
alloy steel, which is sturdy and durable.
It can be easily reversed through reversing paddles
and is equipped with a quick release button,
making single hand operation convenient and efficient.
The wrench handle is made of aluminum alloy knurled,
which has the functions of preventing oil, slipping, falling, and durability.
The permanent torque scale on the alloy steel pipe is easy
for users to read and can be compared in metric and English systems.
Each Torque Wrench has a unique product identification code.
Dimensions
| DA type preset torque wrench | |||||||||
| Model Number | Torque range | Driver/inch | Fine Scale/N.m | Length/mm | Width/mm | Height/mm | Weight/Kg | ||
| N.m | Lbf.ft | N.m | Lbf.ft | ||||||
| DA19701 | 1-5 | 2-9 | 1/4" | 0.05 | 0.067 | 230 | 28 | 28 | 0.38 |
| DA19702 | 2-12 | 2-9 | 1/4"、 3/8" | 0.1 | 0.074 | 230 | 34 | 31 | 0.59 |
| DA19703 | 4-20 | 3-15 | 1/4"、 3/8" | 0.2 | 0.147 | 230 | 34 | 31 | 0.61 |
| DA19704 | 5-25 | 4-19 | 1/4"、 3/8" | 0.2 | 0.147 | 230 | 34 | 31 | 0.61 |
| DA19705 | 6-30 | 5-23 | 3/8" | 0.2 | 0.147 | 290 | 34 | 31 | 0.63 |
| DA19706 | 10-60 | 9-46 | 3/8"、 1/2" | 0.5 | 0.369 | 290 | 41 | 34 | 1.02 |
| DA19707 | 10-100 | 7-75 | 1/2" | 0.5 | 0.369 | 410 | 41 | 34 | 1.06 |
| DA19708 | 20-100 | 15-75 | 1/2" | 0.5 | 0.369 | 410 | 41 | 34 | 1.06 |
| DA19709 | 25-125 | 20-94 | 1/2" | 0.5 | 0.369 | 410 | 41 | 34 | 1.06 |
| DA19710 | 40-200 | 30-150 | 1/2" | 1.0 | 0.738 | 460 | 41 | 34 | 1.12 |
| DA19711 | 20-210 | 15-155 | 1/2" | 1.0 | 0.738 | 460 | 41 | 34 | 1.12 |
| DA19712 | 60-300 | 45-226 | 3/4" | 1.0 | 0.738 | 615 | 45 | 42 | 2.05 |
| DA19713 | 65-350 | 50-250 | 3/4" | 1.0 | 0.738 | 625 | 45 | 42 | 2.05 |
| DA19714 | 65-335 | 50-260 | 3/4" | 1.0 | 0.738 | 615 | 45 | 42 | 2.05 |
| DA19715 | 80-400 | 60-300 | 3/4" | 2.0 | 1.475 | 665 | 45 | 42 | 2.01 |
| DA19716 | 100-500 | 80-376 | 3/4" | 2.0 | 1.475 | 665 | 45 | 42 | 2.01 |
Video
FQAs
How do you use a preset torque wrench?
To use a preset torque wrench, first determine the correct torque value and adjust
the wrench to the desired value by turning the handle or knob until the scale aligns
with the required torque setting. Then, attach the appropriate socket or bit to the
wrench and tighten the fastener until you hear or feel a click, indicating that the
pre-set torque has been reached. If multiple fasteners need to be tightened to the
same torque value, ensure that the wrench is reset to the appropriate setting before each use.
What is the difference between a preset and adjustable torque wrench?
The main difference between preset and adjustable torque wrenches is that preset
wrenches have a fixed torque setting that cannot be adjusted by the user, while
adjustable wrenches allow the user to adjust the torque setting within a specified range.
Preset wrenches are simpler to use and less expensive than adjustable ones.
However, adjustable wrenches offer more flexibility for a wide range of applications
that require different torque values, and they require more careful adjustment to
ensure the correct torque value is achieved.
Application
Assembling bicycle components
Working on lawnmower blades
Attaching vehicle suspension components
Erecting wind turbines
Heavy equipment maintenance
Bridge construction
Wind tunnel testing
