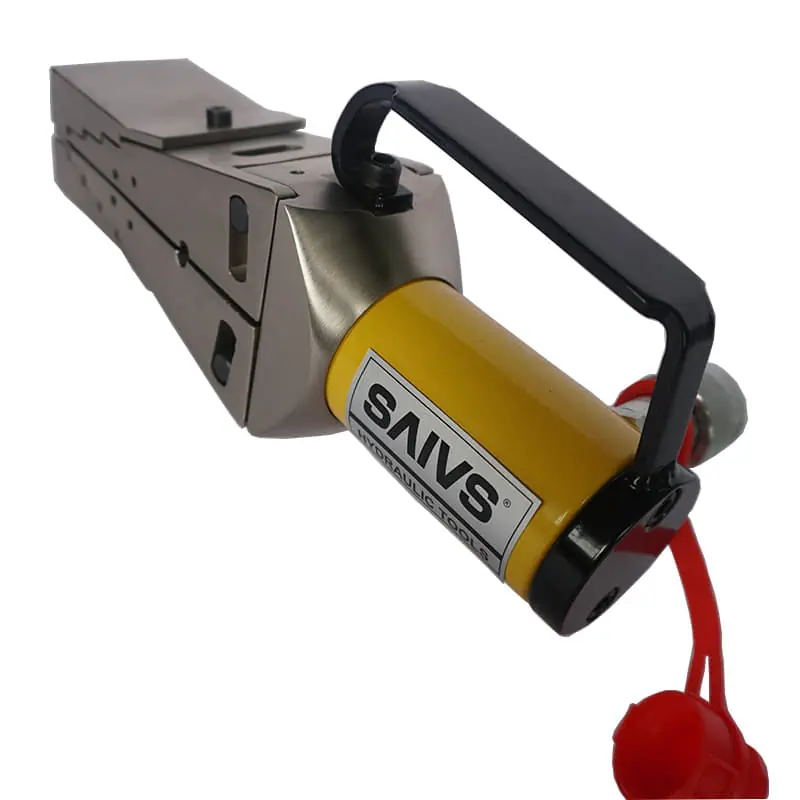

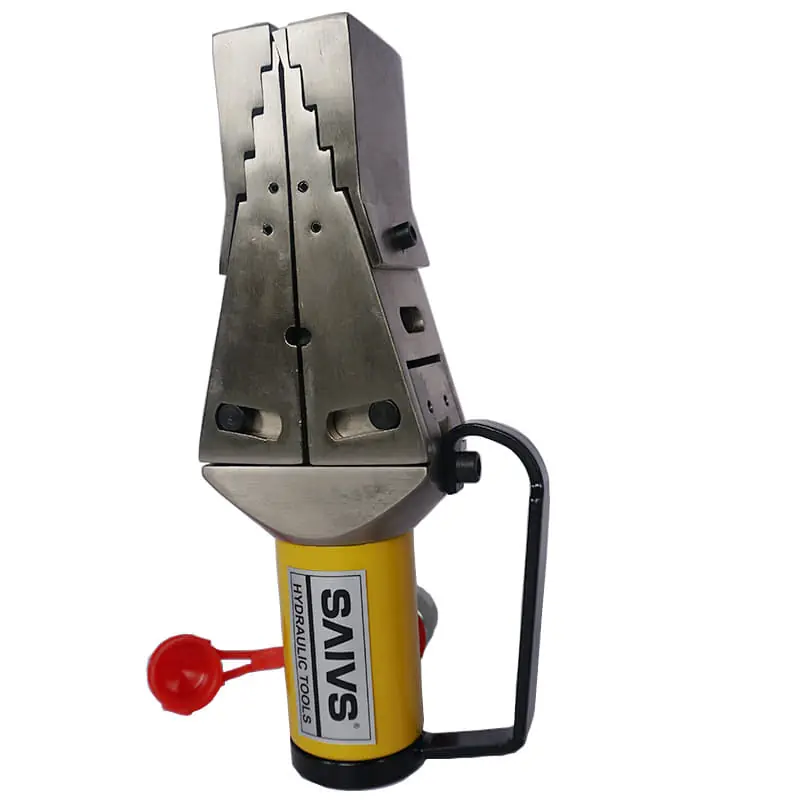

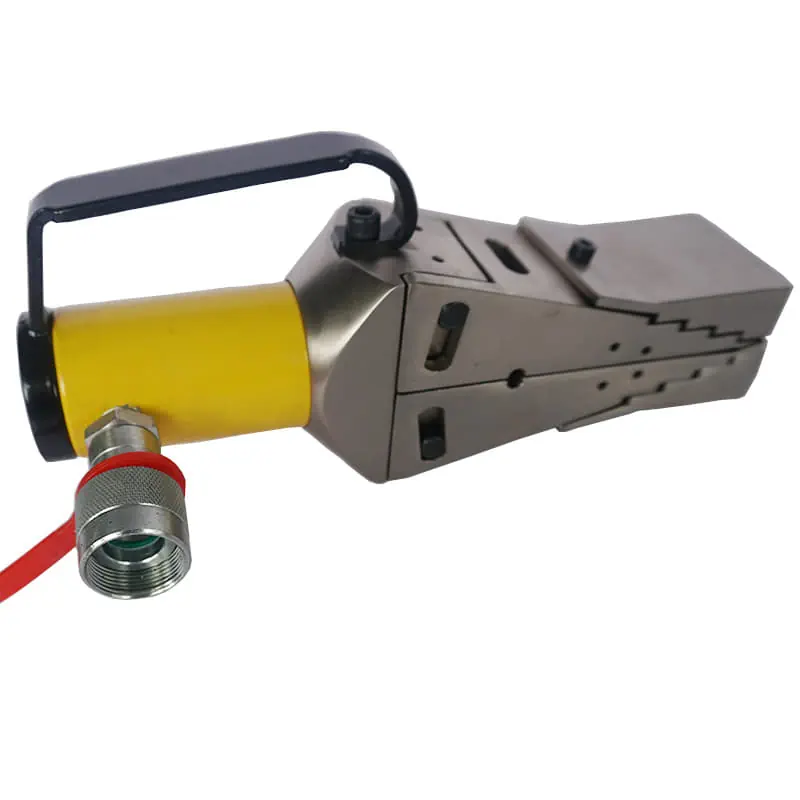

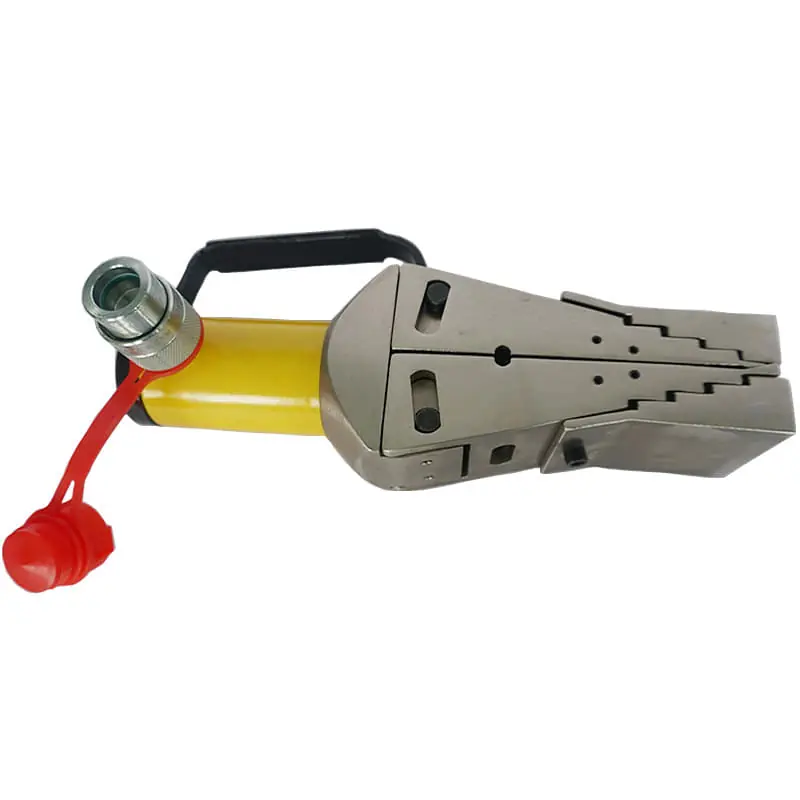

FSH14,14 Ton 3.16 inch/80 mm Hydraulic Industrial Spreader

5out of5 based on18 reviews | Write a review

Description

Product Line: Industrial Tools

Customizable with special requirement

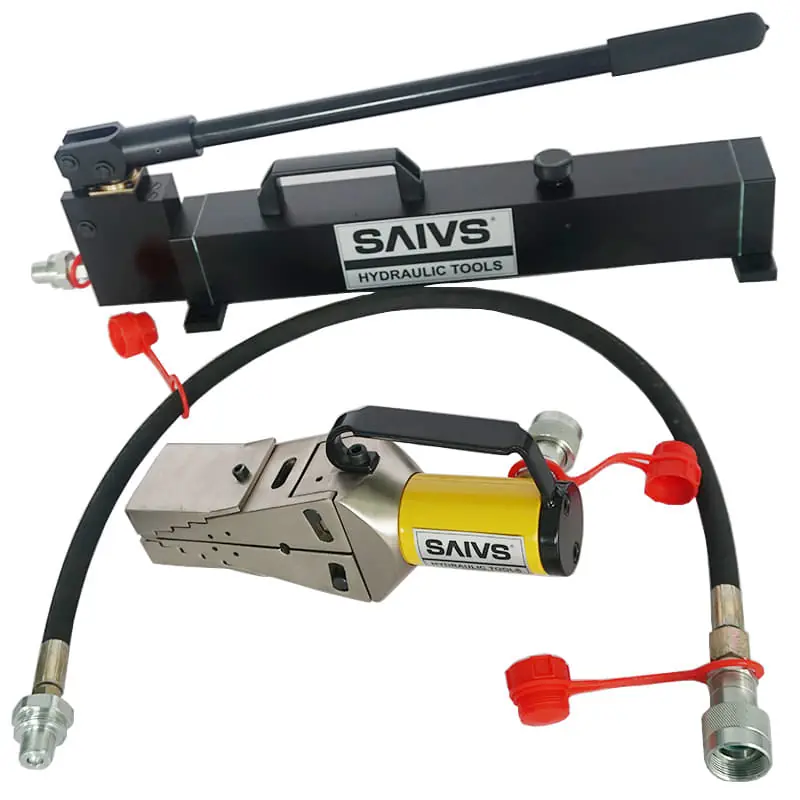

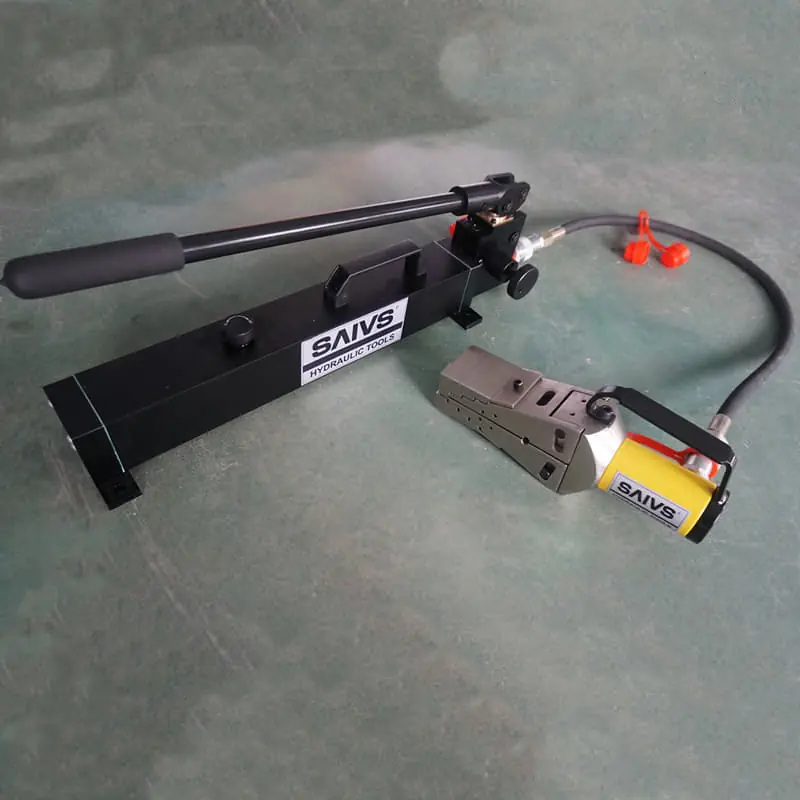

Optional pumps:  SPS Series Manual Pump, PE4 Small Electric Pump and PA4 Small Air hydraulic pump.

Suitable for repair, overhaul, testing and valve replacement.

Integrated wedge concept: Friction-free, smooth and parallel wedge movement eliminates flange damage and spreading arm failure.

Unique interlocking wedge design - no first step bending and risk of slipping out of joint.

Requires very small access gap of only 6 mm.

Stepped spreader arm design - each step can spread under full load.

Hydraulic flange spreaders Use stepped blocks to increase wedge opening up to 80mm.

Few moving parts mean durability and low maintenance.


FS-14 integral Flanges Spreader Splitter Manual Hydraulic Flange Separator


FSH14,14 Ton 3.16 inch/80 mm Hydraulic Industrial Spreader(Images1)

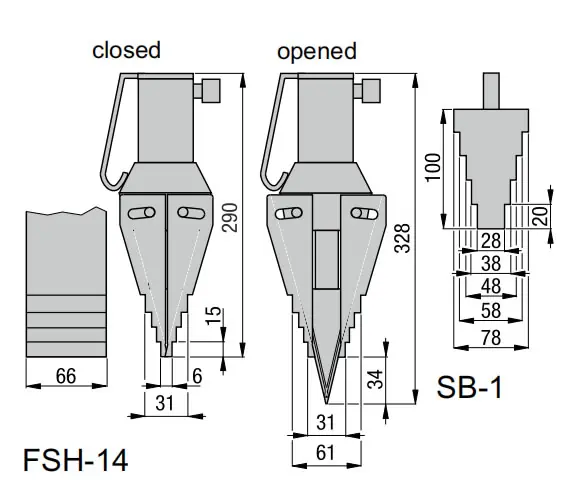

Dimensions

FSH14,14 Ton 3.16 inch/80 mm Hydraulic Industrial Spreader(Images1)

Maximum Spreading Force
Model
       Number
Tip ClearanceMaximum
       Spread
Spreader
       Type
Oil
       Capacity
Weight
ton (kN)(mm)(mm/inch)(cm³)(kg/lbs)
14(125)FSH-14680  / 3.16Hydraulic78 7.1/15.7

Video
