FSM8, 8 Ton 3.16 inch/80 mm Hydraulic Industrial Spreader
-
Model: FSM8
Brand Name:Enerpac FSM8 Replacement
Product Line: Industrial Tools, Bolting Tools
Maximum Spread: 80mm /3.16 inch
Maximum Spread Force: 8 ton
Maximum Operating Pressure: 700bar /10000 psi
Weight: 6.5 KG / 14.3lbs
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
- LW16,Lifting Stoke 21mm,16 Ton, Hydraulic Vertical Lifting Wedge FSH14,14 Ton 3.16 inch/80 mm Hydraulic Industrial Spreader
Description
Product Line: Industrial Tools
Customizable with special requirement

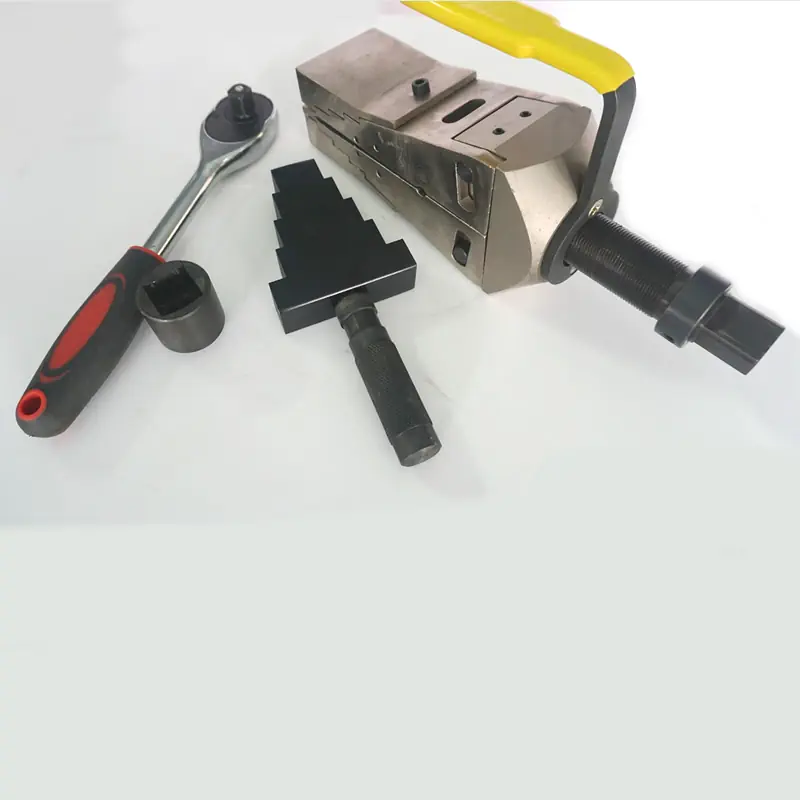

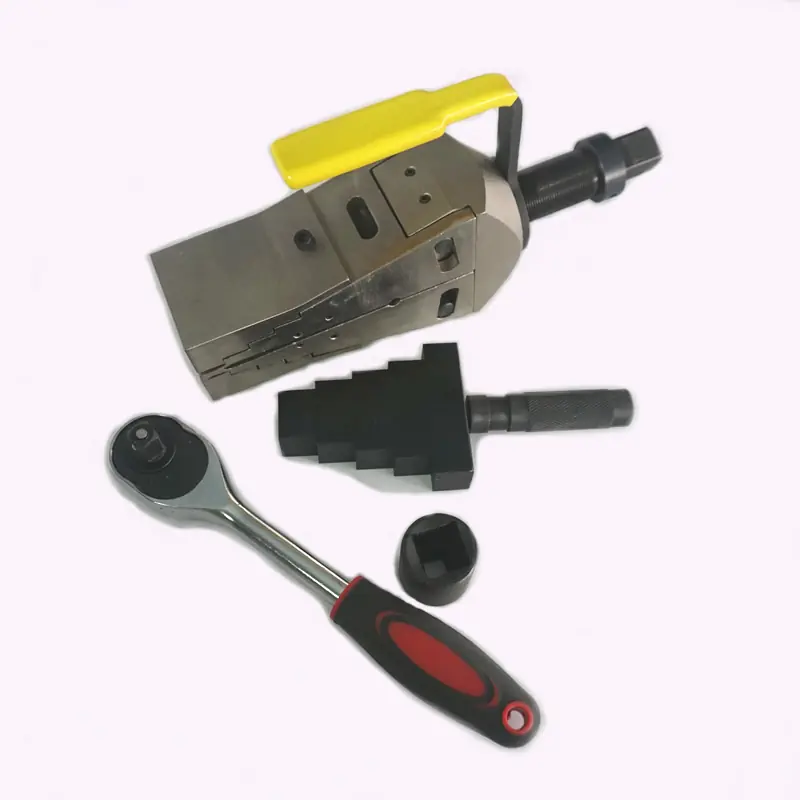

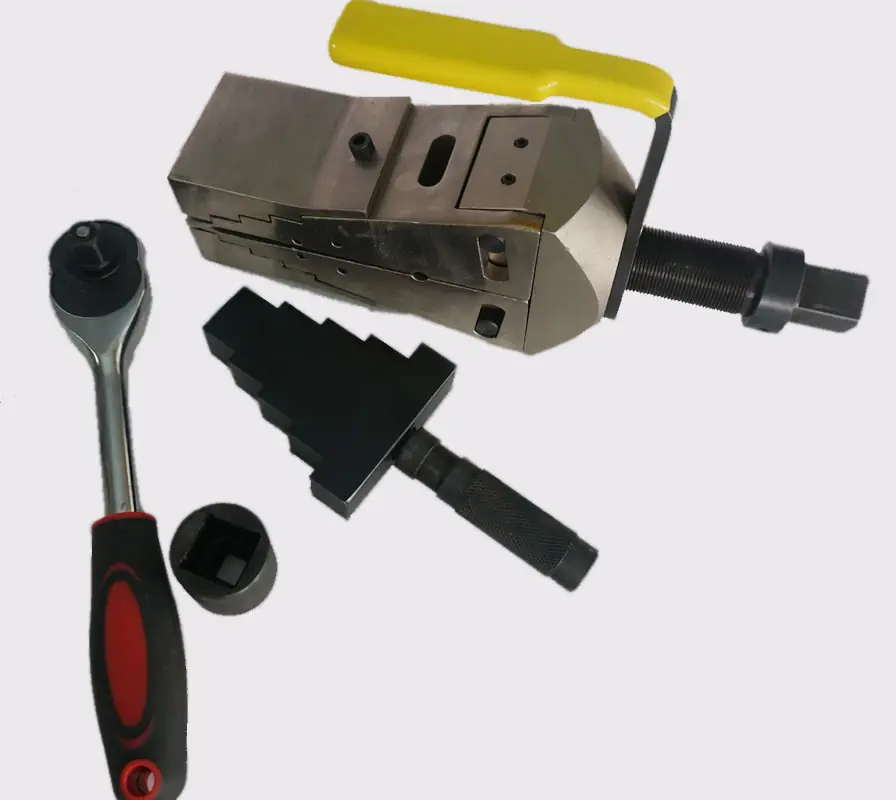

FSM8 Integral Flanges Spreader Splitter Manual Hydraulic Flange Separator
Optional pumps: SPS Series Manual Pump, PE4 Small Electric Pump and PA4 Small Air hydraulic pump.
Suitable for repair, overhaul, testing and valve replacement.
Integrated wedge concept: Friction-free, smooth and parallel wedge movement eliminates flange damage and spreading arm failure.
Unique interlocking wedge design - no first step bending and risk of slipping out of joint.
Requires very small access gap of only 6 mm.
Stepped spreader arm design - each step can spread under full load.
Hydraulic flange spreaders Use stepped blocks to increase wedge opening up to 80mm.
Few moving parts mean durability and low maintenance.

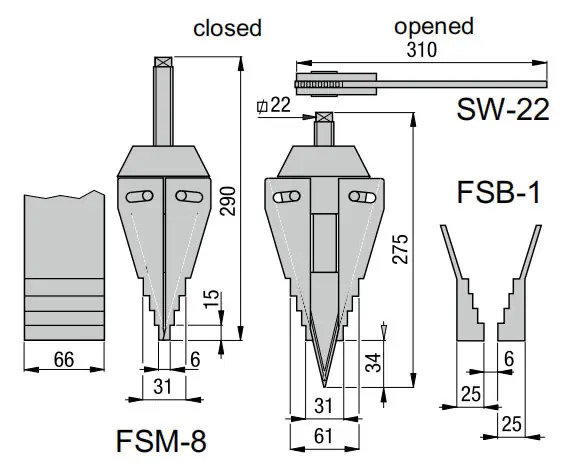

Dimensions
| Maximum Spreading Force | Model Number | Tip Clearance | Maximum Spread | Spreader Type | Oil Capacity | Weight |
| ton (kN) | (mm) | (mm) | (cm³) | (kg/lbs) | ||
| 8(72) | FSM-8 | 6 | 80 | Mechanical | / | 6.5/14.3 |
