50 Ton Hydraulic Cylinder & Jack

5out of5 based on11 reviews | Write a review
  • Capacity: 50ton

    Stroke: 16-337mm

    Max.pressure: 700bar /10000psi

    Weight: 7.4-37KG

    Oil capacity:125 - 2388(cm3)

    Minimum Order:1Piece

    Manufacturer:SAIVS

    Country of Origin:China

  • CONTACT NOW
  • PDF DOWNLOAD

Description

50 Ton CLSG Series Single-Acting High Tonnage Hydraulic Cylinders

- Single acting, loads return.

- Chrome plated steel plungers.

- Plunger wiper reduces contamination.

- Exclusive guide Ring absorbs eccentric loading.

- Special painted surface for corrosion resistance.

- Easy fixturing with base mounting holes.

- Quick couplings and dust-proof cap included.

- Removable hardened saddles protect plunger.


50 Ton CLRG Series Double-Acting High Tonnage Cylinders Lift Jack

- Double acting, positive retraction.

- Chrome plated steel plungers.

- Plunger wiper reduces contamination.

- Exclusive guide Ring absorbs eccentric loading.

- Built-in safety valve prevents over-pressurization.

- Special painted surface for corrosion resistance.

- Easy fixturing with base mounting holes.

- Quick couplings and dust-proof cap included.

- Removable hardened saddles protect plunger.

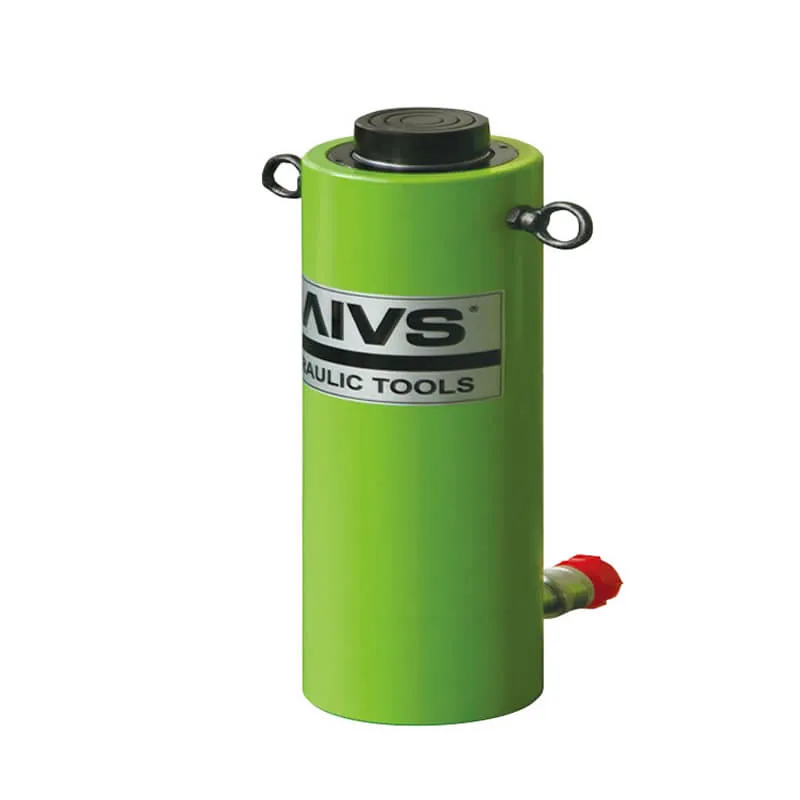

CLL Series Single-Acting High Tonnage Lock-Nut hydraulic cylinders

- Single acting, loads return.

- Special painted surface for corrosion resistance.

- Lock nut ensures load holding safety.

- Quick couplings and dust-proof cap included.

- Overflow port limits stroke.

- Exclusive guide Ring absorbs eccentric loading.

- Removable hardened saddles protect plunger.

- Mechanical lock nut cylinder can be customized.

- Top and side mounted lifting eyes.

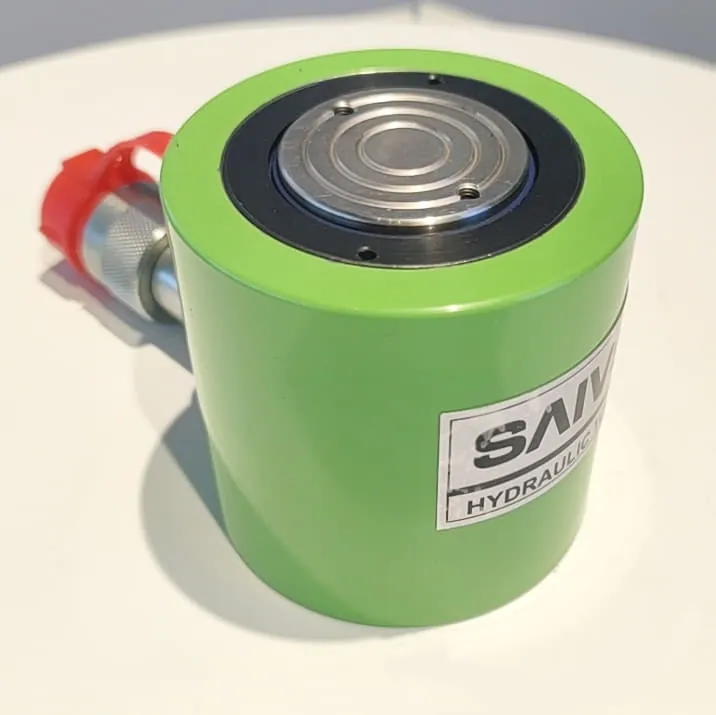

50 Ton RCS Series Single-acting Low Height Hydraulic Cylinders Jack

- Single-acting, spring return.

- Low profile design for narrow applications.

- Special painted surface for corrosion resistance.

- Two plunger threads on grooved end.

- Quick couplings and dust-proof cap included.

- Handles on some models for easy carrying.

- No saddle required with grooved end.

- Customizable with special requirements.

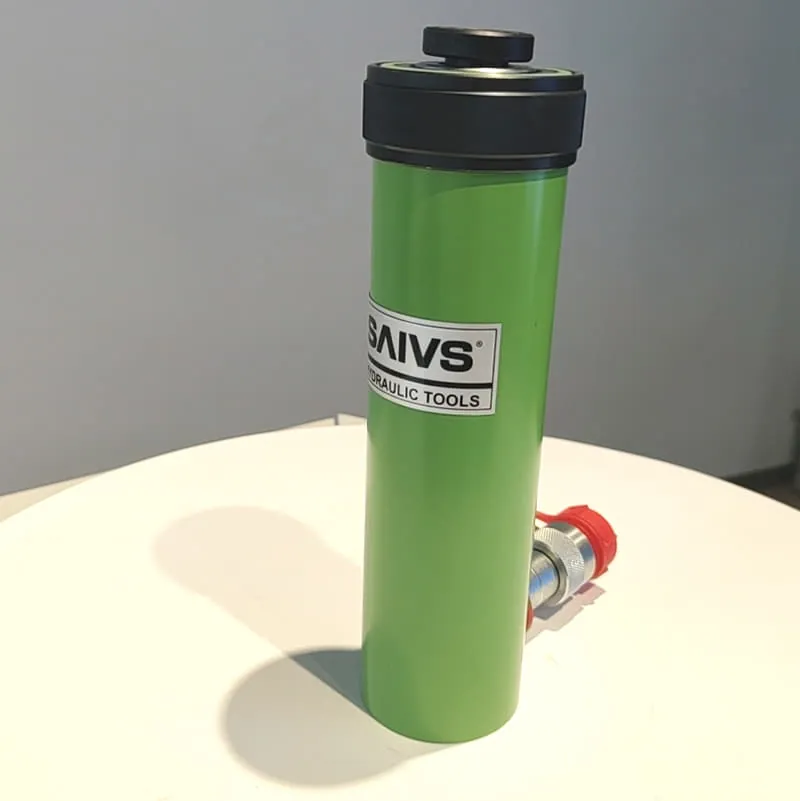

50 Ton RC Seires Single-Acting Hydraulic Cylinders

- Single-acting, High Strength spring return.

- Exclusive guide Ring absorbs eccentric loading.

- Special painted surface for corrosion resistance.

- Easy fixturing with collar threads and base mounting holes.

- Quick coupling and dust cap included.

- Removable hardened grooved saddles.

- Customizable with special requirements.


50 Ton RSM Series Single-Acting Low Flat Hydraulic Ram

- Single-acting, spring return.

- Flat design for confined spaces.

- No saddle required with grooved end.

- Two plunger threads on grooved end.

- Special painted surface for corrosion resistance.

- Handles on some models for easy carrying.

- Quick coupling and dust cap included.

- Customizable with special requirements.


SAIVS 50 Ton Hydraulic Cylinder & Jack PDF Download

Dimensions

Model NumberCylinder Capacity ton(KN)Stroke(mm)Oil Capacity(cm³)Weight(kg)
CLSG50(550)50/100/150/200/300392/784/1176/1568/235213
CLRG5050/100/150/200/300392-2352 / 200-120024
CLL50(549)161257.4
RCS50(549)6047113.3
RC50(498)51/101/159/337361/716/1126/238815/19/23/37
RSM50(549)161257.4

Video

FQAs

1. What is the difference between a hydraulic jack and a hydraulic cylinder?

A hydraulic jack is a device used for lifting heavy loads using hydraulic pressure. It typically consists of a pump,

cylinders, and an actuating mechanism. On the other hand, a hydraulic cylinder is a component within a hydraulic

system that converts fluid power into linear mechanical force.



2. What does a cylinder do in a hydraulic jack?

The cylinder in a hydraulic jack is responsible for generating the lifting force. When hydraulic fluid is pumped into the cylinder,

it pushes against a piston, creating pressure that lifts the load. The size and design of the cylinder

determine the lifting capacity and stroke length of the hydraulic jack.


3. What is a hydraulic jack?

A hydraulic jack is a mechanical device used to lift heavy objects or apply great force using hydraulic power.

It uses the principle of Pascal's law, where a small force applied to a small area can generate a much larger

force over a larger area. Hydraulic jacks are commonly used in automotive, industrial, and construction applications.


4. What is a jack cylinder?

A jack cylinder refers to the hydraulic cylinder component found in hydraulic jack systems.

It is a cylindrical chamber that houses a piston and hydraulic fluid. When pressure is applied to the fluid,

it creates a pushing or pulling force that is used to lift or move heavy objects. The jack cylinder plays a vital role

in converting hydraulic pressure into mechanical force for lifting and supporting loads.


Application

Hydraulic cylinder jacks are ideal for safely lifting and holding heavy industrial machinery while maintenance or repairs are conducted.

These jacks help support and position critical structural elements during construction, ensuring proper alignment and safety.

Wind turbines require periodic maintenance, and hydraulic cylinder jacksenable technicians to reach and service these towering structures.

Railways use hydraulic cylinder jacks to lift locomotives, allowing access for inspections and maintenance.

Welders use hydraulic cylinder jacksto accurately position heavy workpieces for welding tasks, ensuring precision and safety.

Shipping yards use hydraulic cylinder jacksto load and unload heavy shipping containers from trucks and ships.

Agricultural equipment can be adjusted to the correct height for various farming tasks using hydraulic cylinder jacks.
