What Is the Stroke Length of a Hydraulic Cylinder?

In industrial automation, heavy construction machinery, and fluid power systems, choosing the correct actuator is essential for achieving precise linear movement. Many technicians and equipment builders often wonder: what is the stroke length of a Hydraulic Cylinder? Simply put, stroke length is the total linear distance that the piston rod can travel from its fully retracted position inside the barrel to its fully extended position.

Understanding how stroke length is defined and calculated helps engineers select the right hydraulic cylinder for applications requiring specific reach, lifting height, or pushing distances.

Understanding Stroke Length Mechanics

The stroke length dictates the working range of the actuator and determines how far a load can be moved or lifted.

Measuring Linear Travel Distance

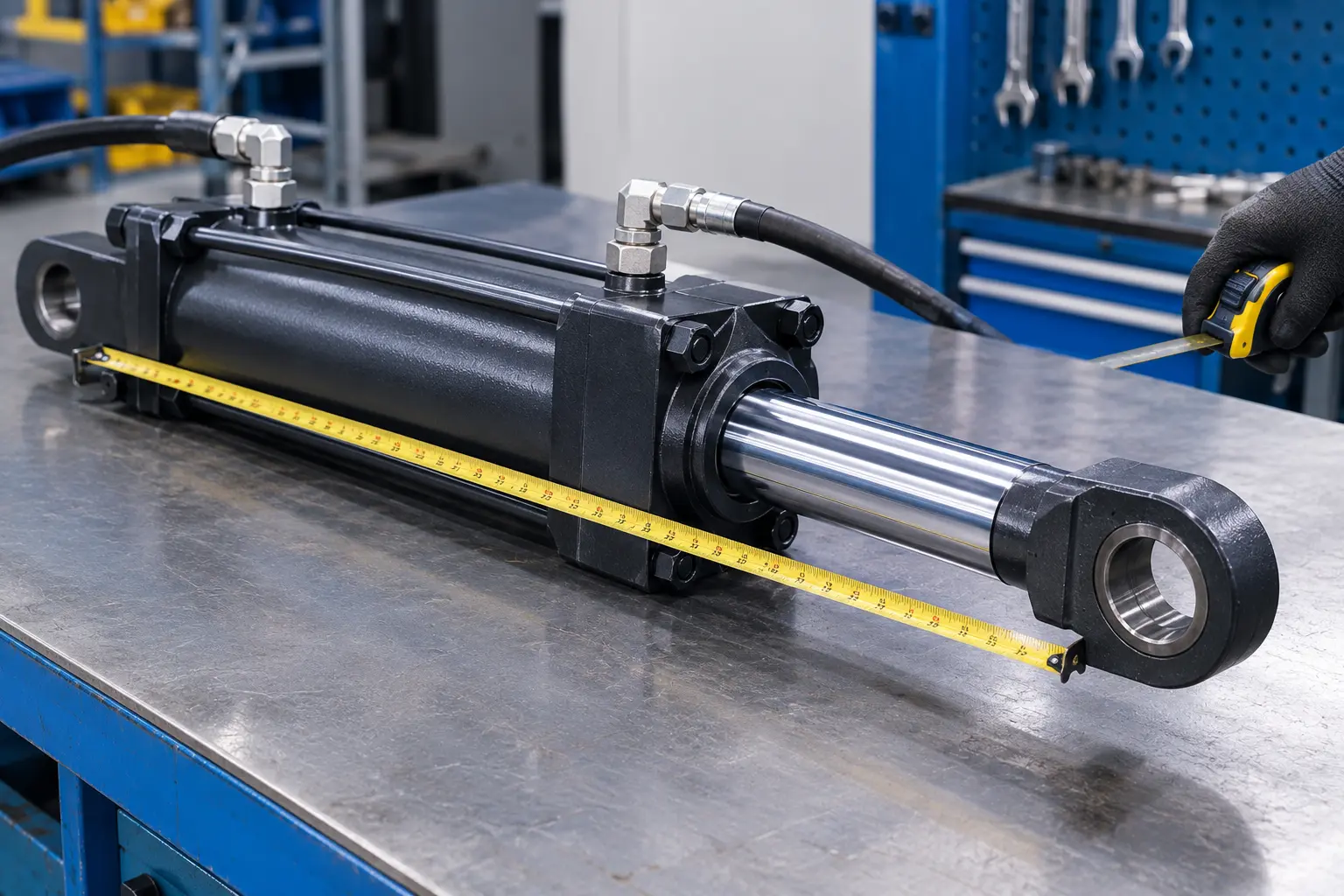

Stroke length is measured in inches or millimeters and represents the active travel distance of the piston rod. If a cylinder has a retracted pin-to-pin length of 20 inches and extends to 36 inches, its stroke length is 16 inches. Knowing this exact measurement ensures that the actuator completes the required mechanical movement without falling short or over-extending.

Single-Stage vs. Multi-Stage Strokes

Standard hydraulic cylinders feature a single piston rod, meaning their maximum stroke is limited by the physical length of the single barrel housing. However, specialized applications requiring massive reach within compact spaces use telescopic cylinders, which feature nested multi-stage sleeves to achieve exceptionally long stroke lengths while maintaining a short retracted profile.

Pairing Stroke with Hydraulic Flow

When operating long-stroke cylinders, the total fluid volume required from your hydraulic pump increases significantly because a larger barrel or longer travel distance requires more oil to fill. Ensuring your pump reservoir and flow rate match your cylinder's stroke volume prevents operational delays and stuttering movements.

Key Factors When Selecting Stroke Length

Choosing the correct stroke length involves more than just matching the distance of your intended movement; it requires careful evaluation of mechanical safety limits.

Preventing Rod Buckling Under Load

As a cylinder extends to its maximum stroke length, the exposed piston rod becomes more susceptible to side-loading and mechanical buckling. For applications requiring long strokes under heavy compressive forces, engineers must select a larger bore and rod diameter or use external guides to prevent the shaft from bending.

Factoring in Retracted Space Constraints

While a long stroke is necessary for lifting or pushing across wide distances, you must also consider the physical space available when the cylinder is fully retracted. If the installation area is restricted, a standard long-stroke cylinder might not fit, requiring a compact pancake cylinder or a multi-stage design instead.

Ensuring Full-Range Clearance

Always verify that the machinery surrounding the actuator provides unhindered clearance throughout the entire extension and retraction cycle to prevent pinch points, structural binding, or hose pinching.
