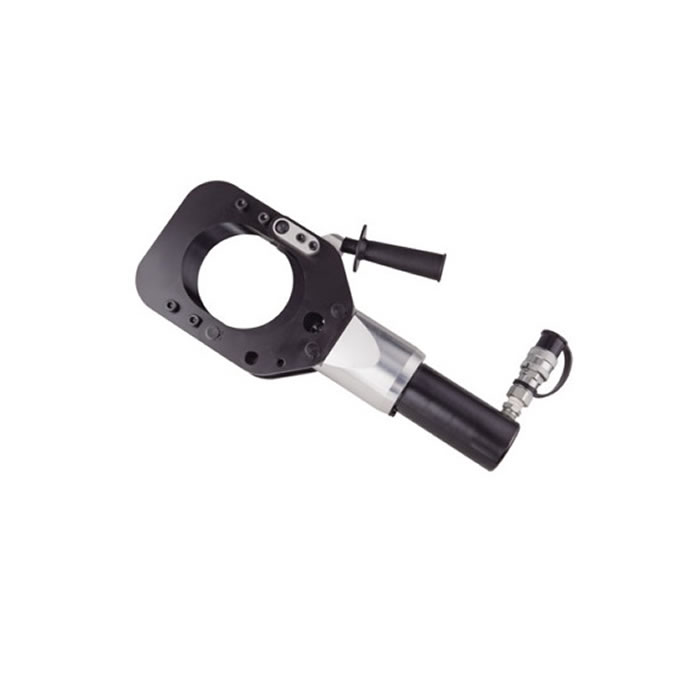

Separated Hydraulic Cable Cutter CPC-105b

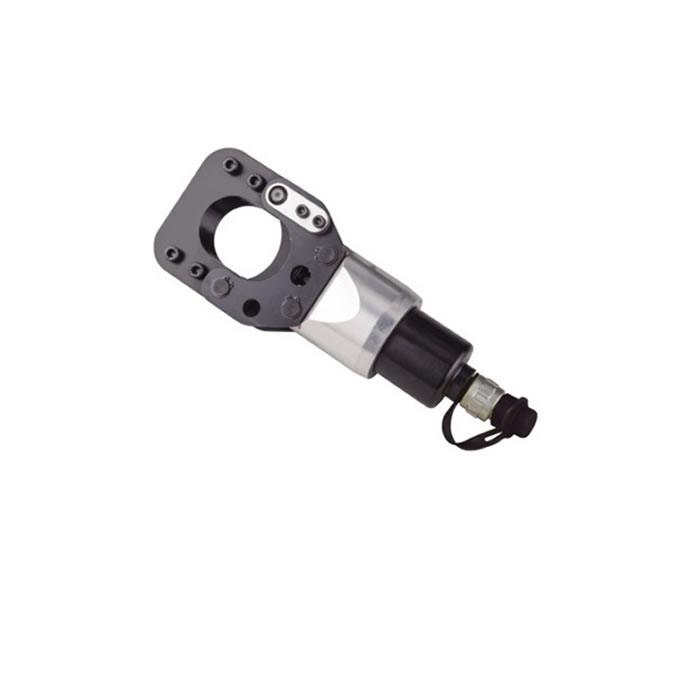

Separated Hydraulic Cable Cutter CPC-85b

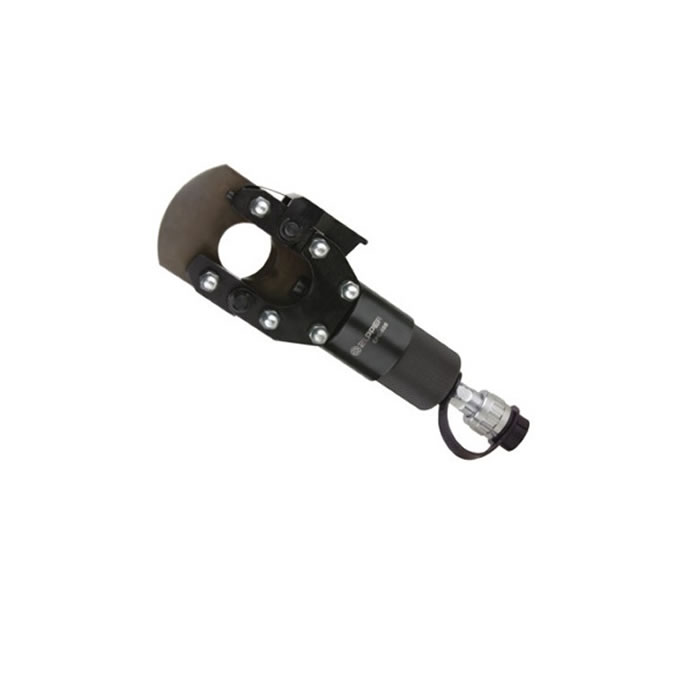

Separated Hydraulic Cable Cutter

5out of5 based on3 reviews | Write a review

Model:CPC-40B /CPC-55B/CPC-85B/CPC-105B
Cutting force:60kN
Cutting range:Max Φ40mm(for ACSR conductor)
Stroke:42mm
Oil capacity:42ml
Length:approx 320mm
Weight:approx 3.8kg
Package:Steel case
Weight of case:approx 1.6kg

Application:Construction and structural assemblyWater and energy industriesManufacturing industry and factories

Sample:Contact us for free samples
CONTACT NOW
VIEW CATALOGUE

Description

common features:

automatic pressure relief, two-stage Hydraulic System, automatic reset when the pressure reaches

cutting work is faster and lighter; easier cutting

open head design, 360 ° free rotation

manual pressure relief button, release in the middle of cutting off, and quickly reset

A Separated Hydraulic Cable Cutter is a tool used to cut cables or wires, typically made of steel or other durable materials, using hydraulic pressure. It consists of two main parts: the cutting head and the hydraulic pump. The cutting head contains blades that can be adjusted to fit different sizes of cables, while the hydraulic pump provides the force necessary to cut through the cable cleanly and efficiently. This type of cutter is often used in industrial settings, such as construction sites, manufacturing plants or electrical utilities.

Dimensions

model	cutting force	cutting range	stroke	oil capacity	length	weight	package
CPC-40b	60kn	max φ40mm (for acsr conductor)	42mm	42ml	approx 320mm	approx 3.8kg	steel case, weight approx 1.6kg
CPC-55b	120kn	≤φ55mm armored cable, 52mm acsr, 55mm cu/al cable, 20mm mild iron rod, 20mm rebar, 25mm steel wire	58mm	42ml	approx 342mm	n/a	steel case
CPC-85b	60kn	≤φ85mm telephone cable, ≤50mm armored cu/al cable	92mm	92ml	approx 465mm	approx 7.9kg	steel case, weight approx 3.5kg
CPC-105b	120kn	≤φ105mm cu/al cable and armored cable	108mm	195ml	approx 445mm	n/a	steel case

FQAs

Q: Why is the blade of the separated hydraulic cable cutter dull?

A: The blade may become dull due to extended use or improper maintenance. Sharpen or replace the blade as needed.

Q: Why is the hydraulic cable cutter not cutting through the cable properly?

A: The blade may be damaged or dull, the hydraulic pump may need servicing, or the cable may be too thick for the tool. Check the blade and pump, and ensure that you are using the tool on a cable within its specified diameter range.

Q: Why is the separated hydraulic cable cutter leaking fluid?

A: The hydraulic system may have a leak, which can be caused by damage to hydraulic hoses, fittings, or seals. Check all parts of the hydraulic system and replace any damaged components.

Q: How often should I service the separated hydraulic cable cutter?

A: Regular maintenance is recommended to keep the tool in good working condition. This includes cleaning, lubrication, and inspection of all components. Follow the manufacturer's recommendations for service intervals.

Q: What safety precautions should I take when using the separated hydraulic cable cutter?

A: Always wear appropriate personal protective equipment (PPE), such as safety glasses and gloves. Ensure that the cable is safely secured and that bystanders are at a safe distance. Follow all instructions and warnings provided by the manufacturer.
