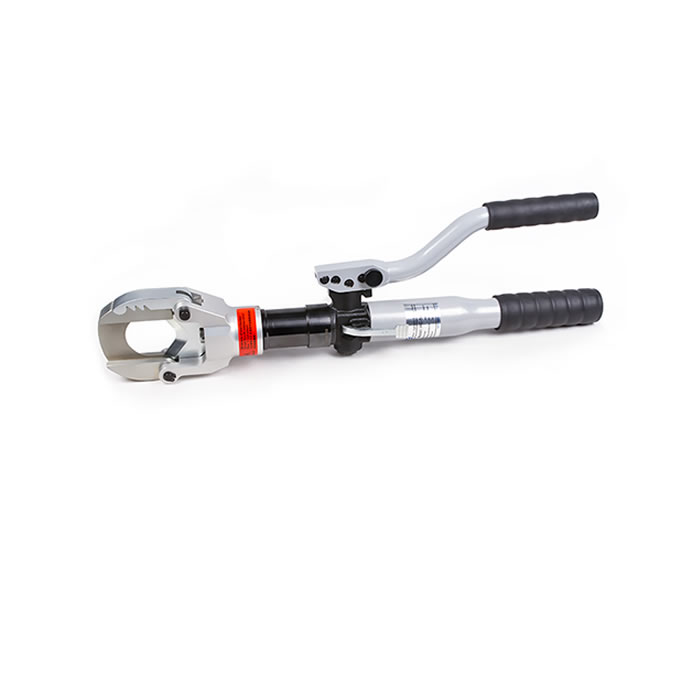

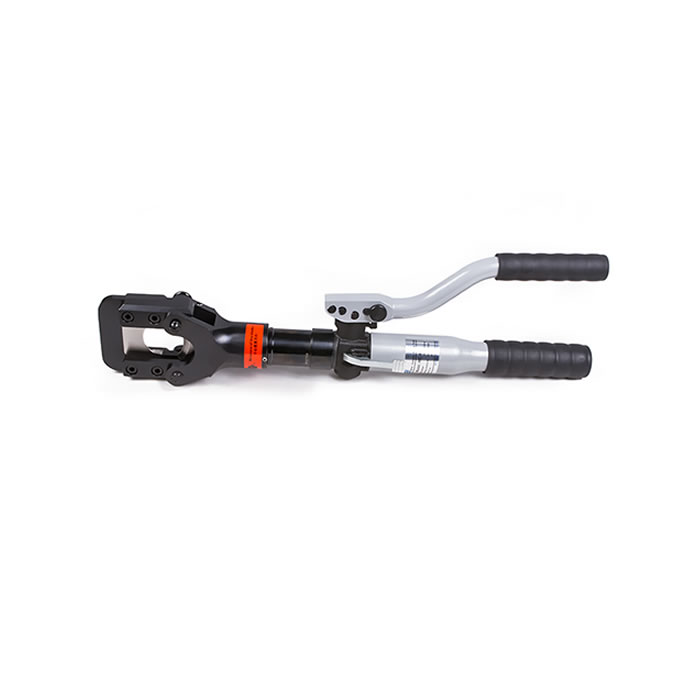

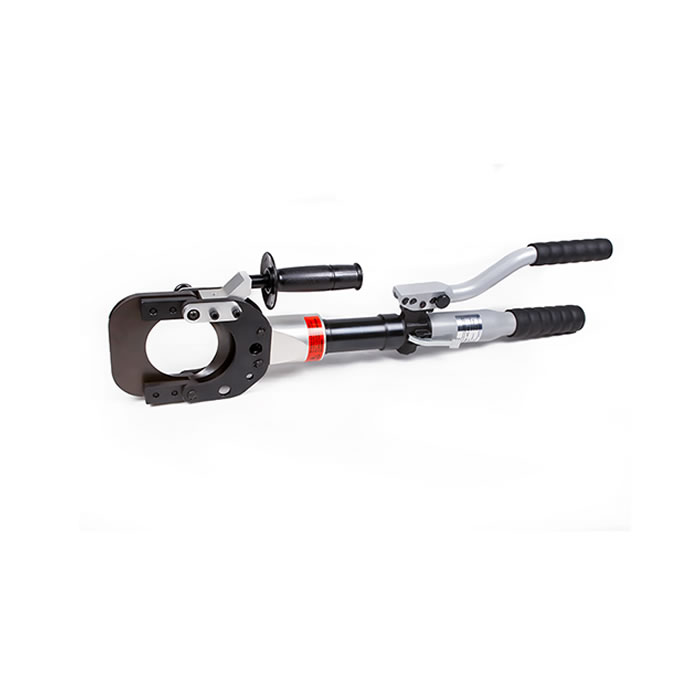

Manual Hydraulic Cable Cutter

5out of5 based on7 reviews | Write a review

Model:CH-45/CH-50/CH-55/CH-85/
Cutting Force：60kN
Cutting Range:≤Φ45mm-≤Φ85mm copper/aluminum cable,
ACSR Conductor, ≤Φ20mm steel bar
Weight:5.5kg/3.9kg/7kg/6.4kg
Packing:Plastic Box
Manufacturer:SAIVS
Country of Origin:China
Minimum Order:1Piece

Application:Oil and gas industryMining and resource developmentPower engineering, technology, and services

Sample:Contact us for free samples
CONTACT NOW
VIEW CATALOGUE

Description

Characteristic:

1.Automatic pressure relief, two-stage Hydraulic System, automatic reset when the pressure reaches

2.Cutting work is faster and lighter; Easier cutting

3.Open head design, 360 ° free rotation

4.Manual pressure relief button, release in the middle of cutting off, and quickly reset

Dimensions

model	cutting force	cutting range	weight	packing	rated load
ch-45	60kn	≤φ45mm copper/aluminum cable, acsr conductor, ≤φ20mm steel bar	5.5kg	plastic box	700bar
ch-50	60kn	≤φ50mm copper/aluminum cable	3.9kg	plastic box	700bar
ch-55	120kn	≤φ55mm copper/aluminum cable, acsr conductor, ≤φ55mm steel bar	7kg	plastic box	700bar
ch-85	60kn	≤φ85mm copper/aluminum cable, ≤3x185mm armour cable	6.4kg	plastic box	700bar

FQAs

what is a hydraulic cable cutter?

a hydraulic cable cutter is a tool used to cut and strip cables using hydraulic force, which is typically powered by a portable hydraulic pump.

how does a hydraulic cable cutter work?

a hydraulic cable cutter works by using hydraulic force to cut through cables. the user simply needs to position the cable between the jaws of the cutter, and then activate the hydraulic pump to apply pressure and cut the cable.

what are the benefits of using a hydraulic cable cutter?

the main benefits of using a hydraulic cable cutter include its speed, precision, and ease of use. hydraulic cutters can handle thick cables with ease and do not require significant physical force or manual effort.

how do i choose the right hydraulic cable cutter for my needs?

when choosing a hydraulic cable cutter, it’s important to consider factors such as the size and thickness of the cables you need to cut, as well as the frequency of use. look for a cutter with a suitable cutting capacity and quality construction that will provide long-term reliability.

can a hydraulic cable cutter be used for other materials besides cables?

although hydraulic cable cutters are primarily designed for cutting cables, they may also be suitable for cutting other materials such as wire rope, chains, and even some thin metals. however, it’s important to consult the manufacturer's guidelines and specifications to ensure safe and effective usage.
