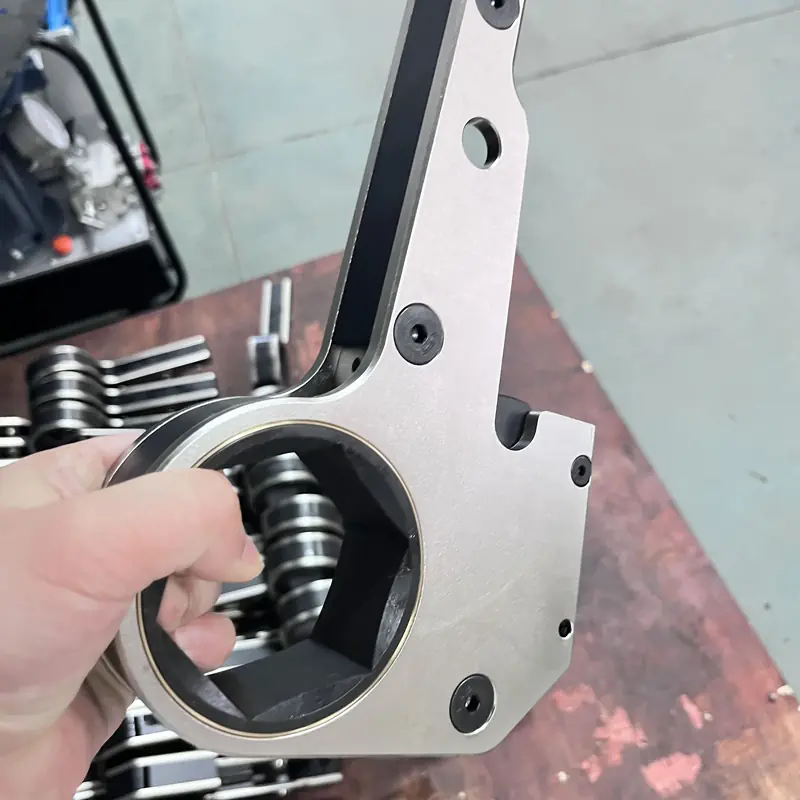

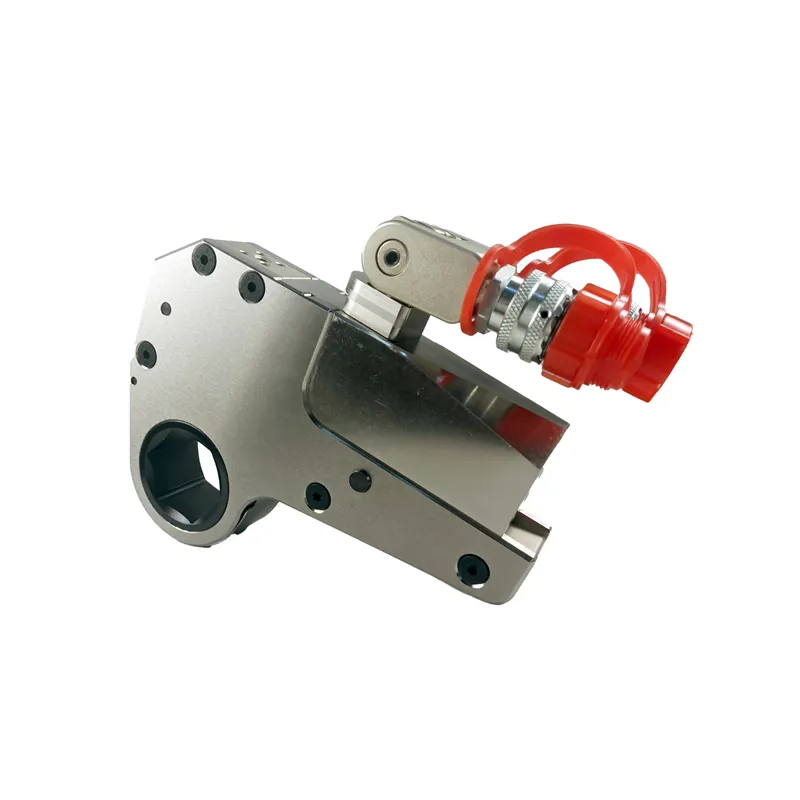

• SGH Series Low Profile Hydraulic Torque Wrench-1-SAIVS
  • SGH Series Low Profile Hydraulic Torque Wrench-2-SAIVS
  • SGH Series Low Profile Hydraulic Torque Wrench-3-SAIVS
SGH Series Low Profile Hydraulic Torque Wrench-1-SAIVSSGH Series Low Profile Hydraulic Torque Wrench-2-SAIVSSGH Series Low Profile Hydraulic Torque Wrench-3-SAIVS

SGH Series Low Profile Hydraulic Torque Wrench

5out of5 based on12 reviews | Write a review
  • Accuracy: ±3%

    Flat design: Suitable for narrow spaces

    360° to 180° swivel: Operation without space limitations

    High-strength alloy steel: High strength and wear resistance

    Max working pressure: 70 MPa

    5 models: Torque range from 314 to 30408 N·m

    High-pressure torque wrench: Meets various work requirements

    Compact design: Convenient for carrying and usage

    Direct nut operation: More accurate, more convenient

    Application:Mechanical and metalworkingFurniture manufacturing and assemblyElectronics manufacturing and repair

    Sample:Contact us for free samples

  • CONTACT NOW
  • VIEW CATALOGUE

Description

Features:

Number of Models: 5 - There are likely 5 different models available, possibly with varying torque ranges.

Torque Range: 314-30408 N⋅m (Newton meters) - This is the range of torque output across the different models, suitable for various fastening applications.

Flat Design with Consistent Thickness: This design allows for usage in tight spaces where a bulkier wrench head might not fit.

360° x 180° Swivel: This feature provides exceptional maneuverability, enabling operation at any angle without limitations.

High-Strength Alloy Steel: The material selection ensures the wrench is robust, durable, and resistant to wear and tear.

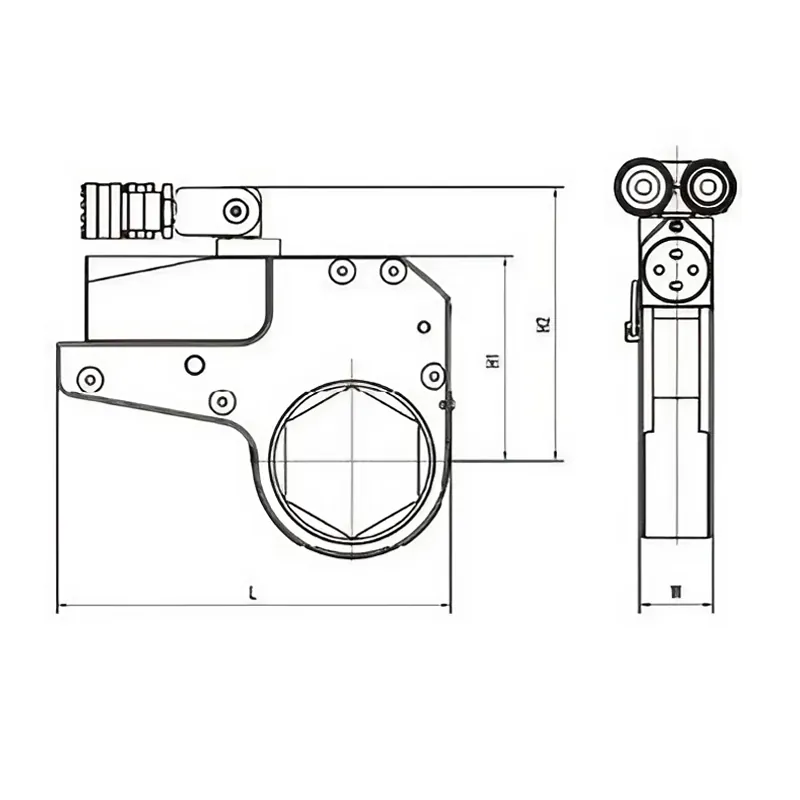

SGH Series Low Profile Hydraulic Torque Wrench drawing

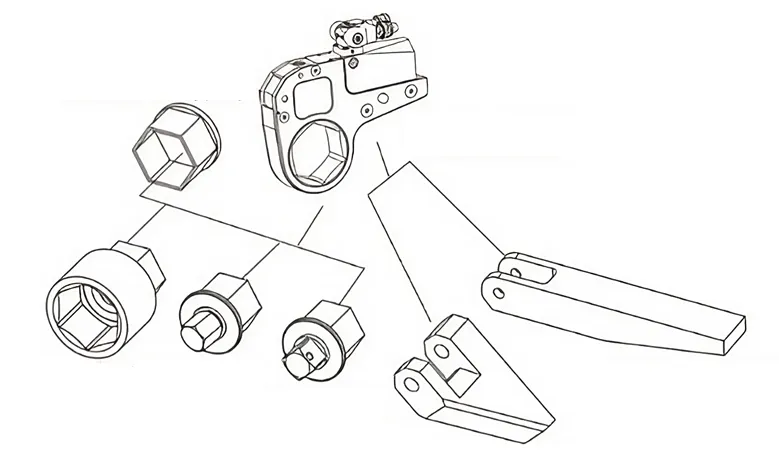

SGH Series Low Profile Hydraulic Torque Wrench drawing

Concrete Figure:

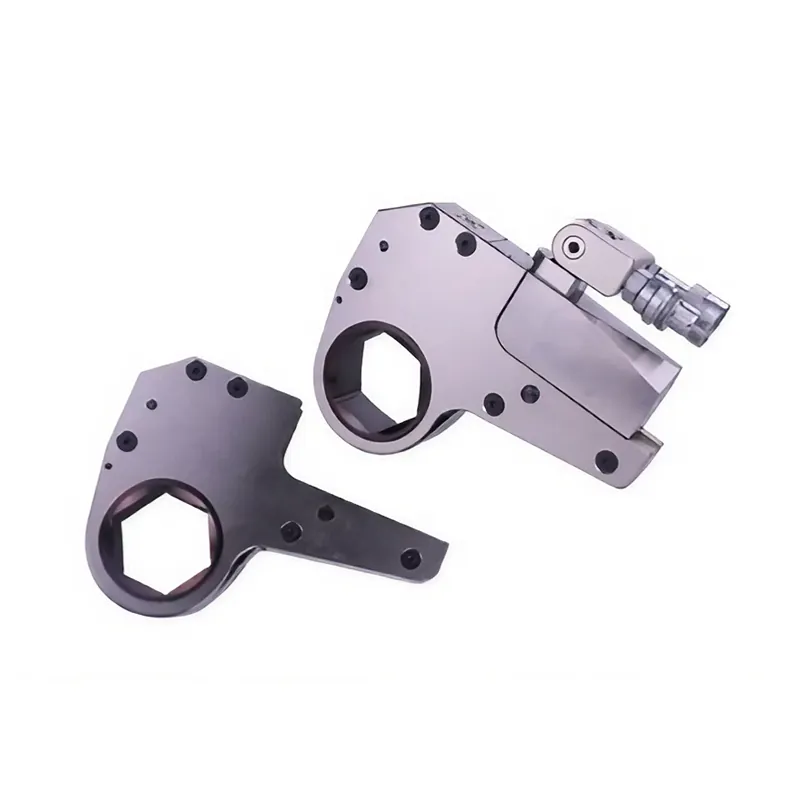

SGH Series Low Profile Hydraulic Torque Wrench


SGH Series Low Profile Hydraulic Torque Wrench


Applications:

Industrial manufacturing

Automotive manufacturing

Aerospace

Shipbuilding

Construction

Oil and gas

power generation

Railway maintenance

Mining industry

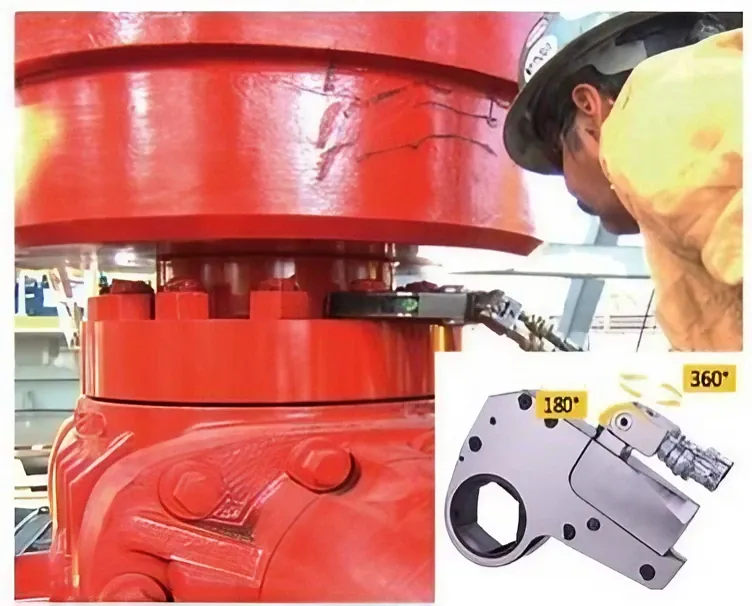

A worker is operating a hollow wrench


Dimensions

Type 3SGH 4SGH 8SGH 14SGH 22SGH
Torque (NM) 314-2245 314-3143 585-2509 585-5018 585-5858 647-6474 1094-6252 1094-10941 1177-11774 1852-18521 3041-30408
Torque (Ft.lbs) 231-1656 231-2317 431-1851 431-3705 431-4317 477-4771 806-4605 806-8078 868-8672 1365-13665 2243-22422
Bolt size (mm) 27-46 50-70 34-36 41 46-65 70-80 41-50 55-95 100-105 50-117 75-135
Weight of Power Head (Kg) 1.4 1.4 1.6 1.6 1.6 1.6 3.1 3.1 3.1 4.8 7.8
Weight of Ratchet Link (Kg) 1.7 2 4 4.1 4.3 4.5 7.8 8.1 8.9 13.5 23.9
L 207 210 241 241 245 246 294 294/300 300 361 412
H1 110 110 127 127 127 137 156 156 165 188 220
H2 153 153 177 177 177 187 206 206 215 238 270
W1 36 36 43 43 43 43 53 53 53 64 77

Video

FQAs

Q: What are the different types of hydraulic torque wrenches?

A: Different types include square drive, low profile, dual-hex, and cassette hydraulic torque wrenches.


Q: What is the advantage of hydraulic torque wrench?

A: The main advantage is precise torque application, uniform distribution of torque, and the ability to handle high torque requirements with ease.


Q: Which type of torque wrench is very effective in low torque applications?

A: Click-type torque wrenches are often effective in low torque applications due to their accuracy and ease of use.


Q: Do hydraulic torque wrenches need to be calibrated?

A: Yes, hydraulic torque wrenches need regular calibration to ensure accurate torque output.


Q: How many PSI is a hydraulic torque wrench?

A: Hydraulic torque wrenches typically operate at pressures ranging from 1,500 to 10,000 PSI (pounds per square inch).


Q: How do you calibrate a hydraulic torque wrench?

A: Hydraulic torque wrenches are calibrated using specialized calibration equipment that applies a known torque load to the wrench and compares the actual output to the expected

output. Adjustments are made as necessary to ensure accuracy.
