Battery Powered Cable Cutter ED45/ED55/ED85/ED105
-
model: ED45/ED55/ED85/ED105
cutting force: 60kn
cutting range: ≤φ45mm (cu/al cable and armored cable)
stroke: 50mm
cutting cycle: 100 -130 times
voltage/capacity: 18v/3.0ah
weight: 6.0kg -7.5kg
charging time: 1 hour
package: plastic box
Application:Electronics manufacturing and repairCosmetics and daily products productionAerospace manufacturing and maintenance
Sample:Contact us for free samples
Description
we offer a range of battery powered cable cutters suitable for cutting big size of telephone cables or armored cu/alu cables. these cutters can work with hydraulic hand pump or electric hydraulic pump, making them versatile and easy to use.

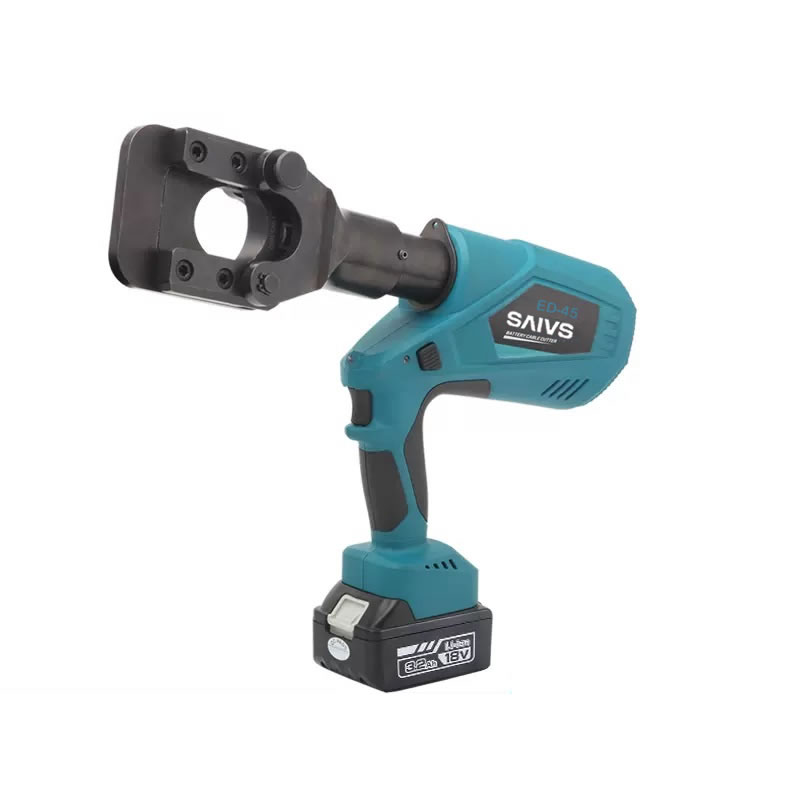

model: ED45
technical specification
cutting force: 60kn
cutting range: ≤φ45mm (cu/al cable and armored cable)
stroke: 50mm
cutting cycle: 130 times
voltage/capacity: 18v/3.0ah
n.weight: 6.0kg
charging time: 1 hour
package: plastic box
accessories
blade: 1pc
battery: 2 pcs
charger: 1pc
sealing ring of cylinder: 1set
sealing ring of safety valve: 1 set
model: ED55
technical specification
cutting force: 120kn
cutting range:
armored cable: φ55mm
acsr: φ54mm
cu/al cable: φ55mm
mild iron rod: φ22mm
rebar: φ22mm
steel wire: φ22mm
wire rope: φ30mm
stroke: 58mm
tool size: 458×413×83mm
voltage/capacity: 18v/4.0ah
charging time: 1 hour
n.weight: 8kg
package: plastic box
accessories
battery: 2 pcs
charger: 1pc
sealing ring of cylinder: 1set
sealing ring of safety valve: 1 set
model: ED85
technical specification
cutting force: 60kn
cutting range: ≤φ85mm (cu/al cable and armored cable)
stroke: 86mm
voltage/capacity: 18v/3.0ah
charging time: 1 hour
n.weight: 7.5kg
package: plastic box
accessories
blade: 1 pc
battery: 2 pcs
charger: 1pc
sealing
Dimensions
| model | ED45 | ED55 | ED85 | ED105 |
|---|---|---|---|---|
| cutting force | 60kn | 120kn | 60kn | 120kn |
| cutting range (cu/al cable and armoured cable) | ≤φ45mm | ≤φ55mm | ≤φ85mm | ≤φ105mm (depending on cable type) |
| armored cable cutting range | - | φ55mm | - | light weight armoured cu/al cable |
| acsr cutting range | - | φ54mm | - | - |
| mild iron rod cutting range | - | φ22mm | - | - |
| rebar cutting range | - | φ22mm | - | - |
| steel wire cutting range | - | φ22mm | - | - |
| wire rope cutting range | - | φ30mm | - | - |
| stroke | 50mm | 58mm | 86mm | 108mm |
| cutting cycle | 130 times | - | - | - |
| voltage/capacity | 18v/3.0ah | 18v/4.0ah | 18v/3.0ah | 18v/3.0ah |
| charging time | 1 hour | 1 hour | 1 hour | 1 hour |
| charging voltage | - | - | ac100v-240v;50-60hz | - |
| n.weight | 6.0kg | 8kg | 7.5kg |
FQAs
Question: What is a battery-powered cable cutter used for?
Answer: A battery-powered cable cutter is used to cut electrical cables and wires quickly and accurately in various industries.
Question: How does a battery-powered cable cutter work?
Answer: A battery-powered cable cutter works by using hydraulic or mechanical force to cut through the cable or wire. It is powered by a rechargeable lithium-ion battery.
Question: What are some of the advantages of using a battery-powered cable cutter?
Answer: Some of the advantages of using a battery-powered cable cutter include the ability to work in tight spaces or remote locations, increased cutting speed and precision, and reduced risk of injuries compared to manual cutters.
Question: What is the typical lifespan of a battery-powered cable cutter?
Answer: The lifespan of a battery-powered cable cutter can vary depending on usage and maintenance, but with proper care, it can last for several years.
Question: How do I choose the right battery-powered cable cutter for my needs?
Answer: When choosing a battery-powered cable cutter, consider factors such as cutting capacity, cutting force, battery life, weight and size, and any additional features that may be necessary for your specific application.
