PE10 Series Electric Hydraulic Pump
-
Reservoir Capacity: 20 L
Flow At Rated Pressure: 1 L/min
Motor Size: 1.5 KW
Input Power:200V-240V-575V 1Ph-3Ph/50-60HZ
Max.Operating Pressure: 700 bar / 10000PSI
Weight: 46 KG
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
Applications:System matches single and
double action small size
hydraulic cylinders and other
small hydraulic tools.
- PE4 Series Portable Electric Hydraulic Pump PE15 PE25 Series Oil Gear Electric Pump
Description
Product Line: Industrial Tools
Customizable with special requirement
Electric Pump motor with light weight aluminum housing, and integrated heat sink for easy cooling .
Two-speed design reduces cycle times for improved productivity.
Built-in safety valve to prevent overloading.
Externally adjustable relief valve allows control of operating pressure without opening the .
Different flow control valves and cooler fit special working requirement.
Protection circuit is designed to avoid current overload, prevent the damage to pump motor.
High Strength molded shroud protects the electrical components-class motor from contamination and damage. Easy to carry and lift.
Equipped with liquid level temperature display.
Compatible with middle power and small size (doubleacting & Single-Acting) cylinders or hydraulic tools .
Applications: System matches single and double action small size Hydraulic Cylinders and other small hydraulic tools.

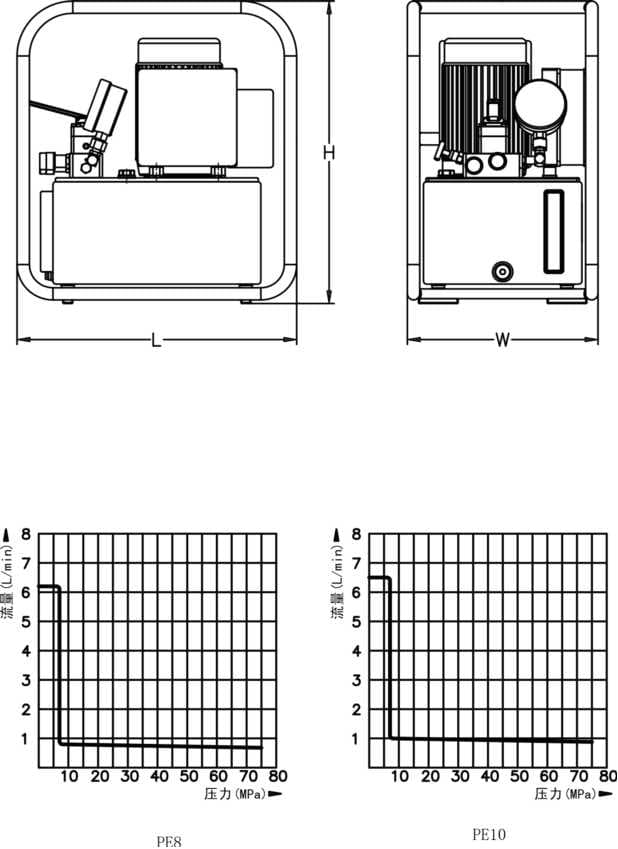

Dimensions
| PE10 Series, Electric Pump | |||||||||
| Model Number | Oil Flow (L/min) | Pressure (bar) | Power | Usable Oil Capacity | Input Power* | Weight | Dimensions | ||
| High Pressure | Low Pressure | High Pressure | Low Pressure | (KW) | (L) | (kg) | LXWXH(mm) | ||
| PE10 | 1 | 6.3 | 700 | 70 | 1.5 | 20 | 200V-240V 1Ph/50HZ 220V-575V 3Ph/50HZ | 46 | 565*385*620 |
| 1 | 7.5 | 700 | 70 | 1.5 | 20 | 200V-240V 1Ph/60HZ 220V-575V 3Ph/60HZ | 46 | 565*385*620 | |
