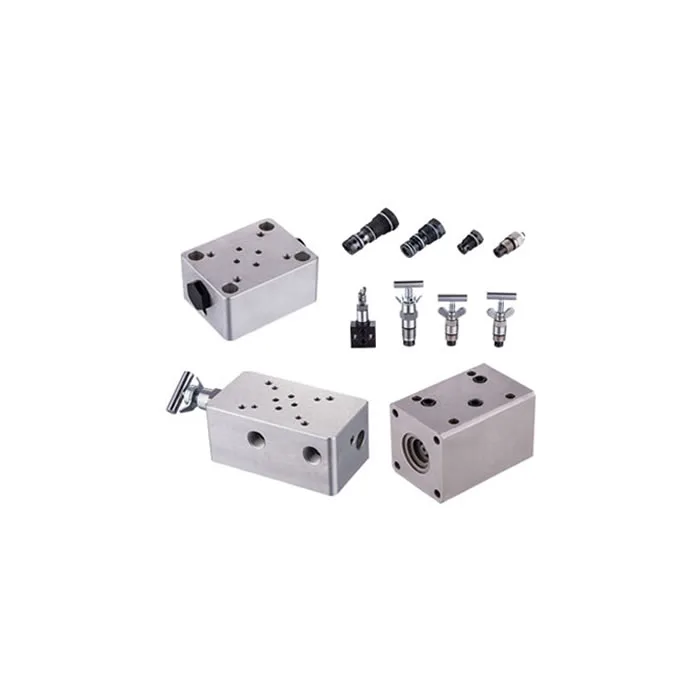

V Series Control Valves

Max.Operating Pressure: 700bar

Rated working pressure of Valve:700bar

All of the valve with anti-corrosion treatment or plating treatment.

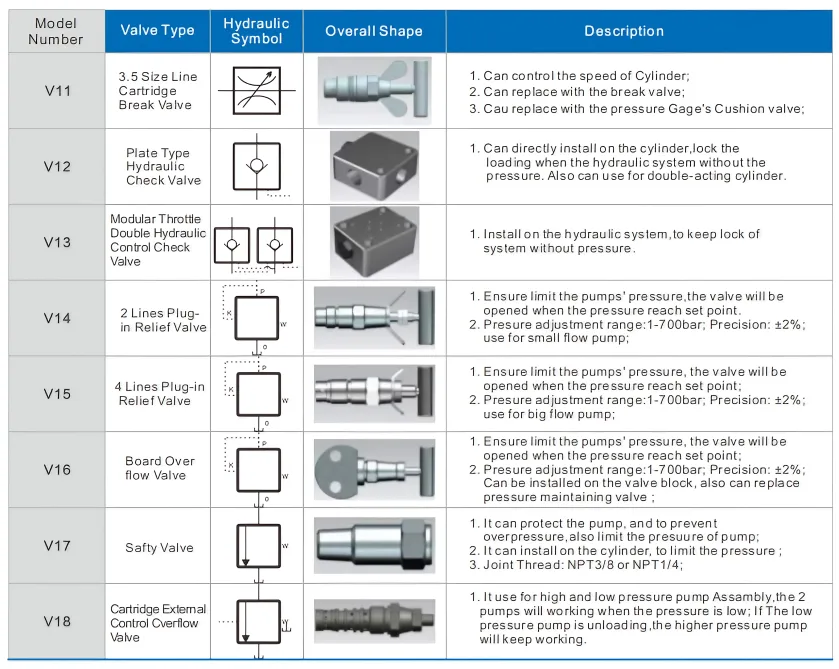

V11: 3.5 Size Line Cartridge Break Valve

Can control the speed of Cylinder;

Can replace with the break valve;

Cau replace with the pressure Gage's Cushion valve

V12: Plate Type Hydraulic Check Valve

Can directly install on the cylinder,lock the loading when the Hydraulic System without the pressure. Also can use for double-acting cylinder.

V13: Modular Throttle Double Hydraulic Control Check Valve

Install on the hydraulic system,to keep lock of system without pressure.

V14: 2 Lines Plugin Relief Valve

Ensure limit the pumps' pressure,the valve will be opened when the pressure reach set point.

Presure adjustment range:1-700bar; precision: ±2%; use for small flow pump;

V15: 4 Lines Plug-in Relief Valve

Ensure limit the pumps' pressure, the valve will be opened when the pressure reach set point;

Presure adjustment range:1-700bar; Precision: ±2%; use for big flow pump;

V16: Board Over flow Valve

Ensure limit the pumps' pressure, the valve will be opened when the pressure reach set point;

Presure adjustment range:1-700bar; Precision: ±2%; Can be installed on the valve block, also can replace pressure maintaining valve;

V17: Safty Valve

It can protect the pump, and to prevent overpressure,also limit the presuure of pump;

It can install on the cylinder, to limit the pressure ;

Joint Thread: NPT3/8 or NPT1/4;

V18: Cartridge External Control Cover flow Valve

It use for high and low pressure pump Assambly,the 2 pumps will working when the pressure is low; If The low pressure pump is unloading,the higher pressure pump will keep working.

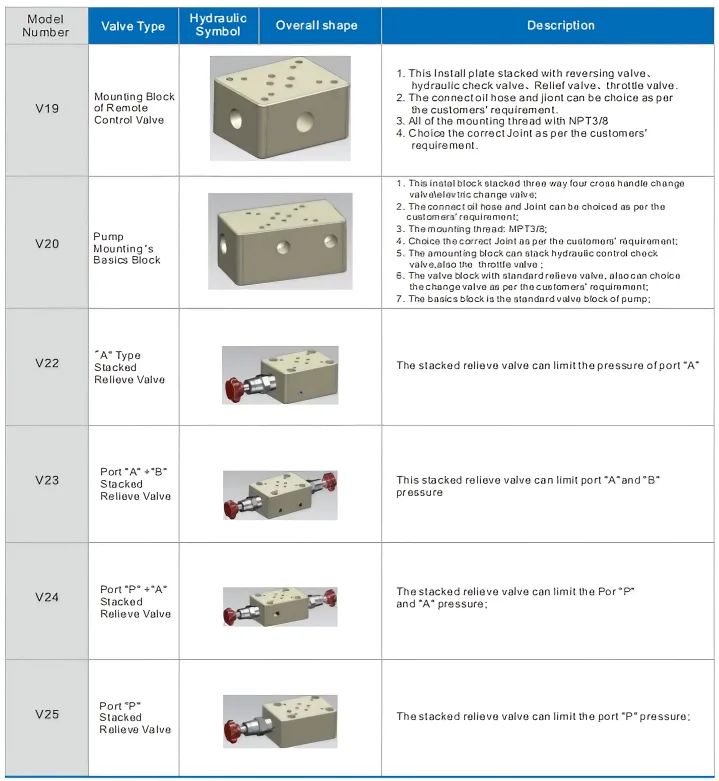

V19: Mounting Block of Remote Control Valve

This Install plate stacked with reversing valve、hydraulic check valve、Relief valve、throttle valve.

The connect oil hose and jiont can be choice as per the customers' requirement.

All of the mounting thread with NPT3/8.

Choice the correct Joint as per the customers' requirement.

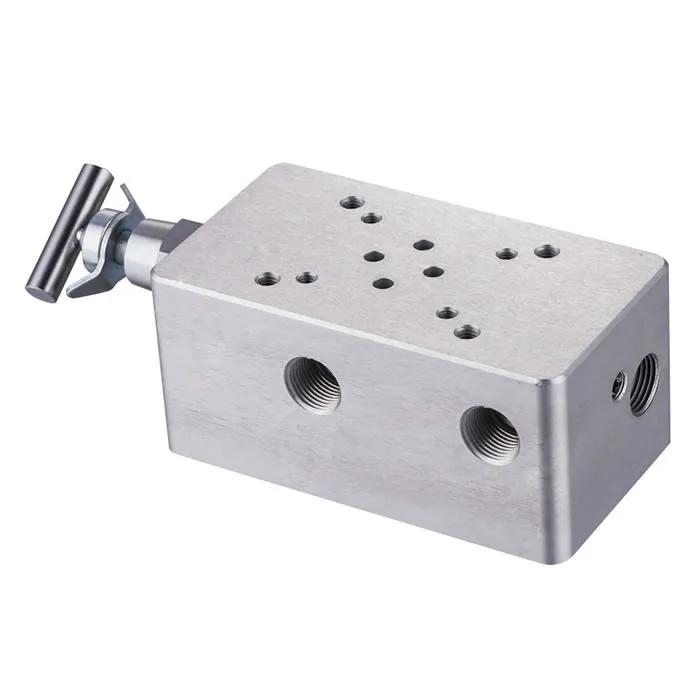

V20: Pump Mounting's Basics Block

This instal block stacked three way four cross handle change valve / electric change valve;

The connect oil hose and Joint can be choiced as per the customers' requirement;

The mounting thread: MPT3/8;

Choice the correct Joint as per the customers' requirement;

The amounting block can stack hydraulic control check valve,also the throttle valve ;

The valve block with standard relieve valve, also can choice the change valve as per the customers' requirement;

The basics block is the standard valve block of pump;
