Model:HCG8002
Capacity:800 ton | 8790 KN
Stroke:50 mm | 1.97 inches
Weight:712 kg | 1569.6 lbs
Cylinder Effective Area:1256 m²
Oil Capacity:6280 cm³
Max.pressure:700 Bar/10000 Psi
Return Type:Single-Acting Load Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's HCG8002
- Model:HCG8002
- Product Line: Industrial Tools

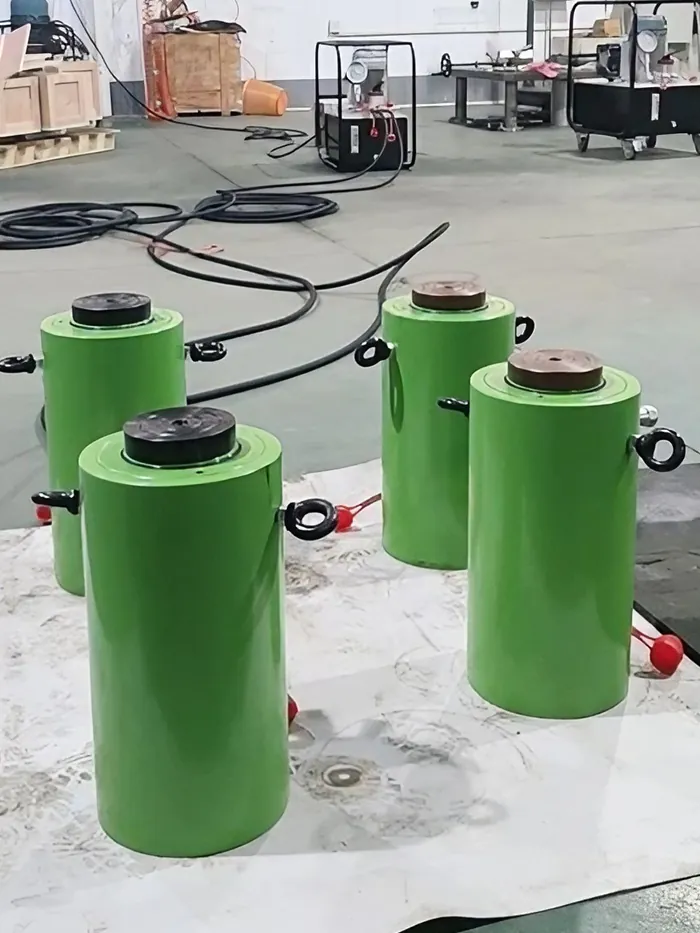

- Type: Hydraulic Cylinder Ram, Hydraulic Jacks
- Single Acting, loads return.
- Hard chrome plated high-quality steel plungers.
- Plunger wiper reduces contamination, extending cylinder life.
- The exclusive guide Ring is designed to absorb eccentric loading without galling cylinder parts, reduce wear, and extend life.
- Special painted surface to increase corrosion resistance.
- Easy fixturing with base mounting holes.
- All models include quick couplings (NPT3/8"-18) and dust-proof caps.
- Removable hardened saddles protect the plunger during lifting and pressing.
- Material:CR40
- Manufacturer:SAIVS
- Country of Origin:China
- Minimum Order:1 Piece
- Customizable with special requirement
Collapsed Height | A | (mm) | 427 | |
Extended Height | B | (mm) | 477 | |
Outside Dia. | C | (mm) | 550 | |
Cylinder Bore Dia | D | (mm) | 400 | |
Plunger Dia. | E | (mm) | 320 | |
Base to Advance Port | F | (mm) | 113 | |
Saddle Dia. | H | (mm) | 320 | |
Saddle Protrusion from Plgr. | J | (mm) | 57 |
Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia | Plunger Dia. | Base to Advance Port | Saddle Dia. | Saddle Protrusion from Plgr. | Mounting Hole Dimensions | Weight | ||
Bolt Circle | Thread | Thread Depth | ||||||||||||||
A | B | C | D | E | F | H | J | O | P | W | ||||||
ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
50 (550) |
50 | HCG-502 | 78.5 | 392 | 172 | 222 | 140 | 100 | 70 | 41 | 70 | 24 | 70 | 4-M16 | 13 | 21.5 |
100 | HCG-504 | 78.5 | 784 | 222 | 322 | 140 | 100 | 70 | 41 | 70 | 24 | 70 | 4-M16 | 13 | 26 | |
150 | HCG-506 | 78.5 | 1176 | 272 | 432 | 140 | 100 | 70 | 41 | 70 | 24 | 70 | 4-M16 | 13 | 31 | |
200 | HCG-508 | 78.5 | 1568 | 322 | 522 | 140 | 100 | 70 | 41 | 70 | 24 | 70 | 4-M16 | 13 | 35 | |
300 | HCG-5012 | 78.5 | 2352 | 422 | 722 | 140 | 100 | 70 | 41 | 70 | 24 | 70 | 4-M16 | 13 | 44 | |
100 (1077) |
50 | HCG-1002 | 153.9 | 770 | 197 | 247 | 188 | 140 | 100 | 54 | 100 | 24 | 100 | 4-M20 | 16 | 42 |
100 | HCG-1004 | 153.9 | 1540 | 247 | 347 | 188 | 140 | 100 | 54 | 100 | 24 | 100 | 4-M20 | 16 | 49 | |
150 | HCG-1006 | 153.9 | 2310 | 297 | 447 | 188 | 140 | 100 | 54 | 100 | 24 | 100 | 4-M20 | 16 | 56 | |
200 | HCG-1008 | 153.9 | 3080 | 347 | 547 | 188 | 140 | 100 | 54 | 100 | 24 | 100 | 4-M20 | 16 | 63 | |
300 | HCG-10012 | 153.9 | 4620 | 447 | 747 | 188 | 140 | 100 | 54 | 100 | 24 | 100 | 4-M20 | 16 | 70 | |
150 (1588) |
50 | HCG-1502 | 226.9 | 1134 | 206 | 256 | 228 | 170 | 120 | 58 | 120 | 24 | 130 | 4-M20 | 16 | 44 |
100 | HCG-1504 | 226.9 | 2269 | 256 | 356 | 228 | 170 | 120 | 58 | 120 | 24 | 130 | 4-M20 | 16 | 57 | |
150 | HCG-1506 | 226.9 | 3403 | 306 | 456 | 228 | 170 | 120 | 58 | 120 | 24 | 130 | 4-M20 | 16 | 70 | |
200 | HCG-1508 | 226.9 | 4538 | 356 | 556 | 228 | 170 | 120 | 58 | 120 | 24 | 130 | 4-M20 | 16 | 83 | |
300 | HCG-15012 | 226.9 | 6806 | 456 | 756 | 228 | 170 | 120 | 58 | 120 | 24 | 130 | 4-M20 | 16 | 109 | |
200 (2198) |
50 | HCG-2002 | 314 | 1570 | 221 | 296 | 268 | 200 | 150 | 64 | 150 | 29 | 160 | 4-M24 | 24 | 84 |
150 | HCG-2006 | 314 | 4712 | 321 | 496 | 268 | 200 | 150 | 64 | 150 | 29 | 160 | 4-M24 | 24 | 118 | |
300 | HCG-20012 | 314 | 9423 | 471 | 796 | 268 | 200 | 150 | 64 | 150 | 29 | 160 | 4-M24 | 24 | 152 | |
300 (3434) |
50 | HCG-3002 | 490.6 | 2453 | 277 | 327 | 320 | 250 | 180 | 74 | 180 | 35 | 220 | 4-M24 | 24 | 155 |
150 | HCG-3006 | 490.6 | 7359 | 377 | 527 | 320 | 250 | 180 | 74 | 180 | 35 | 220 | 4-M24 | 24 | 195 | |
300 | HCG-30012 | 490.6 | 14718 | 527 | 827 | 320 | 250 | 180 | 74 | 180 | 35 | 220 | 4-M24 | 24 | 255 | |
400 (4308) |
50 | HCG-4002 | 615.4 | 3077 | 305 | 355 | 370 | 280 | 210 | 83 | 210 | 35 | 240 | 4-M24 | 24 | 240 |
150 | HCG-4006 | 615.4 | 9231 | 405 | 555 | 370 | 280 | 210 | 83 | 210 | 35 | 240 | 4-M24 | 24 | 310 | |
300 | HCG-40012 | 615.4 | 18462 | 555 | 855 | 370 | 280 | 210 | 83 | 210 | 35 | 240 | 4-M24 | 24 | 415 | |
500 (5114) |
50 | HCG-5002 | 803.8 | 4019 | 325 | 375 | 420 | 320 | 250 | 93 | 246 | 35 | 280 | 4-M24 | 24 | 285 |
150 | HCG-5006 | 803.8 | 12057 | 425 | 575 | 420 | 320 | 250 | 93 | 246 | 35 | 280 | 4-M24 | 24 | 353 | |
300 | HCG-50012 | 803.8 | 24114 | 575 | 875 | 420 | 320 | 250 | 93 | 246 | 35 | 280 | 4-M24 | 24 | 455 | |
600 (6300) |
50 | HCG-6002 | 1017.4 | 5087 | 386 | 436 | 500 | 360 | 280 | 113 | 280 | 40 | 300 | 4-M24 | 24 | 487 |
150 | HCG-6006 | 1017.4 | 15261 | 486 | 636 | 500 | 360 | 280 | 113 | 280 | 40 | 300 | 4-M24 | 24 | 579 | |
300 | HCG-60012 | 1017.4 | 30522 | 636 | 936 | 500 | 360 | 280 | 113 | 280 | 40 | 300 | 4-M24 | 24 | 717 | |
800 (8790) |
50 | HCG-8002 | 1256 | 6280 | 427 | 477 | 550 | 400 | 320 | 113 | 320 | 57 | 380 | 4-M24 | 24 | 712 |
150 | HCG-8006 | 1256 | 18840 | 527 | 677 | 550 | 400 | 320 | 113 | 320 | 57 | 380 | 4-M24 | 24 | 860 | |
300 | HCG-80012 | 1256 | 37698 | 677 | 977 | 550 | 400 | 320 | 113 | 320 | 57 | 380 | 4-M24 | 24 | 1082 |
