SWi5TE-S 8.7 Ton External Hydraulic Flange Spreader
-
Model:SWi5TE-S
Maximum Operating Pressure: 700bar/10000PSI
Maximum Spreading Force: 8.7 ton | 85.3 kN
Model Type: Single Wedge Set
Power Source: External Hydraulic
Weight: 8.7 kg | 19.2 lbs
Maximum Spread (mm): 101
Tip Clearance(mm): 4
Manufacturer:SAIVS
Country of Origin:China
Minimum Order:1 Piece
Brand Name:Replacement Enerpac's SWi5TE-S
- SW14.5TI, 14.5 Ton Integral Hydraulic Flange Spreader SWi5TI-S 8.7 Ton 4 in Integral Hydraulic Flange Spreader Set SWi5TE-S 8.7 Ton External Hydraulic Flange Spreader SWi12/14TM 15.7 Ton Mechanical Flange Spreader SWi2025TE 26.9 Ton 250 cm³ Hydraulic Flange Spreader SWI20/25TI 26.9 Ton Integral Hydraulic Flange Spreader SWi2025TEMAXSPB 26.9 Ton 250 cm³ External Hydraulic Flange Spreader Maxi Set
Description
Model:SWi5TE-S
Product Line: Industrial Tools
Customizable with special requirement
Set Includes
1 x SWi5TE Flange Spreader Wedgehead
1 x 10,000 psi Hydraulic Cylinder
1 x Safety Block
1 x Lanyard
Case dimensions (in) 22.8 x 13.4 x 7.1
Practical, portable and lightweight
Moulded plastic handle for comfort
Revolving handle to aid horizontal or vertical spreading
Removable handle for improved access
Image Gallery

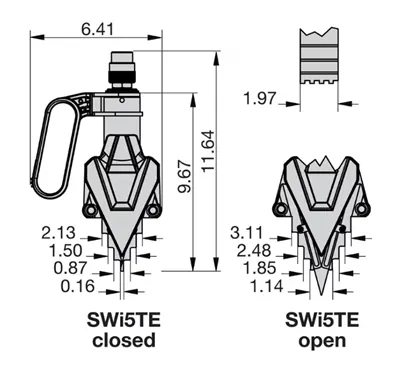

Dimensions
| Maximum Operating Pressure (bar) | 700 |
| Maximum Spreading Force (ton) | 8.7 |
| Maximum Spread (mm) | 101 |
| Tip Clearance (mm) | 4 |
| Jaw Width(mm) | 50 |
| Power Source | Hydraulic |
| Weight (kg) | 8.7 |
Series Comparison
| Model | Capacity/Ton | Maximum Spread/mm | Tip Clearance/mm | Jaw Width/mm | Oil Capacity/cm³ | Power | Weight/Kg |
| SWi2025TE | 26.9 Ton| 263.6 kN | 103.5 | 6 | 60 | 250 | Split Hydraulic Power | 15 | 33.1 lbs |
| SWI20/25TI | 26.9 Ton| 263.6 kN | 103.5 | 6 | 60 | * | Integral Hydraulic Type | 18.1 | 39.9 lbs |
| SWi2025TEMAXSPB | 26.9 Ton| 263.6 kN | 103.5 | 6 | 60 | 250 | Split Hydraulic Power | 33 | 72.8 lbs |
| SWi12/14TM | 15.7 Ton| 153.8kN | 103.5 | 6 | * | * | Mechanical | 13 | 28.7 lbs |
| SWi5TI-S | 8.7 Ton| 85.3 kN | 101 | 4 | 50 | * | Integral Hydraulic Type | 10.5 | 23.1 lbs |
| SWi5TE-S | 8.7 Ton| 85.3 kN | 101 | 4 | 50 | * | Split Hydraulic Power | 8.7 | 19.2 lbs |
| SW14.5TE | 14.5 Ton| 142.2 kN | 81 | 6 | * | * | Integral Hydraulic Type | 10 | 22 lbs |
Certificate of Compliance
