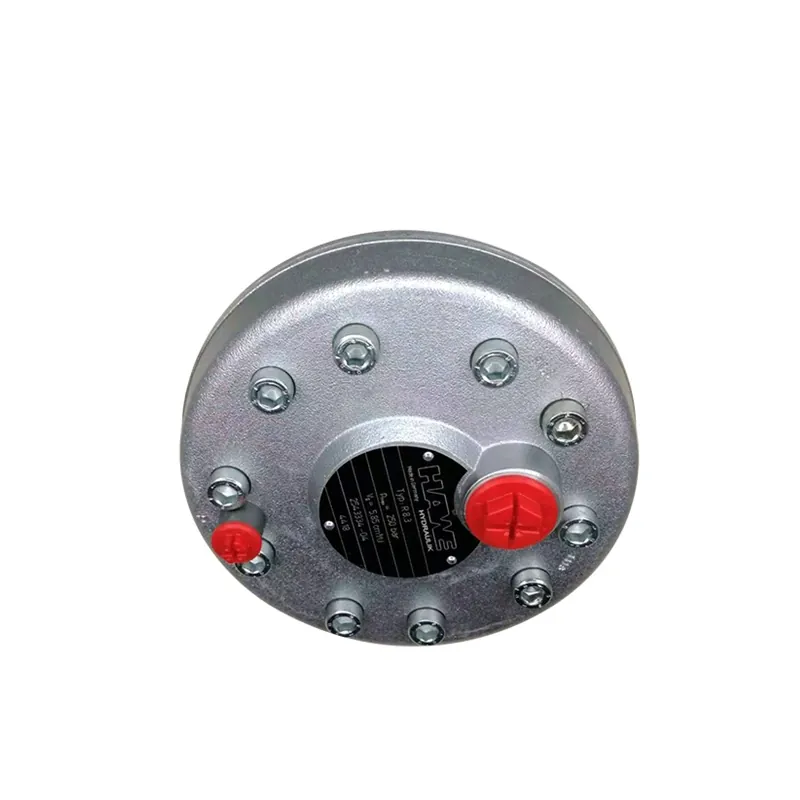

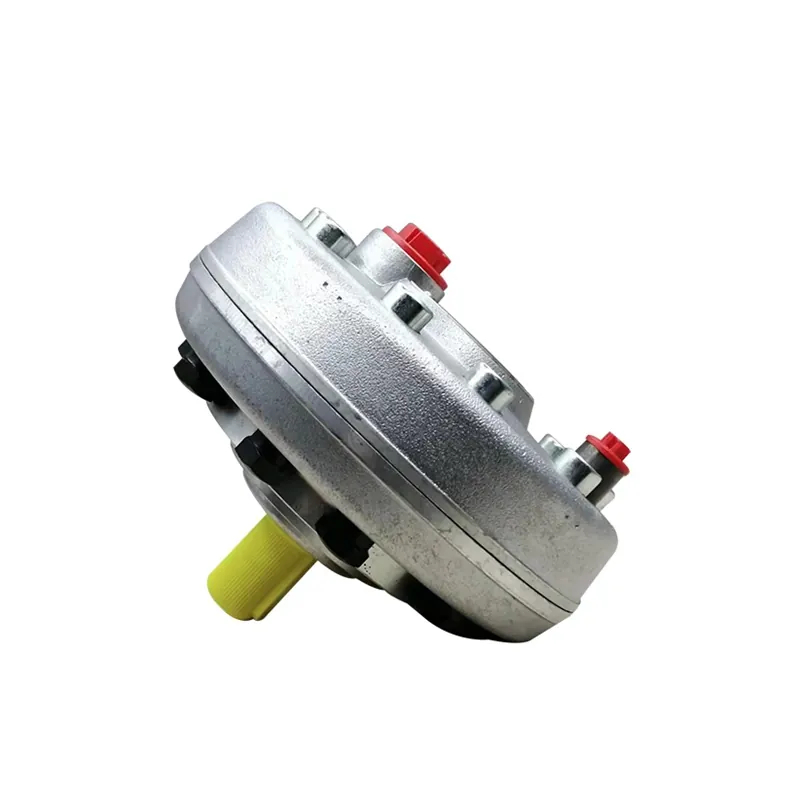

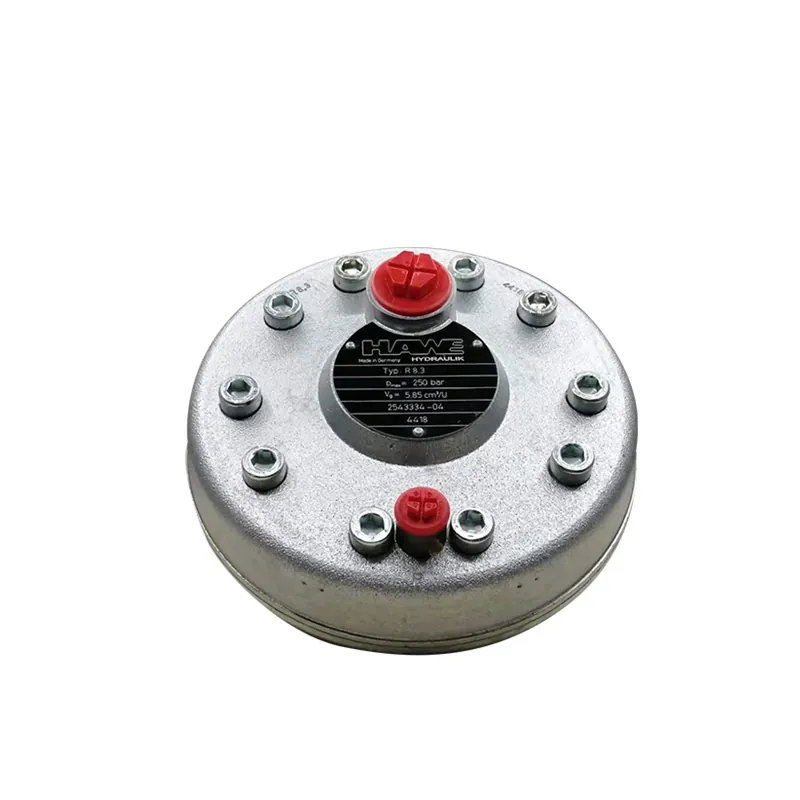

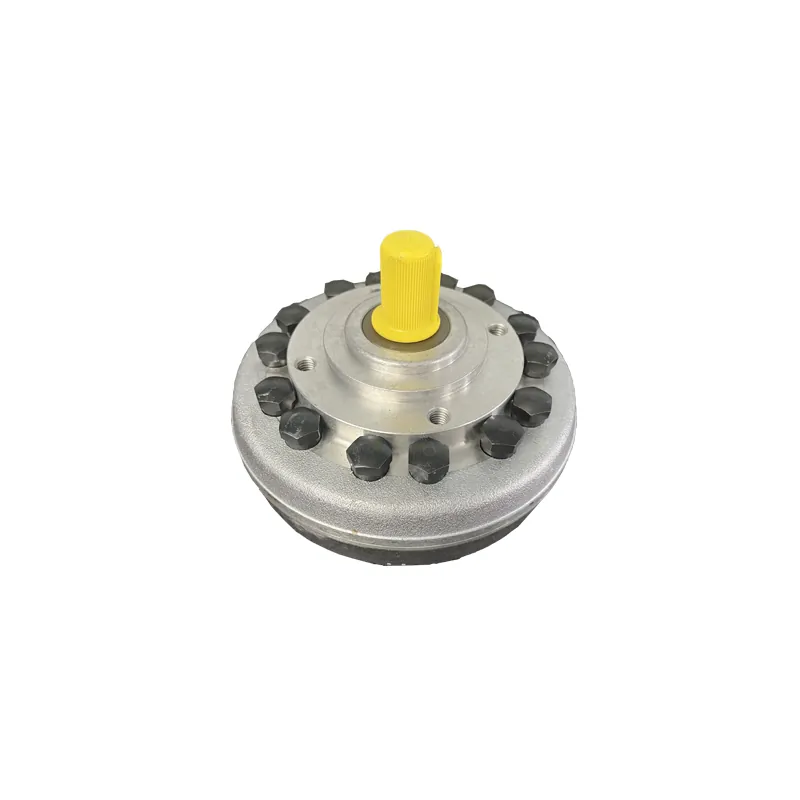

HAWE Radial Piston Pump Type R & RG Series
-
Model:Assembly 6010/6011/6012/6014/6016/7631
0perating pressure max: 700 bar/10000 psi
Geometric displacement Vg max: 64.18 cm³/rev
Flow rate Qmax: 91.2 lpm
Dimension(L*W*H):50*30*25
100% Replacement
Brand Name:HAWE
Features:Very high efficiency
Can be run with low-viscosity media, Good function even at low viscosity
Fine delivery flow rate gradation
Application:Chemical processingUtilitiesForestryFood processing
Description
Features:
Very high efficiency
Can be run with low-viscosity media, Good function even at low viscosity
Fine delivery flow rate gradation
Long service life
Operation not dependent on direction of rotation
Compact dimensions
Fine flow rate gradation
Intended applications:
Industrial hydraulics
Testing machinery
Lubrication systems
Press construction
Fixture design
Testing and laboratory equipment
Lubrication systems
Agricultural engineering
Any high-pressure application is basically possible.
Areas in which a constant flow rate is necessary.
The radial piston pump type R consists of valve-controlled pump elements arranged in star form around an eccentric.
For large flow rates, up to 42 pump elements can be set up in 6 stars stacked one above the other.
The pump elements'output volume is merged to feed one or more pressure outlets.

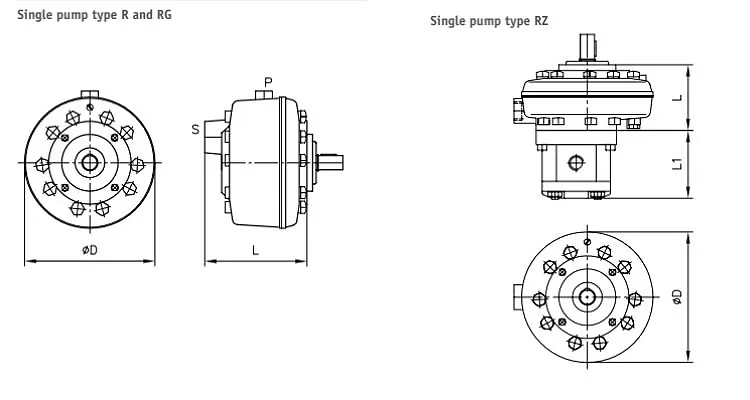

The radial piston pump types R and RG have a closed pump housing. It can consequently be used both as
an external motor pump not installed in an oil tank or as an integrated version installed inside a hydraulic
power pack's tank. The radial piston pump type RG has plain bearings which have an extended service life.
The radial piston pumps are valve-controlled with cylinders in a radial arrangement. The cylinder radials,
arranged in one, two or moresuperimposed layers (rows), are driven by bearings 8 tted eccentrically on the
drive shaft (piston pressure stroke), and reset by a spring (piston suction stroke).
The delivery flows of the individual cylinders are brought together in collecting
plates feeding a joint pressureconnection (P). The housing shells are load-bearing elements
supporting the cylinders and shaft bearings. The pumps are largely statically and dynamically balanced,
resulting in smooth running. With the exception of the 1 and 2-cylinder pumps, an uneven number
of pistons is used per cylinder radial, so that the pulsation of the delivery flow is minimised from three cylinders upwards.
FQAs
Will your products be damaged in transit? What if it is damaged?
This problem never happened in previous delivery.

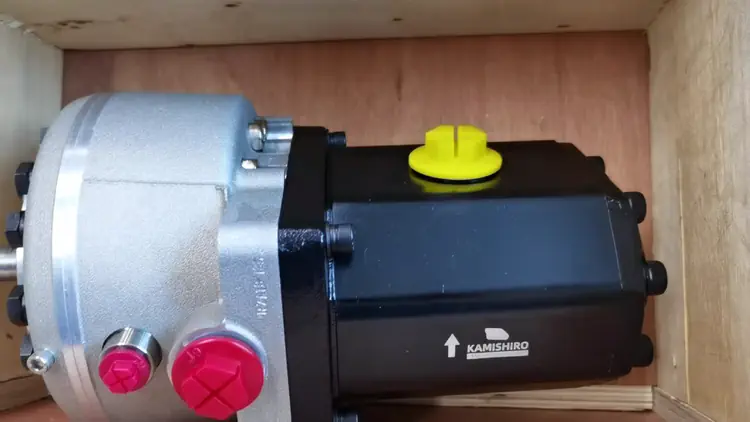

We will pack with two layers packages, a plastic box and then a wooden box.
