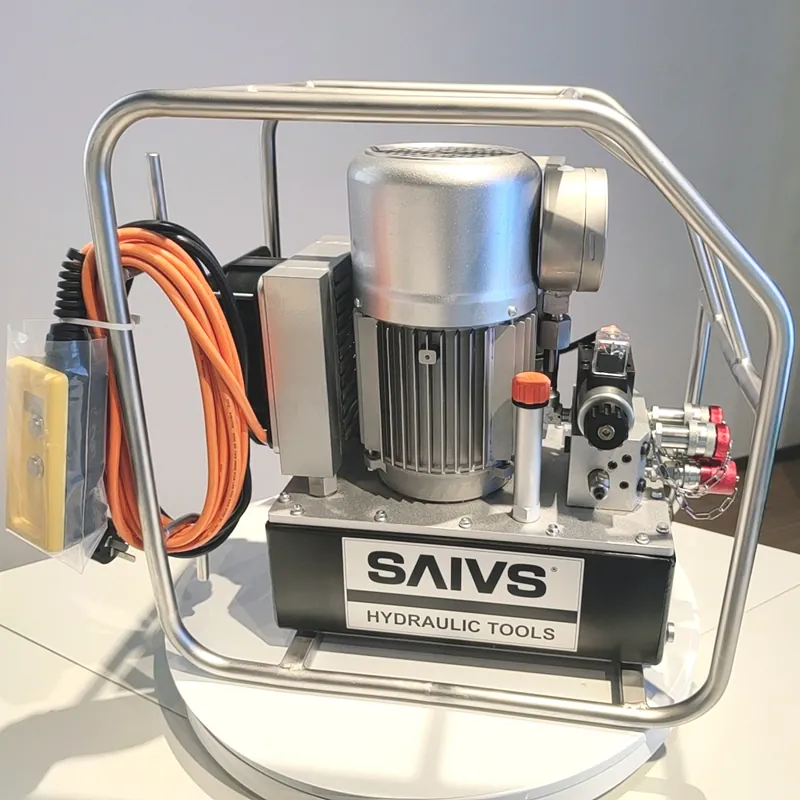

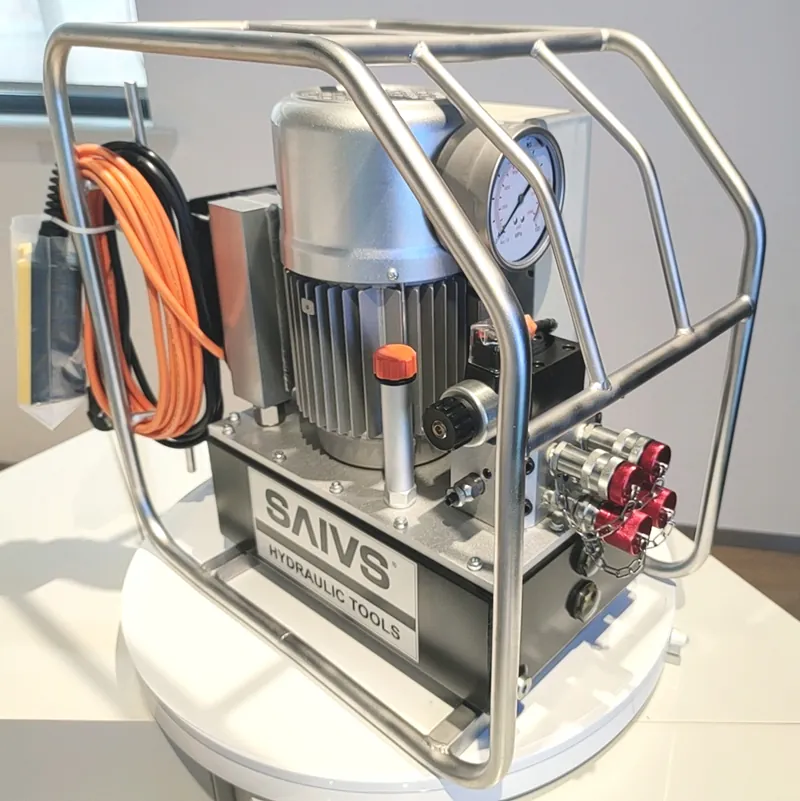

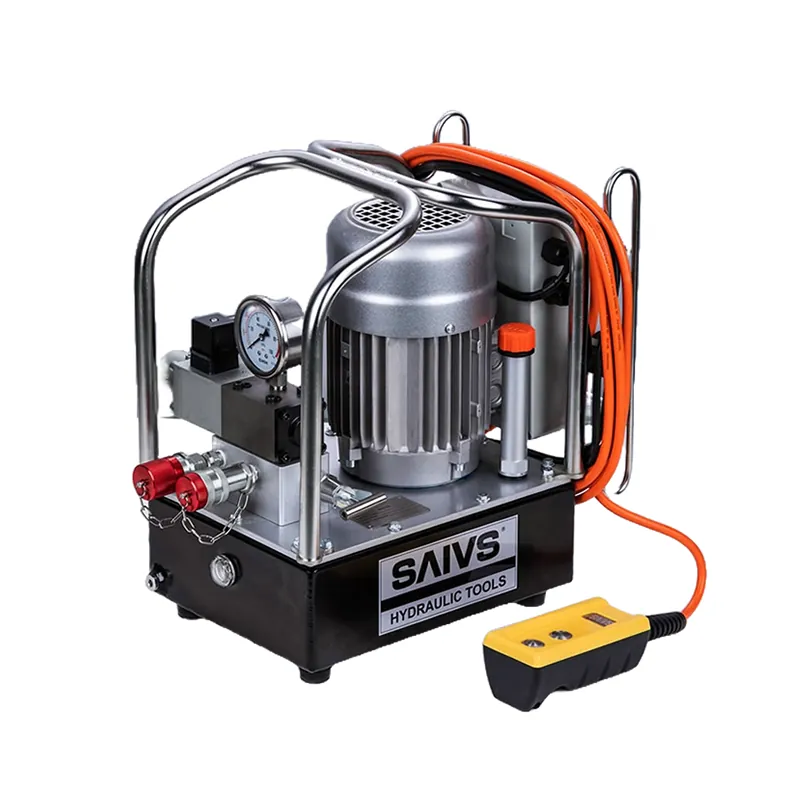

SWP1000 Electric Hydraulic Torque Wrench Pumps
-
Oil Capacity: 4L
Flow at Rated Pressure: 0.28- 2.4 L/ min
Motor Size: 0.37KW
Max. Operating Pressure: 70 bar / 4.8PSI
Model:SWP1000
Weight: 18kg
Manufacturer:SAIVS
Country of Origin:China
Minimum Order:1Piece
Sample:Contact us for free samples
Description
High-efficiency pump features with 50% higher speed and efficiency than two stage pump.
External start up switch of the motor for greater ease of remote operation.
Optimized PCB design to achieve powerful functions: automatic cut-off in one minute after no-operation, automatic decompression after stop, overload protection.
Advance external heat sink increase pump reliability of continuous operation.

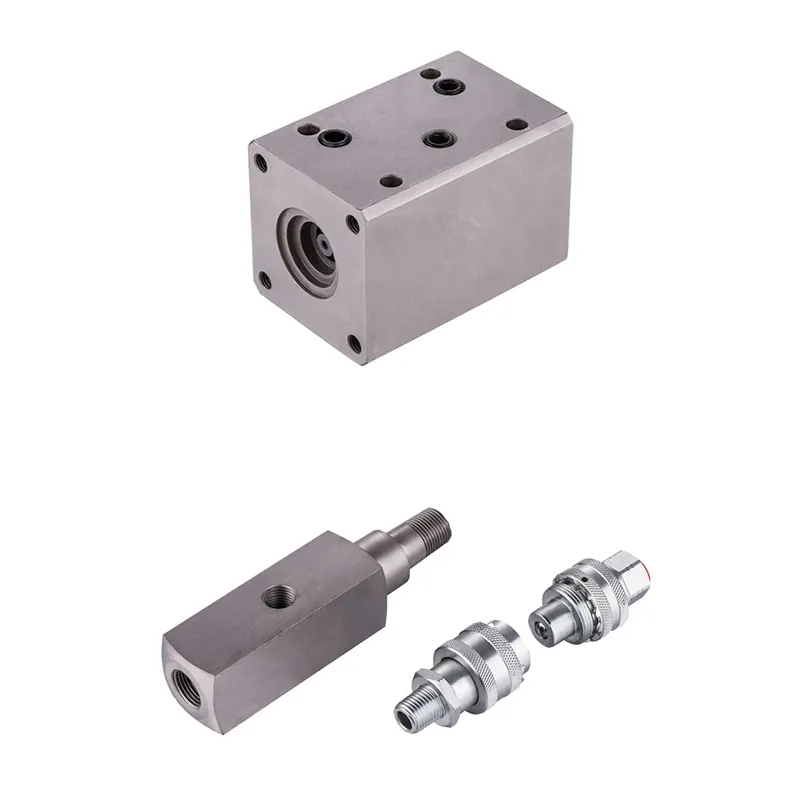

Advanced pressure control valve fits through long time continuous operation and provides stable pressure.
Triphase brush-less motor provides for high efficiency, low maintenance and long life.
Pump head is built for long-life and low maintenance, Compact and Light weight, high speed, large flow, high efficiency.
Auto cycle feature provides continuous cycle operation of the Torque Wrench as long as the advance button is pressed. great ease in operating.
Extended reading：
Electric Hydraulic Torque Wrench pumps are tools used in applications that require high levels of torque or force.
These devices work by leveraging electric power to drive a hydraulic pump,
which in turn powers hydraulic torque wrenches to allow for the precise tightening or loosening of bolts and other fasteners.
Electric hydraulic torque wrench pumps are designed to be durable and easy to use,
with features such as automatic shut-off valves or gauges to ensure accurate and safe operation.
They are available in various sizes and configurations to fit different types of hydraulic torque wrenches and can accommodate different levels of torque or force requirements.
These pumps are commonly used in industries such as construction, oil and gas, and manufacturing,
where precision and speed are essential to the success of a project. By using electric power to drive the hydraulic system,
these pumps can provide the necessary torque or force quickly and efficiently, saving time and reducing labor costs.
Overall, electric hydraulic torque wrench pumps are powerful and reliable tools that are
essential for many industrial applications where precise and controlled torque or force is required.
Dimensions
| Model No. | Oil Flow (L/min) | Pressure (Mpa) | Power | Oil Capacity | Input Power* | Weight | Dimensions | ||||
| High Pressure | Middle Pressure | Low Pressure | High Pressure | Middle Pressure | Low Pressure | kw | L | kg | L x W x H(mm) | ||
| SWP1000 | 0.28 | / | 2.4 | 70 | / | 8 | 0.37 | 4 | 1Ph 110-240V /50HZ | 18 | 345*210*395 |
Video
FQAs
1.What are the advantages of using Electric Hydraulic Torque Wrench Pumps?
One advantage is their ability to provide consistent and controlled hydraulic pressure, resulting in accurate torque application. They are also portable, easy to operate, and suitable for
various industrial applications.
2.What types of applications are Electric Hydraulic Torque Wrench Pumps used for?
They are commonly used in industries such as construction, manufacturing, oil and gas, and maintenance, where precise torque tightening of bolts and nuts is crucial.
3.Can Electric Hydraulic Torque Wrench Pumps be integrated into automated torque tightening systems?
Yes, they can be integrated into automated systems for precise and efficient torque tightening processes, offering benefits such as improved productivity and consistency in fastening
operations.
