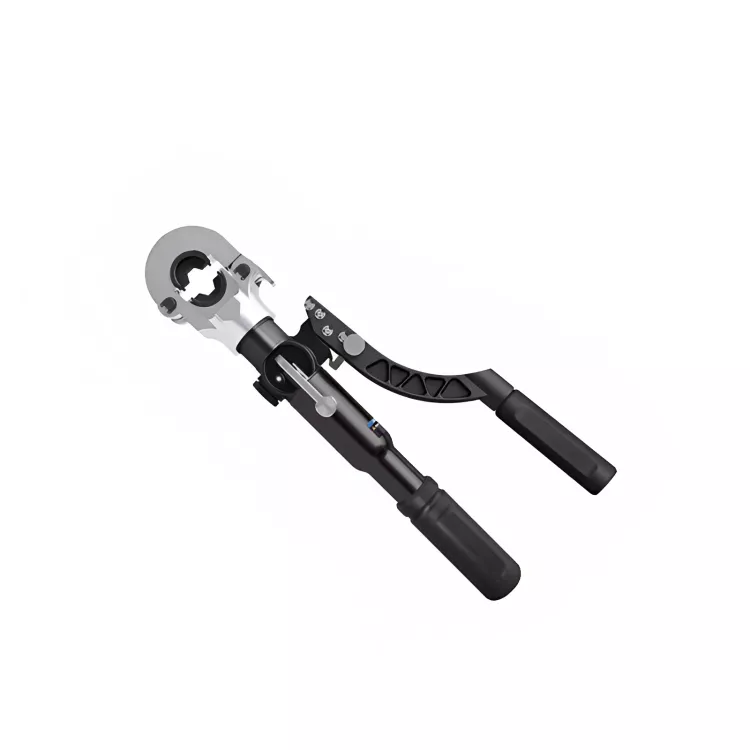

Hydraulic Crimp Tools Crimping range 16mm² - 400mm²

5out of5 based on5 reviews | Write a review

Model:HZ-300 / HZ-400
Crimping force:60kN - 120kN
Stroke:17 - 42mm
Crimping type:hexagon crimping
Crimping range:Cu16-300mm²
Length:460mm
Weight:3.5 - 6.5kg
Origin： Ningbo,China
Delivery Time: 10 days
Minimum Order: 1 Pieces

Application:Power engineering, technology, and servicesAutomotive manufacturing and repairConstruction and structural assembly

Sample:Contact us for free samples
CONTACT NOW
VIEW CATALOGUE

Description

Model:HZ-300

Crimping force:60kN

Stroke:17mm

Crimping type:hexagon crimping

Crimping range:Cu16-300mm²

Length:460mm

Weight:3.5kg

Package:steel box

Features:

1.The tool features a double speed action: a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for crimping.

2.For easy operation and comfort the operator the tool head can be fully rotated through 350°.

3.The built-in safety valve will by-pass the oil supply when the maximum pressure is reached and the pressure release system can easily be operated at any stage of compression.

4.With interchangeable dies.

Model:HZ-400

Crimping force:120kN

Stroke:42mm

Crimping type:hexagon crimping

Crimping range:Cu16-400mm²

Length:540mm

Weight:6.5kg

Package:steel box

Accessories:

Crimping dies:16,2535,50,70,95,120,150,185,240,300,400mm²

Features:

1.The tool features a double speed action: a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for crimping.

2.For easy operation and comfort the operator the tool head can be fully rotated through 350°.

3.The built-in safety valve will by-pass the oil supply when the maximum pressure is reached and the pressure release system can easily be operated at any stage of compression.

4.With interchangeable dies.

Dimensions

Technical Specification	HZ-300	HZ-400
Model	HZ-300	HZ-400
Crimping force	60kN	120kN
Stroke	17mm	42mm
Crimping type	Hexagon crimping	Hexagon crimping
Crimping range	Cu16-300mm²	Cu16-400mm²
Length	460mm	540mm
Weight	3.5kg	6.5kg
Package	Steel box	Steel box
Accessories	Interchangeable dies	Crimping dies:16,25,35,50,70,95,120,150,185,240,300,400mm²

FQAs

What are hydraulic crimp tools used for?
Hydraulic crimp tools are commonly used to connect wires, cables or pipes through crimping. These tools typically use a hydraulic system to produce the force required to crimp the connector securely, ensuring reliable and long-lasting connections. A range of different hydraulic crimping tools are available in the market, with varying capacities and applications depending on the needs of the specific task at hand.
How do I choose the right hydraulic crimp tool supplier for my factory?
When choosing a hydraulic crimp tool supplier or manufacturer, you should consider several factors to ensure quality products and services. Look for established and reputable manufacturers that have been providing such tools for years, inquire about their warranty policies, check if they are certified to relevant industry standards, or ask to see customer reviews or testimonials, and compare prices from different suppliers or manufacturers to ensure fair pricing.
How much does a Hydraulic Crimp Tool cost?
The cost of a hydraulic crimping tool can vary widely based on several factors, including the brand, type, size, and specifications of the tool. Prices may also vary depending on the location of the supplier or manufacturer. To get the best value for your money, you should compare different offers from suppliers and manufacturers, look out for specials or promotions offered, and identify tools that strike a balance between performance, features and price.
