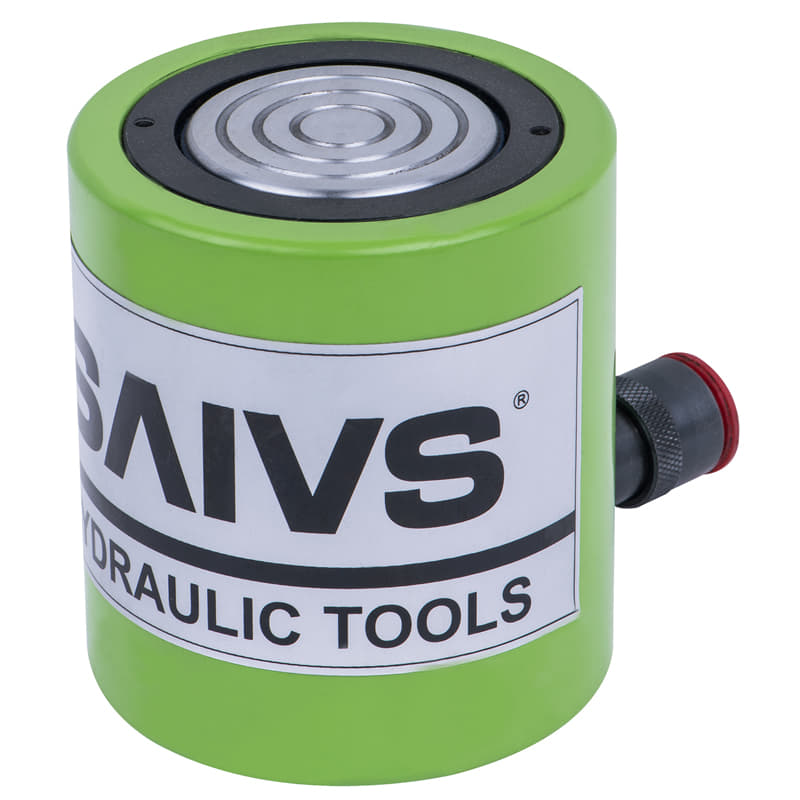

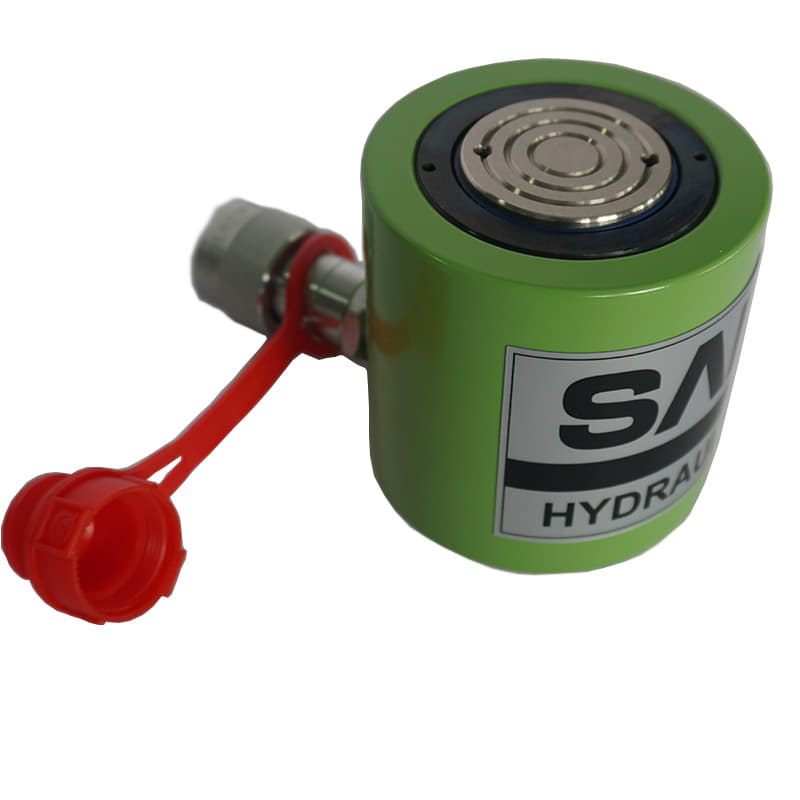

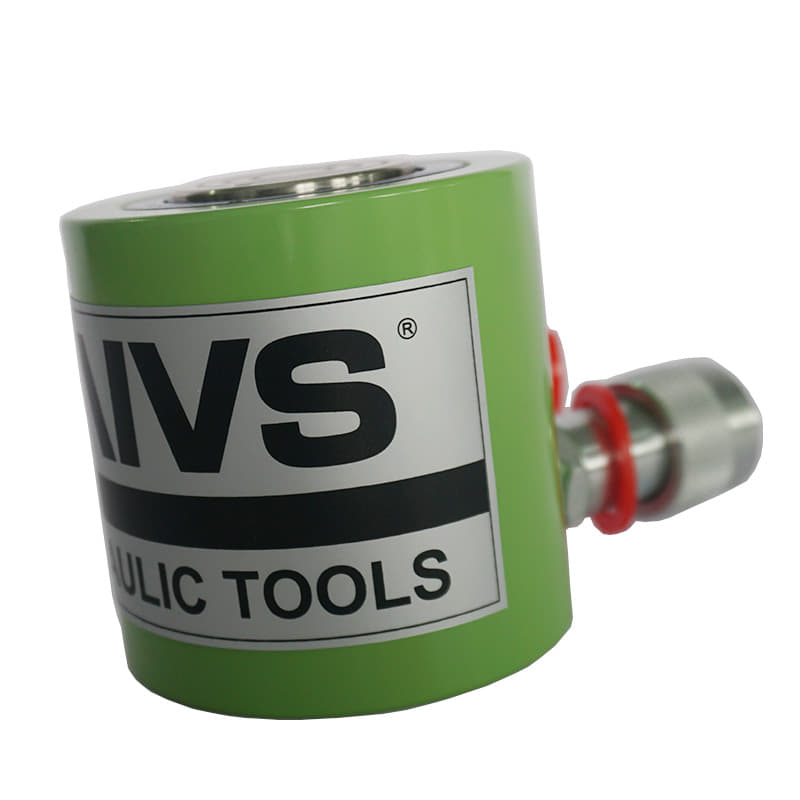

RCS Series Single-acting Low Height Hydraulic Cylinders Jack

5out of5 based on7 reviews | Write a review
  • Capacity: 10-150ton

    Stroke: 38-80mm

    Max. pressure: 700bar/10000psi

    weight:4-50kg

    Oil Capacity:60-1860(cm3)

    Minimum Order:1Piece

    Manufacturer:SAIVS

    Country of Origin:China

    Sample:Contact us for free samples

  • CONTACT NOW
  • PDF VIEW CATALOGUE

Description

Single-acting, spring return.

Low profile design, fit in narrow application area.

Special painted surface to increase corrosion resistance.

Two plunger threads on grooved plunder end for particular needs.

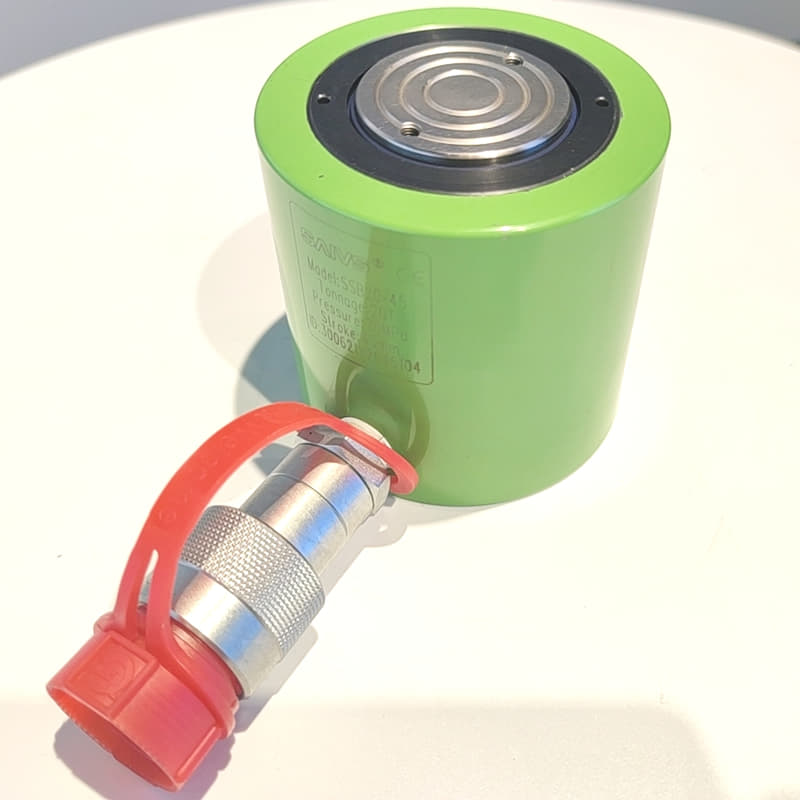

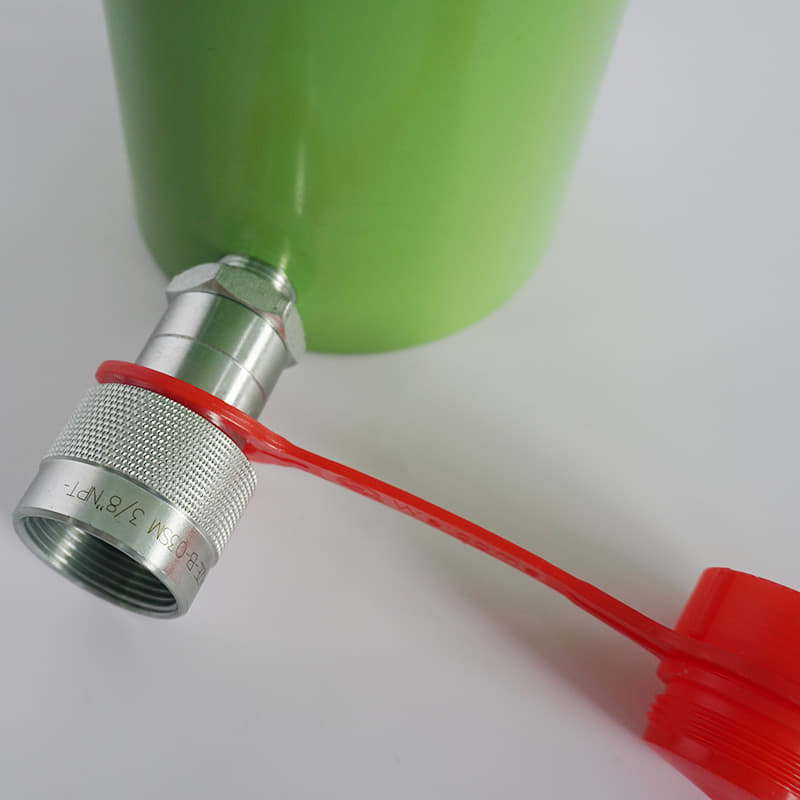

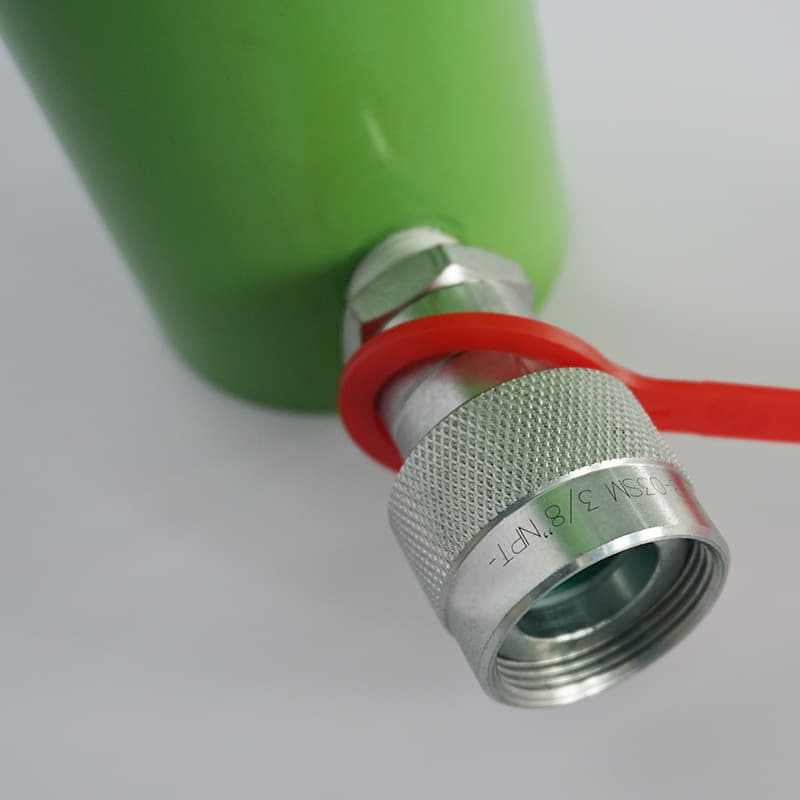

All model include quick couplings (NPT3/8"-18) and dust-proof cap.

Easy carrying with handles on some models (Capacity over 50tons).

No saddle required with grooved plunder end.

Customizable with special requirement.

SAIVS is a professional manufacturer in hydraulic tools and products, we have been in the industry for more than 15 years. We successfully transformed from OEM manufacturer to create our own brand SAIVS, and our factory has been approved by CE, ISO9001:2008 consecutively. Our products have been widely used in petrochemical, Building, shipbuilding, steel plant and heavy constructions areas etc.



RCS hydraulic cylinder-2.jpg


RCS hydraulic cylinder.jpg

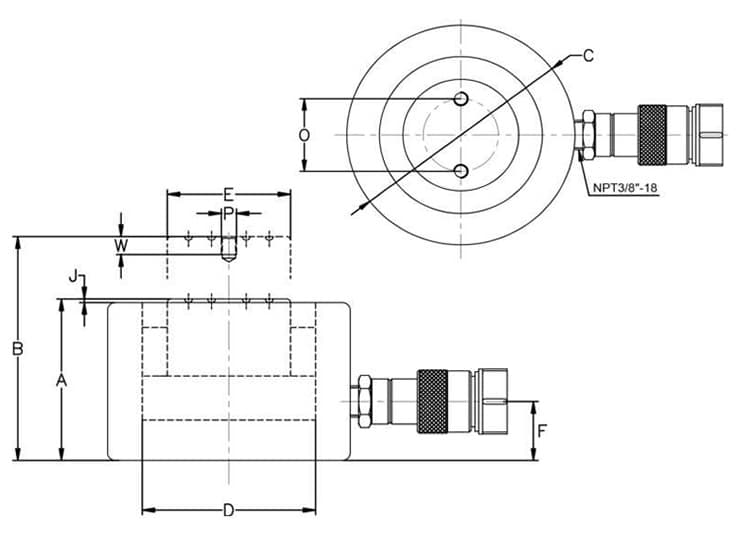

Dimensions

RCS hydraulic cylinder-3.jpg




Cylinder CapacityStrokeModel NumberCylinder Effective AreaOil CapacityCollapsed HeightExtended HeightOutside Dia.Cylinder Bore Dia.Plunger Dia.Base to Advance Port Saddle Protrusion from Plgr.Weight


Mounting Hole Dimensions


Model NumberBolt CircleThreadThread Depth




ABCDEFJ



OPW
ton(KN)(mm)(cm2)(cm3)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(kg)


(mm)
(mm)
10(101)38RCS-10115.960881267845351924


RCS-10126M48
20(201)45RCS-20131.1140971429663501926.9


RCS-20139M58
30(295)64RCS-30245.329011718110976601929.8


RCS-30239M58
50(549)60RCS-50278.54711201801331008021213.3


RCS-50239M58
75(718)50RCS-751116.858411616615712210021219


RCS-75155M810
100(887)57RCS-1002153.987714119817814011231224.5


RCS-100255M810
150(1386)51RCS-1502232.2118414119221517014528242


RCS-150255M810
150(1386)80RCS-1503232.2186017025021517014528250


RCS-150355M810


Video

FQAs

What are the benefits of using single-acting low height hydraulic cylinder jacks in my industry?

Single-acting low height hydraulic cylinder jacks offer several benefits, including the ability to lift and position heavy loads with ease, a compact design for use in tight spaces, and the reliability and safety provided by hydraulic power. They can be used in a variety of industries, such as construction, manufacturing, and transportation, to boost efficiency and productivity.


How can I find a reliable factory to purchase single-acting low height hydraulic cylinder jacks from?

When looking for a reliable factory to purchase single-acting low height hydraulic cylinder jacks from, it's important to consider factors such as the company's reputation, experience in the industry, and the quality of their products. It can be helpful to read reviews and compare prices from multiple suppliers to ensure you are getting the best value for your investment.


What are some key features to look for in a high-quality hydraulic cylinder jack supplier?

A high-quality hydraulic cylinder jack supplier should prioritize quality control, using only the best materials and adhering to rigorous testing standards to ensure the safety and reliability of their products. They should also provide excellent customer service, be able to offer customization options to meet specific needs, and have a strong track record of success in the industry.


Application

Hydraulic cylinder jacks are ideal for safely lifting and holding heavy industrial machinery while maintenance or repairs are conducted.

Mobile homes and trailers can be leveled and raised for foundation repairs or relocation using Hydraulic cylinder jacks.

Hydraulic cylinder jacksaid in lifting and positioning heavy materials and equipment within manufacturing facilities.

Railways use hydraulic cylinder jacks to lift locomotives, allowing access for inspections and maintenance.

Welders use hydraulic cylinder jacksto accurately position heavy workpieces for welding tasks, ensuring precision and safety.

Overhead cranes require precise positioning during installation, which hydraulic cylinder jacksfacilitate.

When installing large industrial equipment, hydraulic cylinder jacksare used to safely and precisely position components for assembly.
