ZCW-600 Fixed Torque Electric Shear Wrench
-
Model Number：ZCW-600
Rated Voltage:220-240v
Max power consumption: 1200w
Max torque: 600N.m
Main body weight:4.9KG
Ro speed(r/min): 16
Aaptable bolt dia: M16, M20, M22
Protection level: double insulation
Controller: Built-in controller
High strength, can tight higher strength bolt, like A490.
Each wrench provide 2 sockets, one of them will be set on the wrench
- ZCW-2100 Fixed Torque Electric Shear Wrench ZCW-1500 Fixed Torque Electric Shear Wrench ZCW-1000 Fixed Torque Electric Shear Wrench
Description
Product Line: Industrial Tools
Customizable with special requirement
Model Number：ZCW-600
Rated Voltage:220-240v
Max power consumption: 1200w
Max torque: 600N.m
Main body weight:4.9KG
Ro speed(r/min): 16
Aaptable bolt dia: M16, M20, M22
Protection level: double insulation
Controller: Built-in controller
High Strength, can tight higher strength bolt, like A490.
Each wrench provide 2 sockets, one of them will be set on the wrench
The Electric Shear Wrench used in fasting various types of high strength bolts of various steel structure industry.
A fixed torque electric wrench can set and adjust torque, also known as a torque adjustable electric wrench.
The host adopts a double insulated single-phase series excitation high-power motor, with excellent output
power to weight ratio. The professional gearbox design and torque control device have high precision, strong stability,
small size, light weight, no impact force, no reaction force, improved work efficiency, and reduced labor intensity.

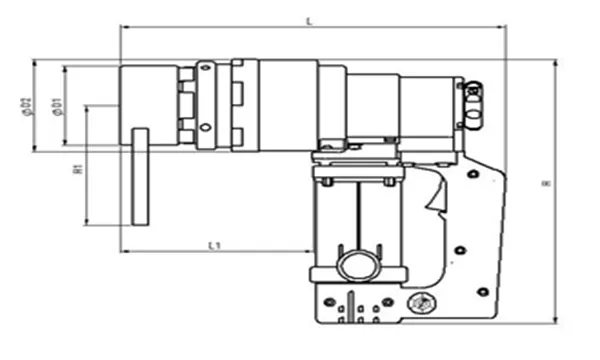

Dimensions
ZCW-600 Fixed Torque Electric Shear Wrench
| Fixed Torque Electric Shear Wrench | ||||||||
| Model Number | Rated Voltage | Max. Current | Max. Power | Ro Speed | Weight | Bolt Type | Torque Range | Max. Diameter |
| A | W | r/min | kg | Nm | mm | |||
| ZCW-600 | 220-240 | 5.5 | 1200 | 16 | 4.9 | M16 M20 M22 | 250-600 | Φ78 |
| Unit | Model Number | L | L1 | D1 | D2 | H |
| mm | ZCW-600 | 213 | 62 | 64 | 79 | 267 |
FAQs
1. What type of torque wrench is most accurate?
Electronic torque wrenches are generally the most accurate,
as they can provide readings to one or two decimal places.
2. Are electric torque wrenches better?
Electric torque wrenches can be better for repetitive tasks,
as they provide consistent torque and reduce user fatigue.
However, their accuracy can vary.
3. How accurate are electric torque wrenches?
The accuracy of electric torque wrenches can vary by brand and model,
but they typically have an accuracy of ±5% in clockwise direction.
