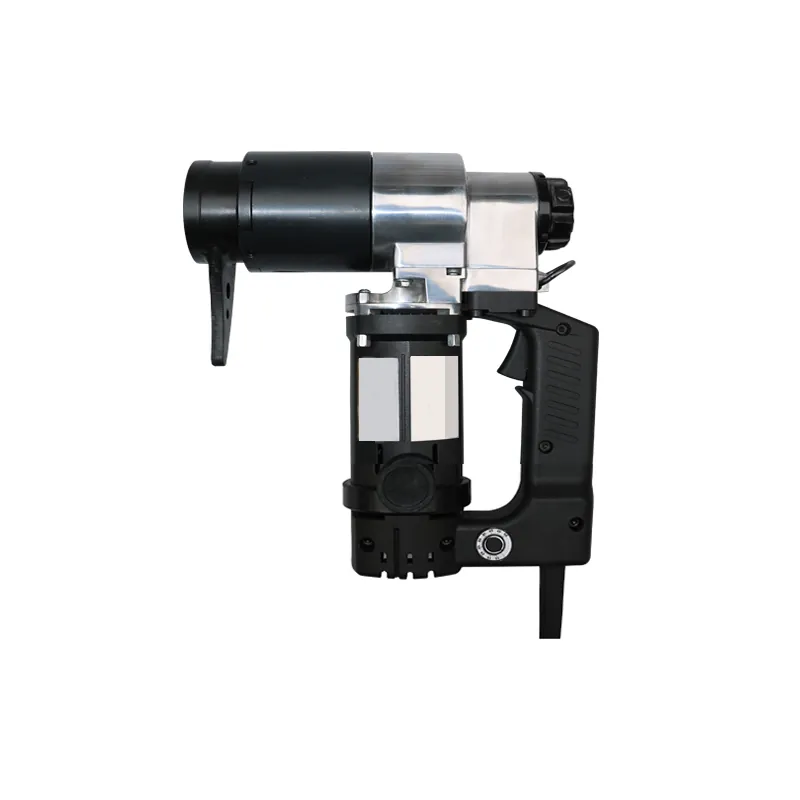

ZCW-1000 Fixed Torque Electric Shear Wrench
-
Model Number：ZCW-1000
Rated Voltage:220-240v
Max power consumption: 1200w
Max torque: 1000N.m
Main body weight:6.3KG
Ro speed(r/min): 12
Aaptable bolt dia: M20, M22, M24
Protection level: double insulation
Controller: Built-in controller
High strength, can tight higher strength bolt, like A490.
Each wrench provide 2 sockets, one of them will be set on the wrench
- ZCW-2100 Fixed Torque Electric Shear Wrench ZCW-1500 Fixed Torque Electric Shear Wrench ZCW-600 Fixed Torque Electric Shear Wrench
Description
Product Line: Industrial Tools
Customizable with special requirement
Model Number：ZCW-1000
Rated Voltage:220-240v
Max power consumption: 1200w
Max torque: 1000N.m
Main body weight:6.3KG
Ro speed(r/min): 12
Aaptable bolt dia: M20, M22, M24
Protection level: double insulation
Controller: Built-in controller
High Strength, can tight higher strength bolt, like A490.
Each wrench provide 2 sockets, one of them will be set on the wrench
The Electric Shear Wrench used in fasting various types of high strength bolts of various steel structure industry.
A fixed torque electric wrench can set and adjust torque, also known as a torque adjustable electric wrench.
The host adopts a double insulated single-phase series excitation high-power motor, with excellent output
power to weight ratio. The professional gearbox design and torque control device have high precision, strong stability,
small size, light weight, no impact force, no reaction force, improved work efficiency, and reduced labor intensity.
Dimensions
ZCW-1000 Fixed Torque Electric Shear Wrench
| Fixed Torque Electric Shear Wrench | ||||||||
| Model Number | Rated Voltage | Max. Current | Max. Power | Ro Speed | Weight | Bolt Type | Torque Range | Max. Diameter |
| A | W | r/min | kg | Nm | mm | |||
| ZCW-1000 | 220-240 | 5.5 | 1200 | 12 | 6.3 | M20 M22 M24 | 300-1000 | Φ85 |
| Unit | Model Number | L | L1 | D1 | D2 | H |
| mm | ZCW-1000 | 246 | 150 | 84 | 90 | 280 |
FAQs
1. What is the most accurate type of torque wrench?
Electronic torque wrenches are considered the most accurate type of torque wrench.
2. What are the three basic types of torque wrenches?
The three basic types of torque wrenches are: click type torque wrenches,
beam type torque wrenches, and electronic torque wrenches.
3. How does an electric torque wrench work?
An electric torque wrench works by using an electric motor to convert
electrical energy into mechanical energy to generate torque.
