7244Nm 1-1/2”Square Drive Hydraulic Torque Wrench,SDW3
-
Torque Wrench Model Number:SDW3
Torque Range(Nm):428-4280
Torque Range(Ft.lbs):316-3157
Square Drive Size(inch):1”
Hexagon Nut Across Flats(mm):34-75
Weight(Kg) / (lbs):4.8kg /10.5 lbs
Maximum Operating Pressure (bar)/(psi):700bar / 10000psi
The low-profile cassettes of our Hydraulic Torque Wrench are designed in a compact and ultra-slim structure, making them perfect for fitting into tight spaces. They offer maximum flexibility with a full range of interchangeable hexagon cassettes and reducing inserts, eliminating the need for additional tools.
- 47245Nm 2-1/2”Square Drive Hydraulic Torque Wrench,SDW8 33578Nm 2-1/2" Square Drive Hydraulic Torque Wrench,SDW7 25041Nm 2-1/2”Square Drive Hydraulic Torque Wrench,SDW6 14787Nm 1-1/2”High Strength Square Drive Hydraulic Torque Wrench,SDW5 10364Nm 1-1/2”Square Drive Hydraulic Torque Wrench,Reaction Arm,SDW4 4280Nm 1”Square Drive Socket Hydraulic Torque Wrench Lightweight,SDW2 180-1803Nm 3/4”Hydraulic Torque Wrench,SDW1 Square Drive Hydraulic Torque Wrench SDW Series
Description
Product Line: Industrial Tools
Customizable with special requirement
SAIVS's SDW series Square Drive Hydraulic Torque Wrench are almost the same as Enerpac’s S & RSL series,
HYTORC’s MXT series, TORCUP’s TU series and SU series, HI FORCE’s TWS-N series, SPX's TWSD SERIES other wrenches in terms of function, quality, and applicable working conditions.
SAIVS offers a one-year warranty, better prices, and customized services for special conditions.
Welcome to Get Latest Price now
SDW3 7244Nm 1-1/2" inch Square Drive Torque Wrench for 41-85mm Hexagon Nut Across Flat
The rigid steel design ensures the durability, reliability, and safety of our tools. With a compact nose radius, our wrench can effortlessly perform in even the tightest of spaces. The constant torque output provides accuracy up to ±3%, ensuring precise and reliable Bolt Tightening.
Featuring a multi-direction high-flow swivel manifold (360°X-axis * 180°Y-axis), our Hydraulic Torque Wrench offers enhanced maneuverability and versatility.
Our wrenches are designed for fast operation cycles, featuring a fine-tooth ratchet, corrosion resistance, low weight, and high-strength design. Additionally, they can be used with air and Electric Torque Wrench pumps, making them suitable for various applications.
For those in heavy chemical industries, our high-power hydraulic torque wrenches are indispensable tools for equipment repair and installation. They are capable of outputting and setting torque with high precision, ensuring efficient and reliable bolt fastening.
| Square Drive Hydraulic Torque Wrench Model Number | SDW3 |
| Square Drive Hydraulic Torque Wrench Torque Range(Nm) | 724-7244 |
| Square Drive Hydraulic Torque Wrench Torque Range(Ft.lbs) | 534-5343 |
| Square Drive Size(inch) | 1 1/2” |
| Hexagon Nut Across Flats(mm) | 41-85 |
| Weight(Kg) / (lbs) | 8.7kg /19.18 lbs |
| Maximum Operating Pressure (bar)/(psi) | 700bar / 10000psi |

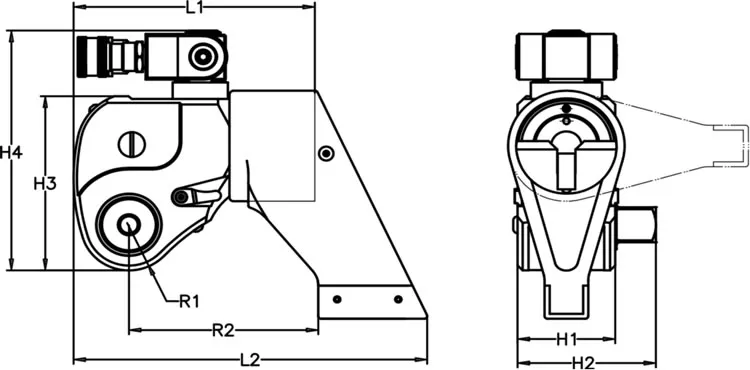

Dimensions
| Dimension L1 | 200 |
|
| Dimension L2 | 287 | |
| Dimension H1 | 78 | |
| Dimension H2 | 122 | |
| Dimension H3 | 152 | |
| Dimension H4 | 199 | |
| Dimension R1 | 39 | |
| Dimension R2 | 155 |
| Torque Wrench Model Number | Torque Range | Square Drive Size | Hexagon Nut Across Flats | Weight | Dimensions | ||||||||
| L1 | L2 | H1 | H2 | H3 | H4 | R1 | R2 | ||||||
| Nm | Ft.lbs | inch | mm | kg | mm | ||||||||
| SDW1 | 180-1803 | 133-1330 | 3/4" | 24 - 55 | 2.5 | 130 | 184 | 51 | 72 | 97 | 145 | 25 | 97 |
| SDW2 | 428-4280 | 316-3157 | 1" | 34 - 75 | 4.8 | 168 | 243 | 67 | 95 | 126 | 174 | 33 | 130 |
| SDW3 | 724-7244 | 534-5343 | 11/2" | 41 - 85 | 8.7 | 200 | 287 | 78 | 122 | 152 | 199 | 39 | 155 |
| SDW4 | 1036-10364 | 764-7644 | 11/2" | 46 - 95 | 11.4 | 213 | 308 | 90 | 133 | 169 | 216 | 46 | 170 |
| SDW5 | 1479-14787 | 1091-10907 | 11/2" | 55 - 105 | 15.4 | 244 | 352 | 100 | 142 | 189 | 236 | 50 | 193 |
| SDW6 | 2504-25041 | 1847-18470 | 21/2" | 65 - 130 | 26.8 | 284 | 413 | 120 | 183 | 223 | 270 | 59 | 224 |
| SDW7 | 3358-33578 | 2477-24767 | 21/2" | 75 - 145 | 37 | 314 | 457 | 135 | 200 | 250 | 296 | 66 | 250 |
| SDW8 | 4725-47245 | 3485-34848 | 21/2" | 85 - 165 | 53.6 | 358 | 517 | 153 | 215 | 287 | 332 | 76 | 270 |
Impact Socket Specification
Video
FAQs
| 3/4" Suqare Drive (SDW1) | 1" Suqare Drive (SDW2) | |||||||||||||
| Socket Model | Bolt Type | Hexagon(AF) | L1 | L2 | D1 | D2 | Socket Model | Bolt Type | Hexagon(AF) | L1 | L2 | D1 | D2 | |
| mm | mm | mm | mm | |||||||||||
| SD01001 | M16 | 24 | 54 | 32 | 40 | 40 | SD02001 | M20 | 30 | 59 | 32 | 54 | 54 | |
| SD01002 | M18 | 27 | 54 | 32 | 42 | 42 | SD02002 | M22 | 34 | 59 | 32 | 58 | 58 | |
| SD01003 | M20 | 30 | 54 | 33 | 46 | 44 | SD02003 | M24 | 36 | 62 | 32 | 59 | 59 | |
| SD01004 | M22 | 34 | 54 | 32 | 48 | 44 | SD02004 | M27 | 41 | 65 | 38 | 67 | 54 | |
| SD01005 | M24 | 36 | 57 | 32 | 53 | 44 | SD02005 | M30 | 46 | 65 | 38 | 74 | 54 | |
| SD01006 | M27 | 41 | 58 | 33 | 60 | 44 | SD02006 | M33 | 50 | 70 | 43 | 79 | 60 | |
| SD01007 | M30 | 46 | 63 | 38 | 66 | 44 | SD02007 | M36 | 55 | 80 | 52 | 84 | 60 | |
| SD01008 | M33 | 50 | 65 | 40 | 71 | 44 | SD02008 | M39 | 60 | 85 | 57 | 89 | 60 | |
| SD01009 | M36 | 55 | 70 | 45 | 77 | 54 | SD02009 | M42 | 65 | 85 | 58 | 98 | 70 | |
| SD02010 | M45 | 70 | 90 | 62 | 104 | 70 | ||||||||
| SD02011 | M48 | 75 | 95 | 65 | 108 | 70 | ||||||||
| 11/2" Suqare Drive (SDW3, SDW4, SDW5) | 21/2"Suqare Drive (SDW6, SDW7, SDW8) | |||||||||||||
| Socket Model | Bolt Type | Hexagon(AF) | L1 | L2 | D1 | D2 | Socket Model | Bolt Type | Hexagon(AF) | L1 | L2 | D1 | D2 | |
| mm | mm | mm | mm | |||||||||||
| SD03002 | M27 | 41 | 85 | 44 | 74 | 74 | SD04003 | M42 | 65 | 100 | 52 | 119 | 119 | |
| SD03003 | M30 | 46 | 85 | 44 | 74 | 74 | SD04004 | M45 | 70 | 120 | 67 | 128 | 128 | |
| SD03004 | M33 | 50 | 90 | 45 | 79 | 79 | SD04005 | M48 | 75 | 120 | 67 | 128 | 128 | |
| SD03005 | M36 | 55 | 90 | 45 | 84 | 84 | SD04006 | M52 | 80 | 130 | 71 | 128 | 128 | |
| SD03006 | M39 | 60 | 100 | 45 | 94 | 94 | SD04007 | M56 | 85 | 130 | 71 | 129 | 129 | |
| SD03007 | M42 | 65 | 100 | 45 | 98 | 80 | SD04008 | M60 | 90 | 140 | 73 | 139 | 139 | |
| SD03008 | M45 | 70 | 105 | 50 | 104 | 80 | SD04009 | M64 | 95 | 140 | 73 | 139 | 139 | |
| SD03009 | M48 | 75 | 110 | 50 | 118 | 85 | SD04010 | M68 | 100 | 140 | 81 | 148 | 130 | |
| SD03010 | M52 | 80 | 115 | 55 | 118 | 90 | SD04011 | M72 | 105 | 150 | 89 | 149 | 130 | |
| SD03011 | M56 | 85 | 125 | 60 | 128 | 90 | SD04012 | M76 | 110 | 150 | 90 | 158 | 130 | |
| SD03012 | M60 | 90 | 125 | 60 | 139 | 90 | SD04013 | M80 | 115 | 150 | 98 | 168 | 130 | |
| SD03013 | M64 | 95 | 130 | 65 | 139 | 90 | SD04014 | M85 | 120 | 150 | 98 | 178 | 130 | |
| SD03014 | M68 | 100 | 135 | 70 | 144 | 90 | SD04015 | M90 | 130 | 170 | 98 | 188 | 130 | |
| SD03015 | M72 | 105 | 135 | 70 | 149 | 90 | SD04016 | M95 | 135 | 170 | 114 | 198 | 130 | |
| SD03016 | M76 | 110 | 135 | 70 | 158 | 90 | SD04017 | M100 | 145 | 170 | 122 | 210 | 152 | |
| SD03017 | M80 | 115 | 135 | 70 | 159 | 90 | SD04018 | M105 | 150 | 190 | 140 | 216 | 152 | |
| SD03018 | M85 | 120 | 135 | 70 | 168 | 95 | SD04019 | M110 | 155 | 190 | 140 | 229 | 152 | |
| SD03019 | M90 | 130 | 155 | 93 | 189 | 95 | SD04020 | M115 | 165 | 190 | 140 | 241 | 152 | |
