CLL80012 , 800 ton 8790 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders

5out of5 based on4 reviews | Write a review

Model:CLL80012

Capacity:800 ton | 8790 KN
Stroke:300 mm | 11.81 inches
Weight:1306 kg | 2878.9 lbs
Cylinder Effective Area:1256 m²
Oil Capacity:37698 cm³

Max.pressure:700 Bar/10000 Psi

Return Type:Single-Acting Load Return

Plunger Type:Solid

Brand Name:Replacement Enerpac's CLL80012
CLL80012 , 800 ton 8790 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders CLL8006 , 800 ton 8790 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut Cylinders CLL8002 , 800 ton 8790 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut Cylinders CLL60012 , 600 ton 6300 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders CLL6006 , 600 ton 6300 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut Cylinders CLL6002 , 600 ton 6300 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut Cylinders CLL50012 , 500 ton 5114 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders CLL5006 , 500 ton 5114 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut Cylinders CLL5002 , 500 ton 5114 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut Cylinders CLL40012 , 400 ton 4308 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders CLL4006 , 400 ton 4308 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut Cylinders CLL4002 , 400 ton 4308 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut Cylinders CLL30012 , 300 ton 3434 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders CLL3006 , 300 ton 3434 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut Cylinders CLL3002 , 300 ton 3434 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut Cylinders CLL20012 , 200 ton 2198 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders CLL2006 , 200 ton 2198 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut Cylinders CLL2002 , 200 ton 2198 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut Cylinders CLL15012 , 150 ton 1588 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders CLL1508 , 150 ton 1588 KN , 200 mm 7.87 in Stroke, Single Acting Lock Nut Cylinders CLL1506 , 150 ton 1588 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut Cylinders CLL1504 , 150 ton 1588 KN , 100 mm 3.94 in Stroke, Single Acting Lock Nut Cylinders CLL1502 , 150 ton 1588 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut Cylinders CLL10012 , 100 ton 1077 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders CLL1008 , 100 ton 1077 KN , 200 mm 7.87 in Stroke, Single Acting Lock Nut Cylinders CLL1006 , 100 ton 1077 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut Cylinders CLL1004 , 100 ton 1077 KN , 100 mm 3.94 in Stroke, Single Acting Lock Nut Cylinders CLL1002 , 100 ton 1077 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut Cylinders CLL5012 , 50 ton 550 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders CLL508 , 50 ton 550 KN , 200 mm 7.87 in Stroke, Single Acting Lock Nut Cylinders CLL506 , 50 ton 550 KN , 150 mm 5.91 in Stroke, Single Acting Lock Nut Cylinders CLL504 , 50 ton 550 KN , 100 mm 3.94 in Stroke, Single Acting Lock Nut Cylinders CLL502 , 50 ton 550 KN , 50 mm 1.97 in Stroke, Single Acting Lock Nut Cylinders CLL Series Single-Acting High Tonnage Lock-Nut Hydraulic Cylinders

PDF DOWNLOAD

Description

- Model:CLL80012

- Product Line: Industrial Tools

- Type: Hydraulic Cylinder Ram, Hydraulic Jacks

- Single Acting, loads return.

- Special painted surface to increase corrosion resistance.

- Lock nut ensures the safety of long-time load holding.

- All models include quick couplings (NPT3/8"-18) and dust-proof caps.

- Overflow port function could limit the stroke.

- The exclusive guide Ring is designed to absorb eccentric loading without galling cylinder parts, reducing wear and extending life.

- Removable hardened saddles protect the plunger during lifting and pressing.

- Top and side mounted lifting eyes.

- SMA-NPT3/8 coupler and dust cap. SSL Series hydraulic pancake cylinders with lock nuts can lift the first few centimeters when low height with high force is required. ALL CLLSeries cylinders include integral tilt saddles with maximum tilt angles up to 5°.

- Select appropriate pumps to offer optimum combination. Select SAIVS high-quality high-pressure hoses.

- Material:CR40

- Manufacturer:SAIVS

- Country of Origin:China

- Minimum Order:1 Piece

- Customizable with special requirement

Image Gallery

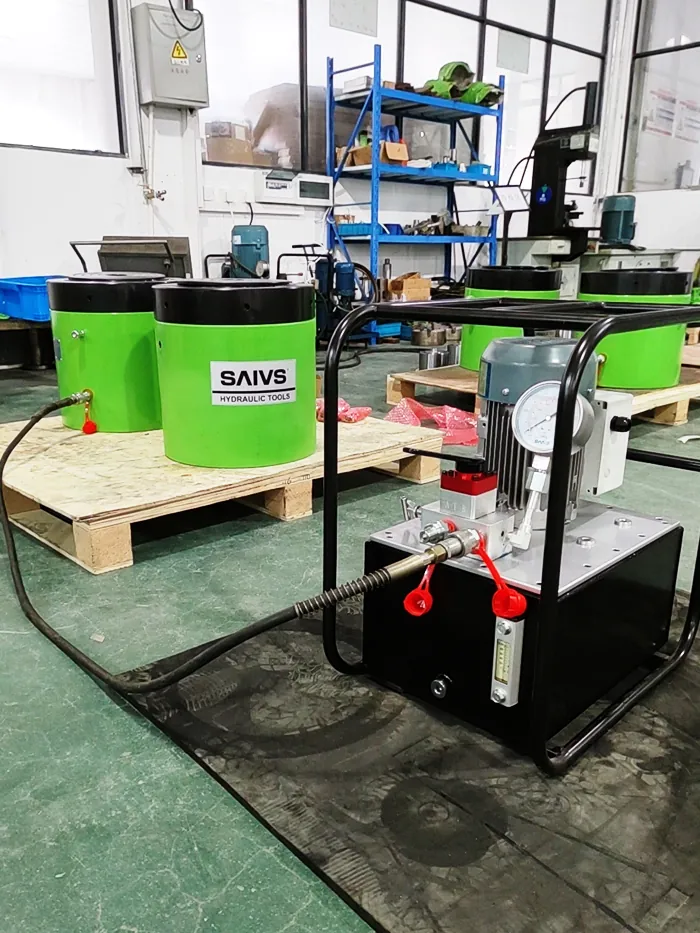

CLL80012 , 800 ton 8790 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders 1 Image-SAIVS

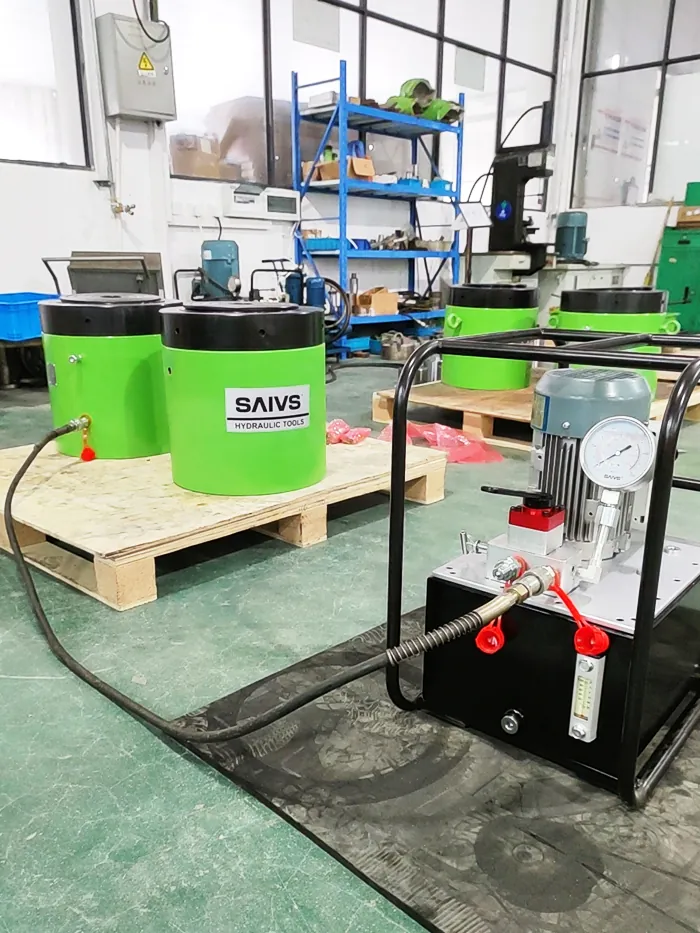

CLL80012 , 800 ton 8790 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders 2 Image-SAIVS

CLL80012 , 800 ton 8790 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders 3 Image-SAIVS

CLL80012 , 800 ton 8790 KN , 300 mm 11.81 in Stroke, Single Acting Lock Nut Cylinders 4 Image-SAIVS

Dimensions

Collapsed Height	A	(mm)	705
Extended Height	B	(mm)	1005
Outside Dia.	C	(mm)	550
Cylinder Bore Dia	D	(mm)	400
Plunger Dia.(Thread)	E	(mm)	Tr399x6
Base to Advance Port	F	(mm)	100
Saddle Dia.	H	(mm)	386
Saddle Max.Tilt Angle	R		5°
Lock nut Height	S	(mm)	100

Series Comparison

Cylinder Capacity	Stroke	Model Number	Cylinder Effective Area	Oil Capacity	Collapsed Height	Extended Height	Outside Dia.	Cylinder Bore Dia	Plunger Dia.(Thread)	Base to Advance Port	Saddle Dia.	Saddle Max.Tilt Angle	Lock nut Height	Weight
Cylinder Capacity	Stroke		Cylinder Effective Area	Oil Capacity	Collapsed Height	Extended Height	Outside Dia.	Cylinder Bore Dia	Plunger Dia.(Thread)	Base to Advance Port	Saddle Dia.	Saddle Max.Tilt Angle	Lock nut Height	Weight
					A	B	C	D	E	F	H	R	S
ton(KN)	(mm)		(cm2)	(cm3)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)		(mm)	(kg)
50 (550)	50	CLL-502	78.5	392	192	242	140	100	Tr99x4	24	90	5°	30	18
	100	CLL-504	78.5	784	242	342	140	100	Tr99x4	24	90	5°	30	25
	150	CLL-506	78.5	1176	292	442	140	100	Tr99x4	24	90	5°	30	33
	200	CLL-508	78.5	1568	342	542	140	100	Tr99x4	24	90	5°	30	41
	300	CLL-5012	78.5	2352	442	742	140	100	Tr99x4	24	90	5°	30	53
100 (1077)	50	CLL-1002	153.9	770	213	263	188	140	Tr139x6	26	130	5°	40	46
	100	CLL-1004	153.9	1540	263	363	188	140	Tr139x6	26	130	5°	40	57
	150	CLL-1006	153.9	2310	313	463	188	140	Tr139x6	26	130	5°	40	68
	200	CLL-1008	153.9	3080	363	563	188	140	Tr139x6	26	130	5°	40	79
	300	CLL-10012	153.9	4620	463	763	188	140	Tr139x6	26	130	5°	40	101
150 (1588)	50	CLL-1502	226.9	1134	209	259	228	170	Tr159x6	49	160	5°	38	56
	100	CLL-1504	226.9	2269	259	359	228	170	Tr159x6	49	160	5°	38	70
	150	CLL-1506	226.9	3403	309	459	228	170	Tr159x6	49	160	5°	38	83
	200	CLL-1508	226.9	4538	359	559	228	170	Tr159x6	49	160	5°	38	97
	300	CLL-15012	226.9	6806	459	759	228	170	Tr159x6	49	160	5°	38	124
200 (2198)	50	CLL-2002	314	1570	243	293	268	200	Tr199x6	51	186	5°	52	93
	150	CLL-2006	314	4712	343	493	268	200	Tr199x6	51	186	5°	52	131
	300	CLL-20012	314	9423	493	793	268	200	Tr199x6	51	186	5°	52	189
300 (3434)	50	CLL-3002	490.6	2453	295	345	320	250	Tr249x6	59	236	5°	60	179
	150	CLL-3006	490.6	7359	395	545	320	250	Tr249x6	59	236	5°	60	240
	300	CLL-30012	490.6	14718	545	845	320	250	Tr249x6	59	236	5°	60	331
400 (4308)	50	CLL-4002	615.4	3077	335	385	370	280	Tr279x6	70	256	5°	70	266
	150	CLL-4006	615.4	9231	435	585	370	280	Tr279x6	70	256	5°	70	345
	300	CLL-40012	615.4	18462	585	885	370	280	Tr279x6	70	256	5°	70	464
500 (5114)	50	CLL-5002	803.8	4019	375	425	420	320	Tr319x6	80	306	5°	80	358
	150	CLL-5006	803.8	12057	475	625	420	320	Tr319x6	80	306	5°	80	454
	300	CLL-50012	803.8	24114	625	925	420	320	Tr319x6	80	306	5°	80	597
600 (6300)	50	CLL-6002	1017.4	5087	395	445	500	360	Tr359x6	85	346	5°	85	490
	150	CLL-6006	1017.4	15261	495	645	500	360	Tr359x6	85	346	5°	85	614
	300	CLL-60012	1017.4	30522	645	945	500	360	Tr359x6	85	346	5°	85	800
800 (8790)	50	CLL-8002	1256	6280	455	505	550	400	Tr399x6	100	386	5°	100	843
	150	CLL-8006	1256	18840	555	705	550	400	Tr399x6	100	386	5°	100	1028
	300	CLL-80012	1256	37698	705	1005	550	400	Tr399x6	100	386	5°	100	1306
