Quick Couplers
-
Hose Coupling, Quick Couplers Set, Quick Release Coupling
Max.pressure: 700-1600bar
Connection: Thread/Flush-face
NPT3/8”Thread quick couplers
Standard equipment on most hydraulic cylinders.
Recommended for use on all hydraulic pumps and cylinders where space and porting permits.
Includes "2-in-1" dust cap for on male and female couplers.
M22x1.5 Flush-face
Application:ManufacturingPulp & paperMiningForestry

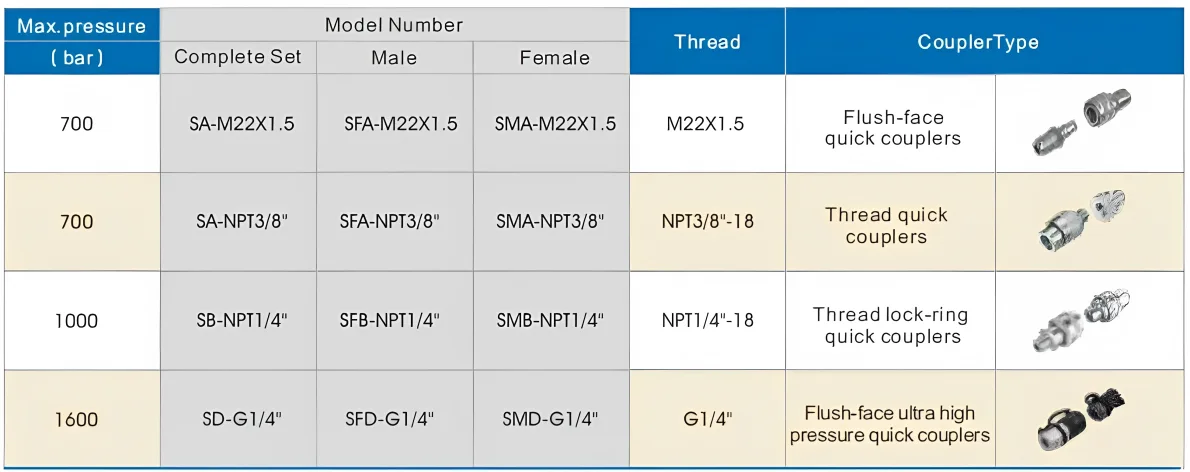

Description
Hose Coupling, Quick Couplers Set, Quick Release Coupling
Max.pressure: 700-1600bar
Connection: Thread/Flush-face
NPT3/8”Thread quick couplers
Standard equipment on most Hydraulic Cylinders.
Recommended for use on all hydraulic pumps and cylinders where space and porting permits.
Includes "2-in-1" dust cap for on male and female couplers.
M22x1.5 Flush-face quick couplers
Flush-face,zero-leak operation for minimal spillage.
Includes dust cap.
NPT1/4”Thread lock-ring quick couplers
For use hydraulic wrenches and wrench pumps (anti loosening function).
Includes aluminium dust cap.
G1/4” Flush-face ultra high pressure quick couplers
For use ultra high pressure( Bolt Tensioners,1600bar Hand Pumps).
Includes dust cap.
When using teflon sealing tape, tighten the sealing tape from one turn away from the end of the thread to prevent it from falling off in the Hydraulic System.
warning: Couplers should be pressurized only when completely connected,and should not be coupled or uncoupled when pressurized.
